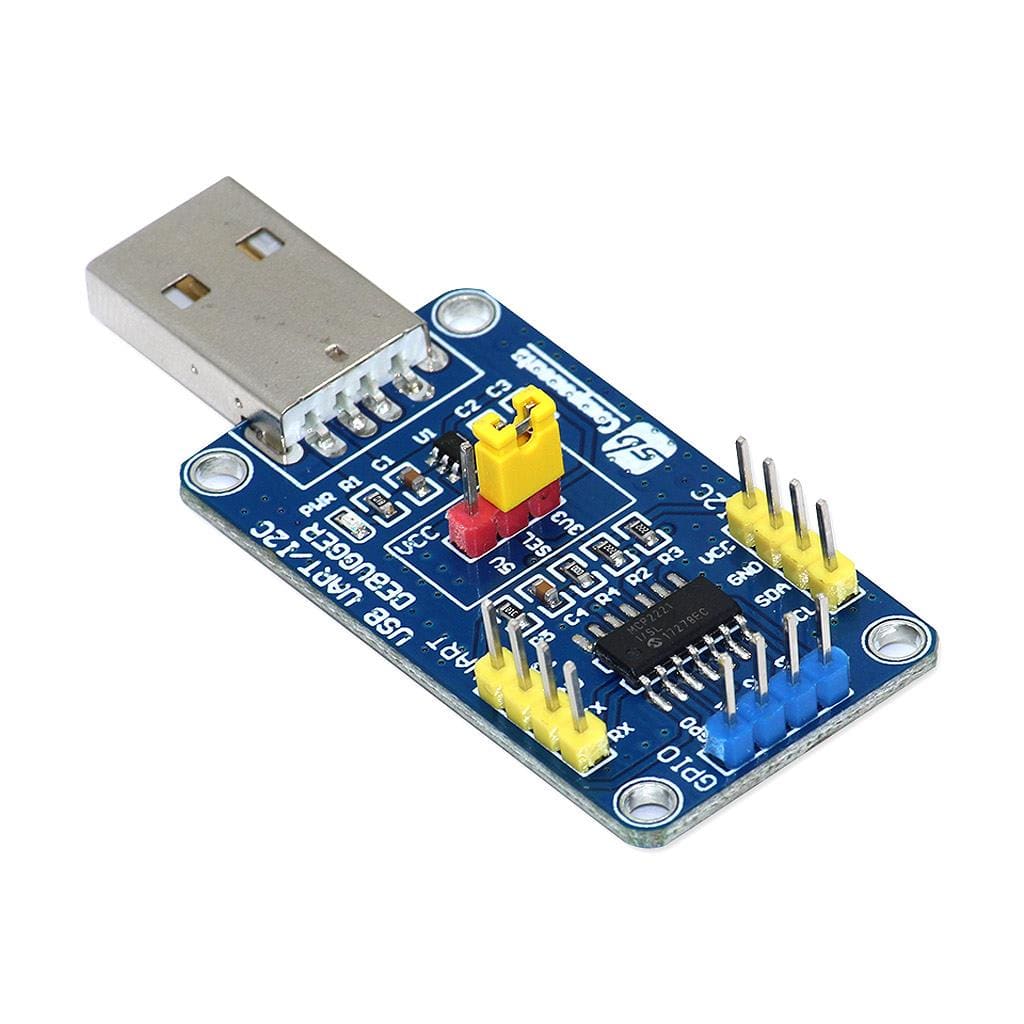

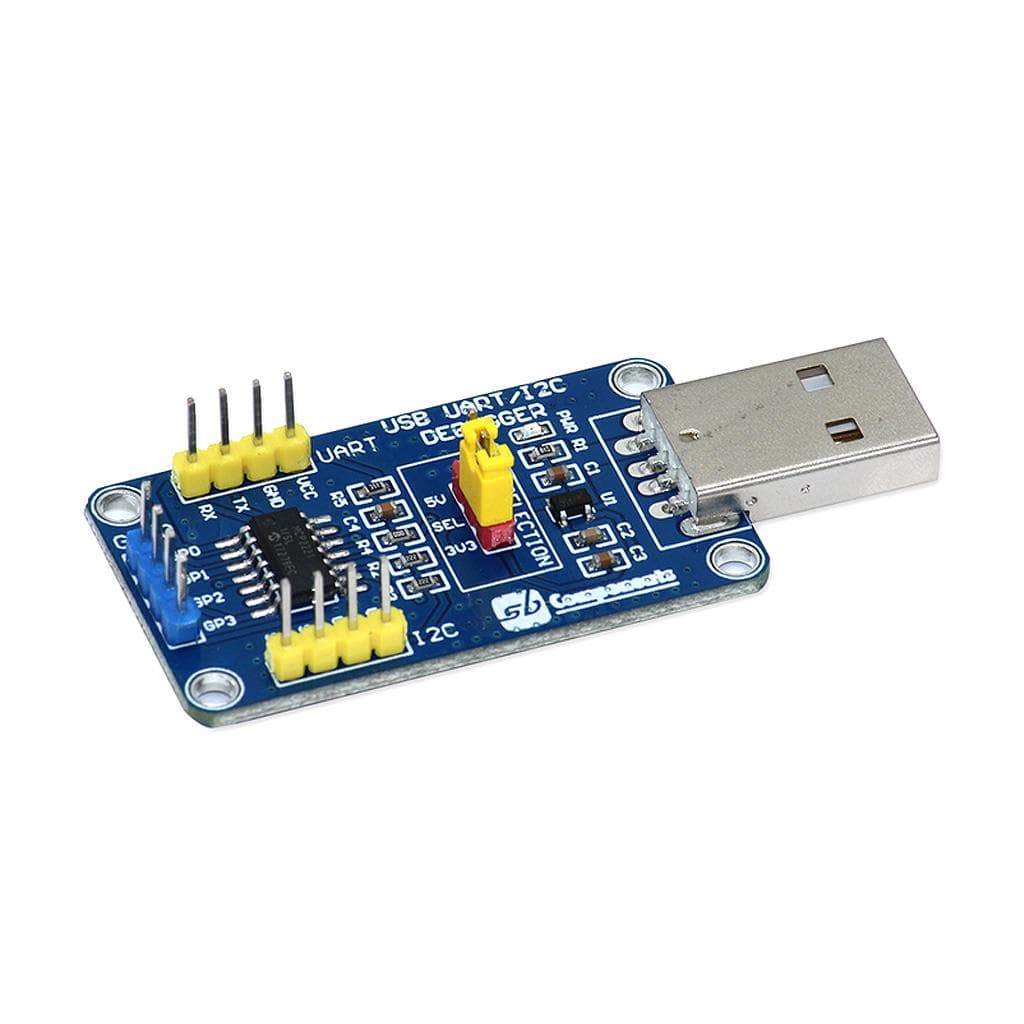

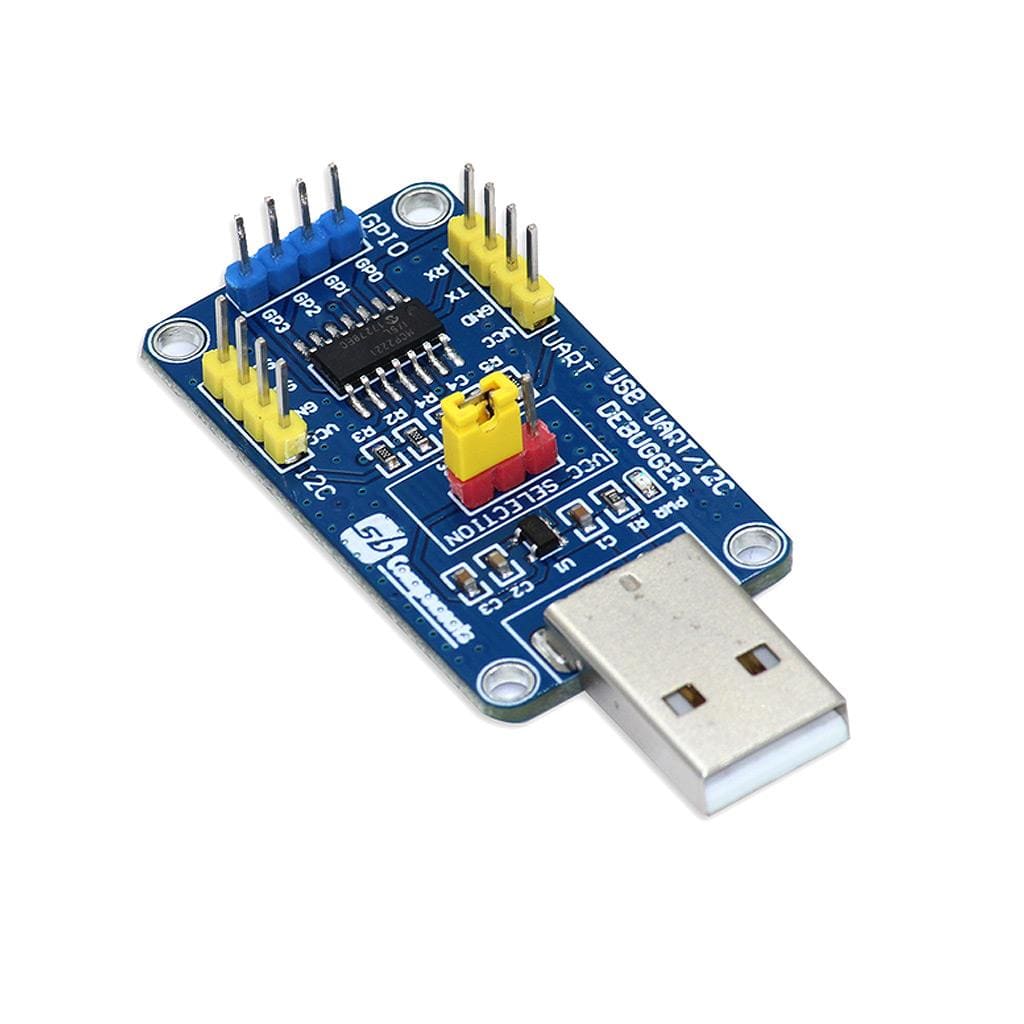

USB UART/I2C Debugger

This is a USB UART/I2C Debugger - perfect for debugging a development board!

The debugger comprises a low-power MCP2221 USB to UART/I2C converter enabling USB connectivity for UART(Serial), GPIO and I2C interfaces.

The board supports full-speed USB (12 Mb/s), I2C up to 400 kHz clock rates and UART baud rates between 300 and 460800. It can operate on 3.3V or 5V logic levels via the onboard selection jumper.

This handy accessory allows you to configure/debug a module or development board with UART/I2C/GPIO Communication.

Features

• USB to UART/I2C Converter
• Supports full-speed USB (12 Mb/s)
• I2C with up to 400 kHz clock rates
• UART baud rates between 300 and 460800 bps

Specifications

• Operating Voltage: 3.3V or 5V DC
• Chip: MCP2221
• Communication: I2C/UART/GPIO
• USB Speed: 12Mb/s

Resources

• GitHub

Package Contents

• 1x USB UART/I2C Debugger

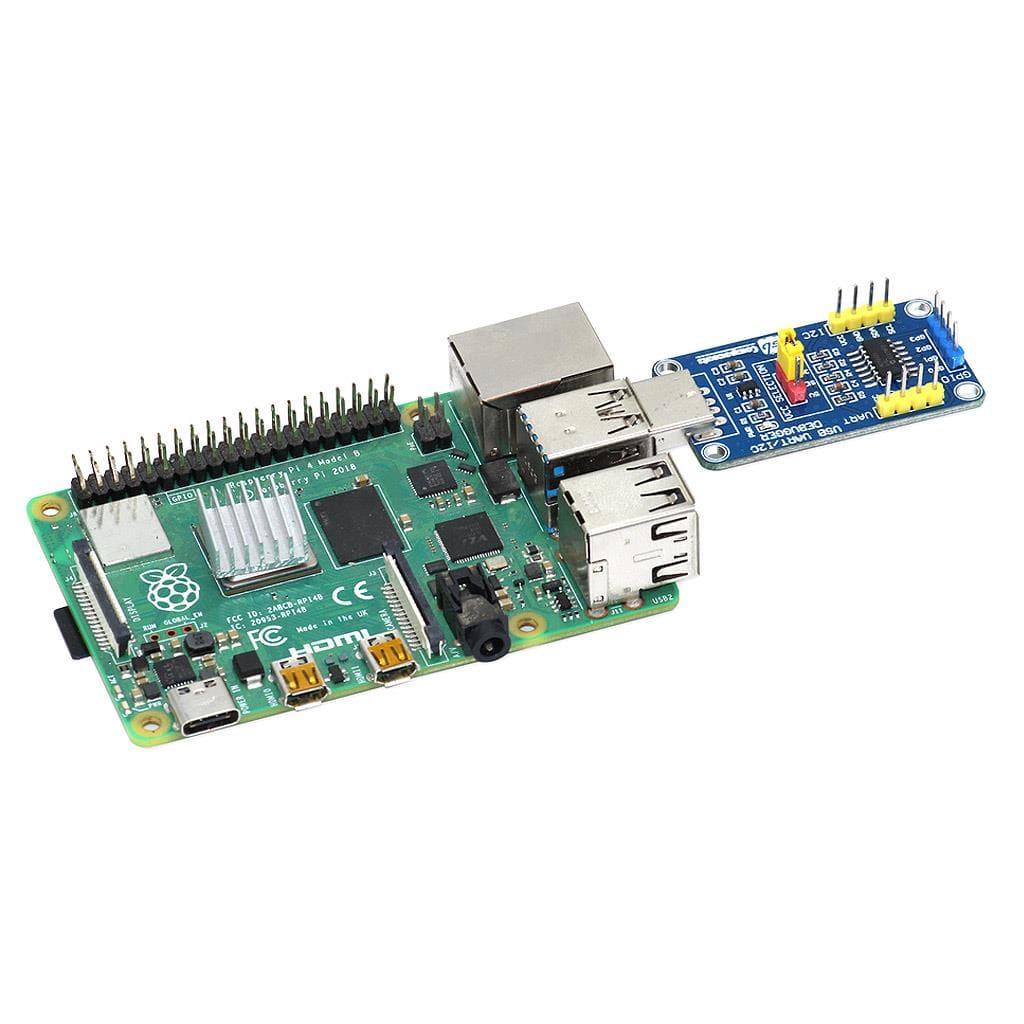

Raspberry Pi not included
