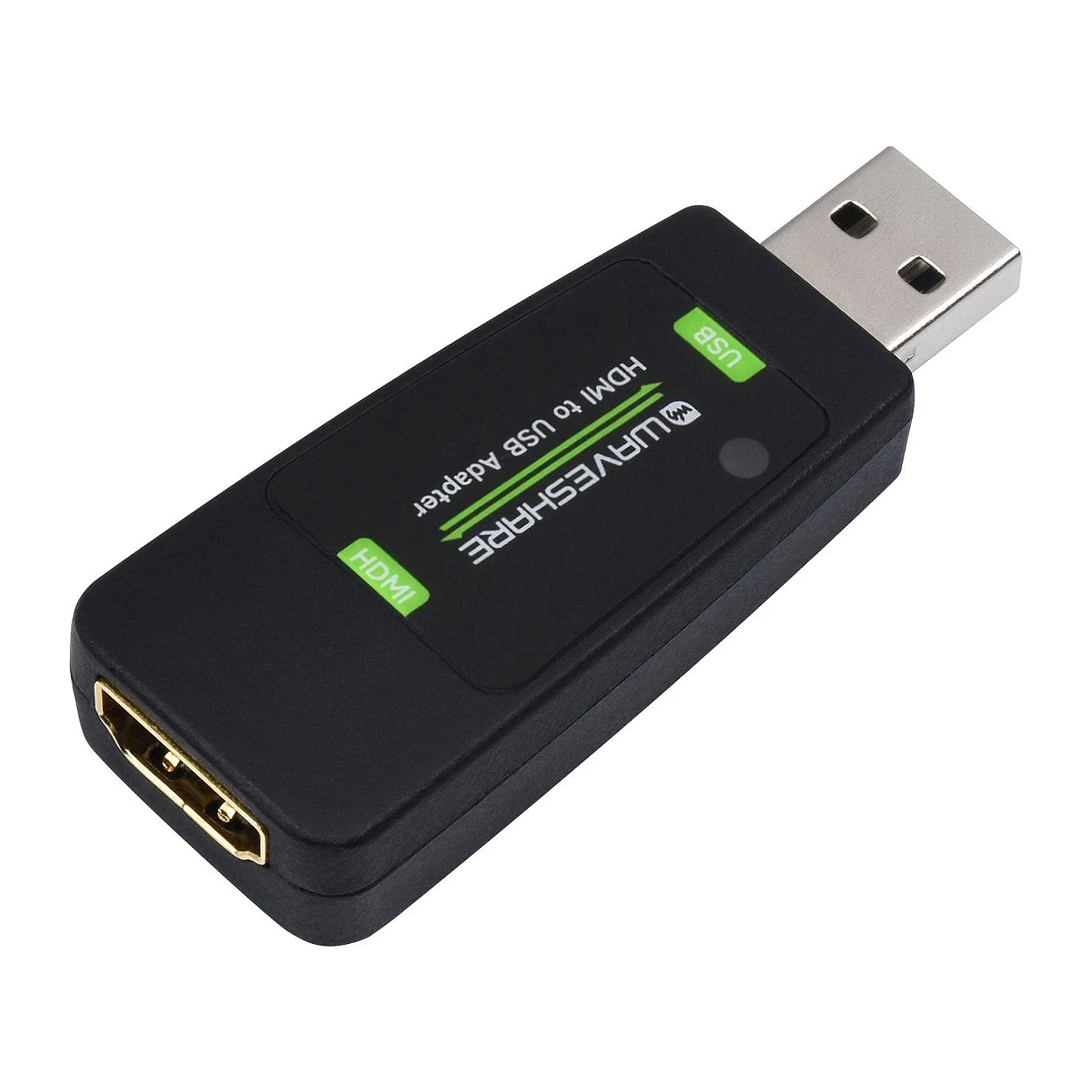

HDMI to USB 3.0 Adapter

This HDMI to USB 3.0 adapter is used for video capture in gaming, streaming, and cameras. It has a 4K input (30Hz) and a 1080P output (30Hz/60Hz) with ultra-low latency, giving you a smooth transmission without lag. It supports a wide variety of devices including a Raspberry Pi, smartphone, game console, set-top box, laptop, and many more!

Supporting multiple systems including Windows, Linux, MacOS and Android, this adapter is easy to use, fast, reliable and is available to use in many different devices.

Features

• Compatible with HDMI 1.4B
• Support DVI1.0
• Support HDCP1.4
• Support RGB444/YCBCR422/YCBCR444/YCBCR420
• Support colour depth 24/30/36-bit mode
• Support CEA-861/CEA-861-F video format
• Maximum supported resolution: 4K (3840x2160@30Hz)


USB Output

• Built-in USB 3.0 device
• Compatible with USB 2.0 device mode
• USB video complies with the UVC 1.0 protocol
• Support YUV422 and MJPEG mode
• Maximum supported resolution: 1080P (1920x1080@60Hz)
• Support user-define resolution
• USB audio is compliant with the UVC1.0 protocol

Specifications

INPUT	HDMI
	Input resolution up to 4K (3840x2160@30Hz)
	HDMI 1.4B compliant
OUTPUT	USB3.0	USB2.0
	Output resolution up to 1080P	Output resolution up to 1080P
	(1920*1080@60Hz)	(1920*1080@30Hz)
	Supports YUV422 and MJPEG modes	Supports YUV and JPEG modes
	UVC1.0 and UAC1.0 protocol compliant
TRANSMISSION LATENCY	As low as 50ms	100~150ms
AUDIO	Default 48KHz stereo output	Default 96KHz stereo output
SYSTEM SUPPORT	Windows, Linux, macOS, Android
SOFTWARE SUPPORT	OBS, Potplayer, QuickTime, XSplit, etc.

Resources

• Product Wiki

Package contents

• 1x HDMI to USB Adapter
