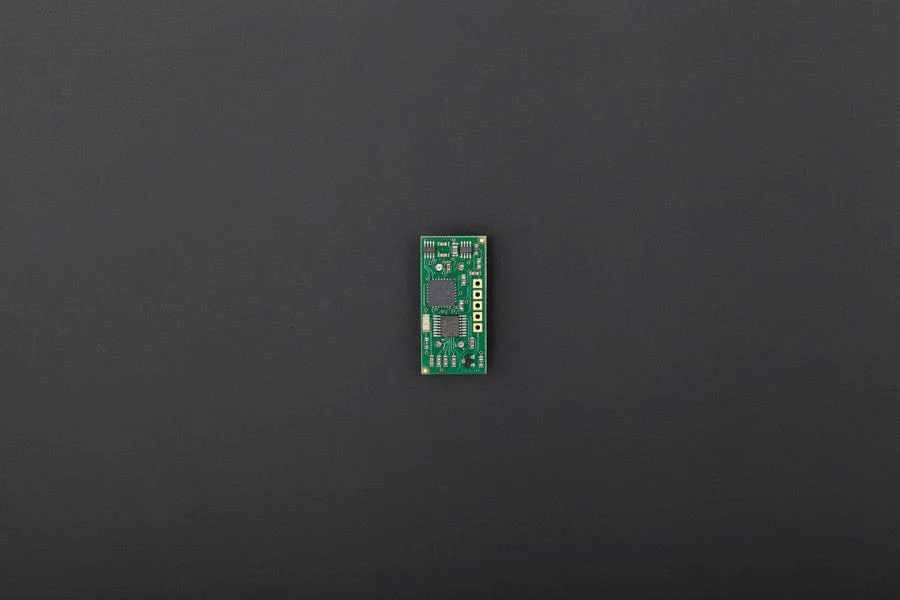

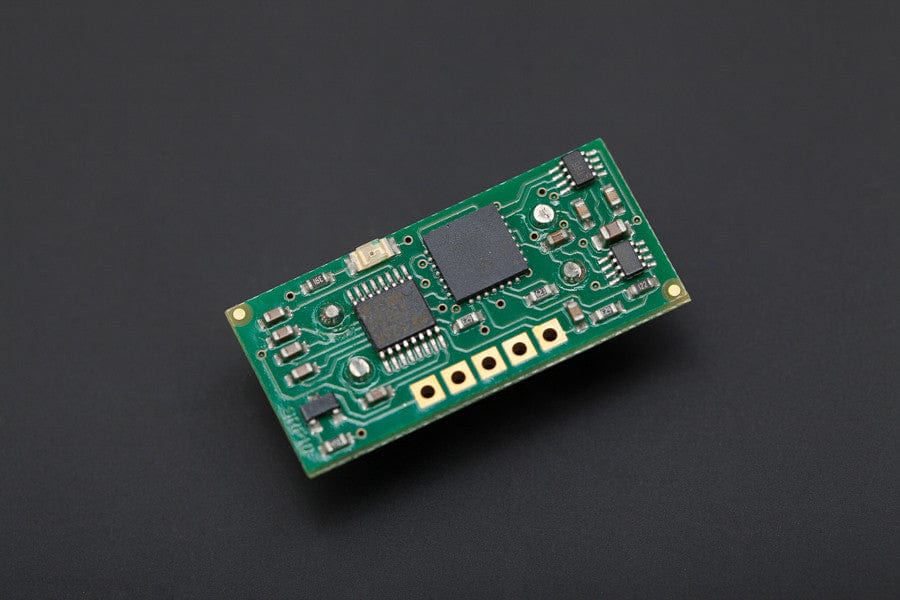

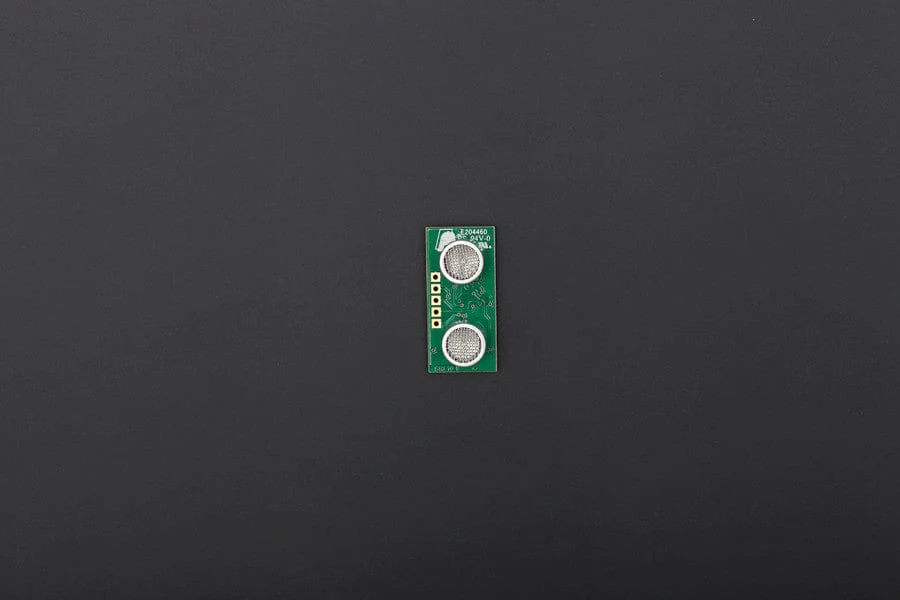

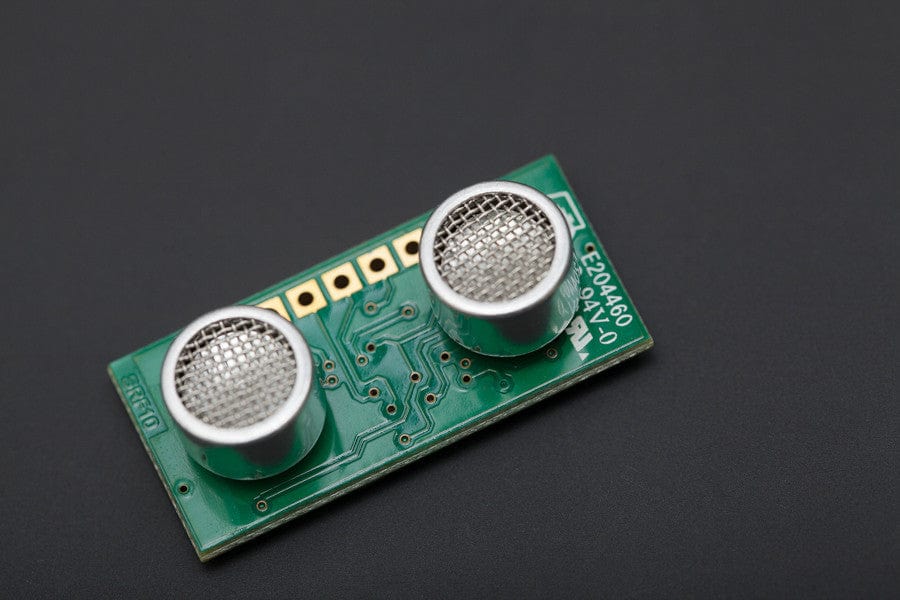

SRF10 - The Worlds Smallest Dual Transducer Ultrasonic Ranger [Discontinued]
This small sonar ranger from Devantech offers an amazing wide range from 3cm to 6m. The SRF10 is interfaced using the IIC bus.
Specification
- Voltage-5v
- Current-15mA Typ. 3mA Standby
- Frequency-40KHz
- Maximum Range-6 m(236.2'')
- Minimum Range-3 cm(1.2'')
- Max Analogue Gain-Variable 40 to 700 in 16 steps
- Connection-Standard IIC Bus
- Timing-Fully timed echo, freeing host computer of task
- Units-Range reported in uS, mm or inches
- Size-1.25in w x 0.59in d x 0.39in h (32mm w x 15mm d x 10mm h)
Documents
$15.12
Original: $43.20
-65%SRF10 - The Worlds Smallest Dual Transducer Ultrasonic Ranger [Discontinued]—
$43.20
$15.12Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This small sonar ranger from Devantech offers an amazing wide range from 3cm to 6m. The SRF10 is interfaced using the IIC bus.
Specification
- Voltage-5v
- Current-15mA Typ. 3mA Standby
- Frequency-40KHz
- Maximum Range-6 m(236.2'')
- Minimum Range-3 cm(1.2'')
- Max Analogue Gain-Variable 40 to 700 in 16 steps
- Connection-Standard IIC Bus
- Timing-Fully timed echo, freeing host computer of task
- Units-Range reported in uS, mm or inches
- Size-1.25in w x 0.59in d x 0.39in h (32mm w x 15mm d x 10mm h)
Documents
