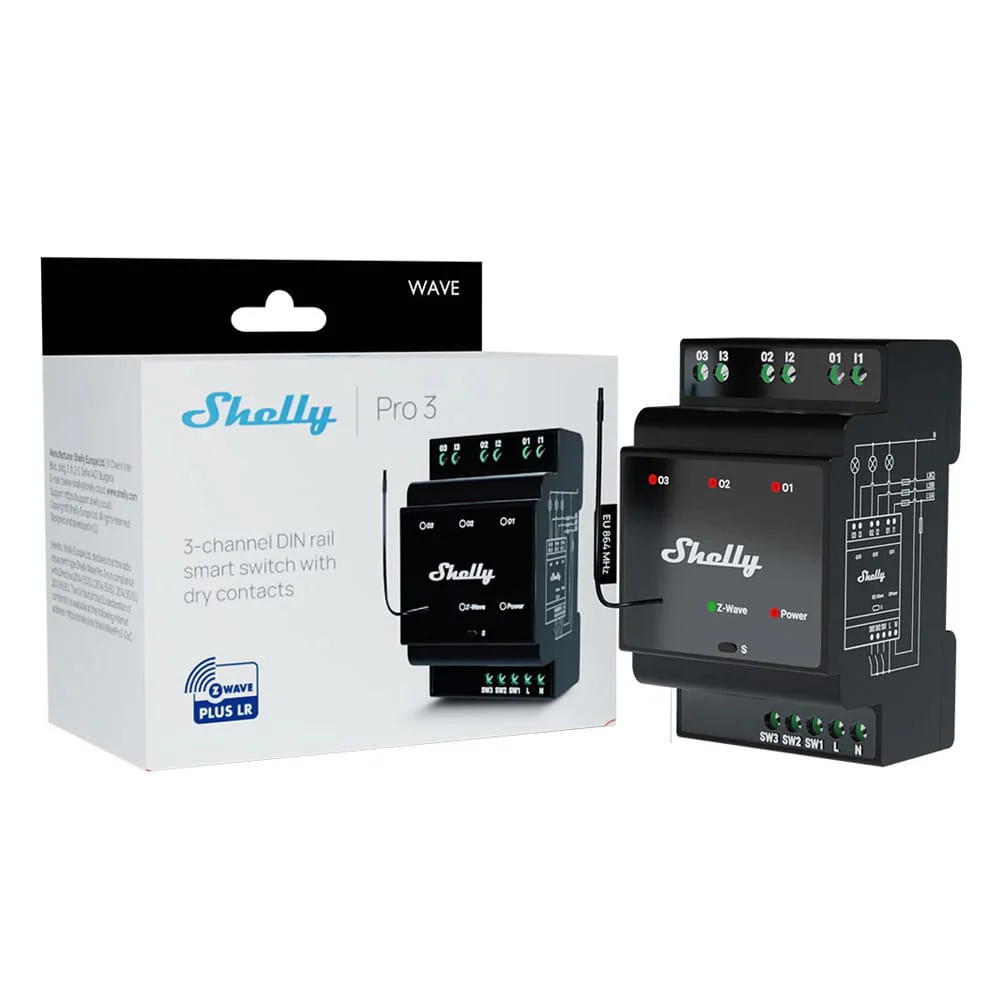

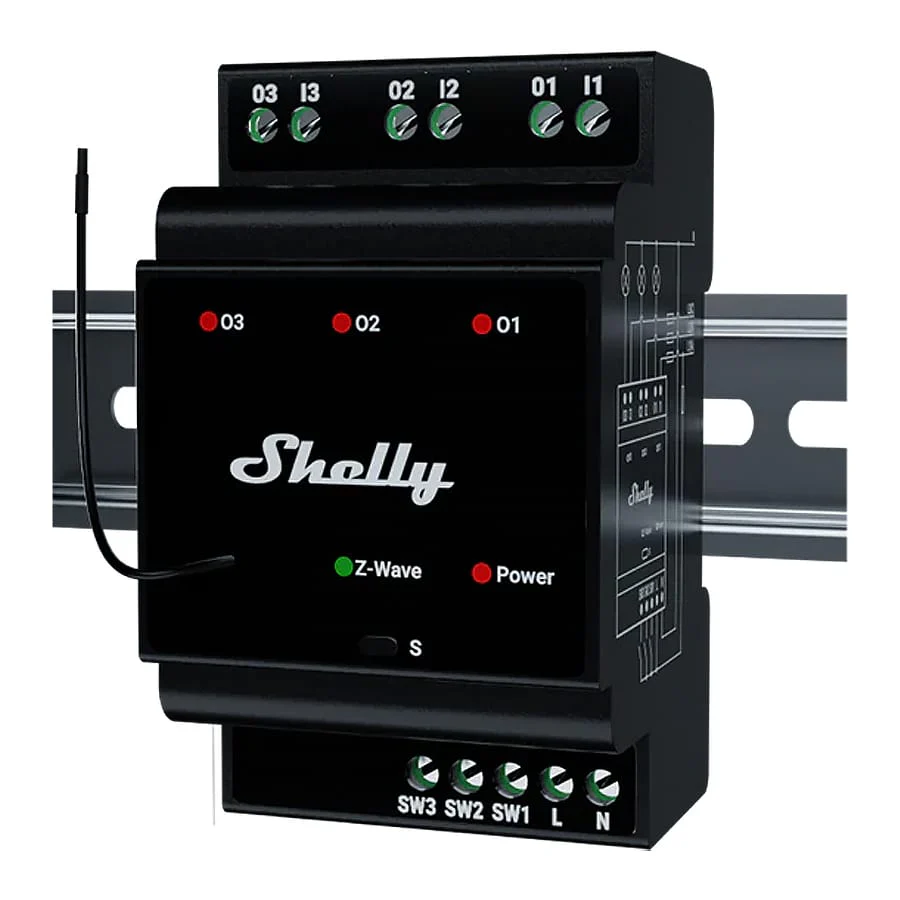

Shelly Wave Pro 3 LR

The Shelly Wave Pro 3 LR is a Z-Wave Long Range DIN rail mountable 3-channel smart switch with potential-free contacts. It controls the on/off function for three independent electrical devices with a load up to 16A per channel (48A in total). It is compatible with switches (default) and push-buttons - Now with Z-Wave Long Range for extended coverage and reliable residential or commercial use.

With potential-free outputs (dry contacts), it offers broad voltage compatibility and flexible application. Easily create actions, schedules, and automation scenarios tailored to your needs. Its long-range wireless connectivity ensures reliable performance across large properties, perfect for complex or professional installations.

Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs, via the Shelly smart home ecosystem, including the Shelly Smart Control app - or link it with a popular home automation software such as Home Assistant via a Raspberry Pi!

Note: You may require a neutral wire to use this product. Please research the device and your home wiring (safely, see below) before purchasing.

View our entire range of Shelly Pro and other professional home automation products.

Key features include:

• Z-Wave operated - Include the device to your Z-Wave network and control it remotely.
• Custom schedules - Set custom schedules based on your daily agenda or automatically follow the sunrise/sunset and control your appliances accordingly (gateway required)
• Smart scenes - Set custom scenes by combining the device with any other Z-Wave devices (gateway required).
• Dry contacts - Supporting low and high voltages, this device enables you to control a wide range of AC devices and appliances.
• Z-Wave Long Range - The range of the device is exceeding 1 km (line of sight). ZWLR works as a star network.
• DIN-mountable - Intended to be installed inside the breaker box and designed to meet the global DIN rail standardisation.

Works with all certified Z-Wave Gateways

Shelly Wave Pro Shutter LR is retrofit and designed to fit behind some switches or sockets. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control it from anywhere using your smartphone or tablet. Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways.

• To take advantage of the Z-Wave Long Range feature, you will need a Long Range compatible receiver - such as the Home Assistant ZWA-2.

By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.

Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: www. z-wavealliance.org

Automate office lighting for smarter energy use

Optimise energy consumption by automating office lights with smart schedules, timers, and custom scenarios. The device lets you control lighting across multiple zones independently, allowing you to turn off lights on operational floors after working hours and automatically switch them back on only where needed at 7:00 AM.

Thanks to its extended wireless reach, you can rely on consistent performance even in larger office buildings—ensuring no light is left on unnecessarily and efficiency is always maintained.

Optimise your energy usage

Stop unnecessary energy usage in the office over the weekend! Ensure maximum energy efficiency by automating socket power delivery with this device. Implement smart scheduling to deactivate power to non-essential, high-consumption electrical appliances in office spaces from 7:00 PM to 7:00 AM on weekdays and throughout weekends.

That way, you will cut the energy consumption of these devices in half, which will result in significant optimization of the monthly energy cost.

Optimal indoor climate

Maintaining a comfortable temperature in guest rooms, reception areas, restaurants, and meeting rooms is essential for guest satisfaction and staff well-being. Yet doing so without wasting energy can be a challenge, especially with seasonal changes.

By integrating the device for motorised valve control in water distribution systems, hotels can intelligently manage heating, cooling, and other valve-based operations. Its extended range capability ensures stable performance across large buildings, enabling efficient control wherever it’s needed.

---

⚠️Caution - Read Before Buying⚠️

• Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
• Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
• Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
• Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
• Do not connect the device to appliances exceeding the given max load.
• Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
• Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.

---

Features

• 3 channels, 16A each. Total device maximum of 48A
• Supports Z-Wave Long Range - mantains a strong connection over distances exceeding 1 km (line of sight)
• Dry contacts
• DIN-rail mountable
• Energy efficient: uses only up to 0.3 W of power
• Dual Z-Wave frequency options: choose between 864 MHz (ZWLR) or 868.4 MHz ( Z-Wave Plus)
• Latest Z-Wave 800 series
• Easy set up with SmartStart - just scan and go
• Top level Security, S2 authenticated
• Supports OTA firmware updates

Specifications

Power supply	110 - 240 V ̴ 50/60 Hz
Power consumption	< 0.3W
Power measurement [W]	No
Max. switching voltage AC	240V
Max. switching current AC	16A per channel, 48A total
Max. switching voltage DC	30V
Max. switching current DC	16A per channel, 48A total
Overheating protection	Yes
Long range network
Distance (depends on local condition)	Up to 80m indoors or up to 1000m outdoors
Z-Wave® repeater	No
Z-Wave® frequency bands	864 MHz
Mesh network
Distance (depends on local condition)	Up to 40m indoors
Z-Wave® repeater	Yes
Z-Wave® frequency bands	868.4 MHz
CPU	Z-Wave® S800
Maximum radio frequency power transmitted in frequency band(s)	< 25 mW
Size (H x W x D)	96x53x59 ± 0.5 mm
Weight	150g
Mounting	DIN rail
Screw terminals max. torque	0.4 Nm / 3.54 lb″
Conductor cross section	0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
Conductor stripped length	6 to 7 mm (green connector)
Shell material	Plastic
Colour	Black
Ambient temperature	-20°C to 40°C
Humidity	30% to 70% RH
Max. altitude	2000m

Resources

• Shelly Product Documentation
• Printed User Guide (as found within the package)
• Declaration of Conformity
• Device Identification
  • Device name: Shelly Wave Pro 3 (EU)
  • Device number: QUSW-0A3X16EU
  • Z-Wave Product type ID: 0x0002
  • Z-Wave Product ID: 0x0091
  • Z-Wave Manufacturer: Shelly Europe
  • Z-Wave Manufacturer ID: 0x0460
• EAN: 3800238071998

Handy Shelly Resources

• Shelly Cloud
• Shelly App
  • Apple App Store
  • Google Play
  • Huawei AppGallery
• Home Assistant Shelly Integration
• Shelly Community Forum
• Shelly Facebook Support Group
• Shelly Knowledgebase
• Shelly Device Finder (easy-to-use software to find Shelly devices in the local network)
• Shelly Developer API

Package Contents

• 1x Shelly Wave Pro 3 LR
