Pycom LTE-M Cellular Antenna [Discontinued]

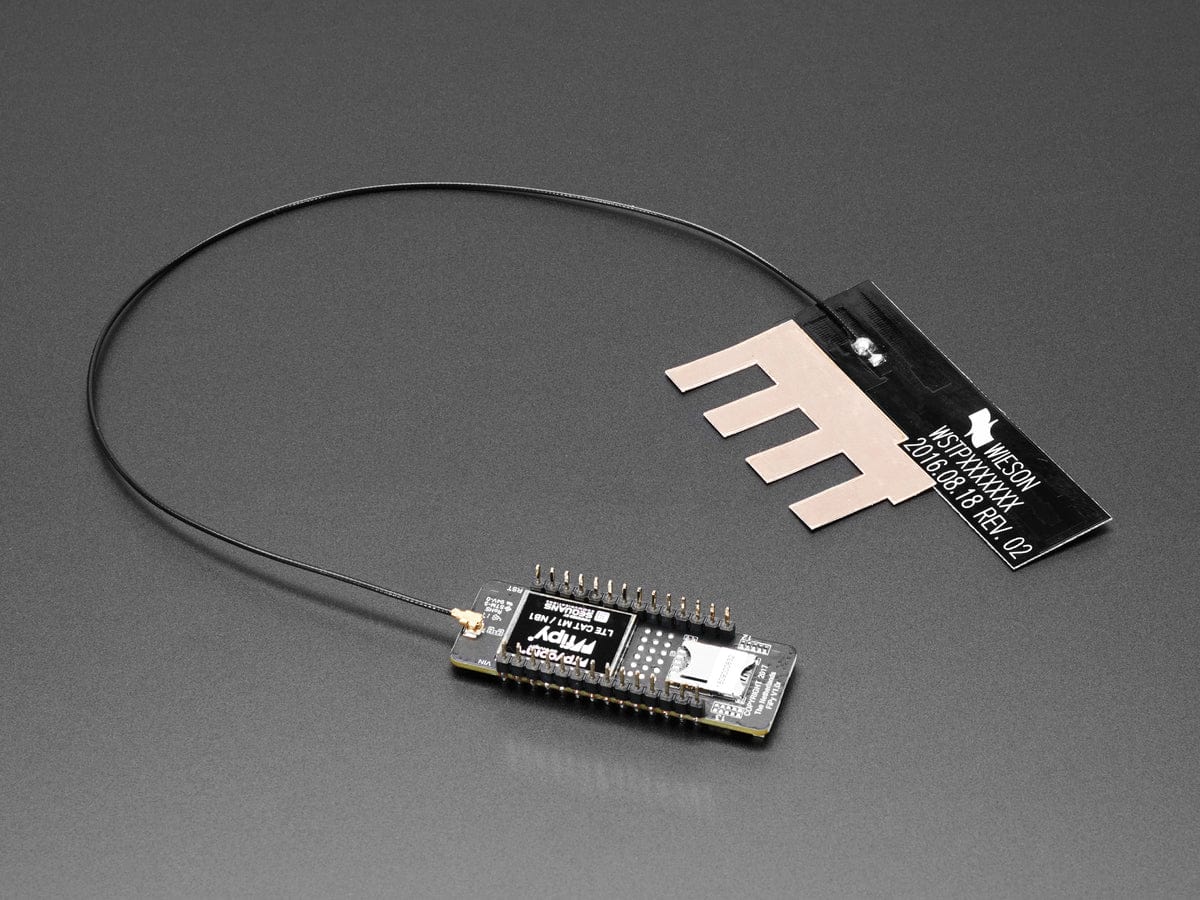

This antenna is a perfect addition to your cellular project with LTE connectivity. It's specifically intended for use with the Pycom LTE-powered kits but it's just a passive antenna so you can pair it with any dev board you like, as long as it has a uFL connector.
Comes with a flexible copper grounding sticker, you can use to provide a nice big ground plane!
Technical Details
Dimensions
- 7.5 x 2.1 cm
Weight
- .04 kg
Specifications
- LTE band 28/38*2
- Frequency: 703~803/2520~2620(MHz)
- Antenna size: 75 x 21 (mm)
- PCB 0.6 mm
Low bands
- (5, 8, 12, 13, 18, 19, 20, 28)
- Tx frequencies 699 to 915 MHz
- Rx frequencies 729 to 960 MHz
Mid bands
- (1, 2, 3, 4)
- Tx frequencies 1710 to 1980MHz
- Rx frequencies 1805 to 2170 MHz
Original: $13.70
-65%$13.70
$4.79Product Information
