PoE to Micro-USB Adapter for Raspberry Pi Zero

This is the ultimate Micro-USB Ethernet adapter for your Raspberry Pi Zero! With multiple working modes, it helps you supply Ethernet and power over a single Micro-USB connector.

With its PoE (Power over Ethernet) support, you can use a single power-injected RJ45 Ethernet cable to deliver both network connection and power supply to your Micro-USB devices (that support ethernet over Micro-USB port) in a stable hardwire connection.

The adapter is IEEE 802.3af compliant and can provide up to 5V 2.5A.

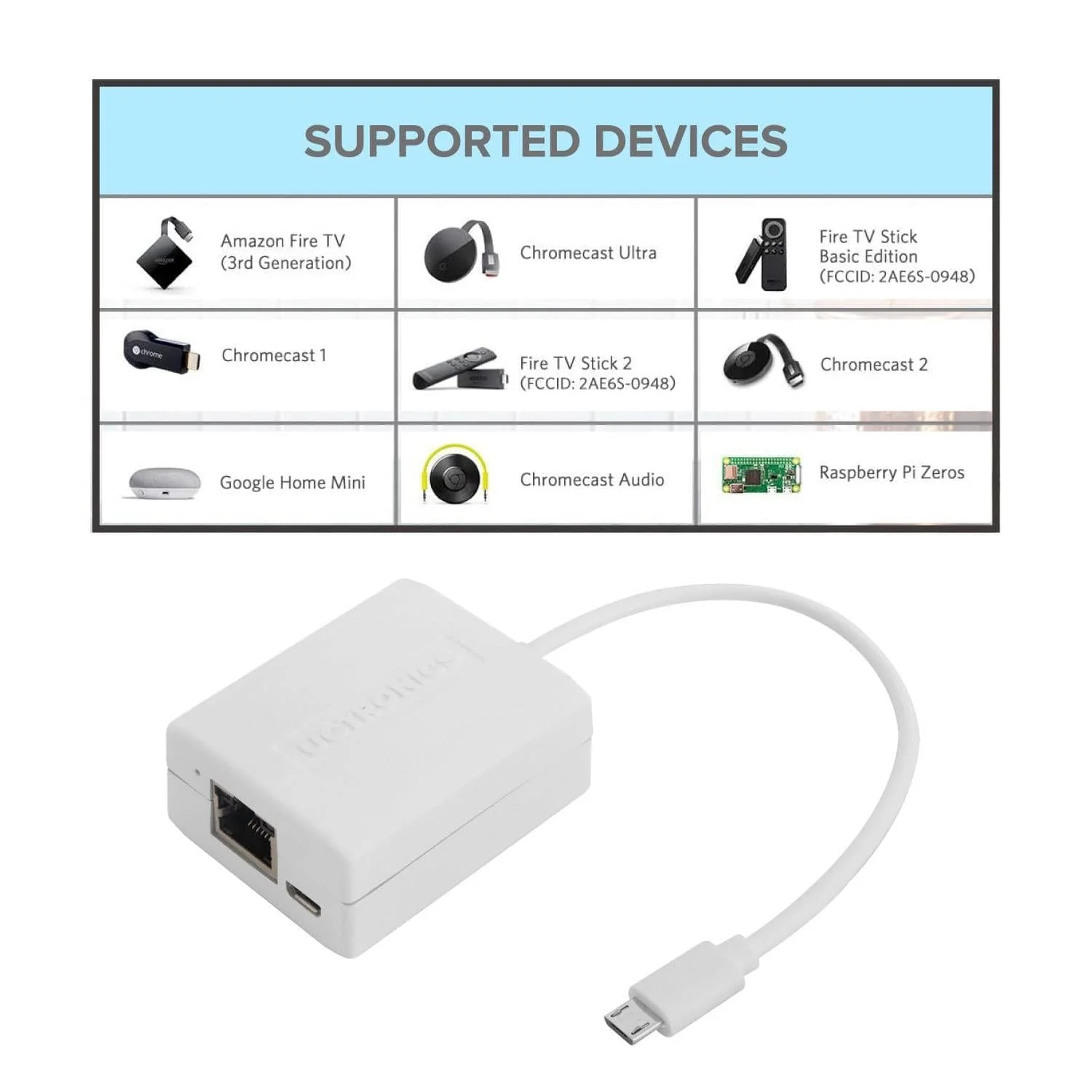

It's not limited to the Pi Zero either - it'll also work on your Fire TV Stick, Chromecast, Google Mini and more (see working mode information below)!

Features

• Standards: IEEE 802.3af
• Power Input: IEEE 802.3af PoE
  • Compatible with the Raspberry Pi PoE+ Injector

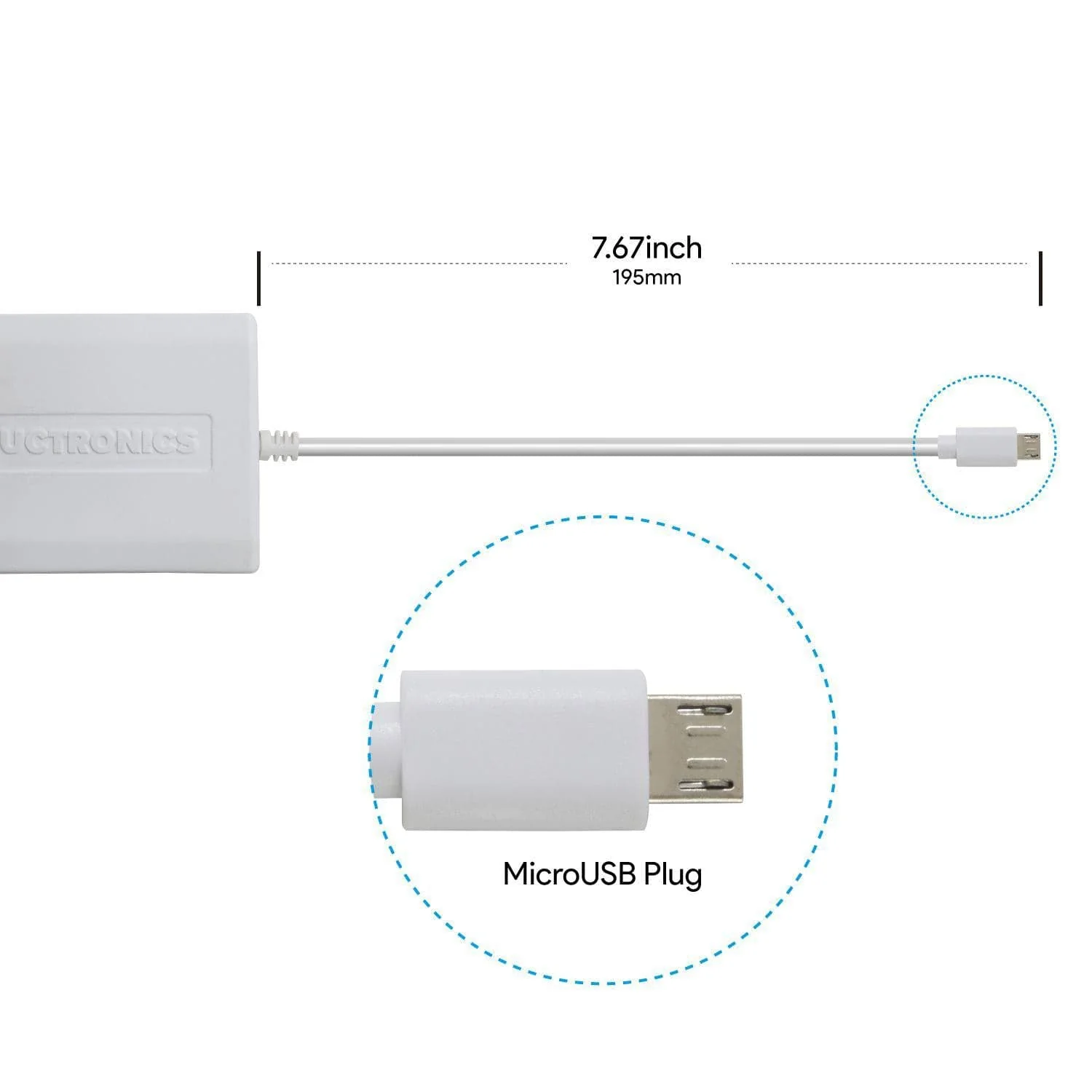

• 5V Micro-USB output
• PoE Port: 0/100Mbps
• LAN Port: RJ45
• Power Output: 12.5W Max (5V/2.5A)
• Safety & Emissions: FC, CE
• Operating Temp.: 0℃～40℃(32℉～104℉)
• Storage Temp.: -40℃～70℃(-40℉～158℉)
• Operating Humidity: 10%～90% RH, Noncondensing
• Storage Humidity: 5%～90% RH, Noncondensing

Working Modes

• PoE to Micro-USB Adapter Mode: Use an Ethernet cable running from the Power source (IEEE 802.3af compliant PoE switch or injector) to connect to the PoE/Ethernet IN port of this adapter, and then connect Micro-USB Out to your device.
• Fire TV Ethernet Adapter Mode: Connect an Ethernet cable with a network connection to the PoE/Ethernet IN port of this adapter, insert an extra Micro-USB power supply to Micro-USB Power In and then connect Micro-USB Out to your device.
• Micro-USB Ethernet Adapter Mode: Connect an Ethernet cable with a network connection to the PoE/Ethernet IN port of this adapter, and then connect Micro-USB Out to your device. The adapter will not feed power but will deliver Ethernet to your device, which should have been powered with another power supply.

Package Includes

• IEEE 802.3af Micro-USB Ethernet (PoE) Adapter
• User guide

Note

You need a PoE switch or injector (IEEE 802.3af recommended) to serve as the PSE (Power Source Equipment) when you are using this adapter in the PoE mode.
