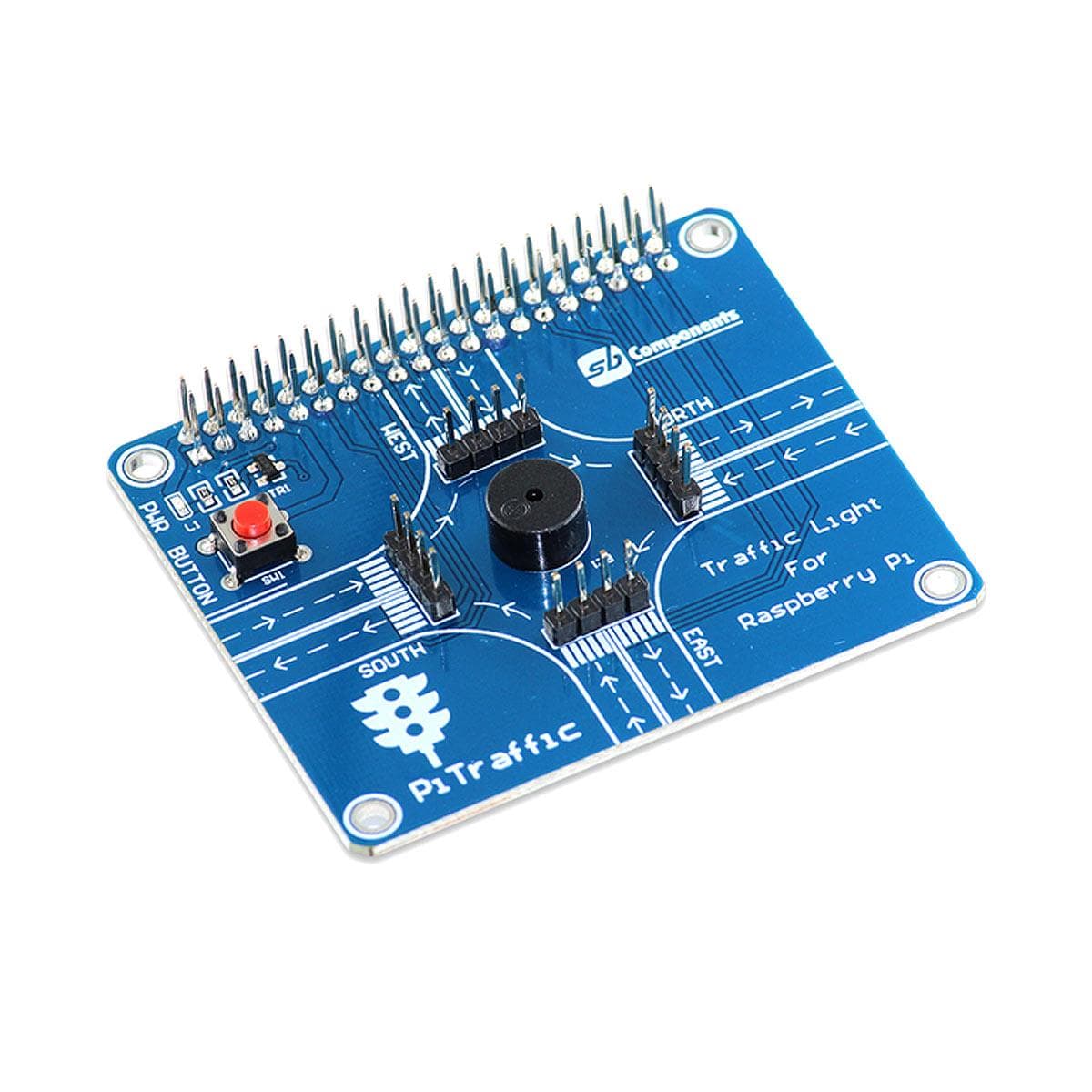

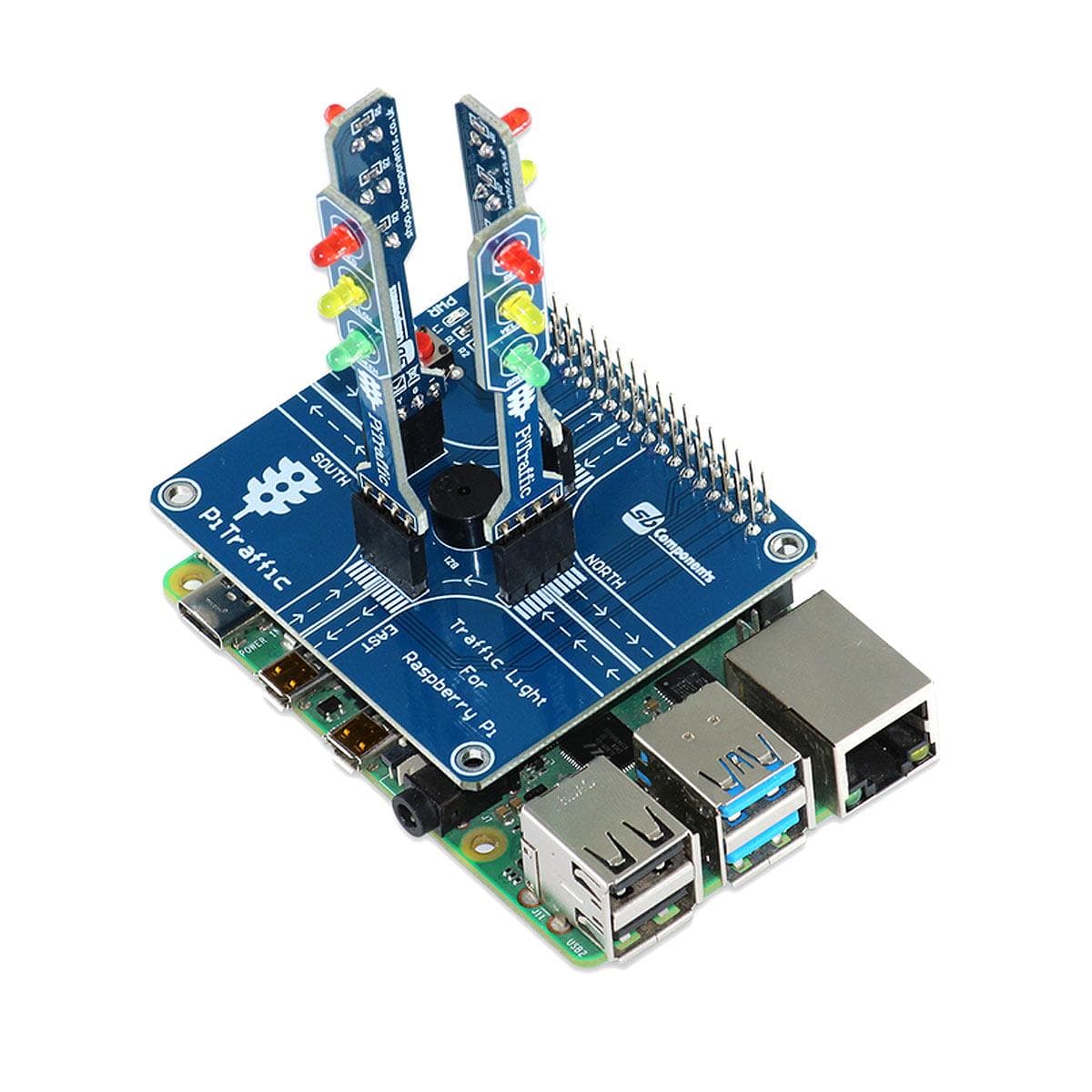

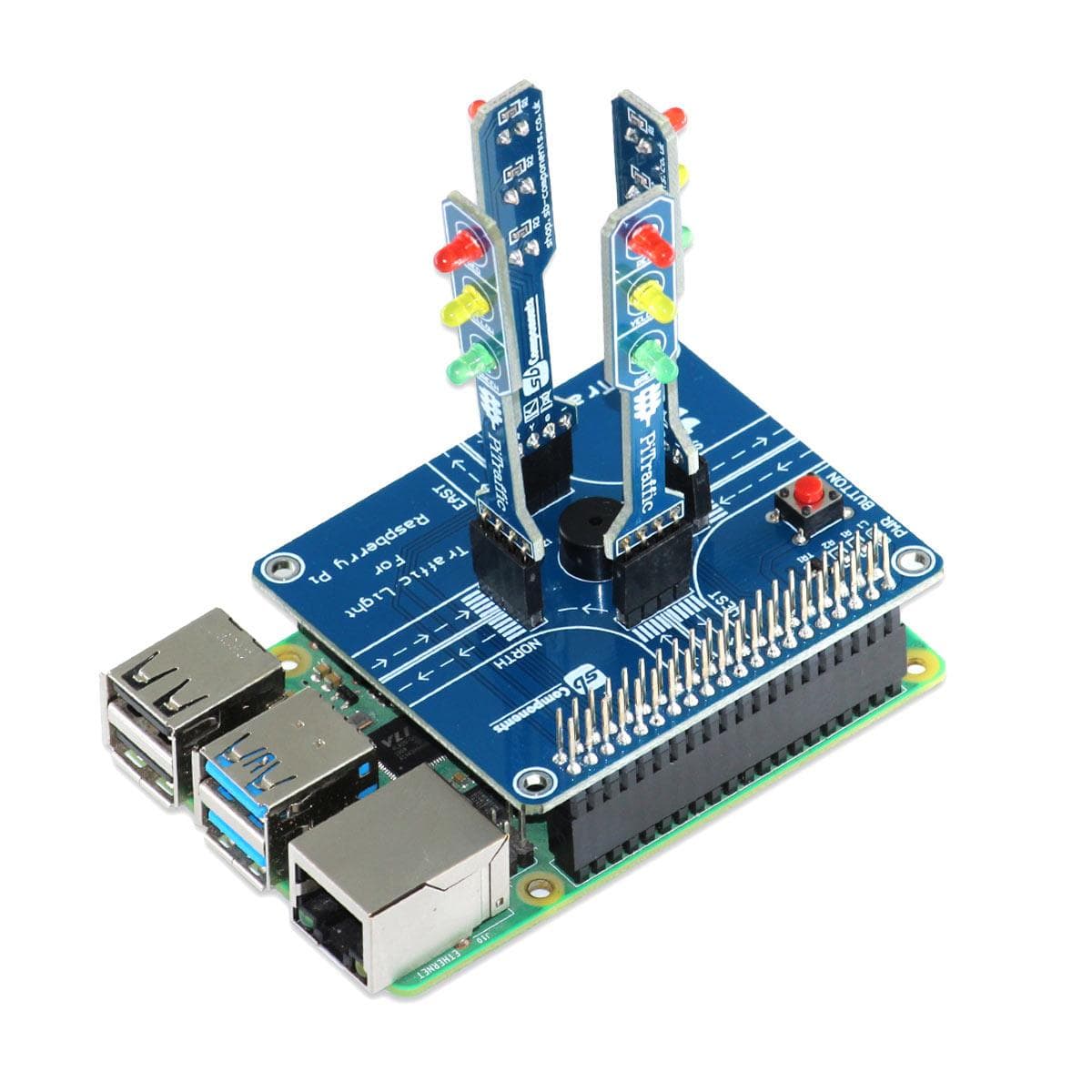

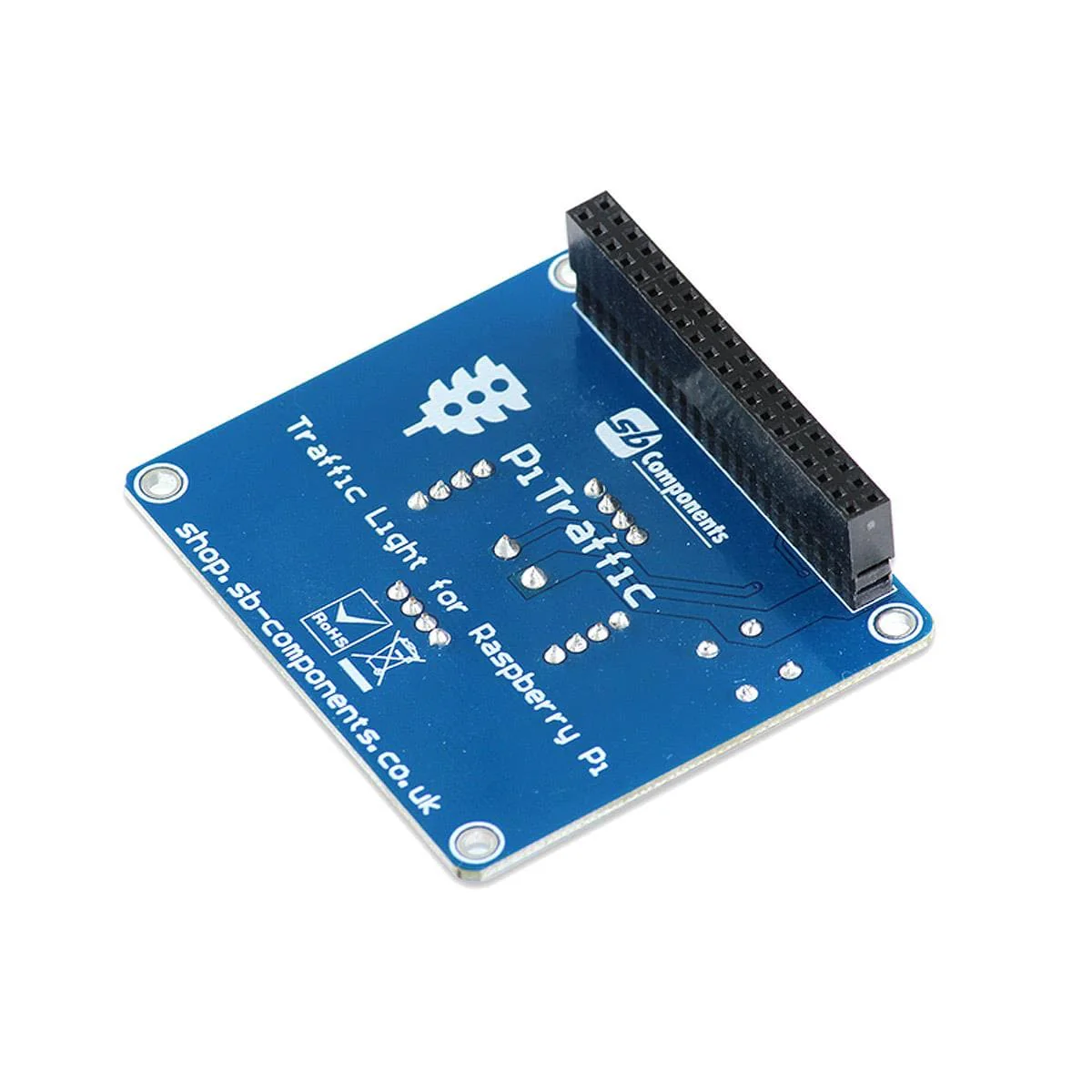

PiTraffic - Raspberry Pi Traffic Light HAT

The PiTraffic is a fun traffic light Raspberry Pi HAT which makes it fun to learn how to code. The road-themed HAT includes a programmable pushbutton, programmable buzzer and comes with four "traffic lights" with realistic red, amber and green LEDs.

The PiTraffic is designed to help people get started using hardware with the Raspberry Pi by removing many of the traditional roadblocks (excuse the pun!). It's not always easy for new coders to figure out components, ratings, voltages, resistance and how to wire them up, so the PiTraffic removes this early distraction by plugging directly into pre-set positions on the HAT.

The product Wiki includes everything you'll need to know, including setup, example code, pinout and more!

Features

• Compatible with all 40-pin models of Raspberry Pi

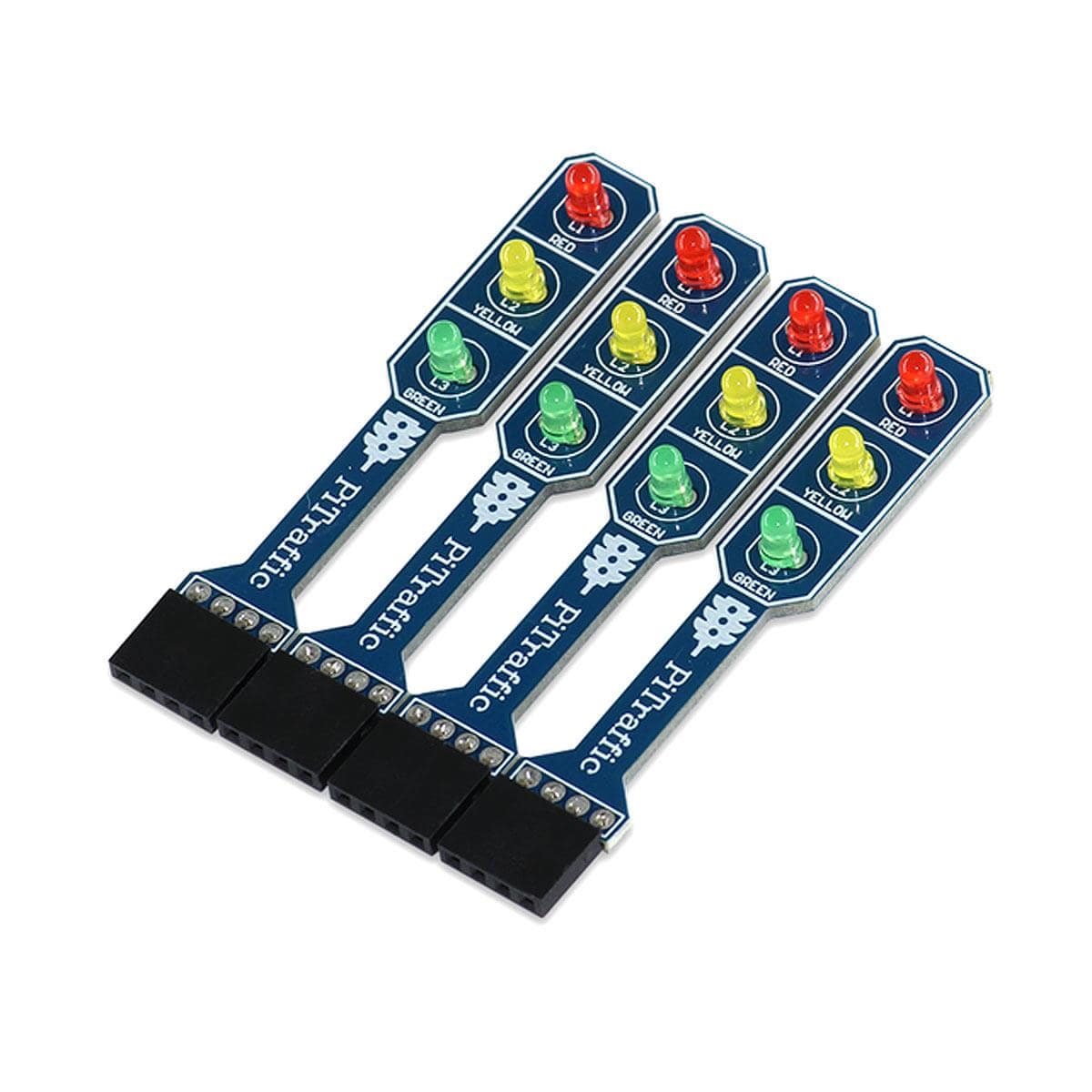

• Includes HAT and 4 traffic lights
• Programmable Pushbutton
• Programmable buzzer
• GPIO pins extended to allow you to add additional components
• 4-wire SPI communication
• Online code examples
• Input Voltage: 5V

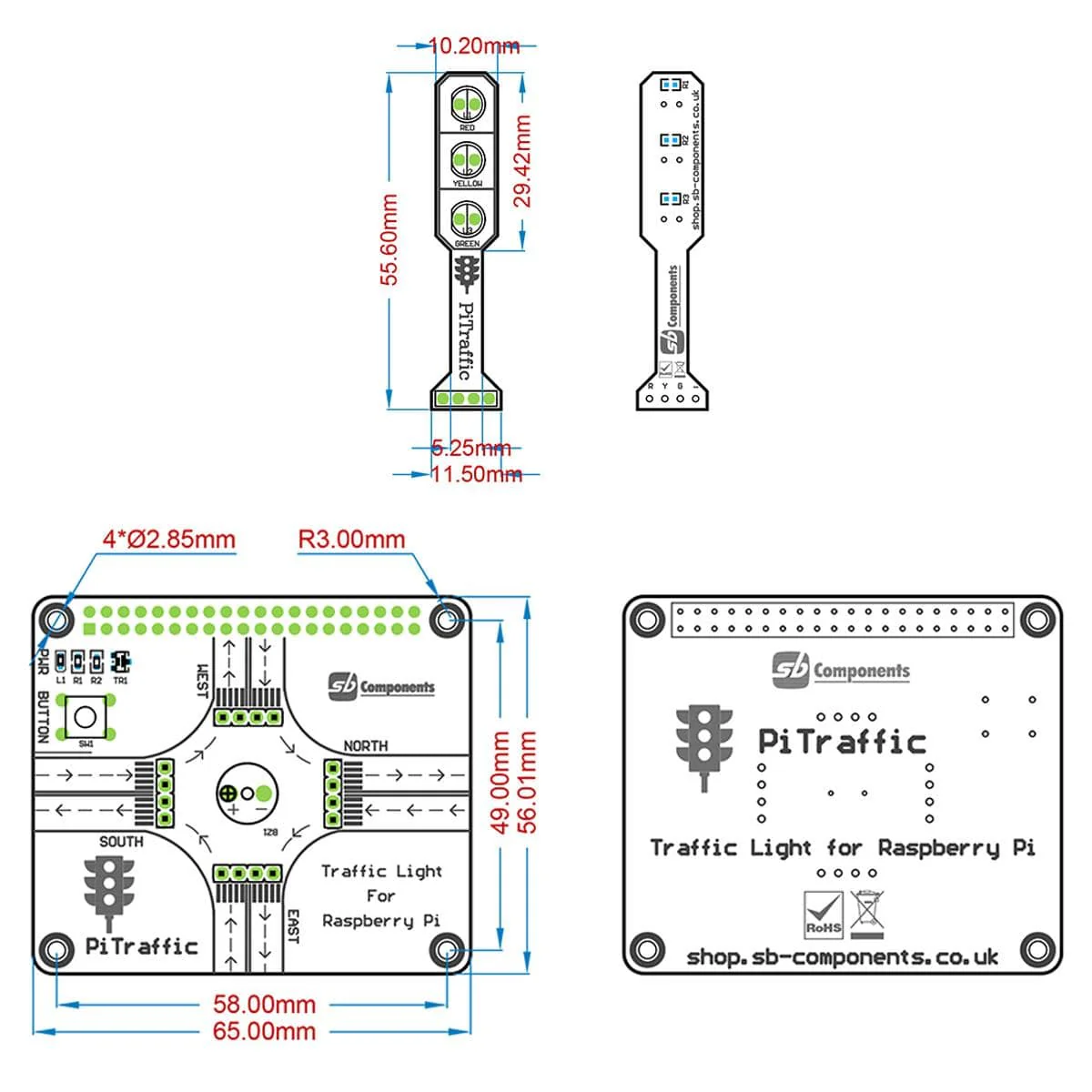

• HAT Dimensions: 56mm x 65mm
• Traffic Light Dimensions: 55.6mm x 10.2mm

Resources

• Product Wiki
• GitHub

Package Contents

• 1x PiTraffic HAT
• 4x Traffic Lights

Raspberry Pi not included

Pinout
