Pico Air Monitoring Expansion

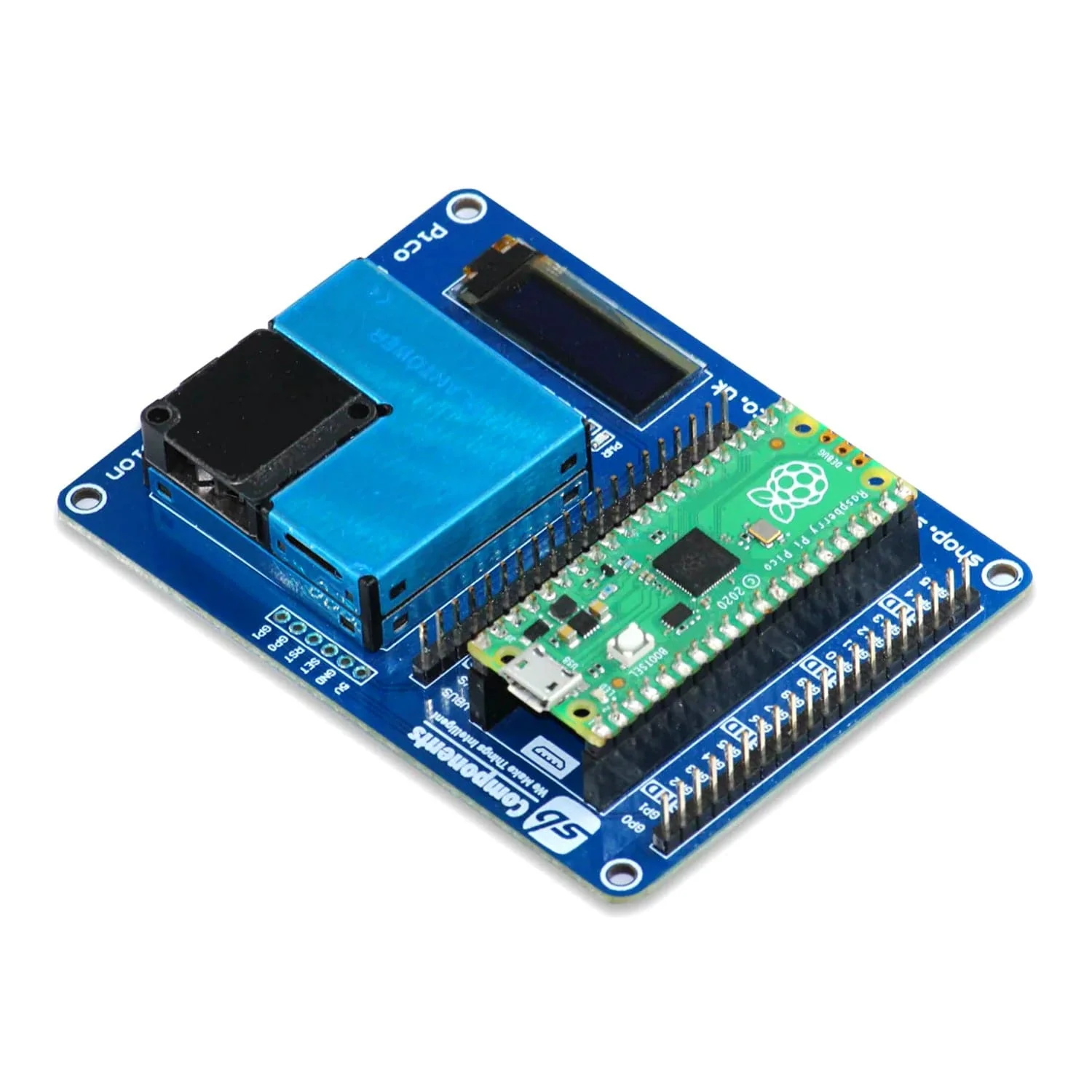

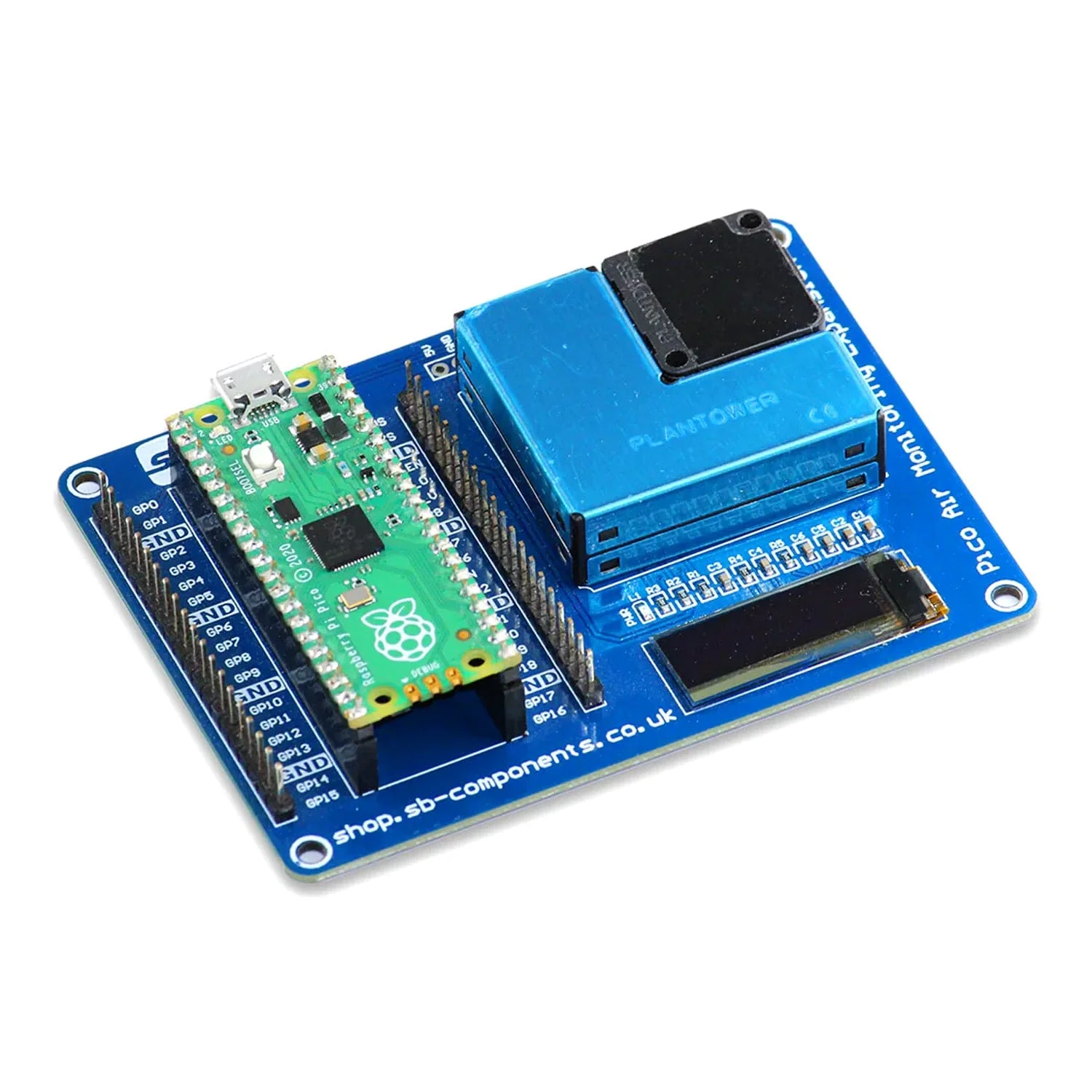

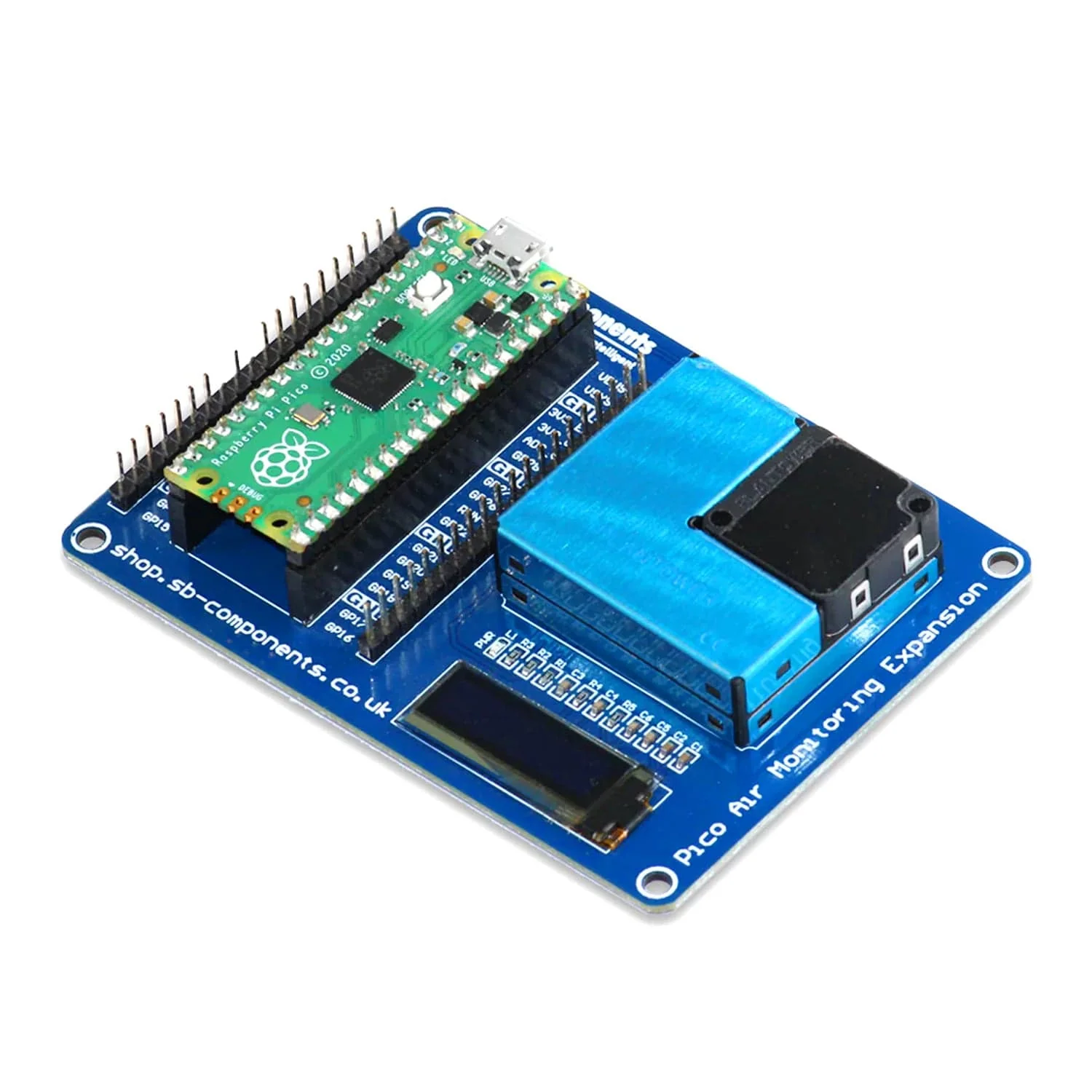

The Air Monitoring Expansion for Raspberry Pi Pico is an open-source, portable sensor that measures suspended particulate quantity by mass. It operates at 5V and features a digital laser dust sensor (PMSA003) and a built-in 0.91" OLED display providing information on air particulate matter (PM1.0, PM2.5, PM10) via digital output. Communication is done through UART (serial), and it offers external GPIO Breakout Pins for connecting sensors.

Note: Raspberry Pi Pico is NOT included

Features

• PMSA003 Sensor
• Standard 40 Pins GPIO
• Onboard OLED display 0.91”
• Measure accurately PM1.0, PM2.5, PM10 levels

Specifications

Sensor Model	PMSA003
Communication Interface	UART (Serial)
Display Type	0.91"
Type	Biosensor

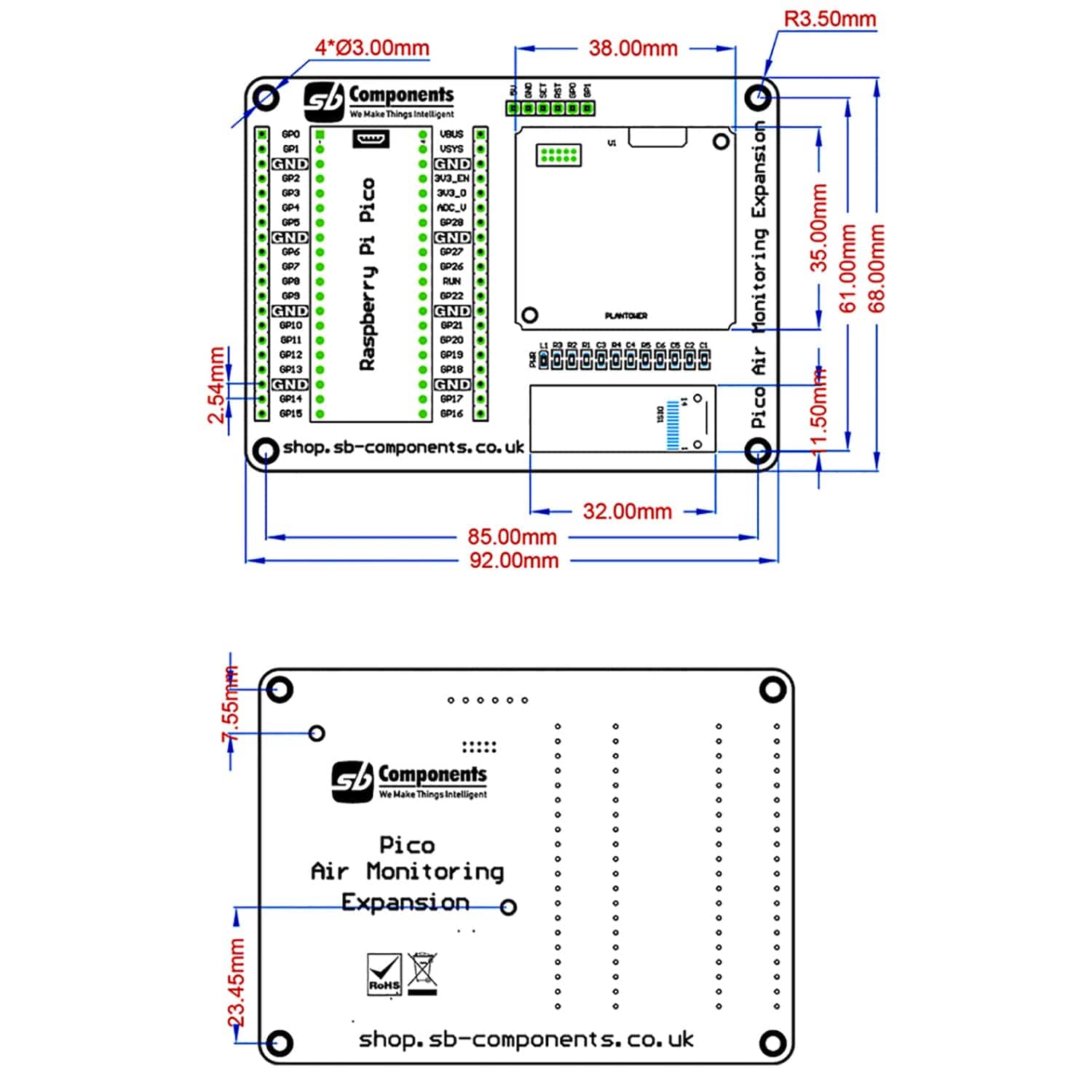

Board Dimension	92 x 68mm
Measuring Range	0.3 to 1.0; 1.0 to 2.5; 2.5 to 10 Micron (µm)
Counting Efficiency	50% @ 0.3 µm 98% @> = 0.5 µm
Response Time	≤10 sec
DC Supply Voltage	5.0V
Operating Temperature Range	-10 to +60 Celsius

Resources

• Product Wiki
• Github

Pinout

Package Contents

• 1x Pico Air Monitoring Expansion
