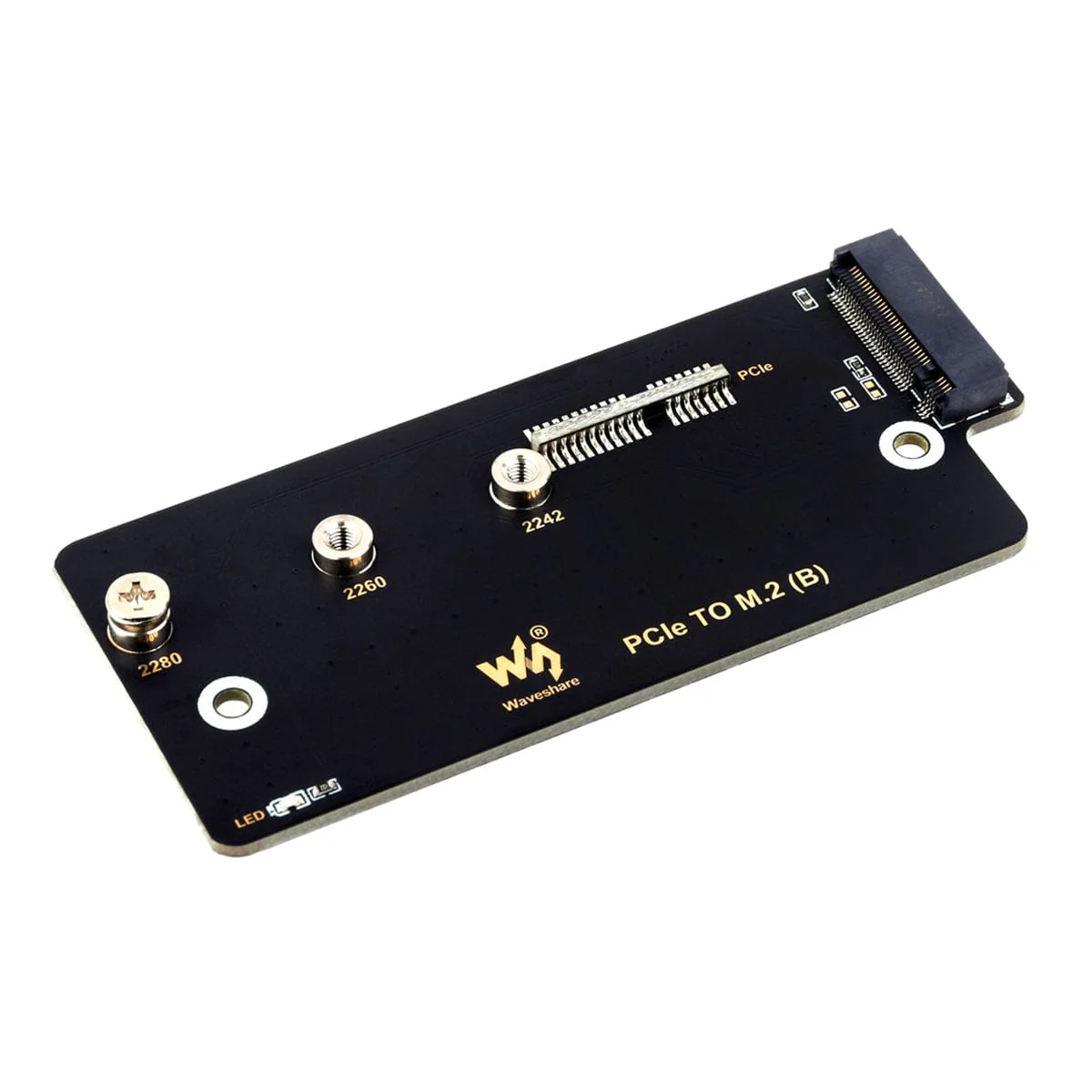

PCIe to M.2 adapter (B) for Raspberry Pi CM4 IO Board

This PCIe to M.2 (B) adapter supports the NVMe protocol M.2 solid-state drives and provides high-speed reading and writing capabilities which boosts drive performance.

It is designed for use with the Raspberry Pi Compute Module 4 IO Board, extending the M.2 interface for these boards. The adapter provides faster performance compared to traditional HDDs and includes an onboard operating indicator LED.

It is compatible with various sizes of M.2 SSDs and comes with a screw pack for easy installation.

CM4, IO Board and NVMe device not included

Features

• Supports NVMe protocol M.2 interface Solid State Drive protocol, high-speed write/read, higher working efficiency
• Only supports CM4 IO Board
• Supports Raspberry Pi Compute Module 4 (via IO board)
• Compatible with M.2 solid-state drive in different sizes
• The LED lights up when power-on, and keeps blinking while reading/writing

Connection Example - CM4 IO Board

Resources

• Product Wiki

Package Contents

• 1x PCIe TO M.2 (B) adapter
• 1x Screws pack

CM4, IO Board and NVMe device not included
