Olimex ESP32-POE-ISO-WROVER Development Board

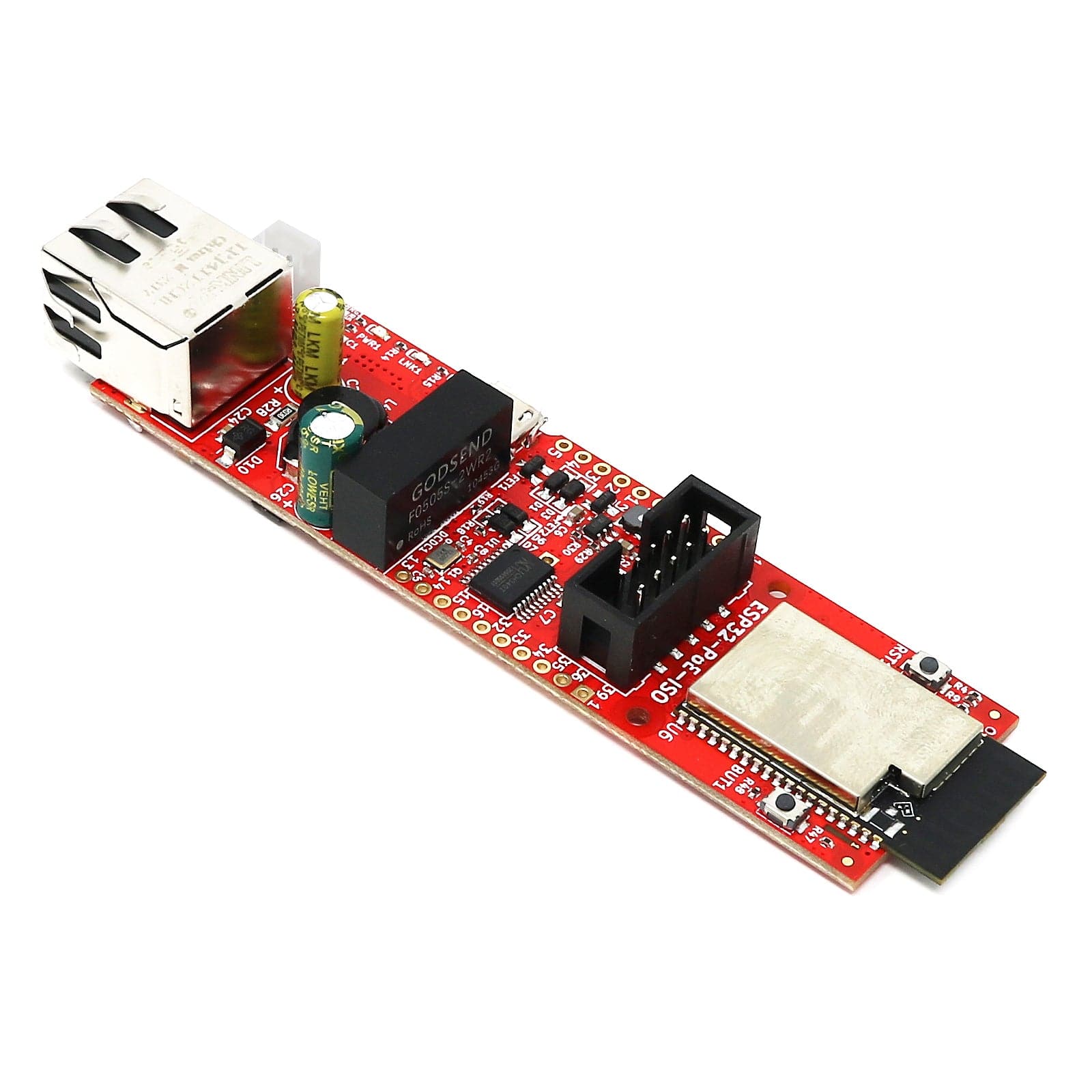

The Olimex ESP32-PoE-ISO is an ESP32-powered WiFi/BLE/Ethernet development board with Power-Over-Ethernet. The ESP32-POE-ISO has 3000VDC galvanic insulation from Ethernet powering.

PoE is currently handled by a TPS2375PW chip that is IEEE 802.3-compliant, including pre-standard (legacy) PoE support. PoE powering requires at least 37V DC to operate successfully. The board takes power from the Ethernet cable and can be expanded with sensors and more. There's also a LiPo battery connector and charging circuit onboard - it's the perfect solution for Internet-of-Things projects!

Olimex offer a range of versions of this board. This is the ESP32-POE-ISO-WROVER version, which comes with an ESP32-WROVER-E with 4MB flash and 8MB PSRAM. Notice that the WROVER module requires two extra pins for the PSRAM - some software changes related to Ethernet and I2C might be required.

We also stock the Olimex ESP32-POE-ISO-EA variant.

Features

• ESP32-WROOM-32 - WiFi and Bluetooth module
• CE-RED and LVD certification
• Original design by OLIMEX Ltd
• Low power design - 200uA consumption in deep sleep
• Ethernet 100Mb interface with IEEE 802.3 PoE support
• 3000VDC galvanic insulation between the PoE Ethernet part and the board's power supply circuit
• Micro USB connector for ESP32 programming
• MicroSD card slot - working in 1-bit mode (3 more GPIOs)
• LiPo battery charger with LiPo battery connector
• Battery level monitor pin on ADC
• External power supply detection pin on ADC
• DC-DC 2W 5V/400mA
• UEXT connector
• User button
• Reset button
• Two extension connectors, 0.1" step spaced at 1"
• PCB dimensions: (98 x 28)mm ~ (3.8 x 1)"

Resources

Documents

• ESP32-POE-ISO user manual
• ESP32-POE-ISO latest schematic in PDF format
• ESP32-POE-ISO GPIO map
• ESP32-POE-ISO European Declaration of Conformity
• ESP32-POE-ISO UKCA Declaration of Conformity

Hardware

• ESP32-POE-ISO CAD files on GitHub
• Board Dimensions

Demo Software

• Simple Ethernet demo for ESP-IDF
• Works with default Arduino for ESP32 (if you have troubles refer to this document)
• Simple Ethernet and SD card demo for Arduino
• LCD screen demo for Arduino
• WIFI webserver and UEXT demo for Arduino
• More Arduino examples at our GitHub pages

USB Drivers

• USB driver for Windows
• High-speed USB driver for Linux
• USB driver for Linux (for old kernels; pre-3.14.x)
• USB driver for Mac
• USB driver for Android

Package Contents

• 1x ESP32-POE-ISO-WROVER board
• 1x Pin header
