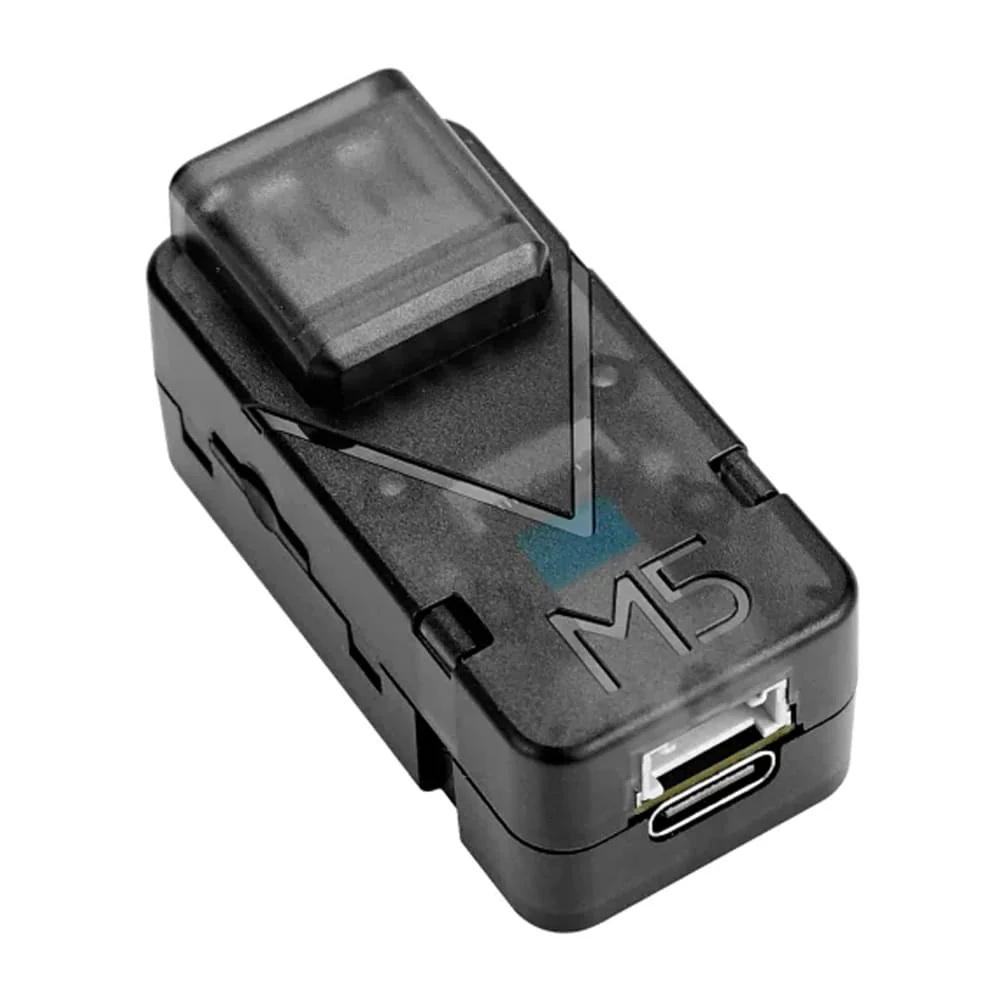

M5Stack UnitV2 - USB Version without Camera
The M5Stack UnitV2-USB is a compact AI recognition module with a dual-core Cortex-A7 processor, built-in Linux, and USB camera support, enabling straightforward, out-of-the-box AI development.
The M5Stack UnitV2-USB is a high-efficiency AI recognition module launched by M5Stack, powered by the Sigmstar SSD202D (integrated dual-core Cortex-A7 1.2GHz processor) as the control core, with 128MB DDR3 memory and 512MB NAND Flash.
It provides a USB Type-A universal interface to connect a variety of UVC cameras, comes with a built-in Linux operating system, and integrates rich software and hardware resources as well as development tools. It is designed to offer users an out-of-the-box, simple, and efficient AI development experience.
We also stock the camera version of this which you can grab here: M5Stack UnitV2 M12 Version with Cameras.
Features
- Sigmstar SSD202D
- Dual-core Cortex-A7 1.2GHz processor
- 128MB DDR3
- 512MB NAND Flash

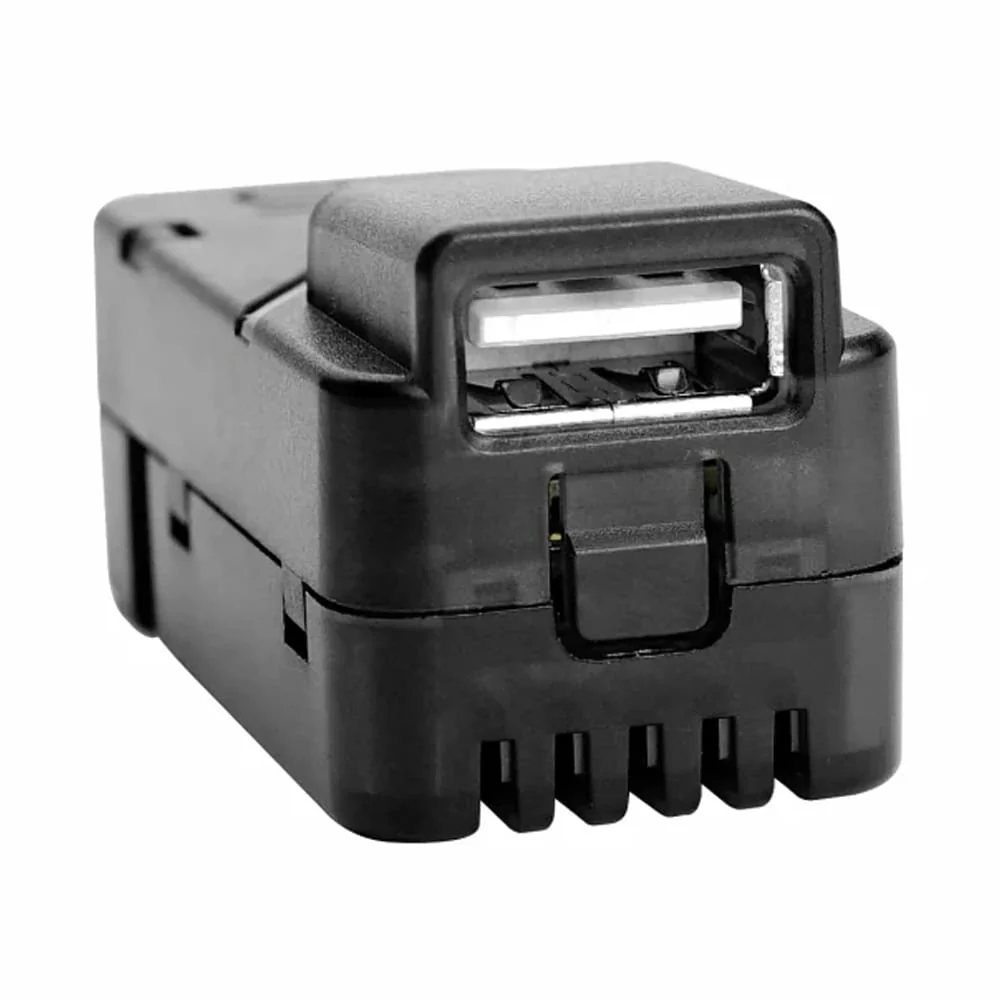

- USB-A universal interface, supports connection to various UVC cameras
- Wi-Fi 2.4GHz
- Development methods:
- Comes with 12 commonly used AI image functions: QR code, face detection, line following, motion detection, template matching, image streaming, classification, colour tracking, face recognition, object tracking, contour detection, custom object recognition
- Supports web online preview, UiFlow (for serial port JSON format calls)
- Linux environment (OpenCV, SSH, JupyterNotebook)
Specifications
| Sigmstar SSD202D | Dual Cortex-A7 1.2GHz Processor |
| Flash | 512MB NAND |
| RAM | 128MB-DDR3 |

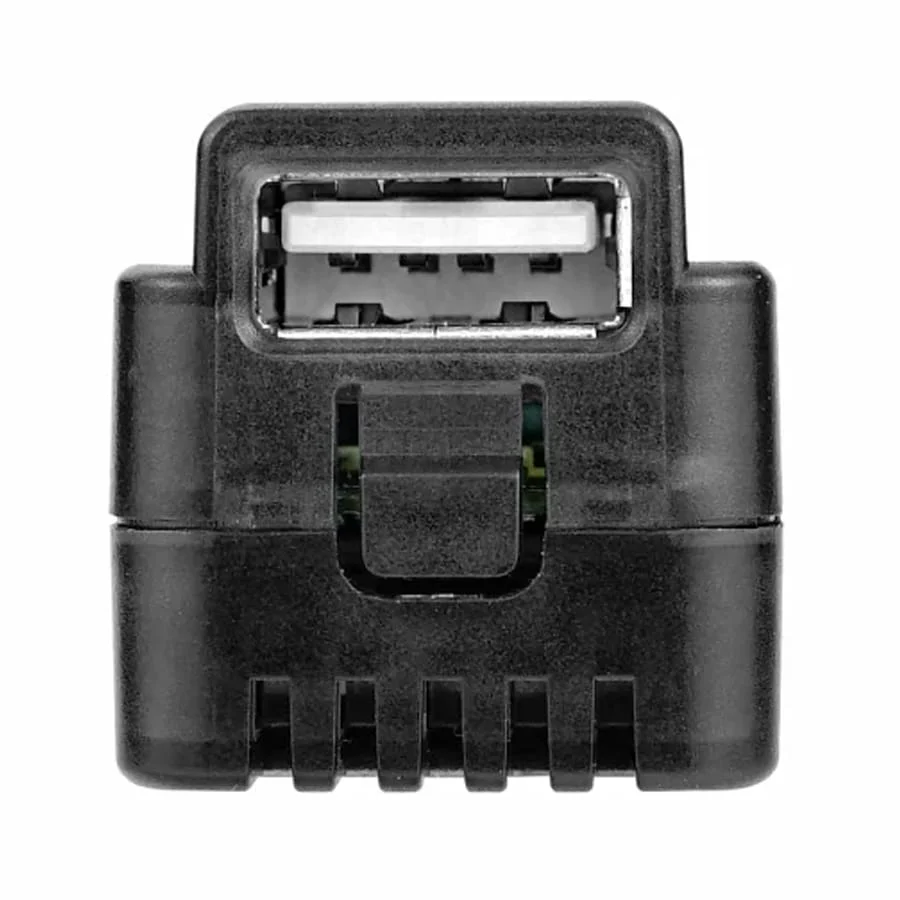

| Camera | No lens, USB-A universal interface, supports connection to various UVC cameras |
| Input Voltage | 5V @ 500mA |

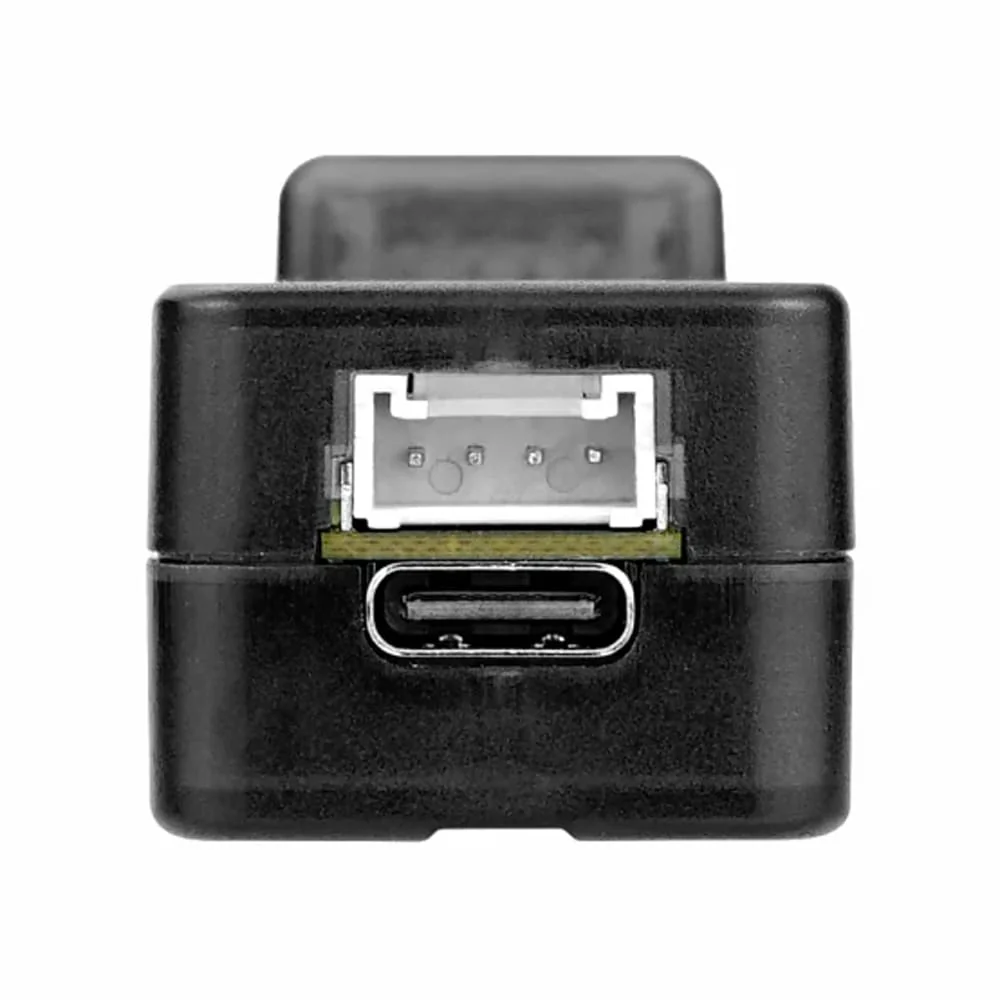

| Hardware | Type-C x1, UART x1, TFCard x1, Button x1, Microphone x1, built-in active cooling fan x1 |
| LED Indicator | Red, White |
| Wi-Fi | 150Mbps 2.4GHz 802.11 b/g/n |
| Ethernet Card | SR9900 |
| Product Size | 48.0 x 24.0 x 24.2mm |
| Product Weight | 20.0g |
Resources
- Product documentation

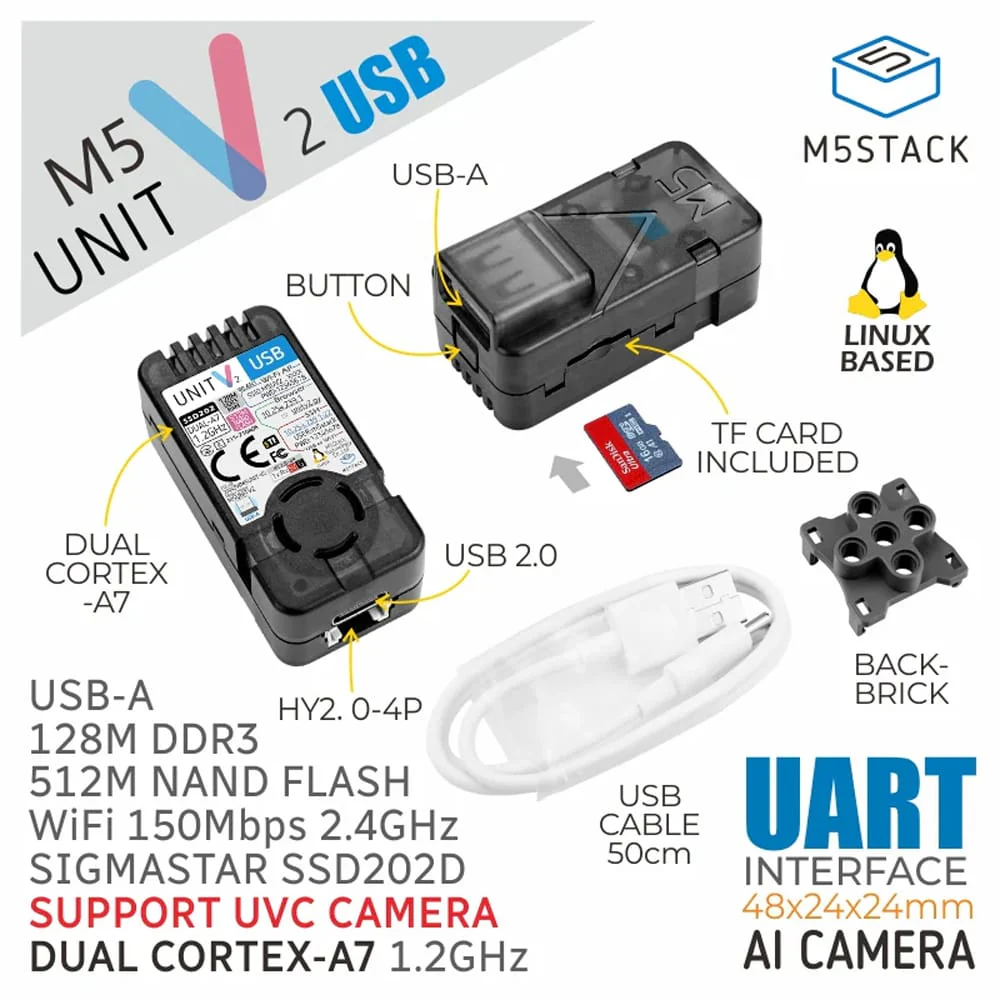

Package Contents
- 1x M5Stack UnitV2 USB Version without Camera
- 1x UnitV2-USB
- 1x 16GB microSD Card
- 1x USB Type-C Cable (50cm)

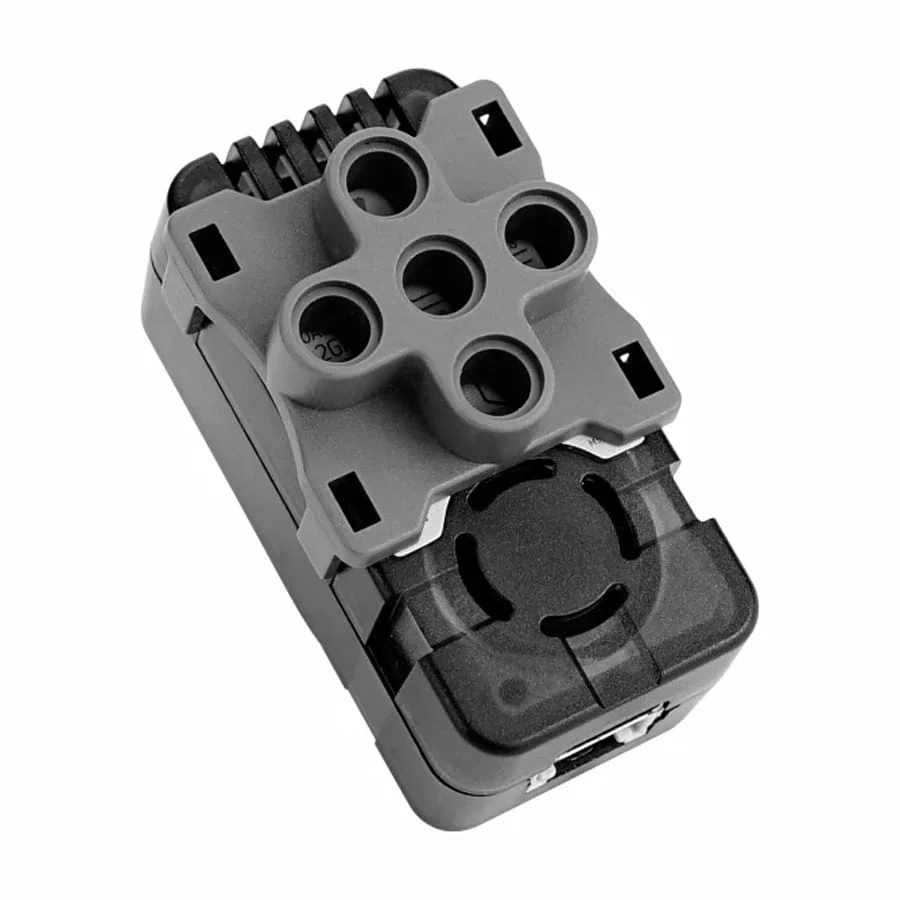

- 1x Stand
- 1x Back Clip
