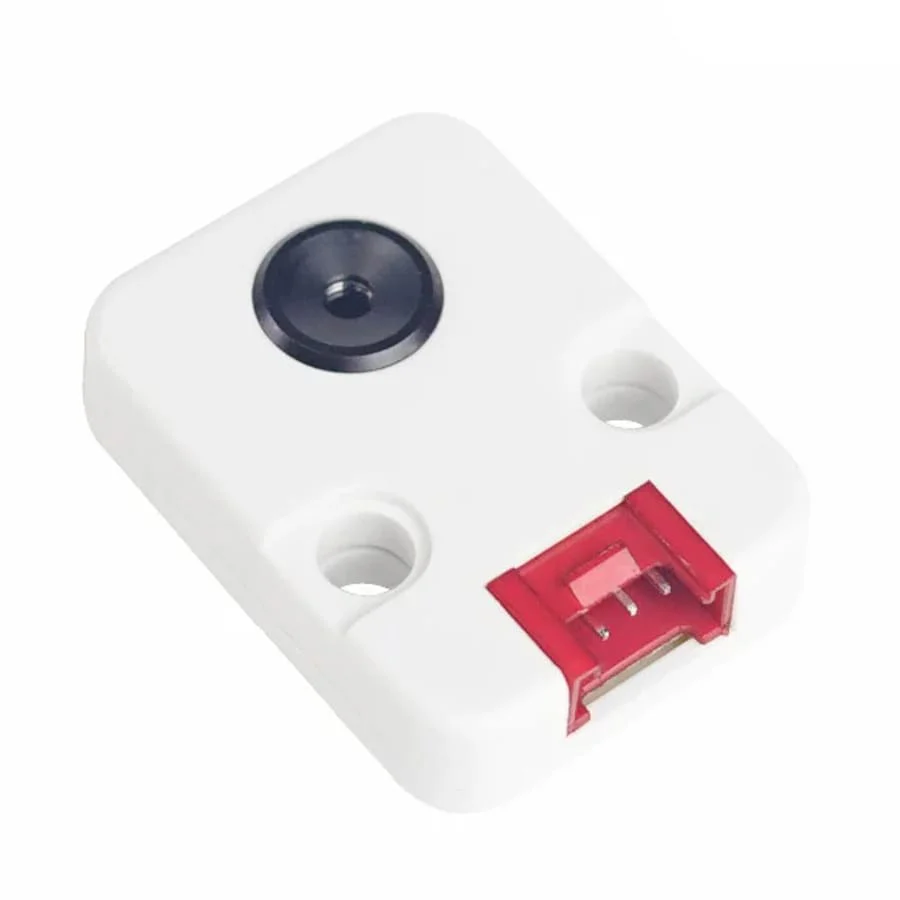

M5Stack Thermal Camera Unit

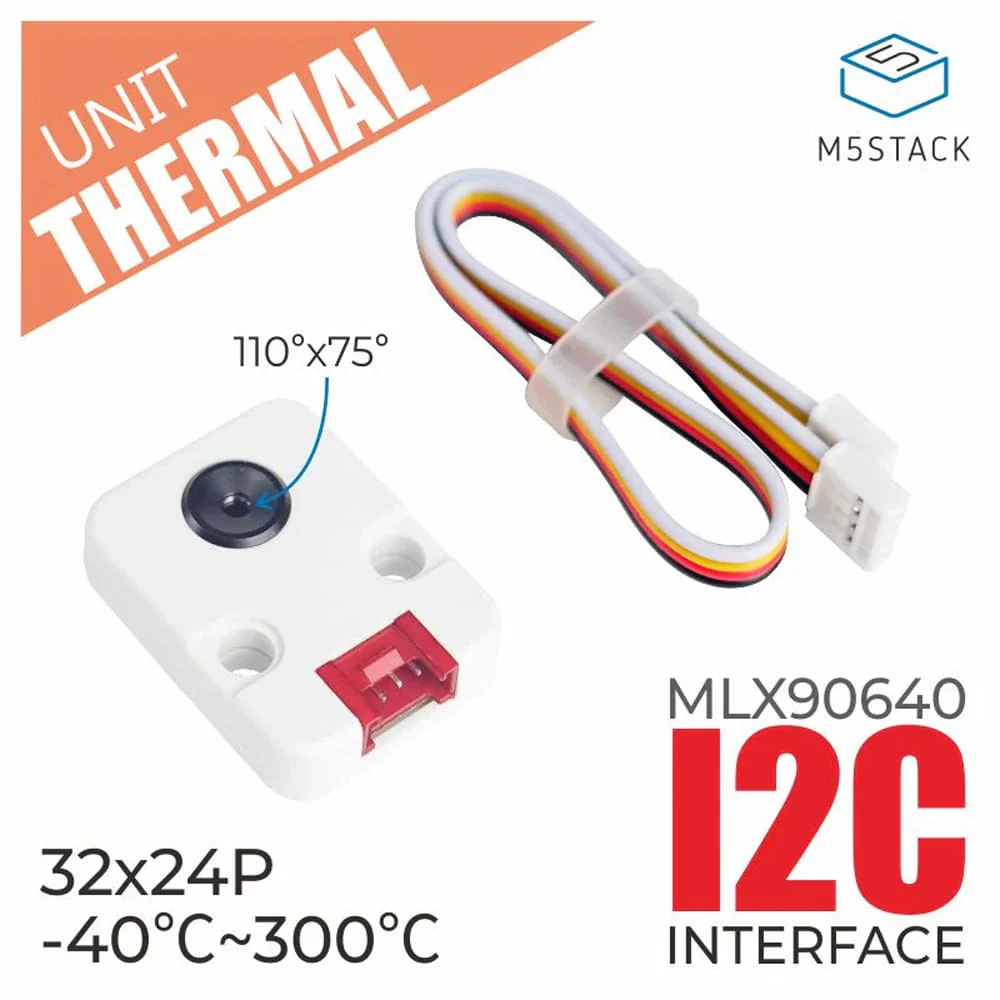

The M5Stack Thermal Camera Unit is an infrared thermal imaging module using the MLX90640 sensor to capture 32 × 24 thermal images. It measures surface temperature without frequent recalibration, offering a wide 110° × 75° field of view via I2C (0x33).

---

The M5Stack Thermal Camera Unit is an infrared thermal imaging Unit for the human body. Built-in MLX90640 thermopile sensor, capable of measuring the surface temperature of objects and generating a thermal image (image resolution 32 x 24) based on the temperature gradient formed by the surface temperature.

The MLX90640 infrared (IR) sensor array features high resolution and reliable operation in harsh environments. Compared with expensive high-end thermal imagers, this Unit is a cost-effective alternative.

Unlike ordinary microbolometers, this sensor has the advantage of not requiring frequent recalibration, thus ensuring detection continuity and reducing system maintenance costs. Field of view offers a wide-angle version (110°×75°), I2C address is 0x33.

Please note M5Stack Core is not included.

Features

• Operating current: 23mA
• Field of view: 110°×75°
• Temperature range: -40 ~ 300°C
• Accuracy: ±1.5°C
• Refresh rate: 0.5Hz-64Hz
• Operating temperature: -40 ~ 85°C

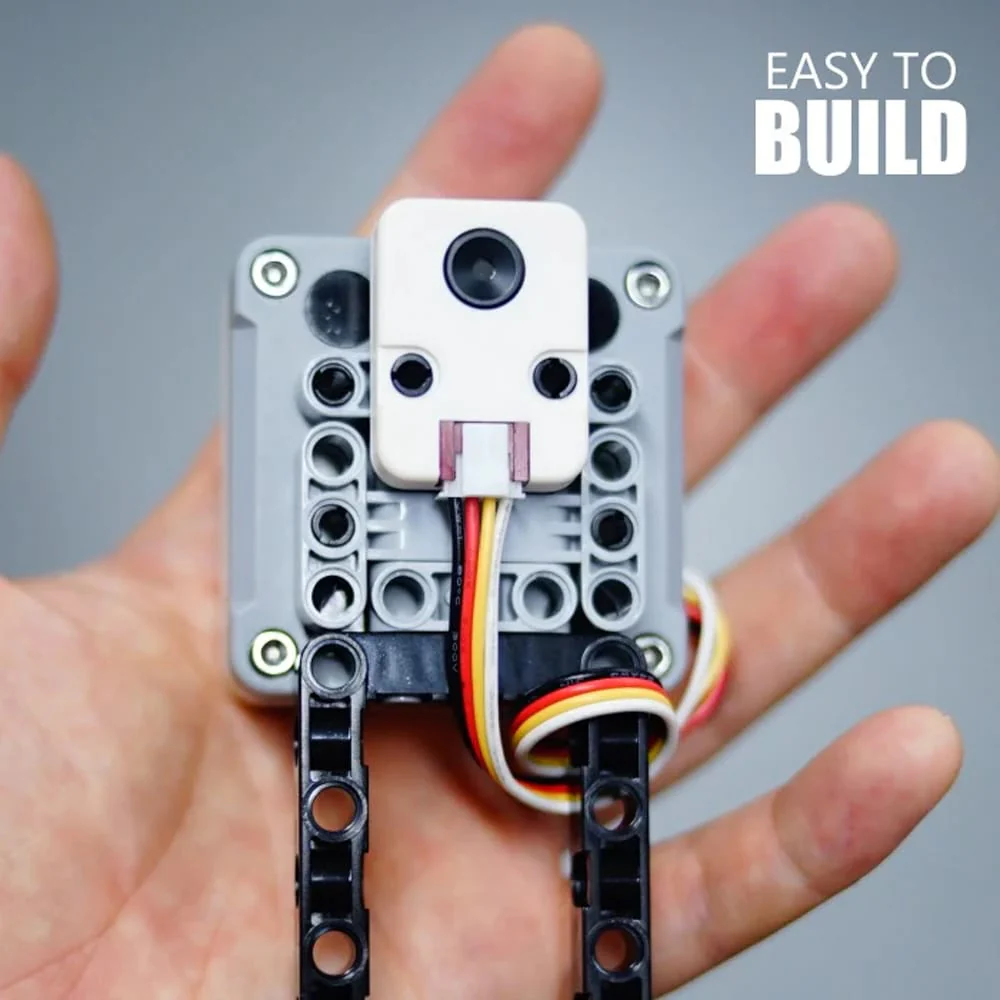

• 2x LEGO compatible holes

Specifications

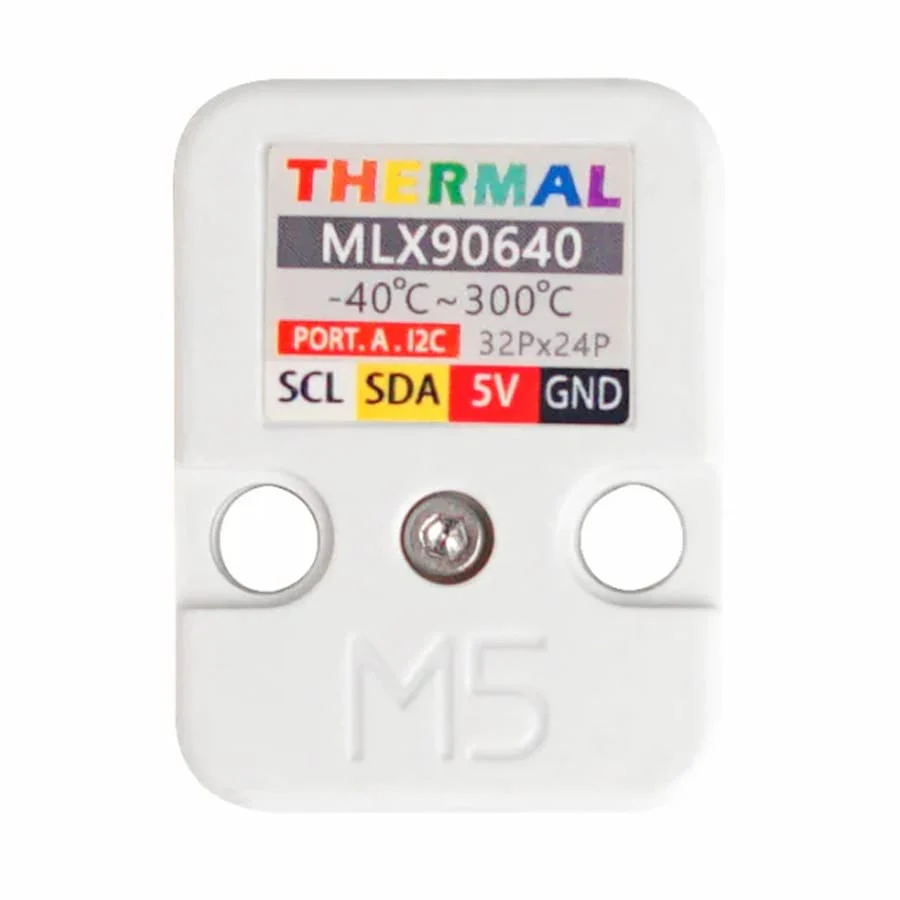

Communication Interface	I2C @0x33

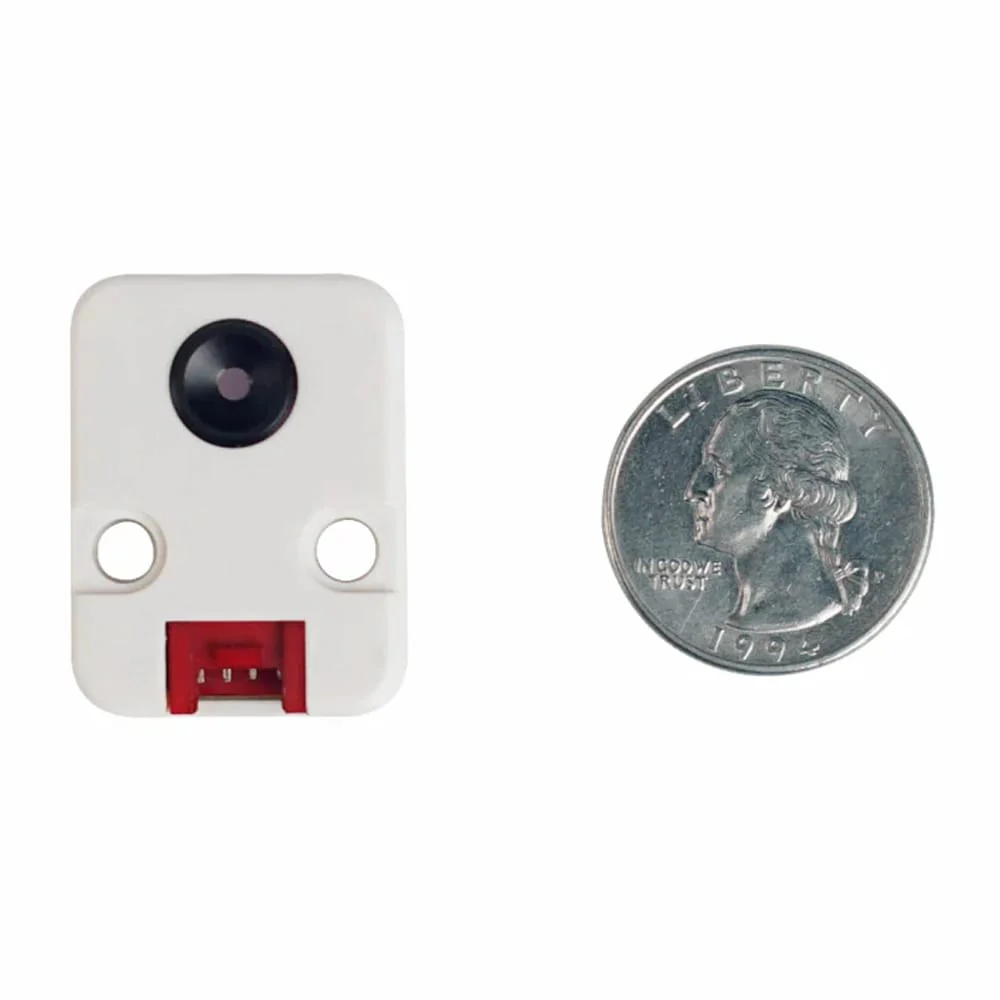

Product Size	32.0 x 24.0 x 8.6mm
Product Weight	5.1g

Resources

• Product documents

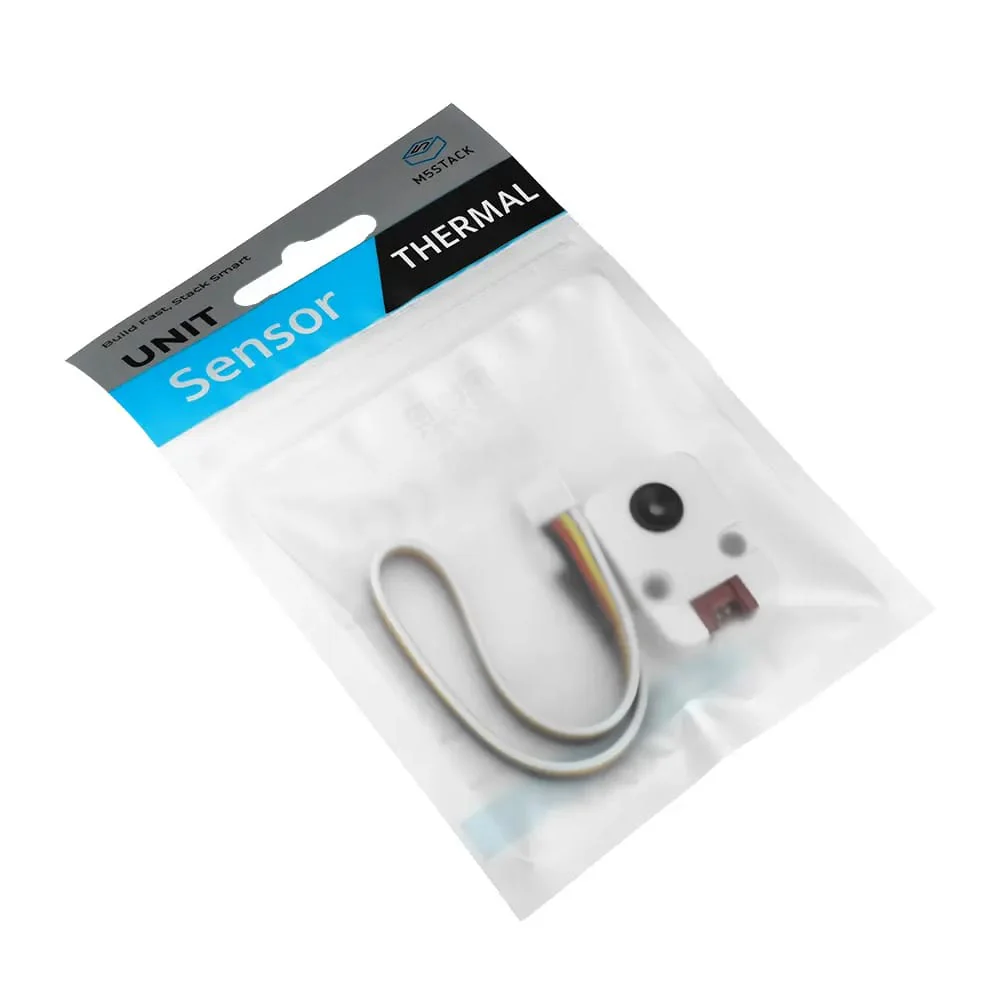

Package Contents

• 1x M5Stack Thermal Camera Unit (MLX90640)
• 1x Grove Cable (20cm)

Please note M5Stack Core is not included.
