M5Stack Servo Kit 360°

The M5Stack Servo Kit 360° is a LEGO-compatible continuous rotation servo kit with mounting brackets and accessories, designed for creative robotics projects with controllable speed and direction using PWM signals.

---

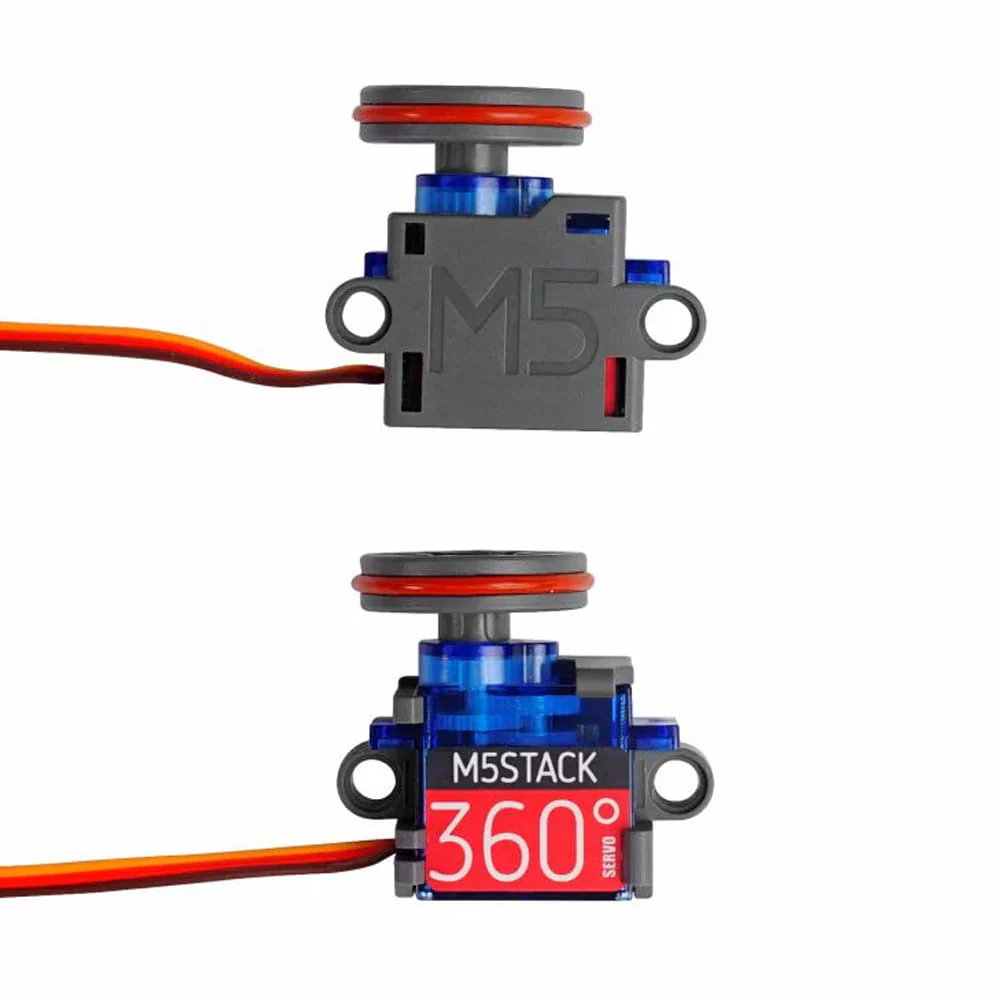

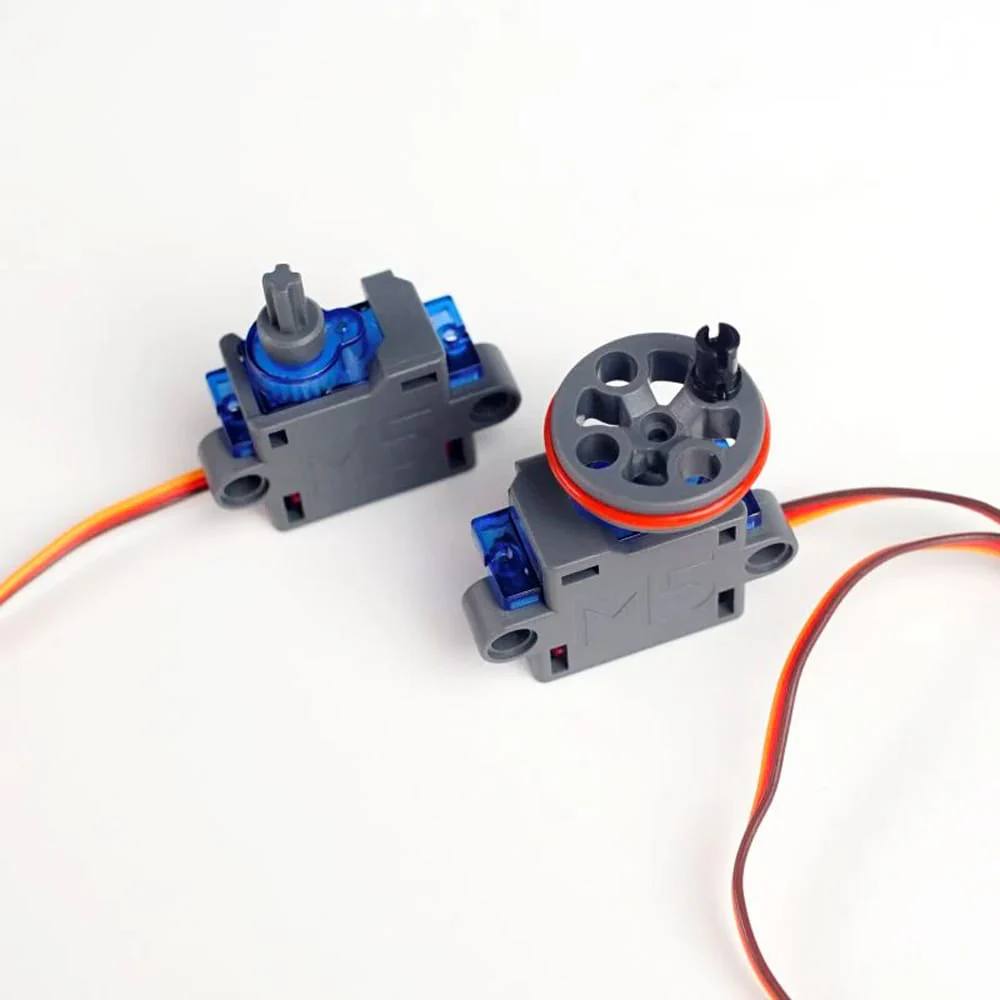

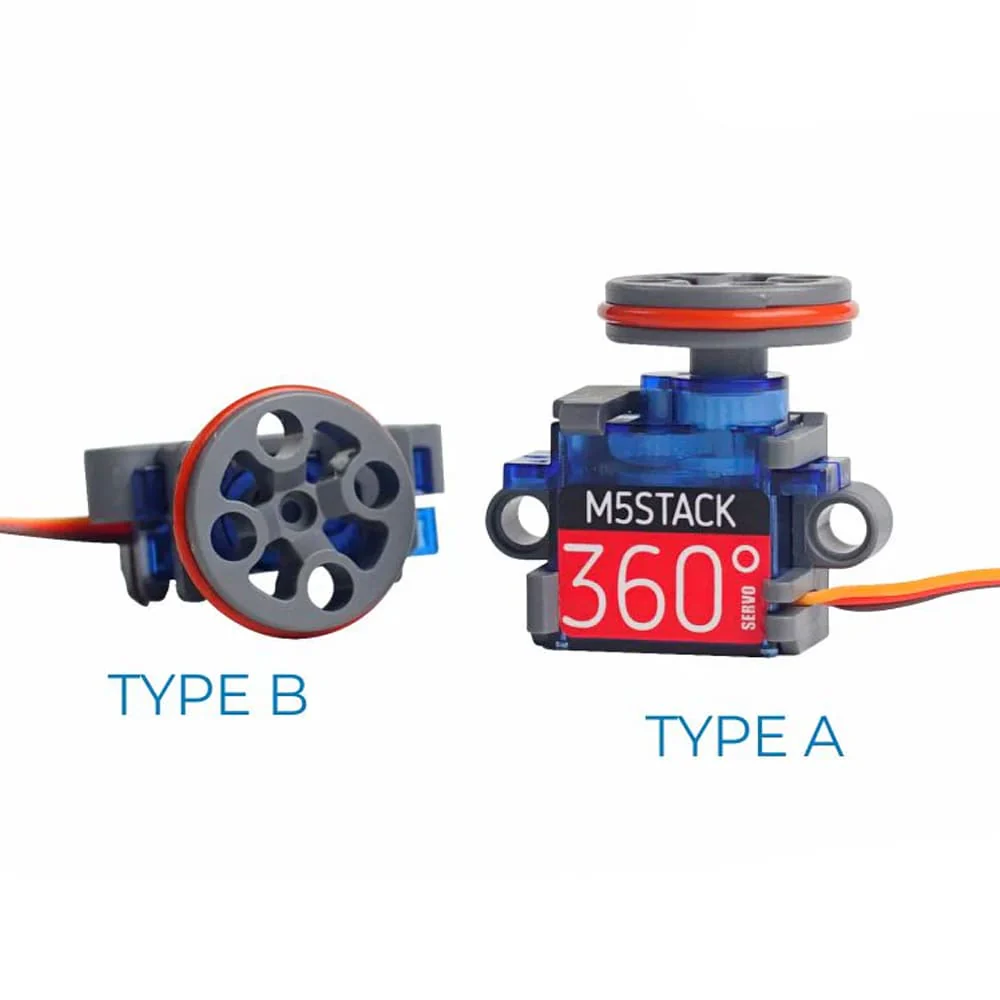

The M5Stack Servo Kit 360° is a 9g servo kit with a LEGO-compatible mounting bracket. The kit includes various servo accessories (servo wheels, axles, servo discs, etc.), making it easy to assemble and disassemble.

The product is designed according to LEGO standards, allowing it to seamlessly integrate with LEGO products, inspiring endless creativity.

It can be directly connected using LEGO parts. This 360° servo can be speed and direction controlled by adjusting the PWM duty cycle. When using, please ensure to select the appropriate power supply voltage to prevent stalling and avoid burning out the servo.

We also stock the M5Stack SG90 Servo and the M5stack-servo-kit-360-lego-compatible!

Features

• Micro servo system
• LEGO compatible
• Simple control
• Supports Arduino and UiFlow

Specifications

Gear Material	Metal motor gear, plastic gearbox
PWM Frequency	50Hz/0.5~2.5MS
Servo Weight	9.0g
Torque	1.6kg·cm/4.8V; 1.8kg·cm/6.0V
Stall Current	750mA
No-load Current	60mA
Gear Material	Metal motor gear, plastic gearbox
Cable Length	30mm
Dead band	8μm
Spline	20T
Voltage	4.8 ~ 6.0V
Product Size	40.0 x 12.0 x 36.0mm
Product Weight	41.8g

Resources

• Product documentation

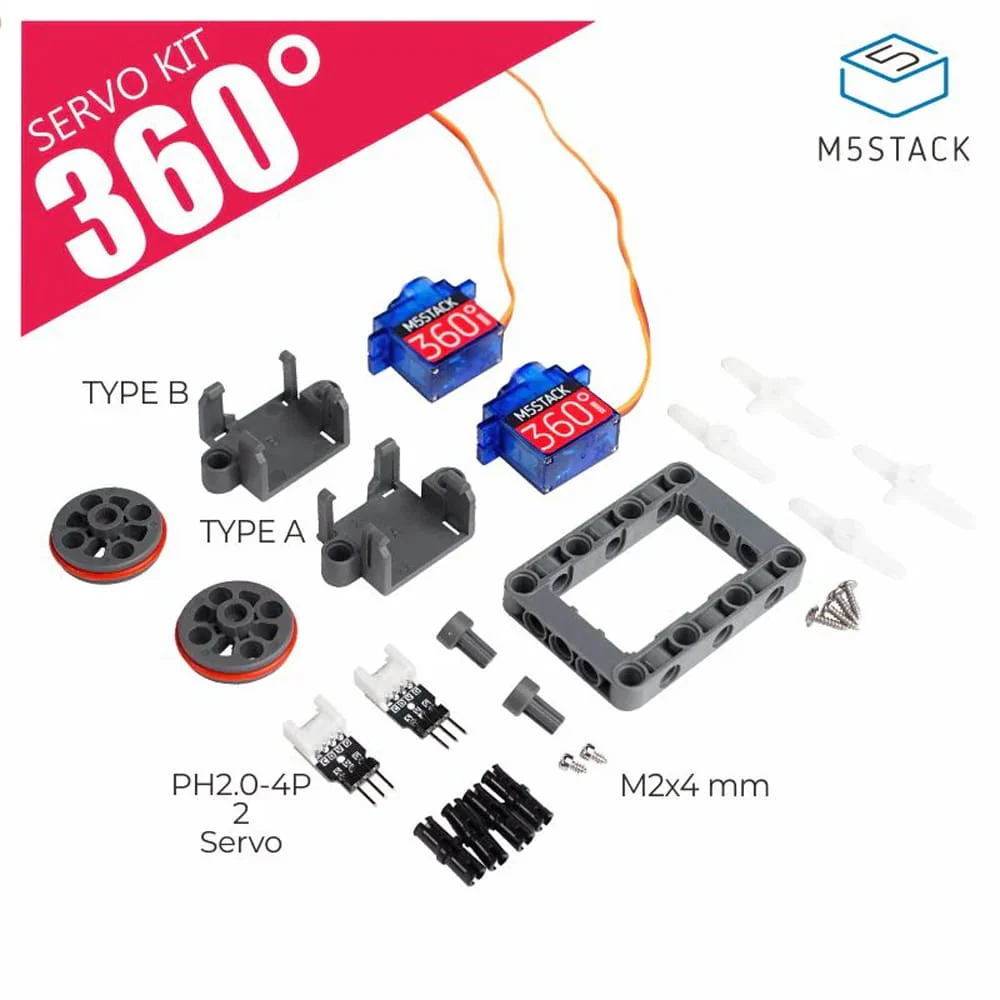

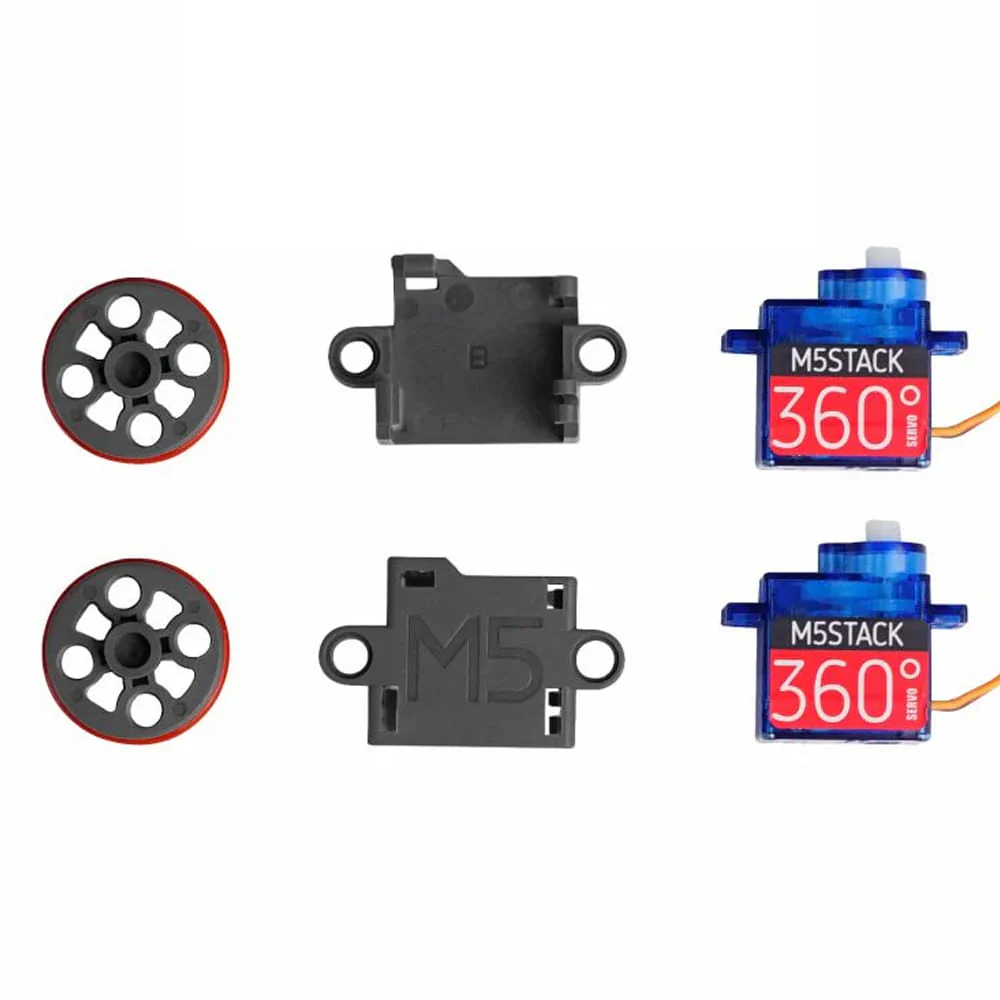

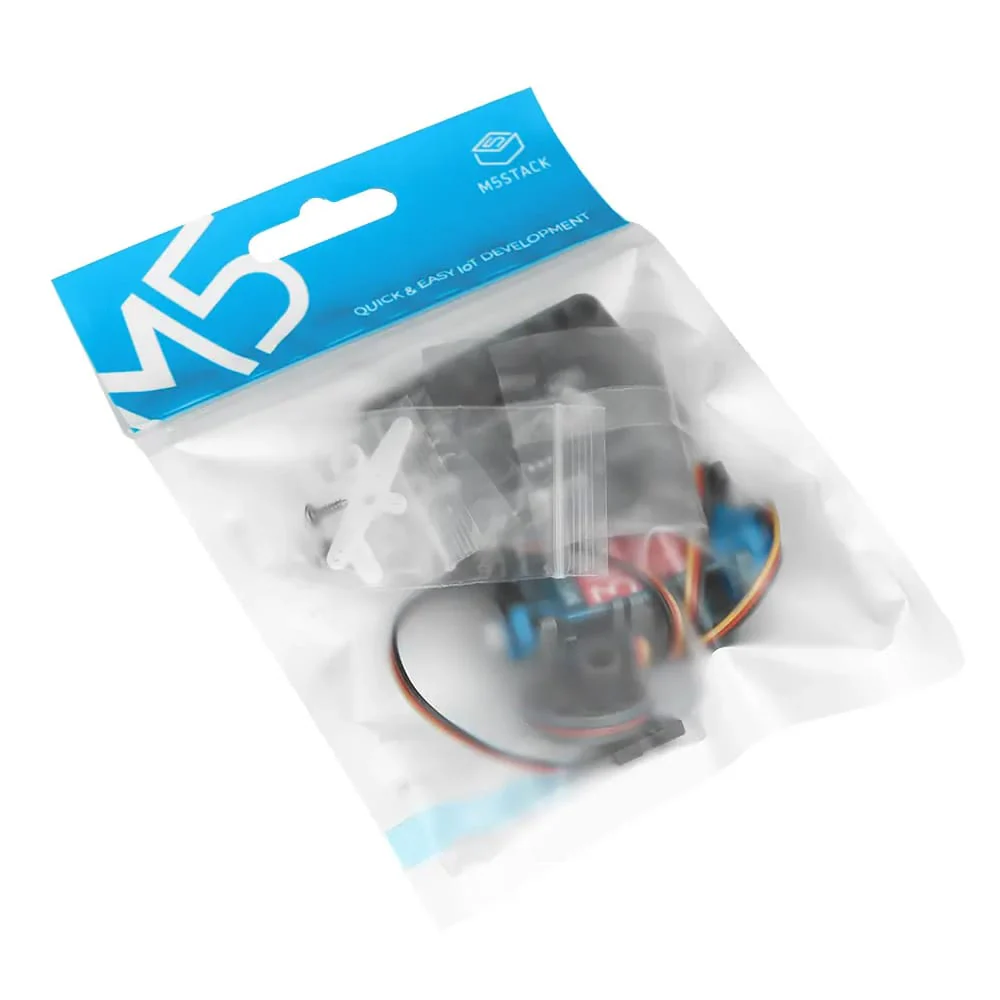

Package Contents

• 1x M5Stack Servo Kit 360° LEGO-compatible
  • 2x SG90 Servo 360°
  • 2x Servo Wheels 24mm
  • 2x Hex Socket Head Self-tapping Screws M2*4mm
  • 1x Square Frame Beam Brick

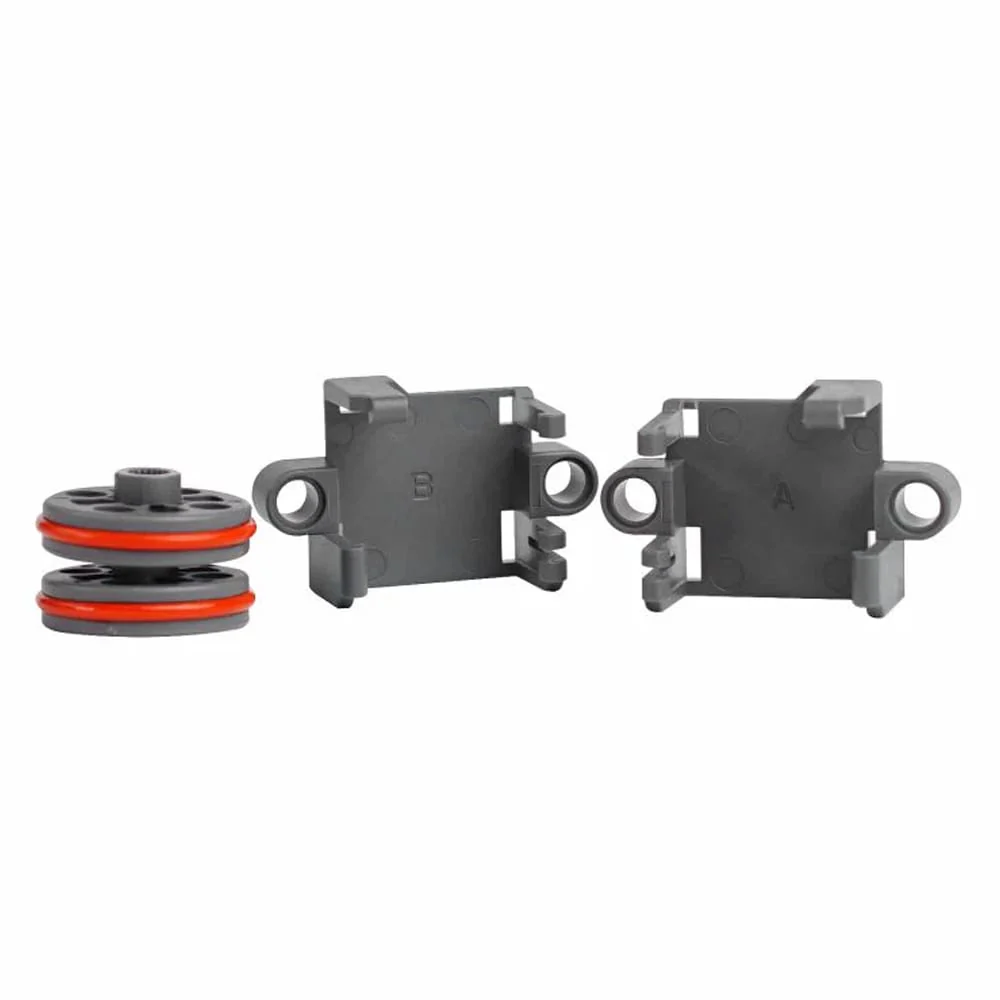

  • 1x Servo Mounting Clamp A
  • 1x Servo Mounting Clamp B
  • 2x Servo Disc Accessory Pack (includes several discs and screws)
  • 2x Servo Axles
  • 2x Grove to Servo Adapters
  • 4x Black Connector Pins
