M5Stack Servo Kit 180°

The M5Stack Servo Kit 180° is a LEGO-compatible 9g servo kit with mounting brackets and accessories, designed for creative robotics and motion projects with precise 0–180° angle control.

---

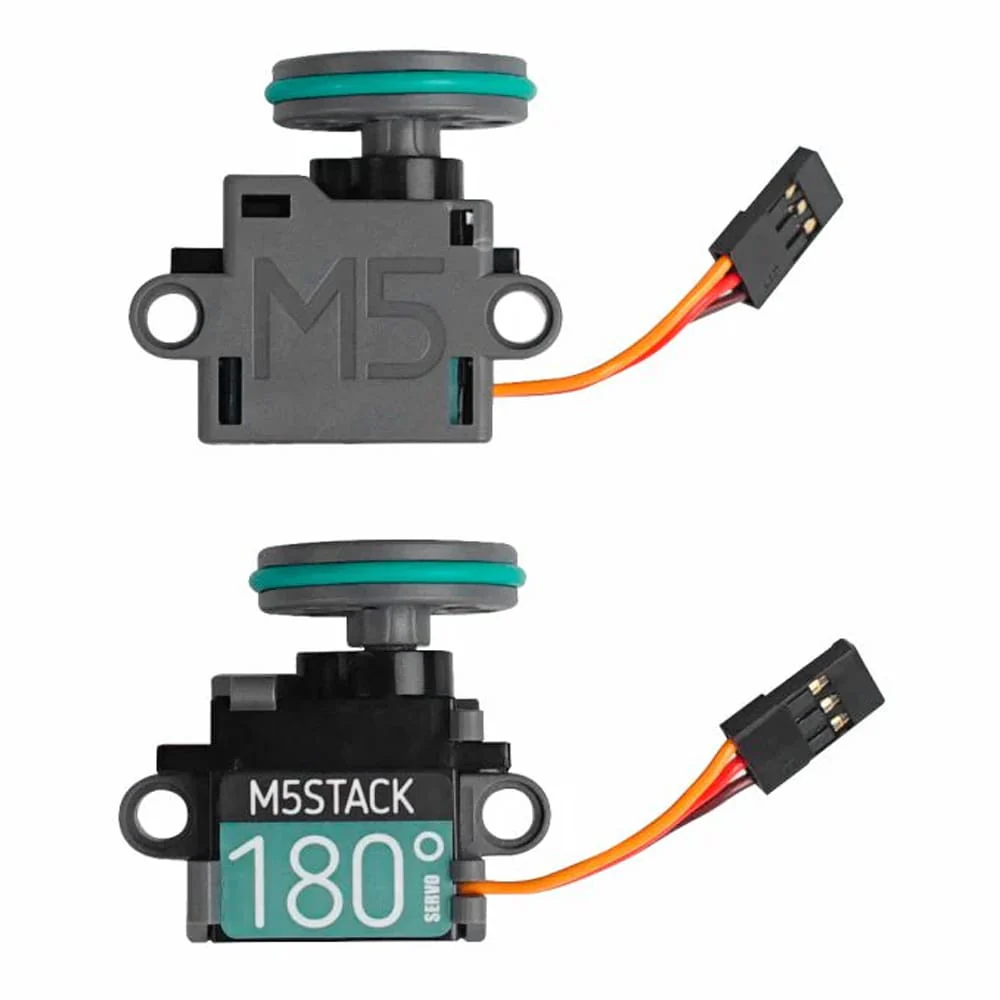

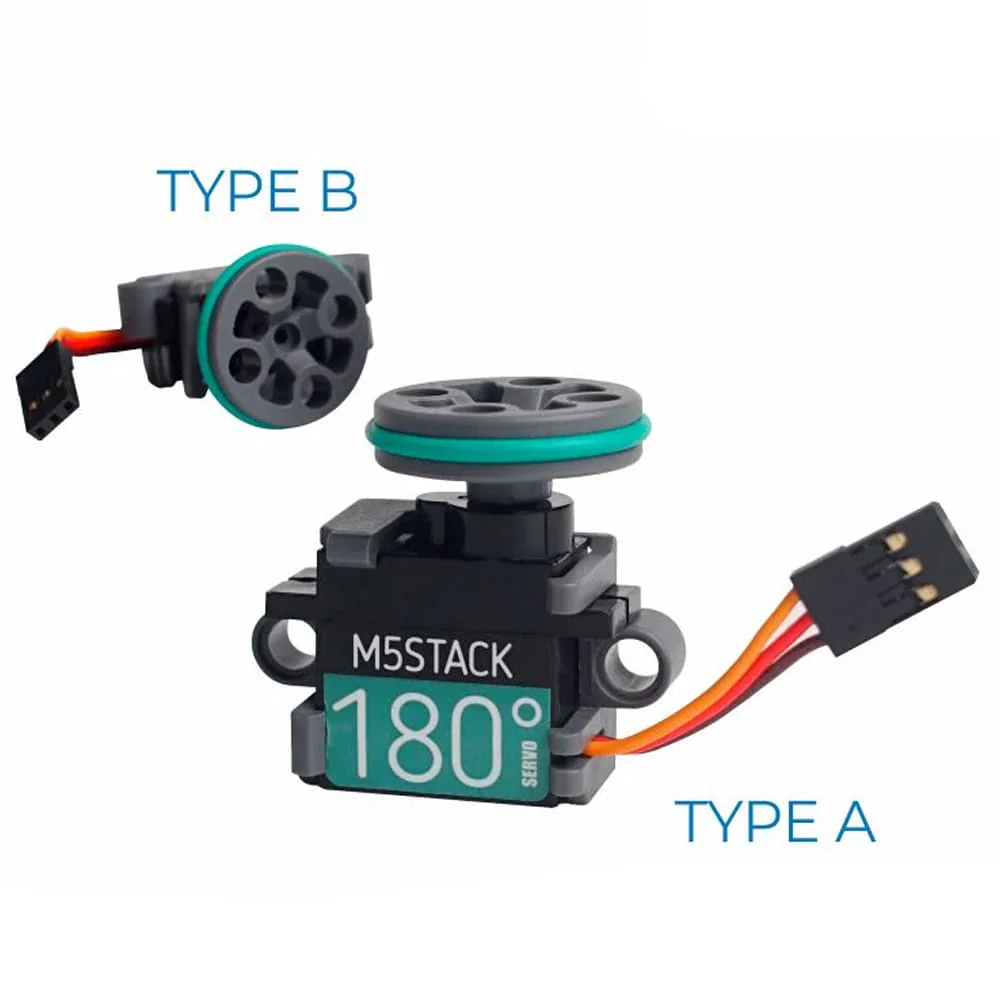

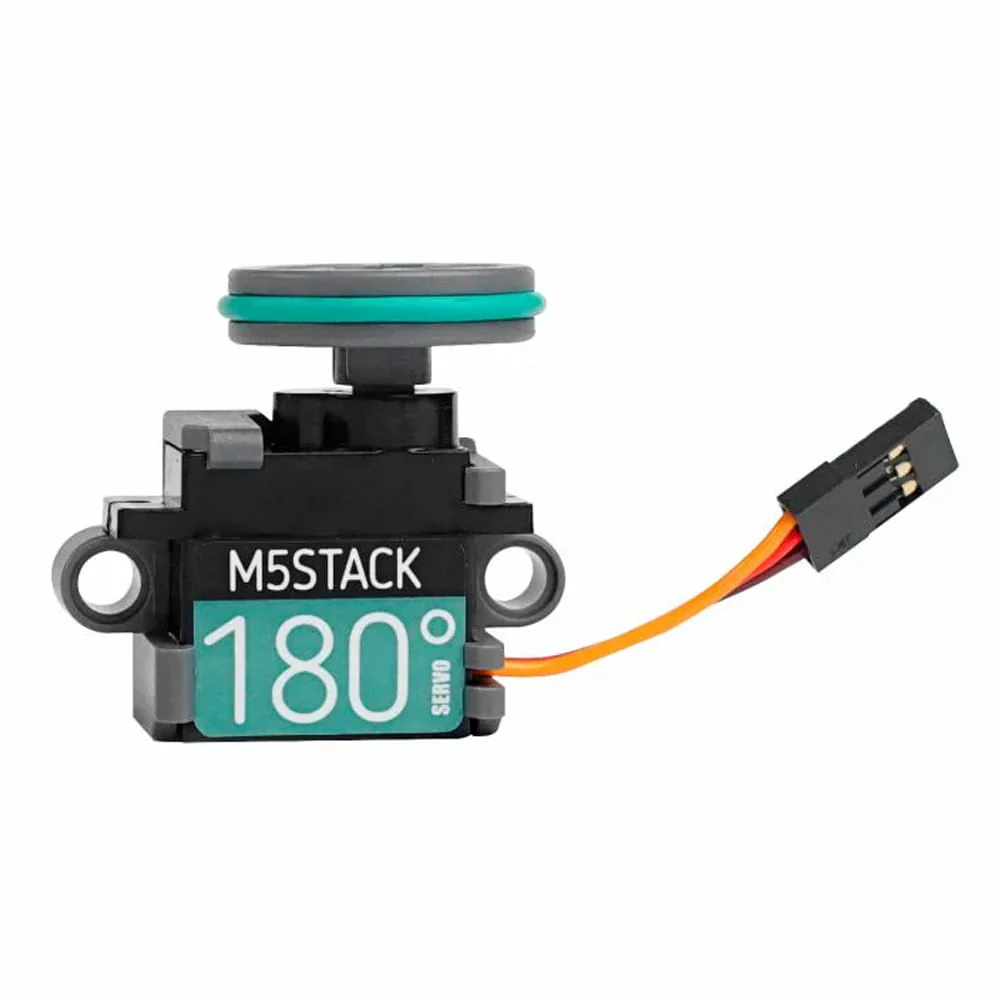

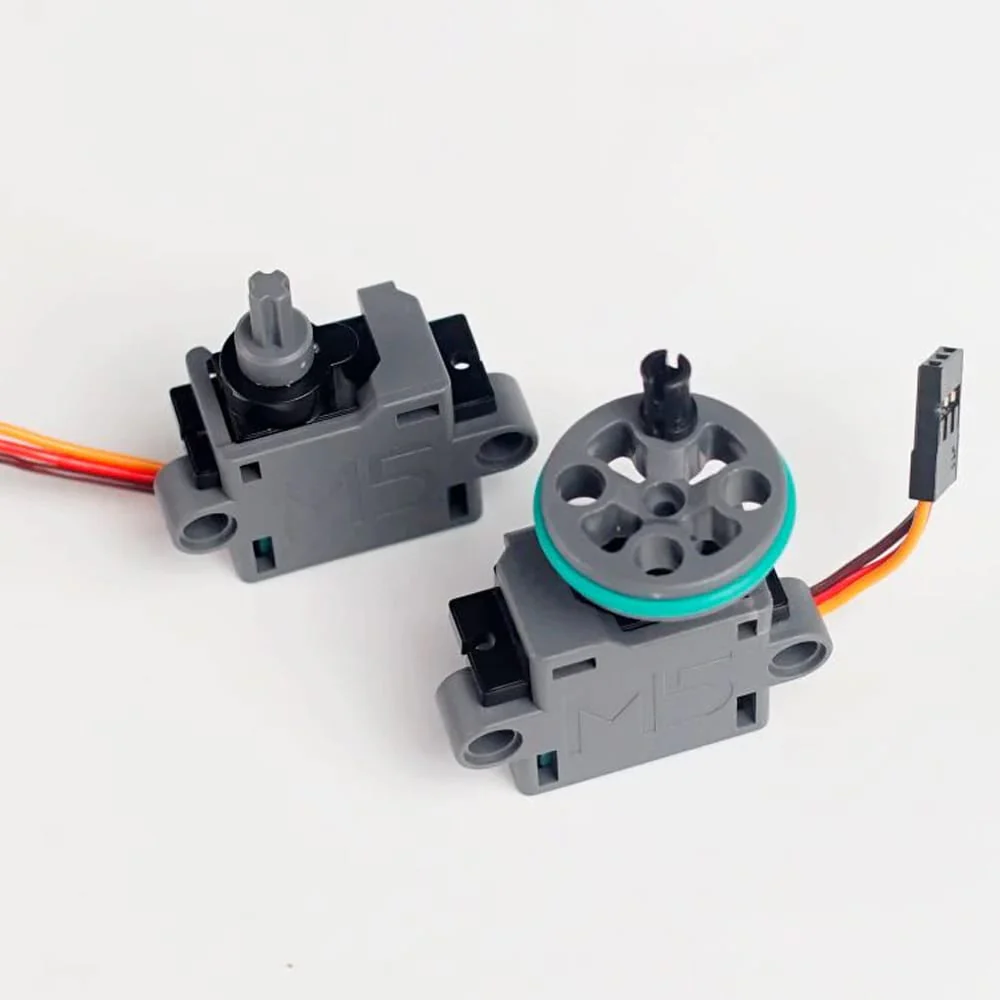

The M5Stack Servo Kit 180° is a 9g servo kit with a LEGO mounting bracket.

The kit includes various servo accessories (servo wheels, axles, servo discs, etc.), making it easy to assemble and disassemble. The product is designed according to LEGO standards, allowing it to seamlessly integrate with LEGO series products, inspiring unlimited creativity. It can be directly connected using LEGO parts.

This 180° servo is only used to control rotation angles from 0 to 180°. When using, please ensure the appropriate supply voltage to prevent stalling and avoid burning out the servo.

We also stock the M5Stack SG90 Servo and the M5Stack Servo Kit 360° LEGO-compatible!

Features

• Micro servo system
• LEGO compatible
• Simple control
• Supports Arduino and UiFlow

Specifications

Gear Material	Metal motor gear, plastic gearbox
PWM Frequency	50Hz/0.5~2.5MS
Servo Weight	9.0g
Torque	1.6kg·cm/4.8V; 1.8kg·cm/6.0V
180° Servo Speed	0.1sec/60°/4.8V; 0.09sec/60°/6.0V
Stall Current	750mA
No-load Current	60mA
Gear Material	Metal motor gear, plastic gearbox
Cable Length	30mm
Dead band	8μm
Spline	20T
Voltage	4.8 ~ 6.0V
Product Size	40.0 x 12.0 x 36.0mm
Product Weight	48.6g

Resources

• Product documents

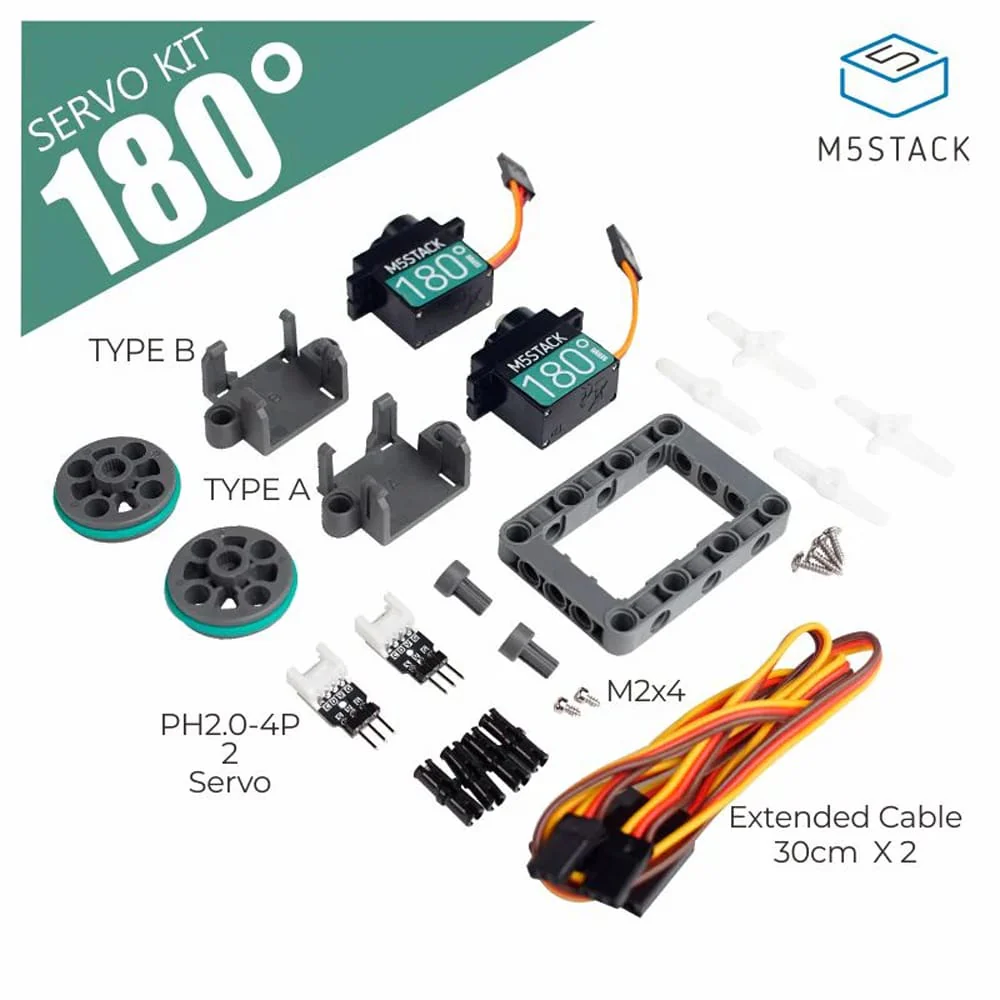

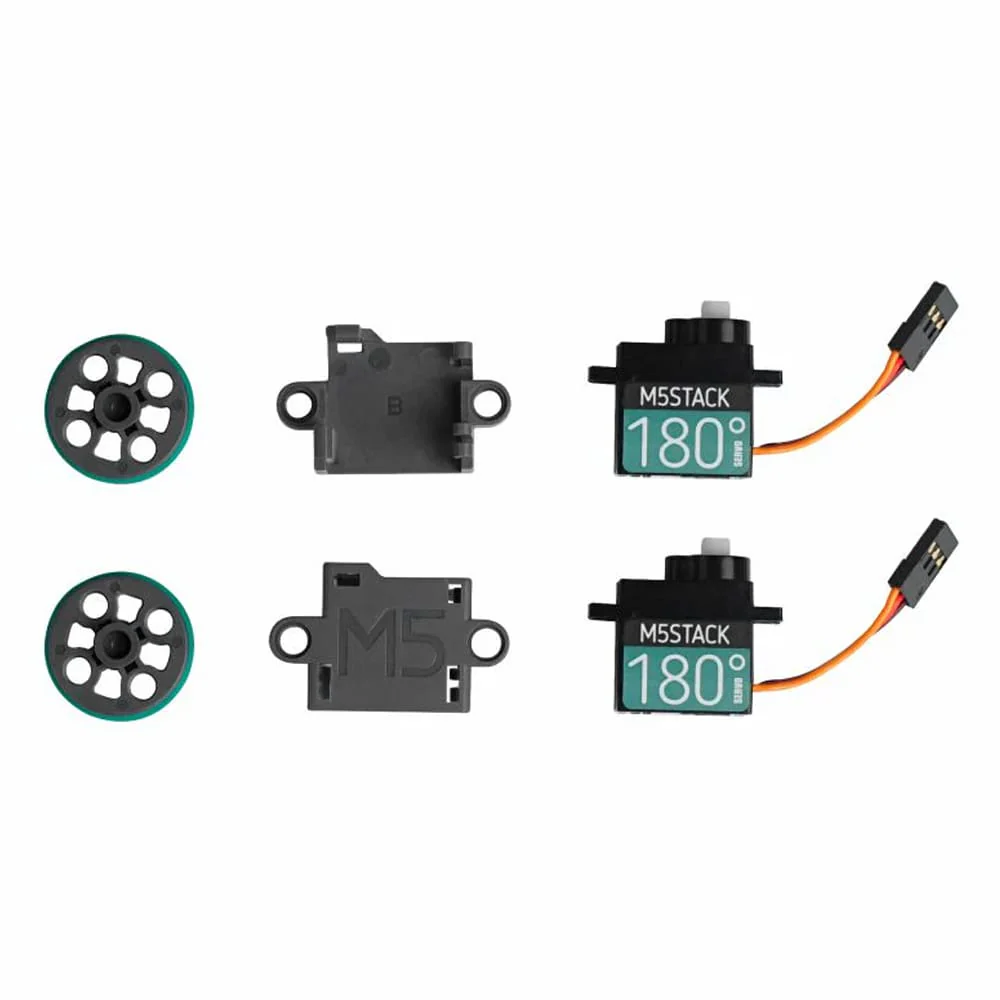

Package Contents

• 1x M5Stack Servo Kit 180° LEGO-compatible
  • 2x SG90 Servo 180°
  • 2x Servo Wheels 24mm
  • 2x Hex Socket Head Self-tapping Screws M2*4mm
  • 1x Square Frame Beam Brick

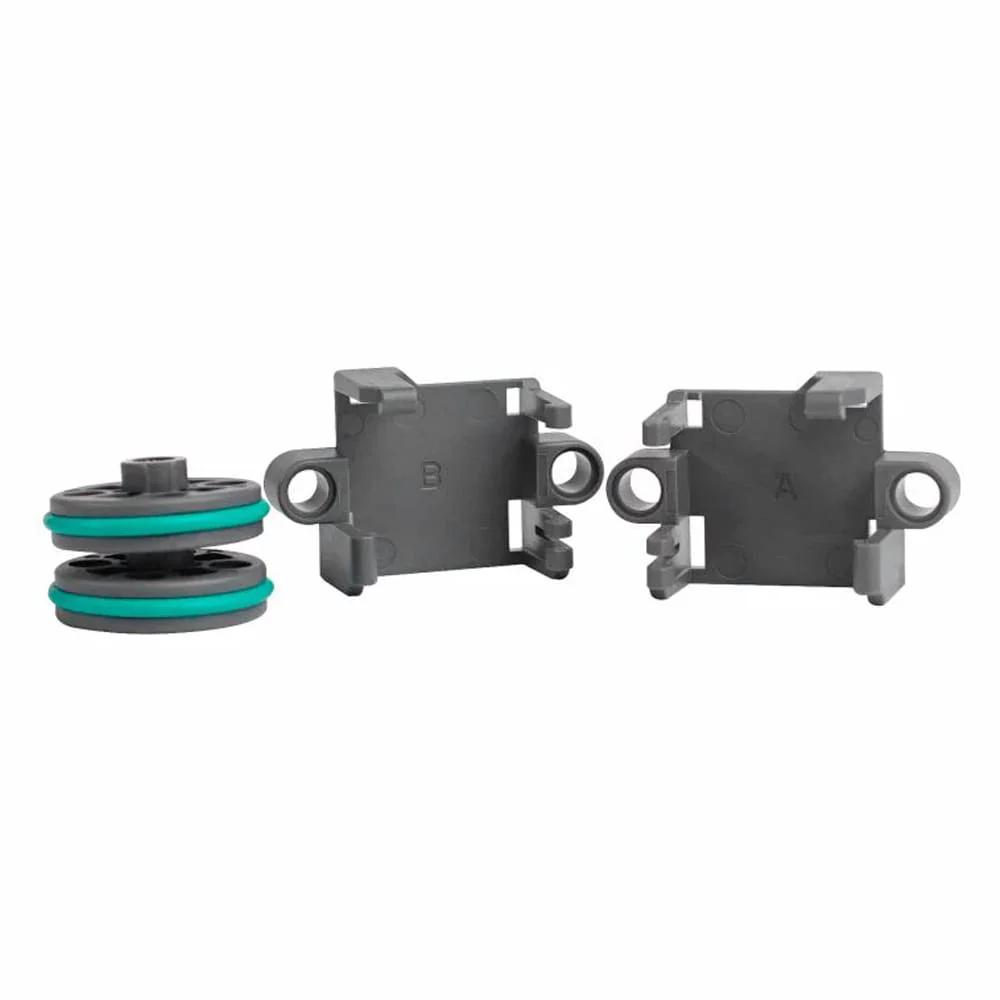

  • 1x Servo Mounting Clamp A
  • 1x Servo Mounting Clamp B
  • 2x Servo Extension Cables 30cm
  • 2x Servo Disc Accessory Pack (includes several discs and screws)
  • 2x Servo Axles
  • 2x Grove to Servo Adapter
  • 4x Black Connector Pins
