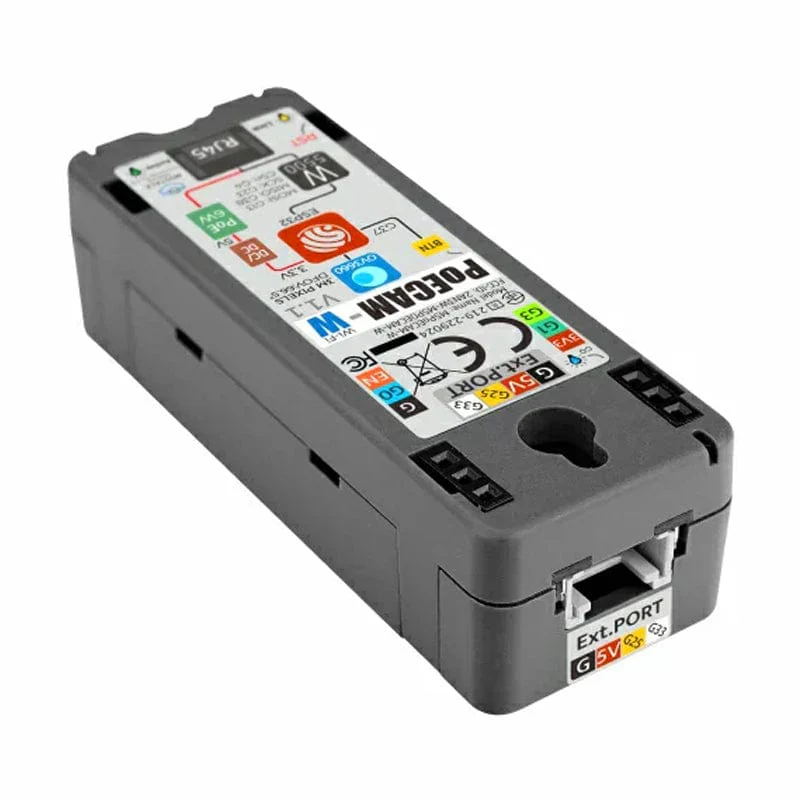

M5Stack PoE Camera with Wi-Fi (OV3660)
This programmable PoE camera, based on the ESP32 & W5500 module, includes a 3-megapixel OV3660 image sensor for sharp, vibrant images with a 65° field of view. It integrates PoE (power over Ethernet, max consumption 6W) and Wi-Fi capabilities. With 16MB Flash and 8MB PSRAM, programs can be downloaded via the Micro-USB interface.
It includes a G37 button, LED indicator light (G0), Grove interface (EXT_PORT), and expansion pins, along with a camera mounting clip and LEGO-compatible clip. This camera is great for your next project that involves image monitoring, remote acquisition, smart home, and industrial automation scenarios needing PoE-powered devices.
Features
- Built-in ESP32-D0WDQ6-V3 (Support 2.4G Wi-Fi）
- 3 million pixel camera OV3660
- Ethernet chip W5500
- LAN speeds up to 10M or 100M (depending on the line provided)
- PoE IEEE802.3 AF specification (Maximum power 6W）
- Built-in prompt LED light
- Ethernet standard interface RJ45
- Standard LEGO interface and camera mount
- Development platform: Arduino, ESP-IDF
Specifications
| SoC | ESP32-D0WDQ6-V3 |
| Camera Module | OV3660 @3 Megapixel |
| DFOV | 65.5° |
| Ethernet Chip | W5500 |
| FLASH | 16MB |
| PSRAM | 8MB |
| Wi-Fi | 802.11 b/g/n |
| Pixel Size | 1.75µm x 1.75µm |
| Output Format | RAW |
| RGB565/555/444 | |
| YUV422/420 | |
| YCbCr422 | |
| JPEG | |
| Automatic image control functions | Automatic Exposure Control (AEC) |
| Automatic Gain Control (AGC) | |
| Automatic White Balance (AWB) | |
| Automatic Band Filter (ABF) | |
| Automatic Black-Level Calibration (ABLC) | |
| FOV | 65° |
| Supports Hardwired TCP/IP Protocols | TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE |
| Ethernet interface specifications | RJ45 |
| PoE | PoE IEEE802.3AF specification (Max power 6w) |
| Product Size | 64 x 24 x 18mm |
| Package Size | 80 x 37 x 32mm |
| Product Weight | 38g |
| Package Weight | 45g |
Resources
Package Contents
- 1x M5Stack PoE Camera with Wi-Fi
- 1x Camera mount clip
- 1x Brick-compatible clip
Original: $31.20
-65%$31.20
$10.92Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This programmable PoE camera, based on the ESP32 & W5500 module, includes a 3-megapixel OV3660 image sensor for sharp, vibrant images with a 65° field of view. It integrates PoE (power over Ethernet, max consumption 6W) and Wi-Fi capabilities. With 16MB Flash and 8MB PSRAM, programs can be downloaded via the Micro-USB interface.
It includes a G37 button, LED indicator light (G0), Grove interface (EXT_PORT), and expansion pins, along with a camera mounting clip and LEGO-compatible clip. This camera is great for your next project that involves image monitoring, remote acquisition, smart home, and industrial automation scenarios needing PoE-powered devices.
Features
- Built-in ESP32-D0WDQ6-V3 (Support 2.4G Wi-Fi）
- 3 million pixel camera OV3660
- Ethernet chip W5500
- LAN speeds up to 10M or 100M (depending on the line provided)
- PoE IEEE802.3 AF specification (Maximum power 6W）
- Built-in prompt LED light
- Ethernet standard interface RJ45
- Standard LEGO interface and camera mount
- Development platform: Arduino, ESP-IDF
Specifications
| SoC | ESP32-D0WDQ6-V3 |
| Camera Module | OV3660 @3 Megapixel |
| DFOV | 65.5° |
| Ethernet Chip | W5500 |
| FLASH | 16MB |
| PSRAM | 8MB |
| Wi-Fi | 802.11 b/g/n |
| Pixel Size | 1.75µm x 1.75µm |
| Output Format | RAW |
| RGB565/555/444 | |
| YUV422/420 | |
| YCbCr422 | |
| JPEG | |
| Automatic image control functions | Automatic Exposure Control (AEC) |
| Automatic Gain Control (AGC) | |
| Automatic White Balance (AWB) | |
| Automatic Band Filter (ABF) | |
| Automatic Black-Level Calibration (ABLC) | |
| FOV | 65° |
| Supports Hardwired TCP/IP Protocols | TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE |
| Ethernet interface specifications | RJ45 |
| PoE | PoE IEEE802.3AF specification (Max power 6w) |
| Product Size | 64 x 24 x 18mm |
| Package Size | 80 x 37 x 32mm |
| Product Weight | 38g |
| Package Weight | 45g |
Resources
Package Contents
- 1x M5Stack PoE Camera with Wi-Fi
- 1x Camera mount clip
- 1x Brick-compatible clip
