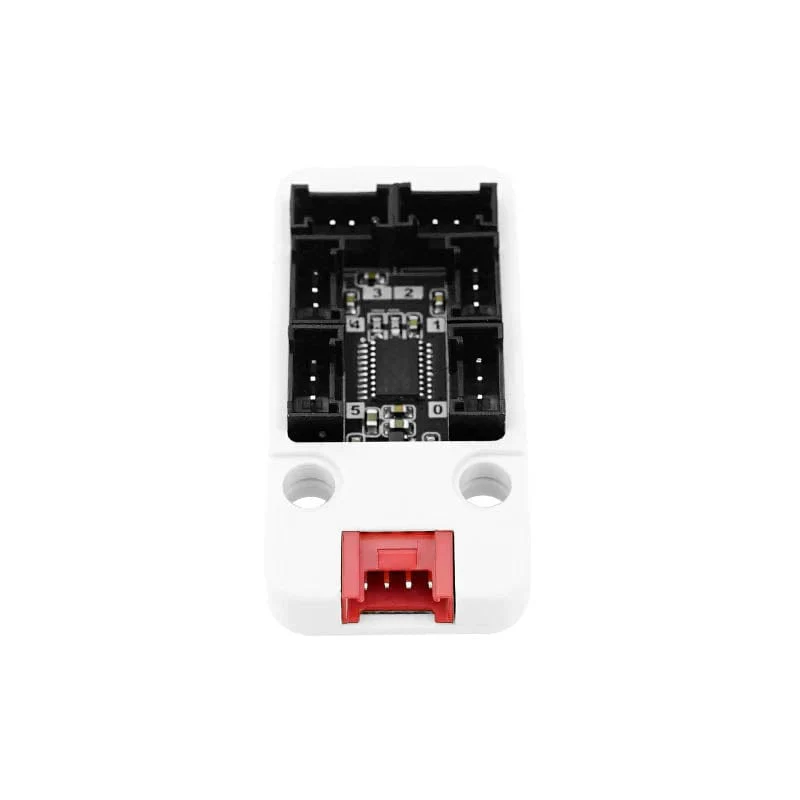

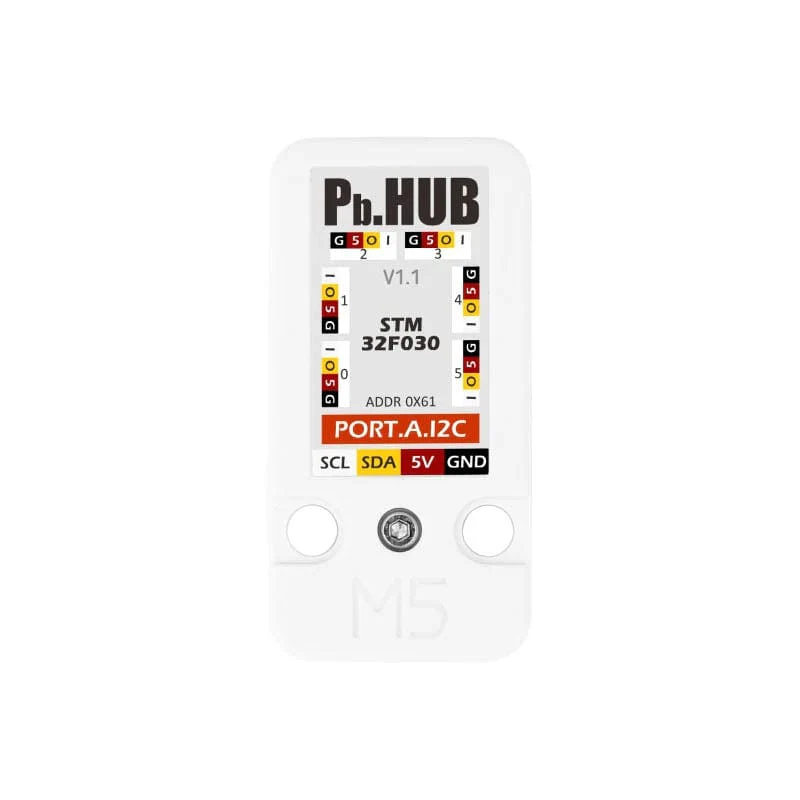

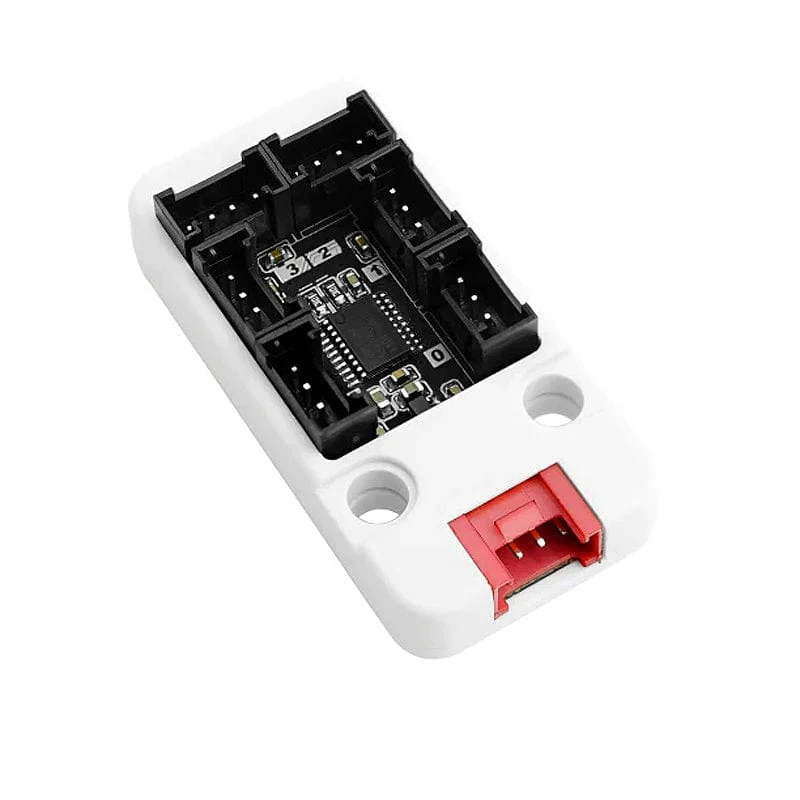

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0)
The I/O Hub Unit from M5Stack is a 6-channel expansion unit with I2C control.
Each Port B interface is capable of GPIO, PWM, Servo control, ADC sampling, RGB light control and other functions. The unit adopts an STM32F030 for internal control.
Features
- 6 x GPIO Ports Expansion
- 1 x I2C Input
- Internal STM32F030 control
- 2 x Brick holes
Package Contents

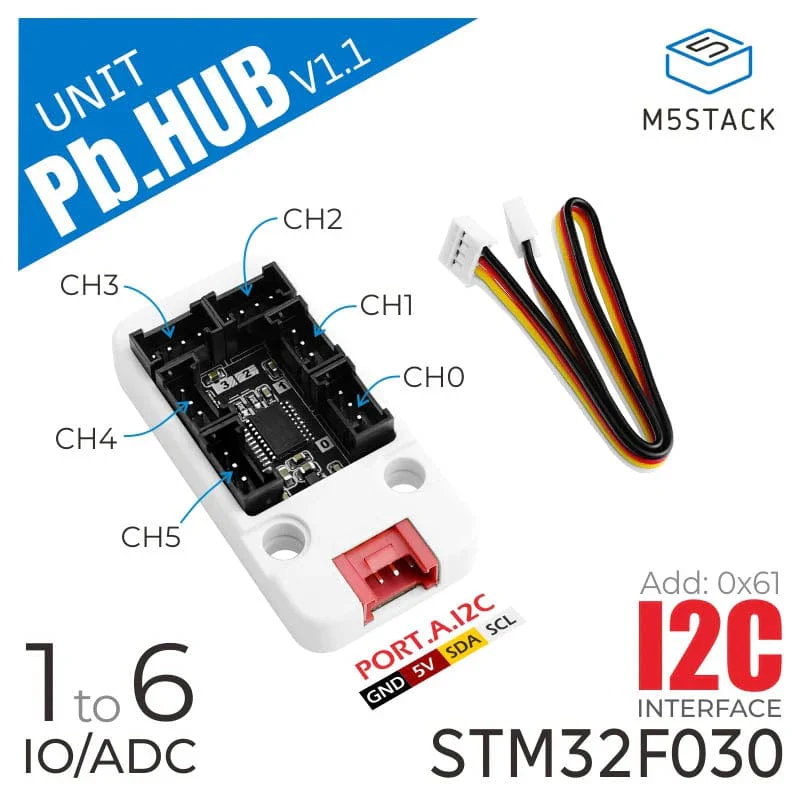

- 1x I/O Hub 1 to 6 Unit
- 1x HY2.0 4-pin cable (20cm)
Specifications
| Communication protocol | I2C:0x61 (Modified by register) |
| Net weight | 6.7g |
| Gross weight | 11.8g |
| Product Size | 48*24*12mm |
| Package Size | 13.6*9.1*12mm |
