M5Stack Fader Unit with B10K Potentiometer (SK6812)

The M5Stack Fader Unit combines a smooth 35mm slider potentiometer with 14 individually addressable RGB LEDs, making it ideal for lighting control, audio adjustment, and interactive input projects.

---

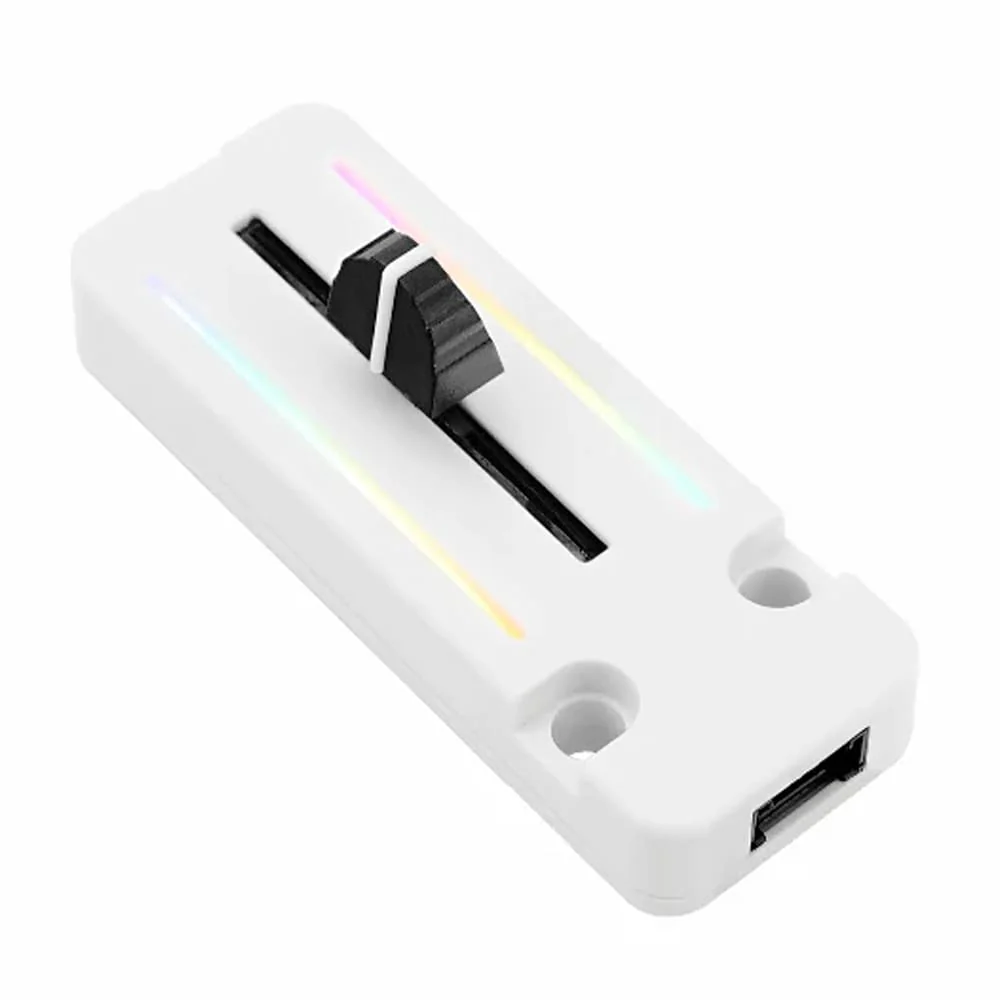

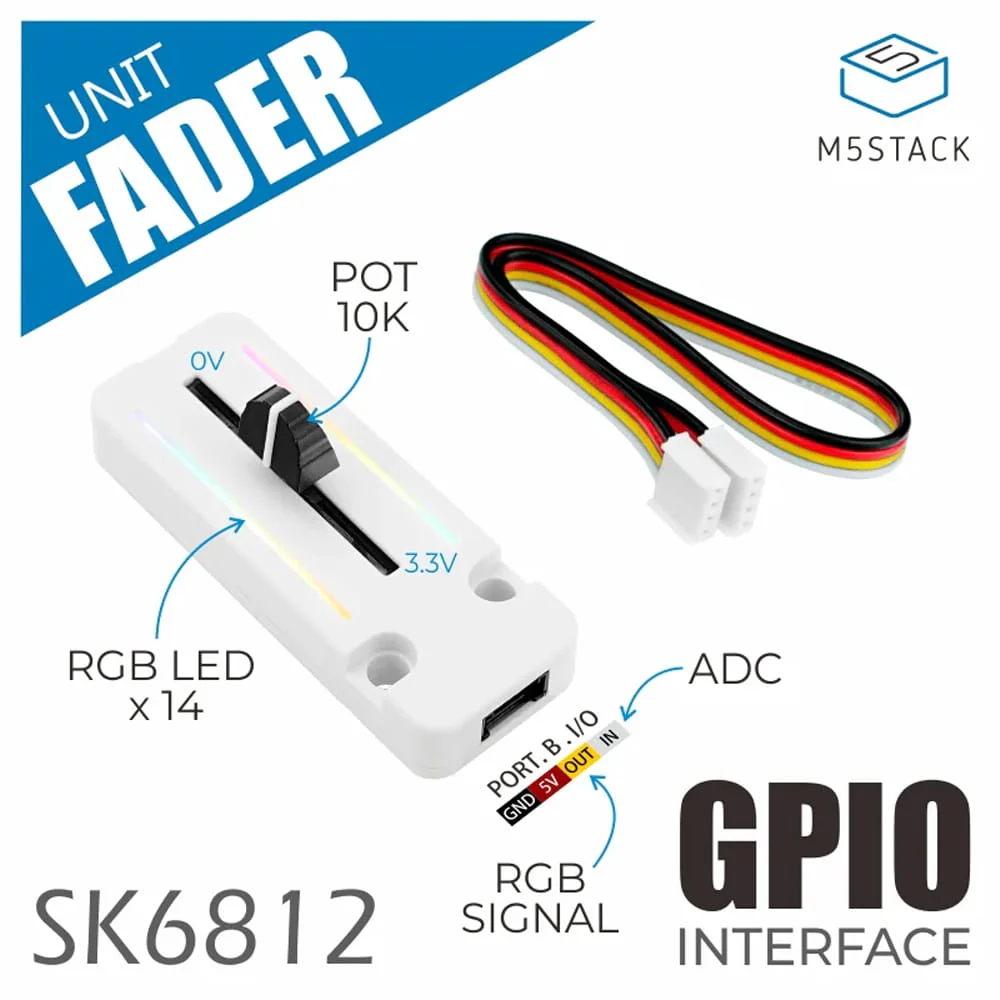

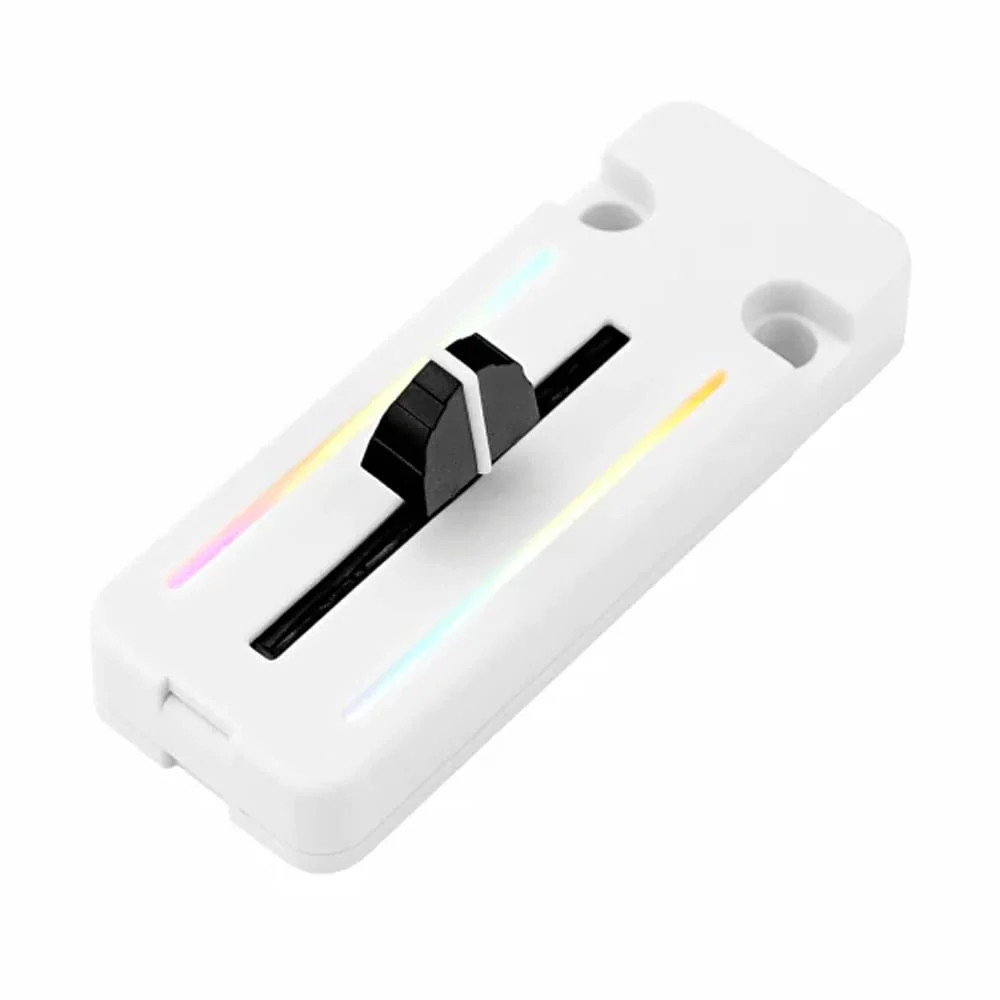

The M5Stack Fader Unit is a slider potentiometer/fader integrated with indicator lights, designed with a 35mm travel slider potentiometer and 14 x SK6812 programmable RGB lights.

The fader features centre positioning, and its excellent sliding damping provides smoother, more stable, and precise control. The integrated LEDs support digital addressing, meaning you can individually control the colour and brightness of each LED to achieve various lighting effects.

This product is suitable for applications such as lighting and music control.

Features

• Centre positioning
• Comfortable sliding damping
• Single 10kΩ adjustable resistor
• Programmable RGB lights
• GROVE interface
• Development platforms:
  • Arduino, UIFlow

Specifications

Fader Travel	35mm
Fader Handle Length	10mm
Single Resistor	10kΩ
Output Voltage	0-3.3V (when powered by 5V)

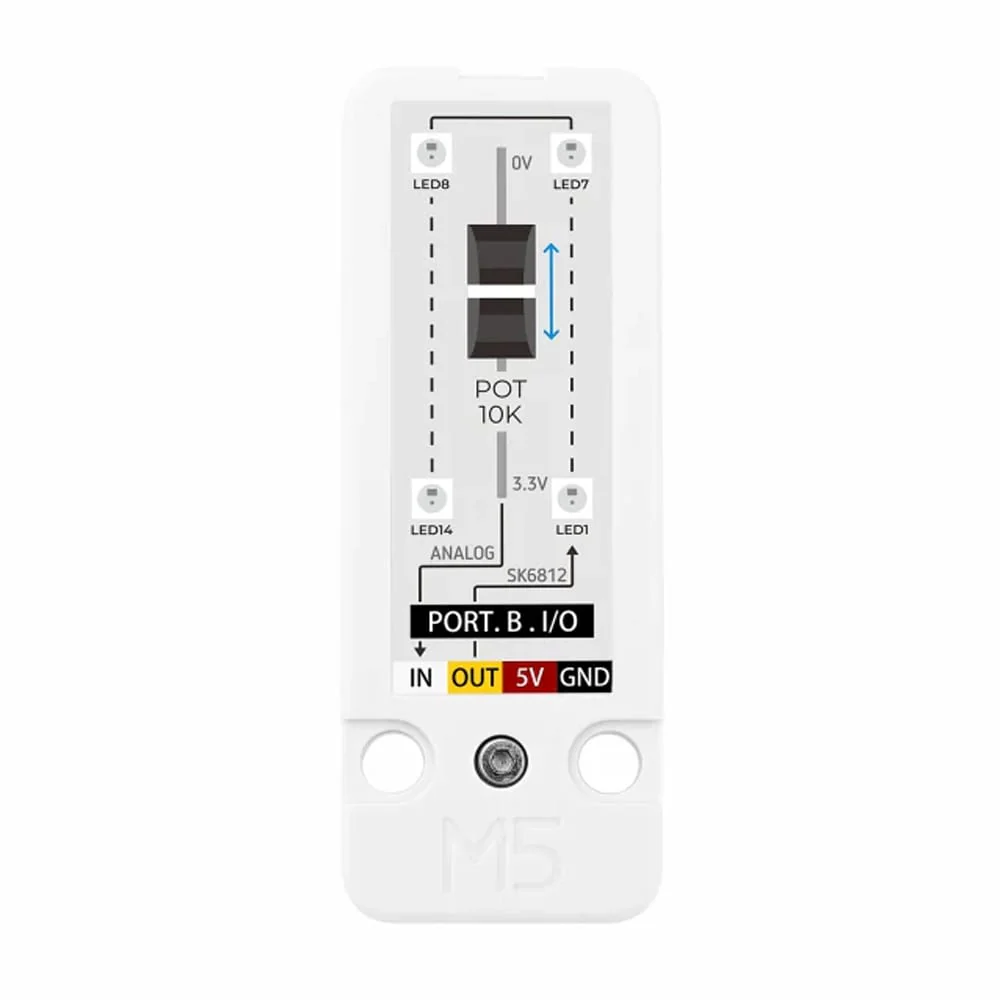

RGB LED	14x SK6812 programmable RGB lights
Working Current	90.04mA (light brightness at 50%, fader max output)
Net Weight	32g
Gross Weight	40g

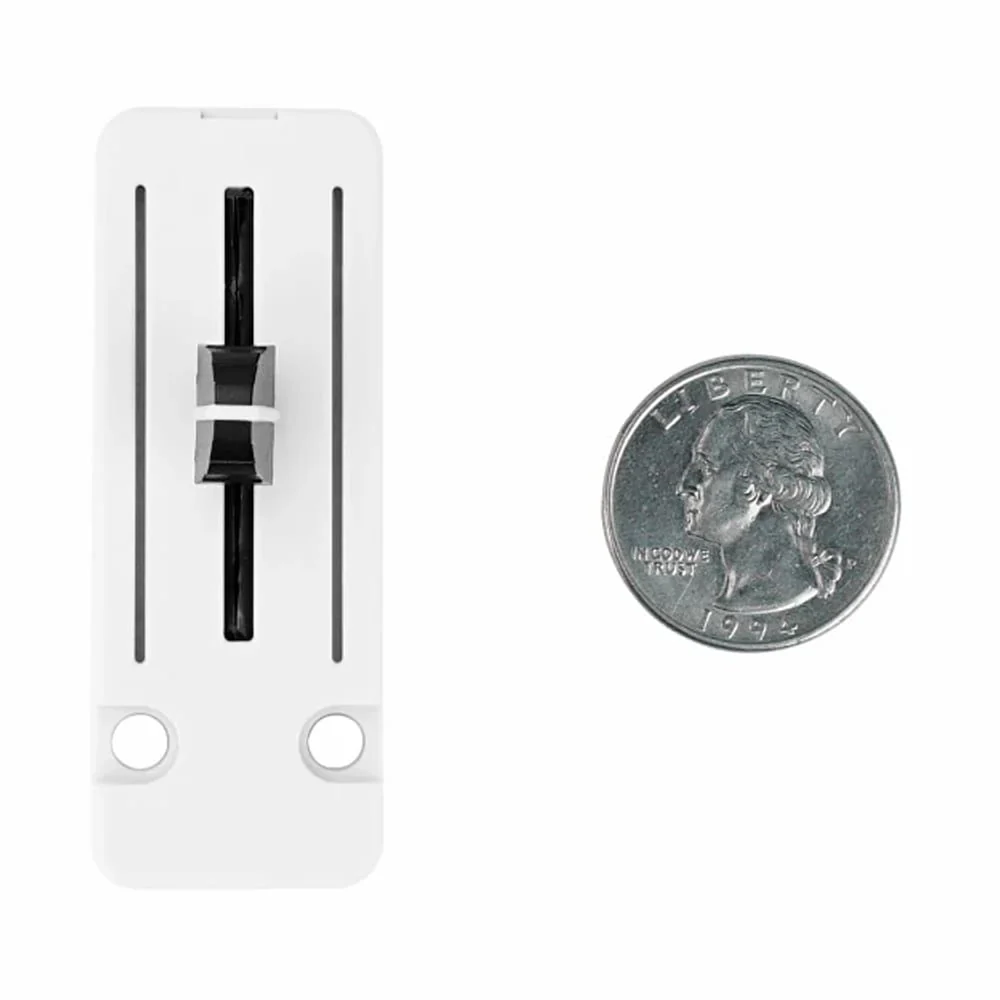

Product Size	64.0 x 24.0 x 22.8mm

Resources

• Product documents

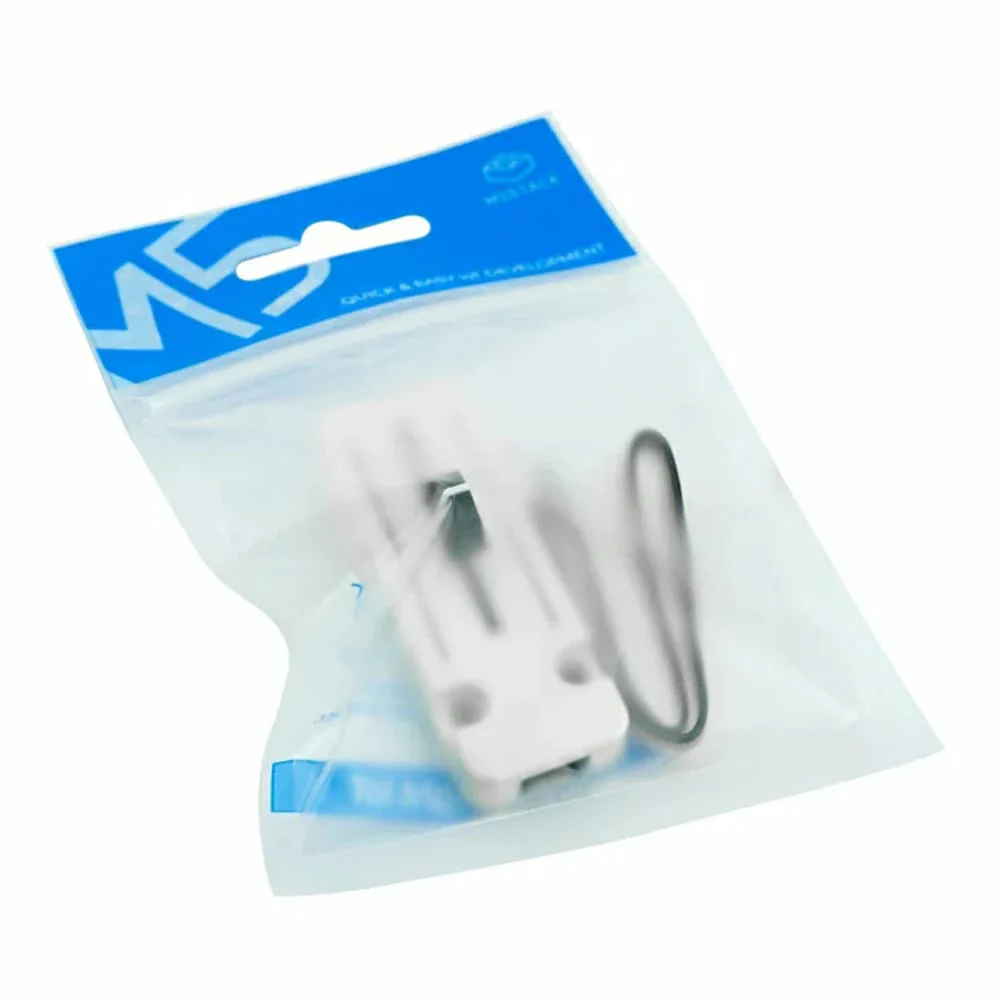

Package Contents

• 1x M5Stack Fader Unit with B10K Potentiometer (SK6812)
• 1x HY2.0-4P Grove connection cable (20cm)
