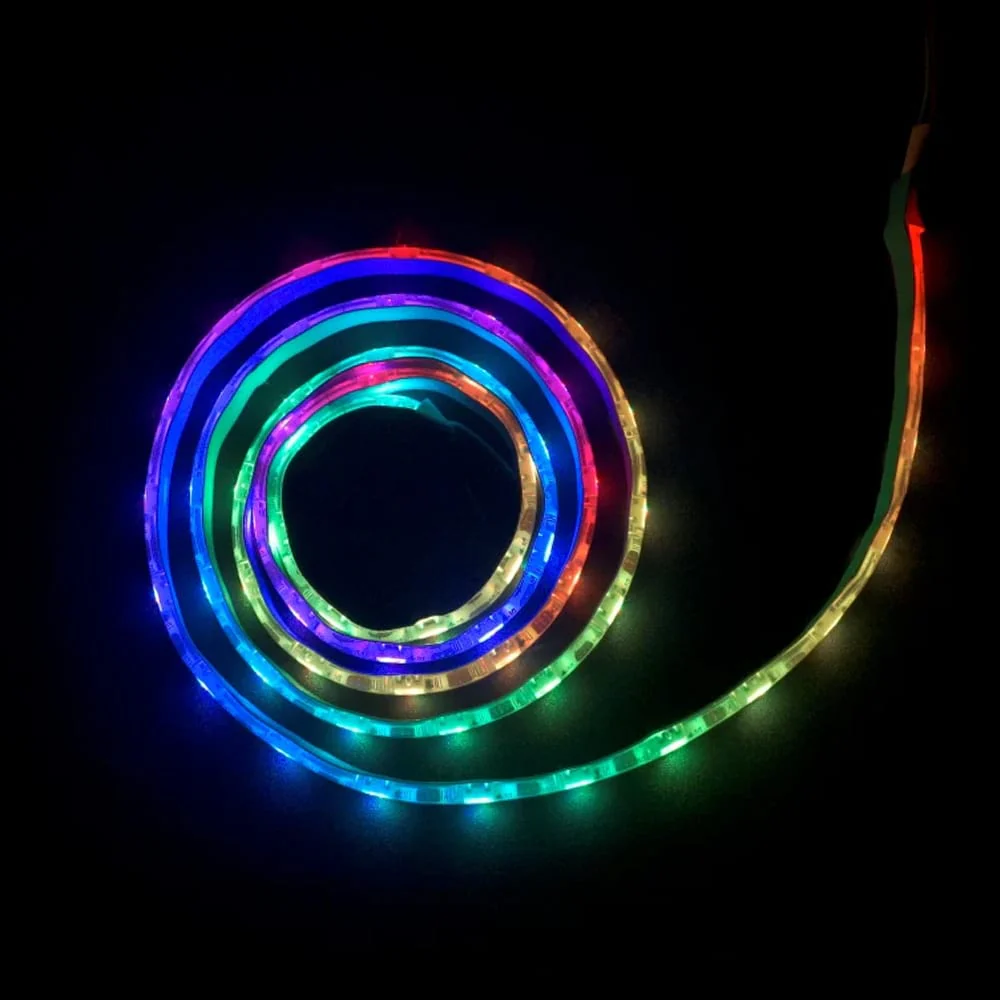

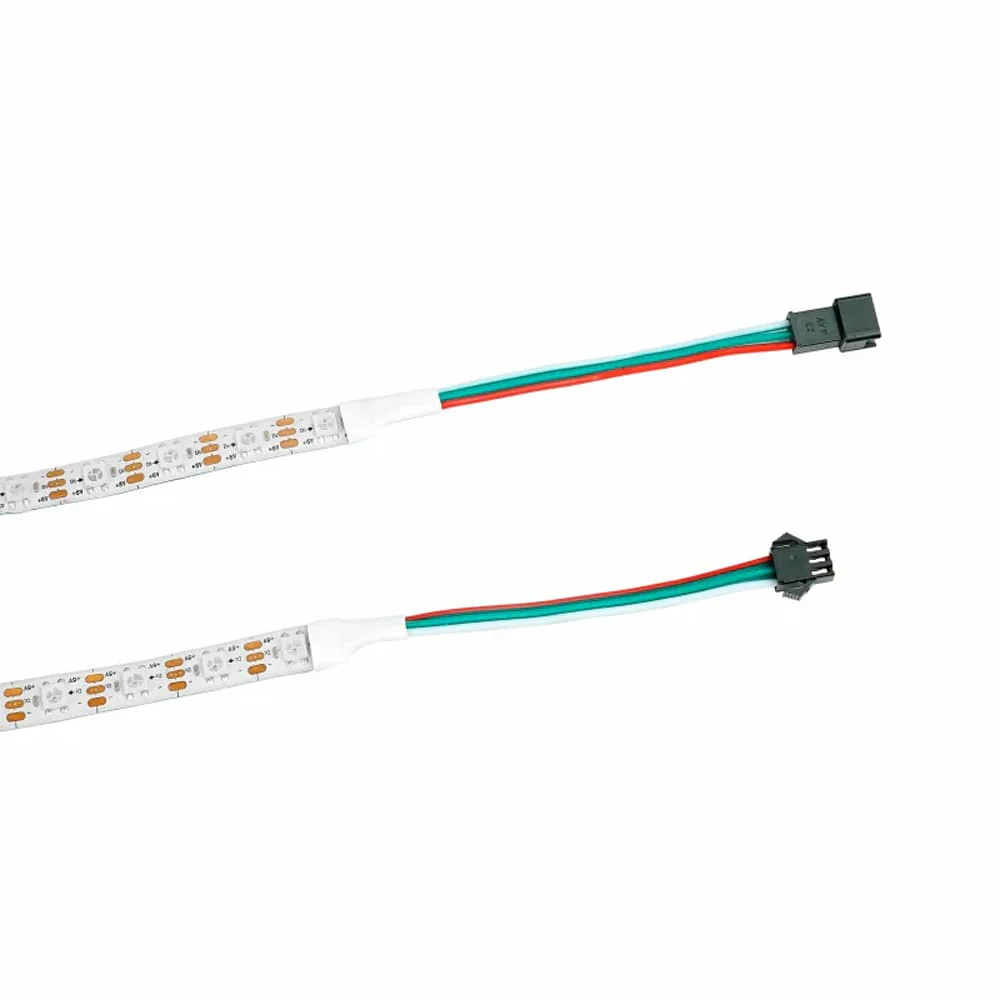

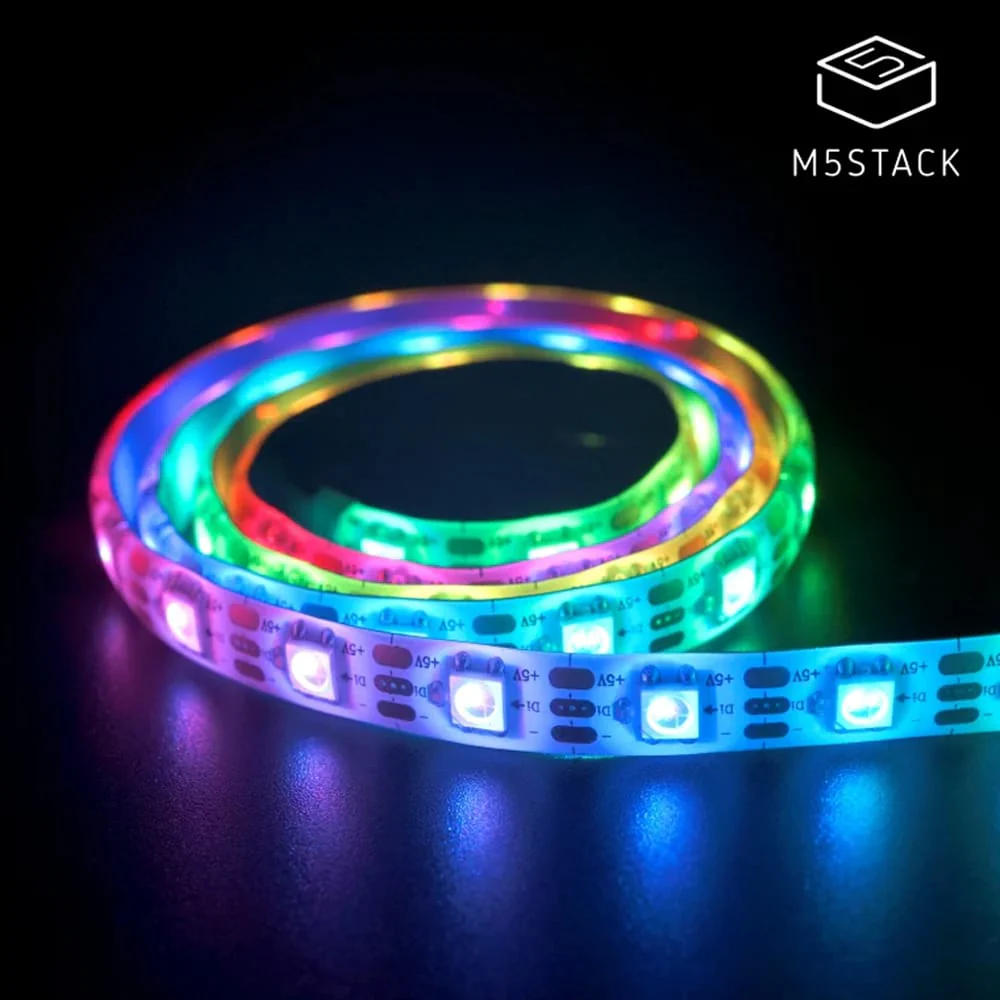

M5Stack Digital RGB LED Weatherproof Strip SK6812

The M5Stack Unit RGB LED Strip is a programmable SK6812 LED strip with individually addressable LEDs, flexible expansion support, and IP65 waterproof protection, suitable for custom lighting, decorative, and interactive projects.

---

The M5Stack Unit RGB LED Strip is a programmable light strip using SK6812 LEDs.

The strip supports digital addressing, meaning each individual LED on the strip can be controlled independently for its colour and brightness. Single bus programming allows strip expansion.

The outer layer of the strip adopts epoxy waterproof processing, and the transparent protective silicone cover supports IP65-level waterproof protection, adapting to various usage environments.

The product uses flexible FPC (soft strip board) / PCB (hard strip board) as a substrate for welding LEDs, with 5050 spec RGB LEDs, and the back is equipped with strong 3M double-sided adhesive for easy attachment. Operating voltage is 5V DC, and various lighting effects can be achieved through controller programming.

Please note: These are available in various lengths and LED densities. Please select your preferred configuration.

Features

• Product category: RGB LED Strip
• LED model: xdx-5050RGB-60-60
• IC model: SK6812
• Operating voltage: 5V
• Power: ±18W / meter
• Board width: 10mm
• Display grayscale level: 256
• Number of LEDs: 60 LEDs / meter
• Number of ICs: 60 ICs / meter (ICs located on FPC board), 60 pixel points / meter
• Operating temperature: -40°C ~ 80°C
• Service life: 30Kh
• Board base color: White / Black
• Light colour: Full-colour / any colour and effect achievable via controller
• Data transfer rate: 800K/S
• Waterproof rating: Epoxy waterproof - IP65
• Available lengths: 0.5m / 30, 1m / 60, 2m / 120, 5m / 300
• Development platform:
  • Arduino
  • UiFlow (Blockly, Python)
• Extendable length

Specifications

Length / Net Weight	0.5m / 37g, 1m / 55g, 2m / 86g, 5m / 211g
Length / Gross Weight	0.5m / 45g, 1m / 65g, 2m / 86g, 5m / 220g
Length / Number of LEDs	0.5m / 30, 1m / 60, 2m / 120, 5m / 300
Strip width	10mm

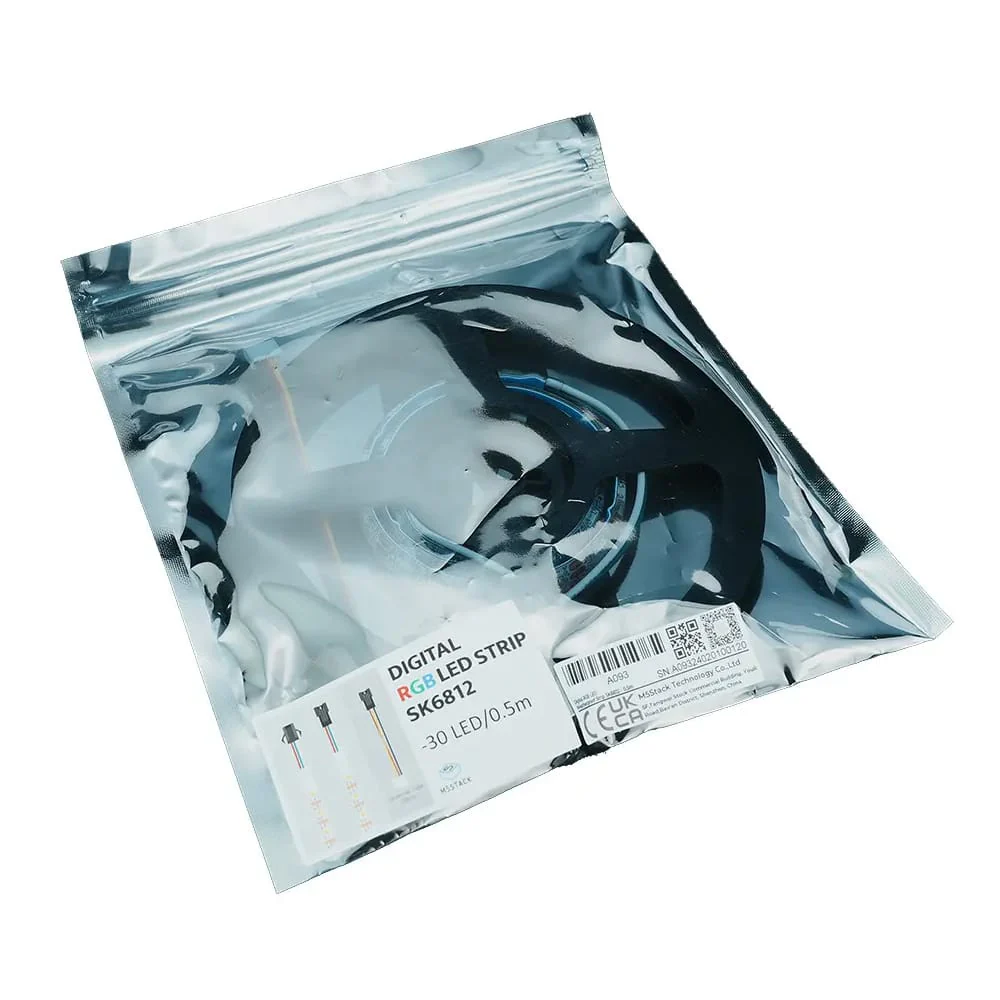

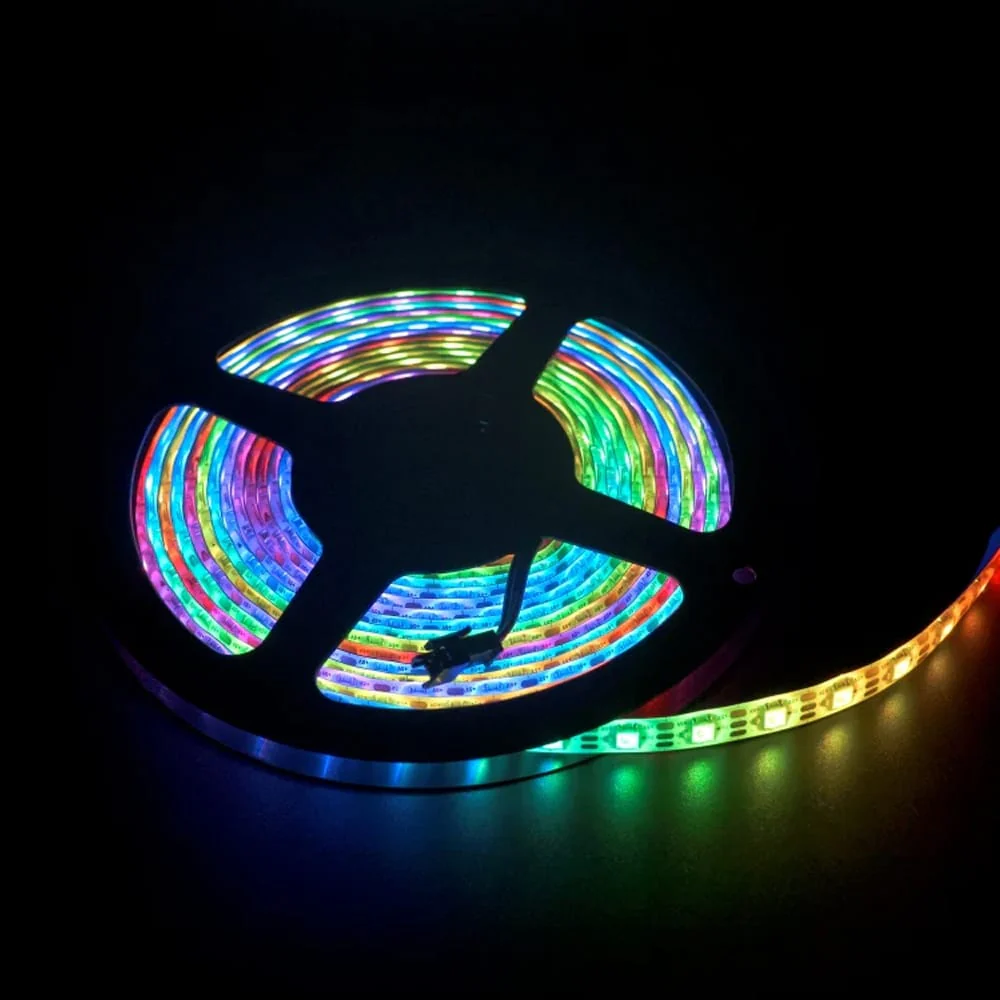

Package type	Anti-static bag packaging, fixed on reel

Important Information

• As the number of connected strips increases, the accompanying power consumption will also rise. Therefore, when using RGB LED strips with a large number of LEDs, it is recommended to provide additional power supply.

Resources

• Product documents

Package Contents

• 1x Unit RGB LED Strip (Please select your preferred configuration and length before checkout)
• 1x HY2.0-4P Grove Conversion Cable (10cm)
