M5Stack CoreInk Proto Base

The M5Stack CoreInk Proto Base is a DIY expansion kit for the CoreInk controller, extending the IO bus to a prototyping board with included connectors and LEGO-compatible mounting options for custom circuit and hardware projects.

---

The M5Stack CoreInk Proto Base is a DIY expansion kit designed for the CoreInk main control unit.

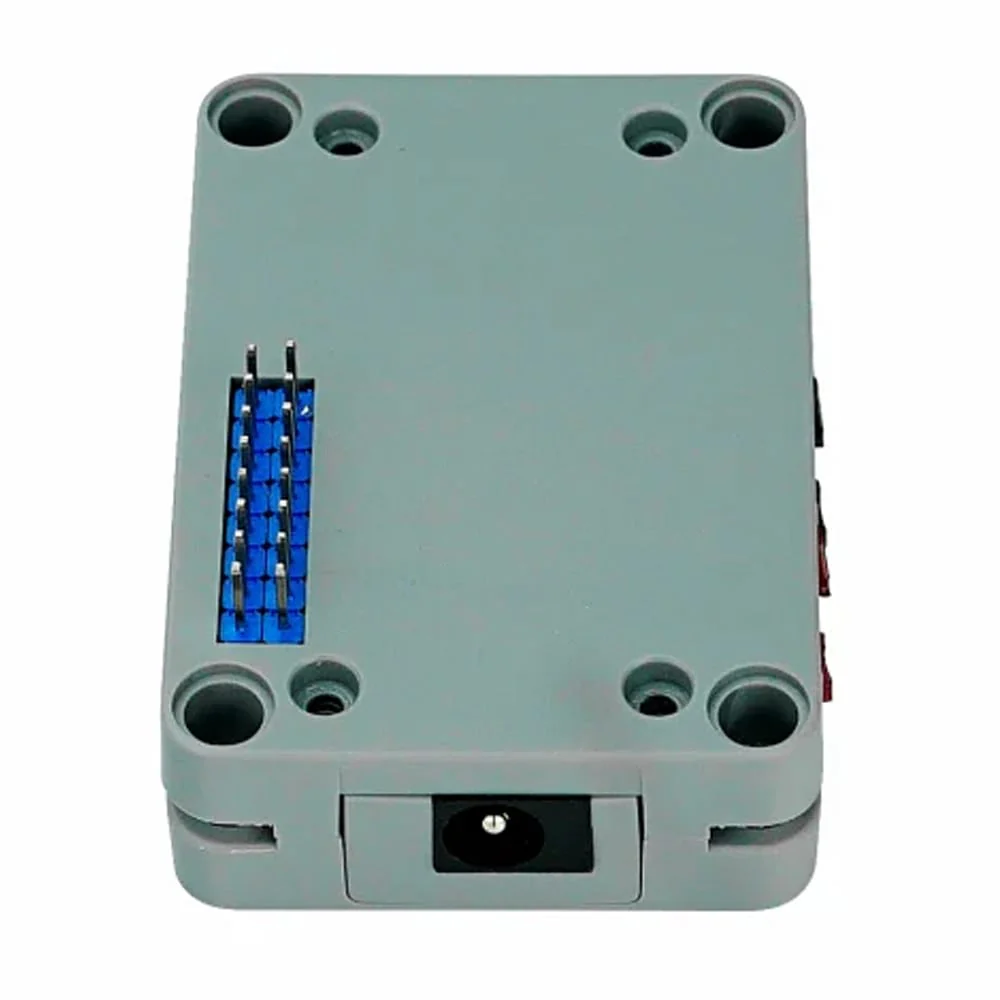

When stacking this expansion board, the IO bus on the CoreInk main control unit will be extended to the PROTO board via the bottom PIN headers, allowing you to design and build circuits according to your needs.

The kit also includes various expansion accessories (HY2.0-4P female connectors, 3.96 male/female connectors, DC power connectors, etc.), which can be soldered onto the PROTO board to add standard input/output interfaces to your circuit design.

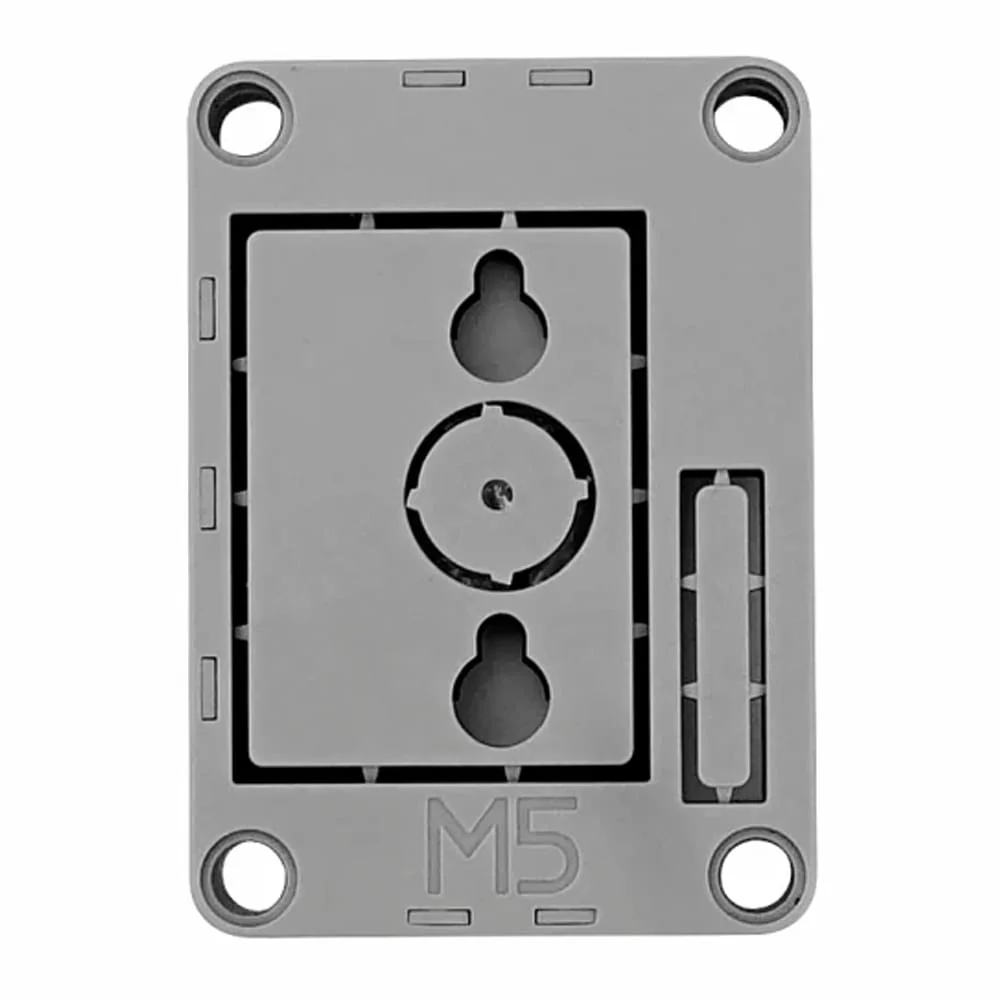

The back hook holes and LEGO-compatible corner holes make it easy to integrate your DIY creation into various structures.

Features

• Compatible with CoreInk
• Prototype circuit design
• Proto board

Specifications

• Housing Material Plastic (PC)
• Product Size 56 x 40 x 21.5mm
• Product Weight 34g

Resources

• Product documents

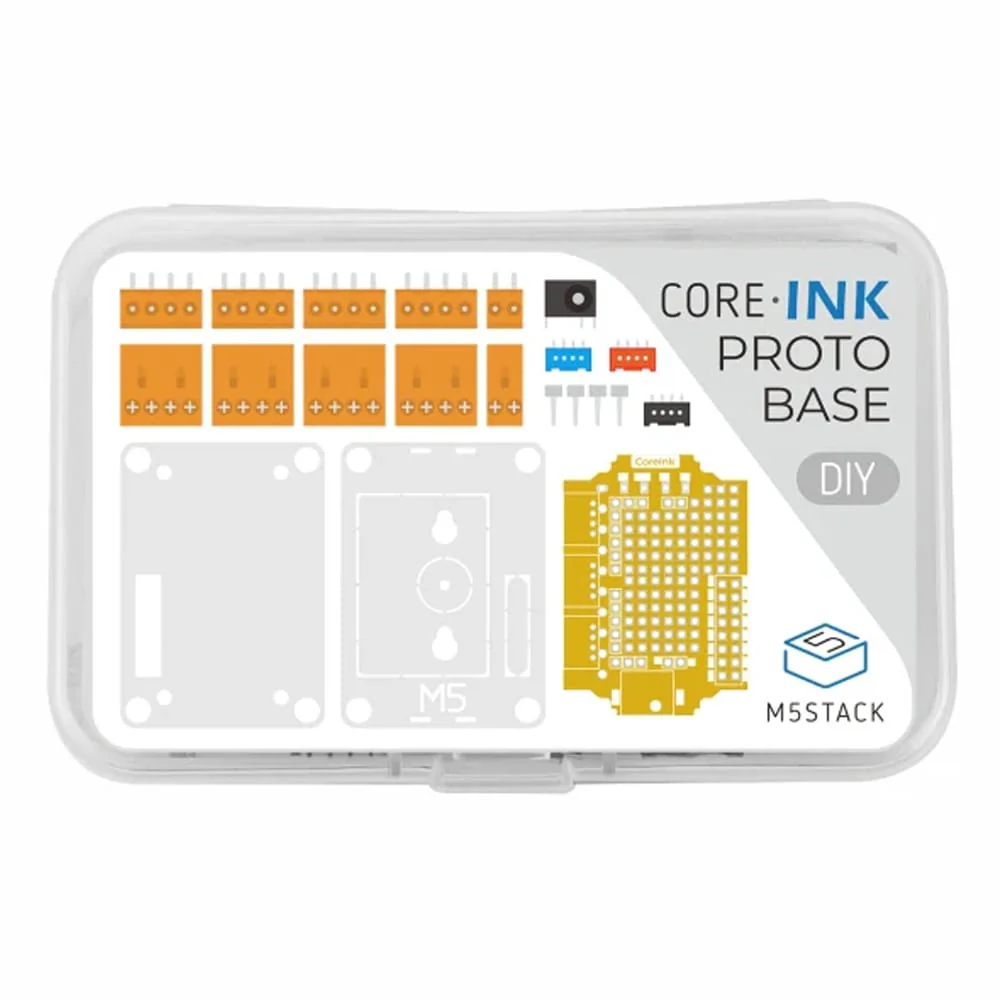

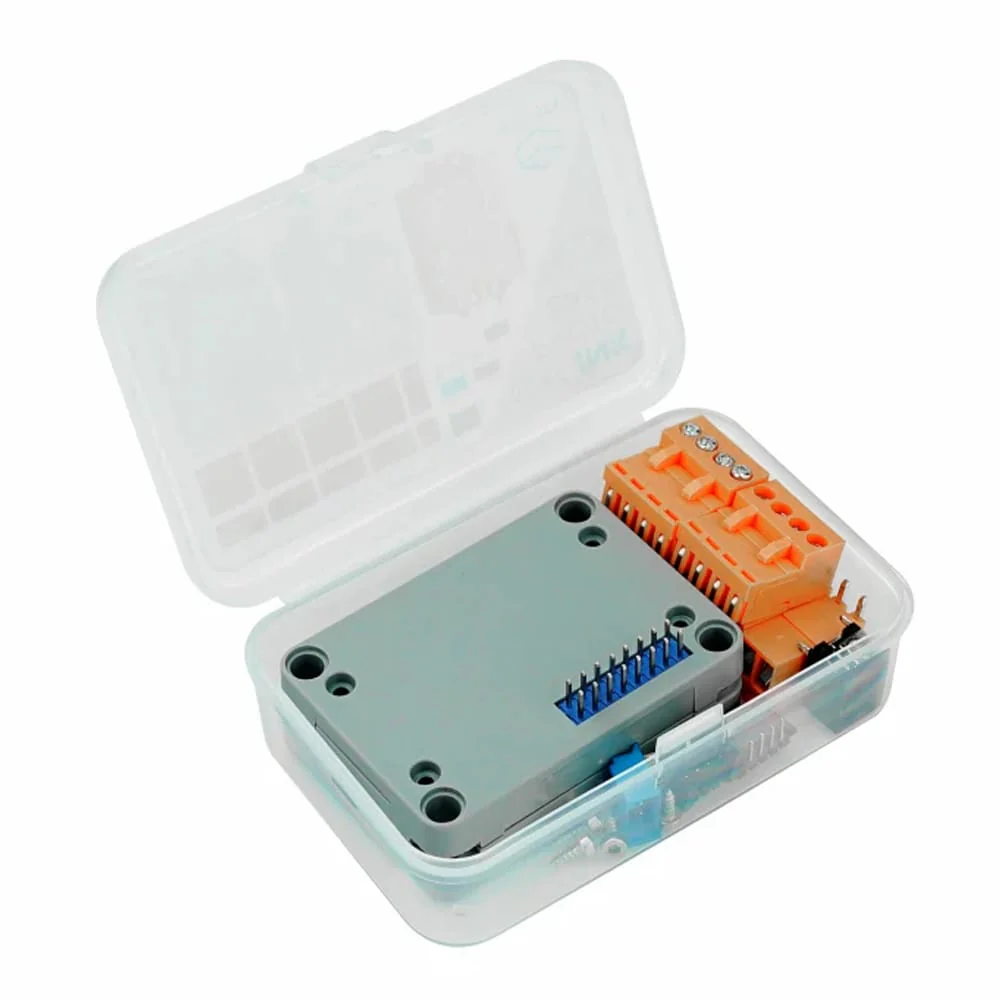

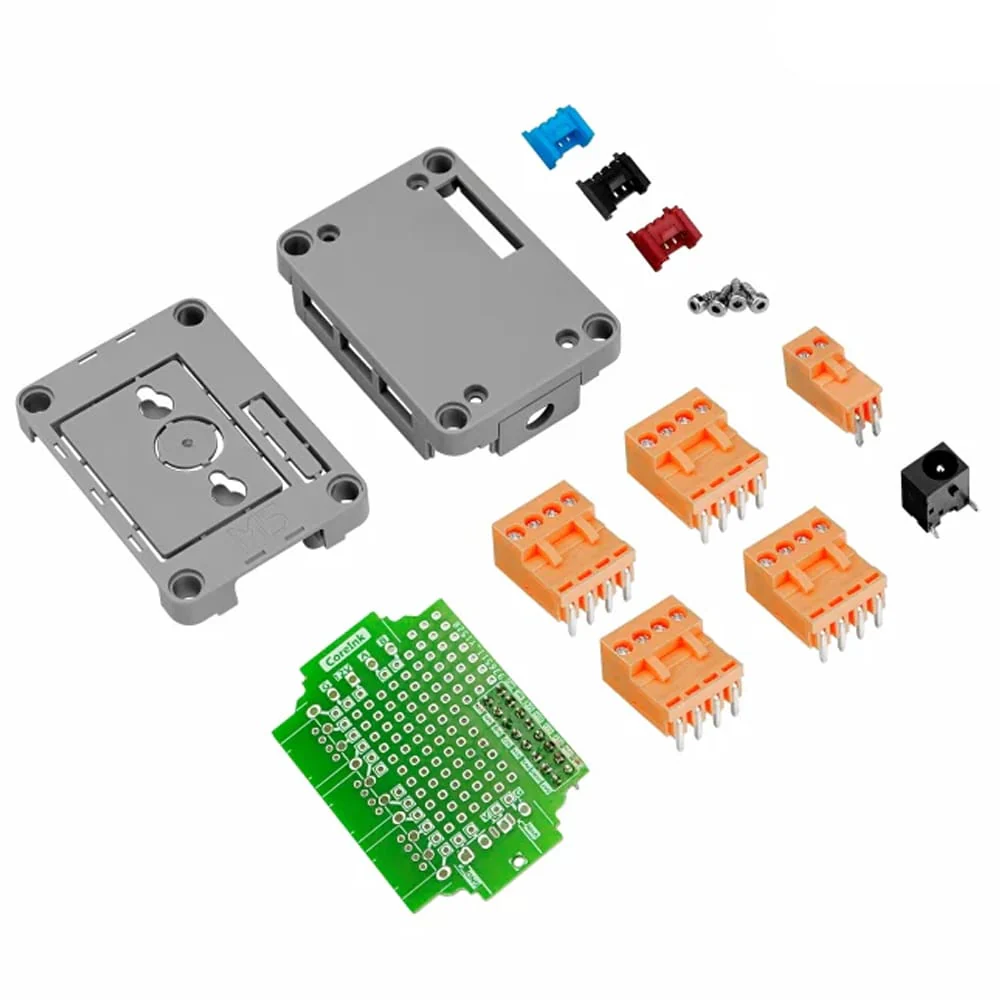

Package Contents

• 1x M5Stack CoreInk Proto Base
  • 1x CoreInk Proto Base (top shell + bottom shell)
  • 1x Hex key
  • 3x HY2.0-4P socket connectors (red x1, blue x1, black x1)
  • 4x HT3.96R-4P pins
  • 4x HT3.96R-4P sockets
  • 1x HT3.96R-2P pin
  • 1x HT3.96R-2P socket
  • 1x DC-044 socket connector
  • 4x M2*6 pan head self-tapping screws
  • 1x PROTO DIP pin header
  • 3x Port covers
