M5Stack Core2 V1.3

The M5Stack Core2 v1.3 is an ESP32-based IoT development kit with a 2.0" capacitive touchscreen, Wi-Fi, 16MB Flash, 8MB PSRAM, upgraded BMI270 IMU, built-in speaker, microphone, RTC, vibration motor, and rechargeable battery for embedded and HMI applications.

---

The M5Stack Core2 v1.3 is a highly integrated controller designed for IoT applications.

It features the ESP32-D0WDQ6-V3 core with an Xtensa dual-core 32-bit LX6 processor running at 240 MHz. The board includes 16MB of Flash, 8MB of PSRAM, and supports 2.4 GHz Wi-Fi. This version is an iteration of M5Stack Core2 ESP32, retaining the AXP192 power management IC while upgrading the 6-axis IMU on the rear expansion board to a BMI270, which improves pose detection accuracy and overall performance without compromising system architecture or compatibility.

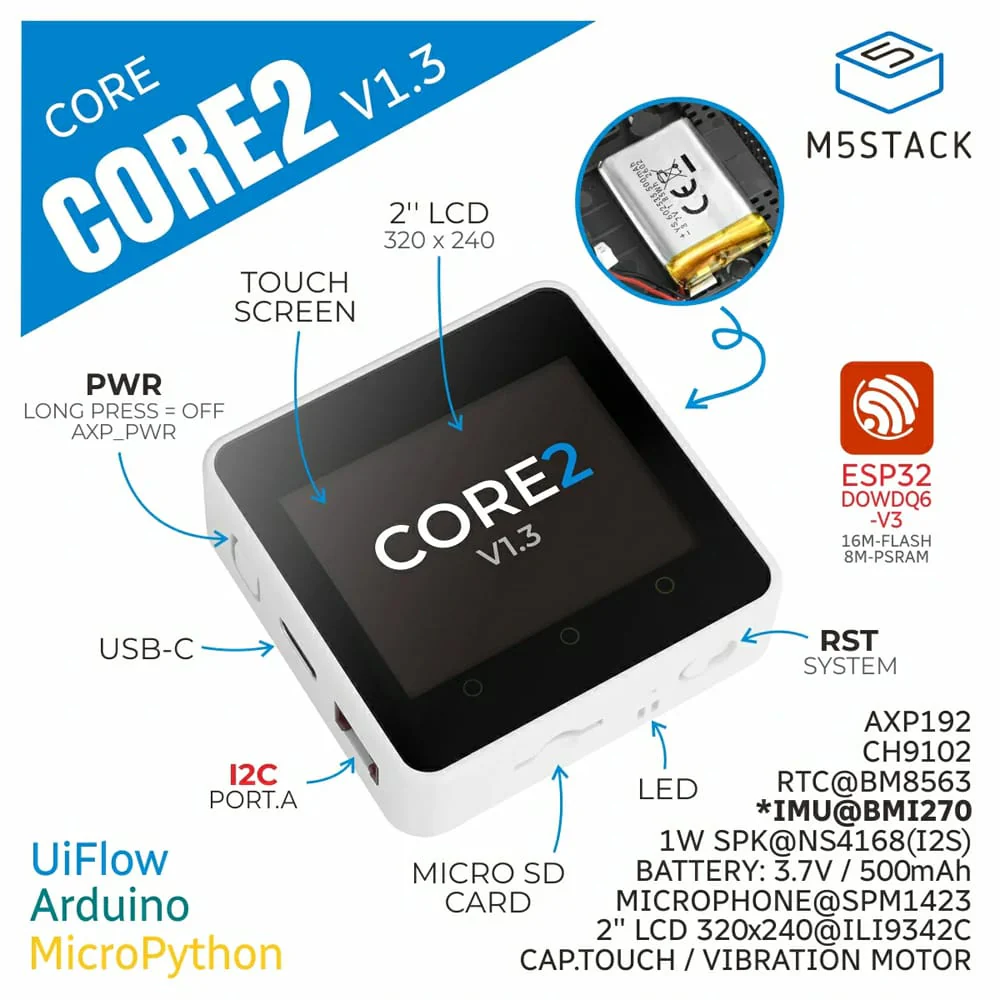

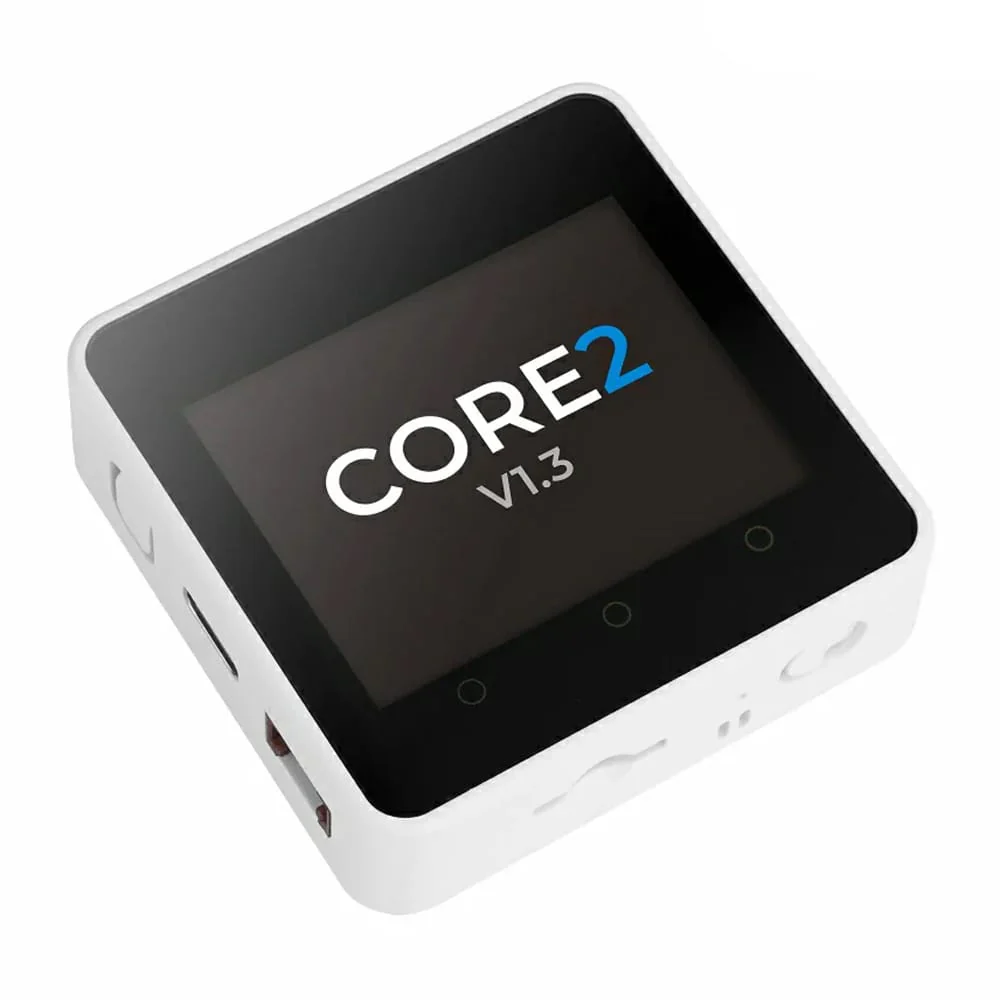

For human-machine interaction, the device features a 2.0" colour capacitive touchscreen. The three dot-shaped touch zones on the front panel are programmable and can be mapped to three virtual buttons. A built-in vibration motor provides tactile feedback. For storage and audio, the board includes a microSD card slot and a speaker, with audio output delivered via an I2S digital interface through the NS4168 amplifier to minimize distortion and enhance sound quality. The device also integrates an RTC real-time clock IC and a 500mAh lithium battery. The rear expansion board incorporates a BMI270 6-axis IMU and a microphone, supporting motion sensing and audio capture.

This product is well-suited for IoT terminals, human-machine interaction devices, pose detection, and embedded multi-function development applications.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

• ESP32-D0WDQ6-V3 Core:
  • 16MB Flash
  • 8MB PSRAM
  • 2.4 GHz Wi-Fi
• Human-Machine Interaction
  • 2.0" Colour Capacitive Touchscreen
  • Built-in Speaker
  • Vibration Motor
• Standalone Peripheral Expansion Board
  • BMI270 6-Axis IMU
  • PDM Microphone
• AXP192 Power Management
• RTC Clock
• Built-in 500mAh Lithium Battery
• HY2.0-4P Expansion Interface
• microSD Card Slot
• Development Platforms
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

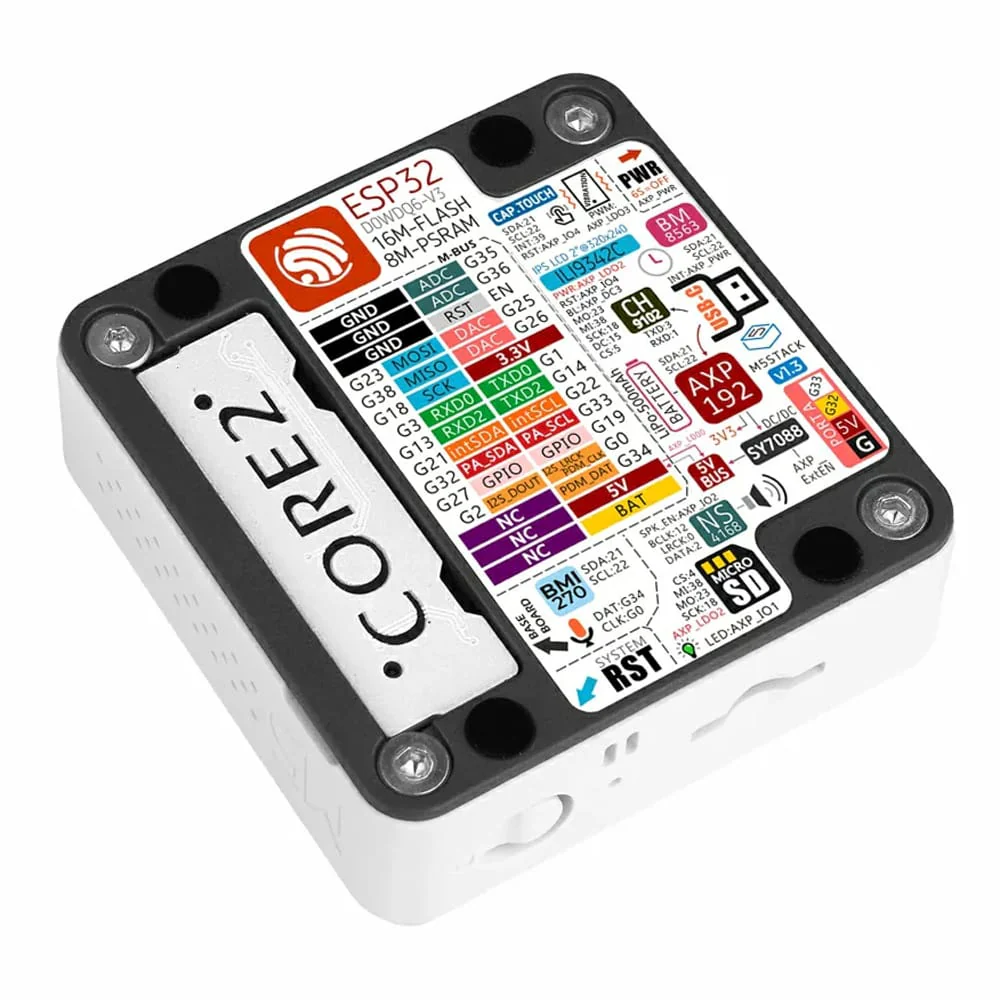

Specifications

SoC	ESP32-D0WDQ6-V3@Dual-Core Processor, 240MHz
Flash	16MB
PSRAM	8MB
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	5V @ 500mA
Host Interface	USB Type-C x 1, GROVE (I2C+I/O+UART) x 1
LED	Green Power Indicator
Buttons	Power Button, RST Button, Screen Virtual Buttons x 3
Vibration Alert	Vibration Motor
IPS LCD Screen	2.0"@320 x 240 ILI9342C
Capacitive Touch IC	FT6336U
Microphone	SPM1423
I2S Amplifier	NS4168
IMU	BMI270
RTC	BM8563
PMU	AXP192
USB-TTL	CH9102F
Lithium Battery	3.7V @ 500mAh
RTC Battery	MS412FE 3V 1.0mAh Rechargeable Micro Lithium Battery
Charging Parameters	Charging Current: 0.219A Current After Full Charge (Power Off): 0.055A Current When Fully Charged (Power On): 0.147A
Antenna	2.4G 3D Antenna
Operating Temperature	0 ~ 60°C
Base Screw Specification	Hex Countersunk M3
Internal PCB Reserved Interface	Battery Interface (Spec: 1.25mm-2P), USB Line Interface (Spec: 1.25mm-4P)
Product Size	54.0 x 54.0 x 16.5mm
Product Weight	58.8g

Product Comparison

Product Compare	Core2 v1.3	Core2 v1.1	Core2
IMU	BMI270	MPU6886	MPU6886
PMIC	AXP192	AXP2101	AXP192
USB-TTL	CH9102	CH9102	CP2104/CH9102
Power Indicator Colour	Green	Blue	Green

Resources

• Product documentation

Package Contents

• 1x M5Stack Core2 V1.3 (ESP32)
  • 1x USB Type-C Cable (20cm)
  • 1x Hex Key L-Shape 2.0mm (For M2.5 Screw)
