M5Stack COMX.LTE Module (SIM7600G)

The M5Stack COMX LTE Module adds high-speed 4G LTE connectivity to M5Stack projects, supporting data transfer, voice calls, and SMS for applications such as industrial IoT, remote monitoring, and wireless communication systems.

---

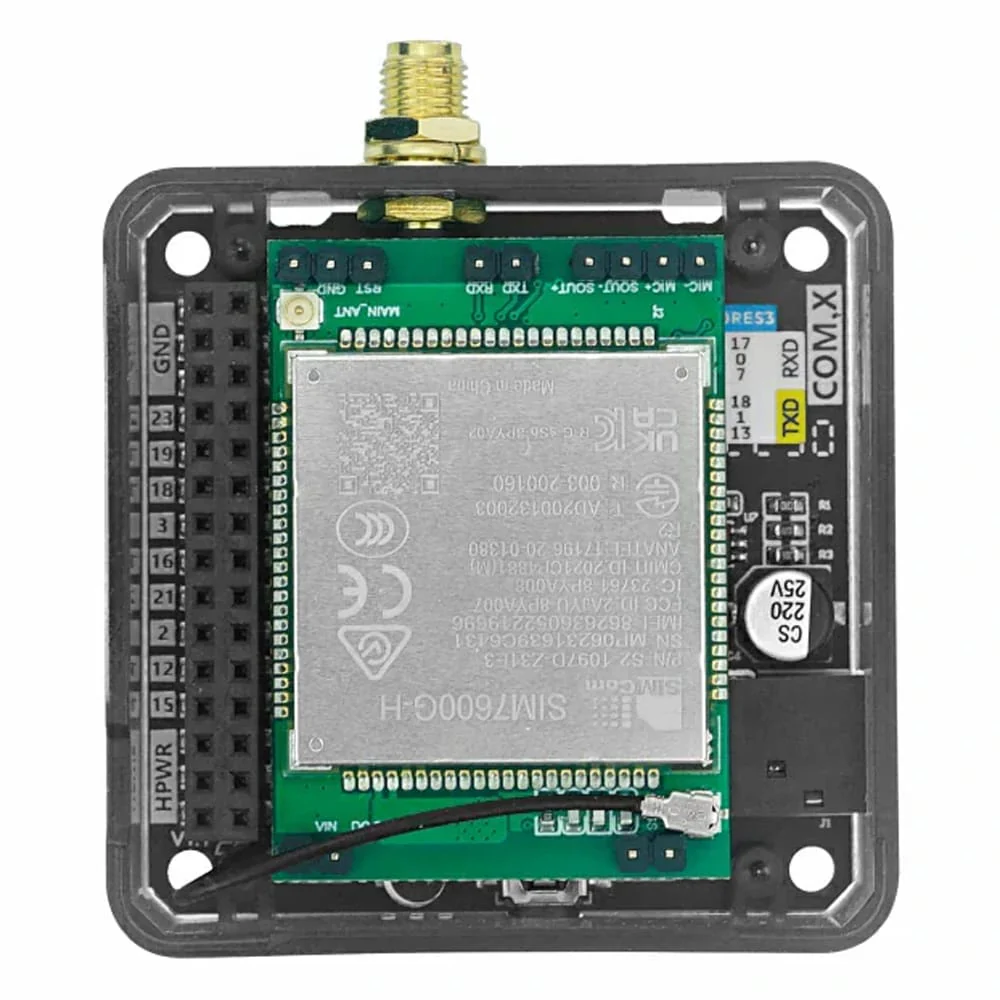

Module COMX LTE is an M5Stack stackable multifunctional LTE communication module, built-in LTE module SIM7600G, supporting LTE-TDD/LTE-FDD/WCDMA and GSM frequency bands, supporting LTE.CAT4 (downlink speed of 150Mbps), and supporting voice calls and SMS.

It has stable performance, compact appearance, and high cost performance, enabling low-power transmission of SMS and data information. The module comes with a DC power input, which can be powered by an external power supply of 5 ~ 12V.

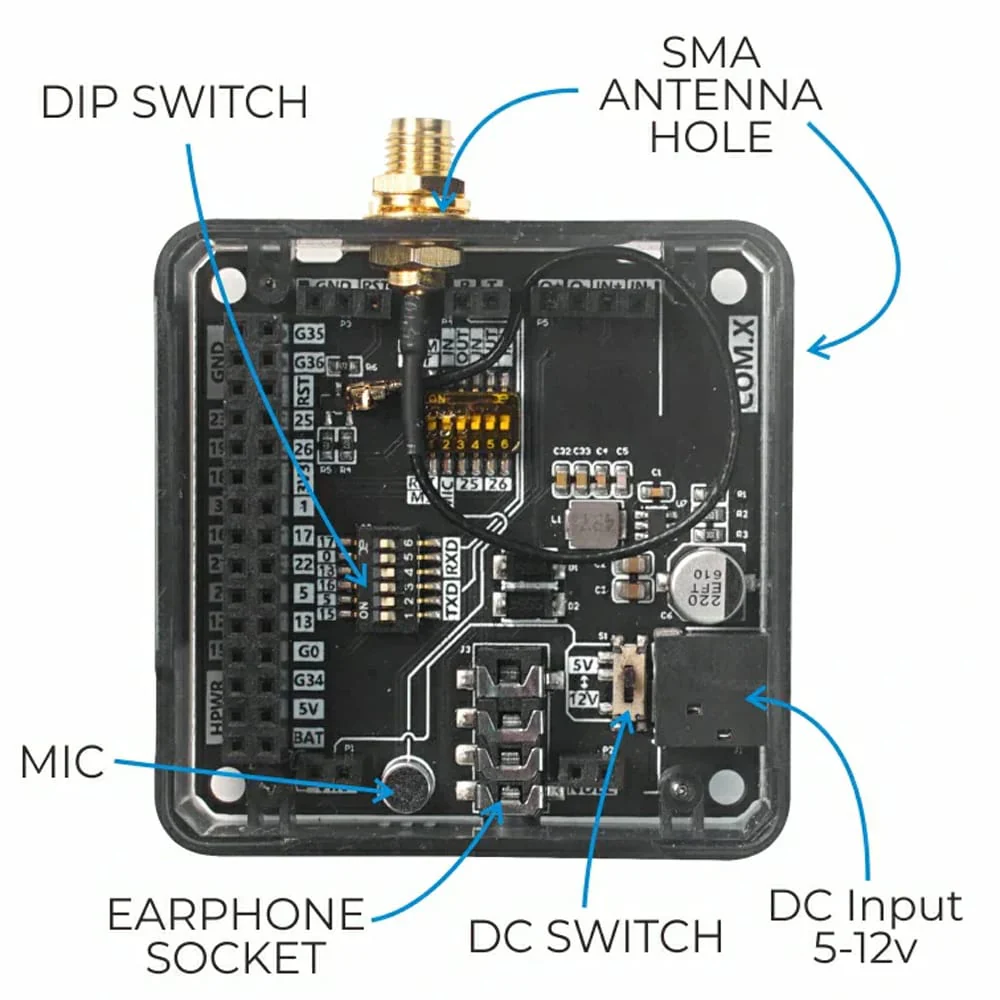

For user convenience in configuring pins, a DIP switch is used to set the pins. The onboard microphone and 3.5mm headphone jack support the insertion of headphones with a microphone. This module is particularly suitable for scenarios requiring high-speed network connections, such as video calls, drone data transmission, and industrial IoT.

Features

• Stackable design
• Supports voice calls, SMS, and cellular data transmission
• Can be powered externally
• Built-in microphone
• AT command control
• SIM card type: MicroSIM
• Status signals: Two LED indicators
• External antenna: SMA antenna
• Serial communication: UART 115200bps
• Frequency bands:
  • LTE-TDD B34/B38/B39/B40/B41
  • LTE_FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66
  • WCDMA B1/B2/B4/B5/B6/B8/B19
  • GSM/GPRS/EDGE 850/900/1800/1900MHz
• Data transmission:
• LTE Cat4
  • Maximum uplink speed: 50Mbps
  • Maximum downlink speed: 150Mbps
• HSPA+
  • Maximum uplink speed: 5.76Mbps
  • Maximum downlink speed: 42Mbps
• WCDMA
  • Maximum uplink/downlink speed: 384Kbps
• EDGE/GPRS
  • Maximum uplink/downlink speed: 236.8Kbps
• Supported protocols
  • TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS
  • TLS
  • RNDIS/ECM
  • FOTA

Specifications

Supported bands	LTE-FDD/LTE-TDD/WCDMA/GSM
Network protocols	TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS
Communication method	UART 115200bps
DC interface specification	5.5mm
Net weight	55g
Gross weight	90g
Product Size	54 x 54 x 13.2mm

Compatibility

• When used with the Fire main control, due to PSRAM pin (G16/G17) conflicts, please switch the module base DIP switch pins to TX(G0/G13), RX(G5/G15).

Resources

• Product documents

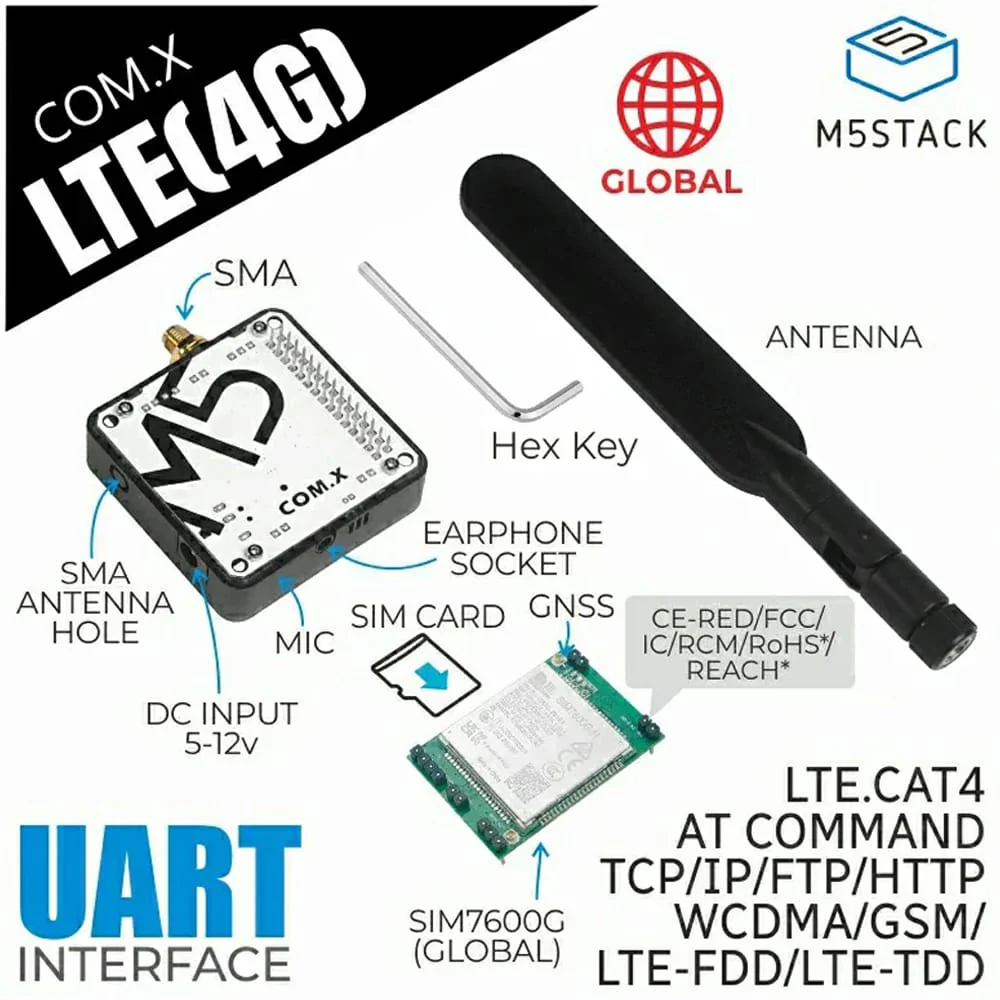

Package Contents

• 1x COMX LTE Module (SIM7600G)
• 1x SMA antenna
• 1x Hex wrench
