M5Stack Colour Sensor RGB Unit

The M5Stack Unit Colour (TCS3472) detects colours and sends RGB values over I2C, so it’s designed to be used with M5Stack boards and other I2C-capable microcontrollers.

---

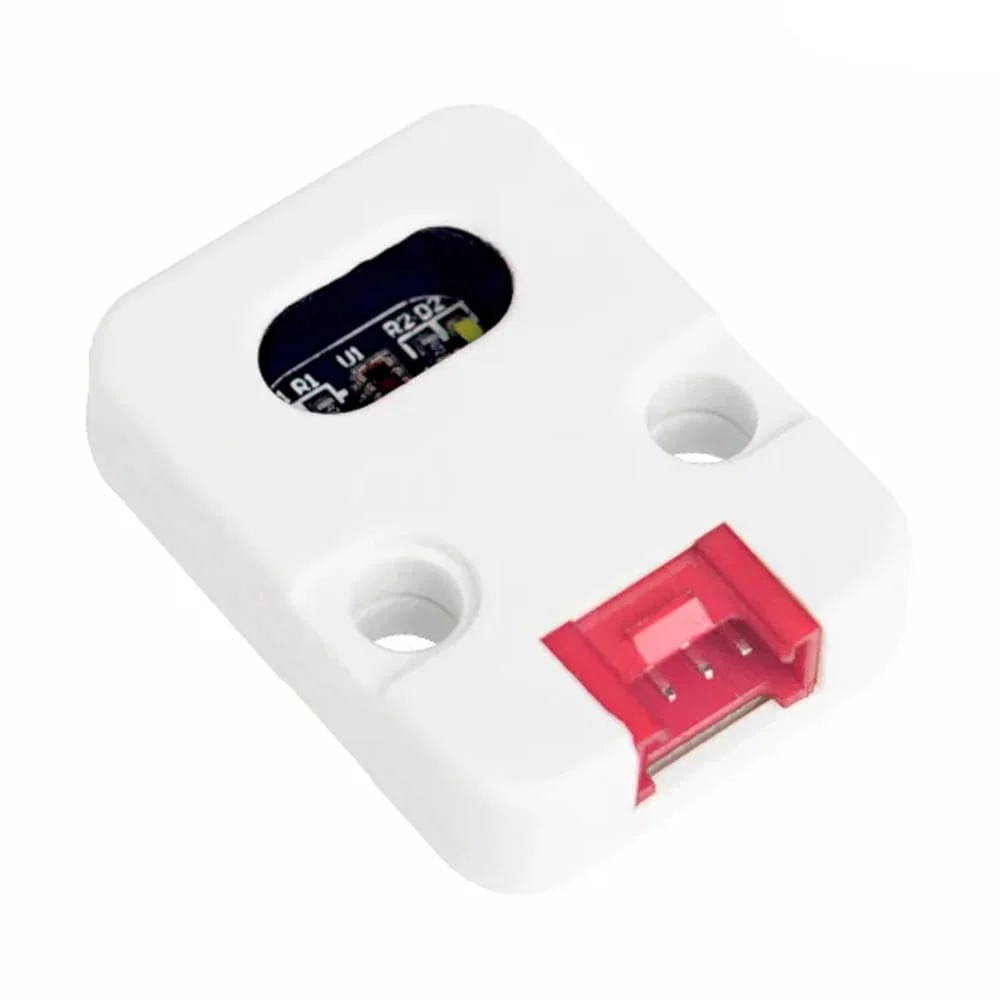

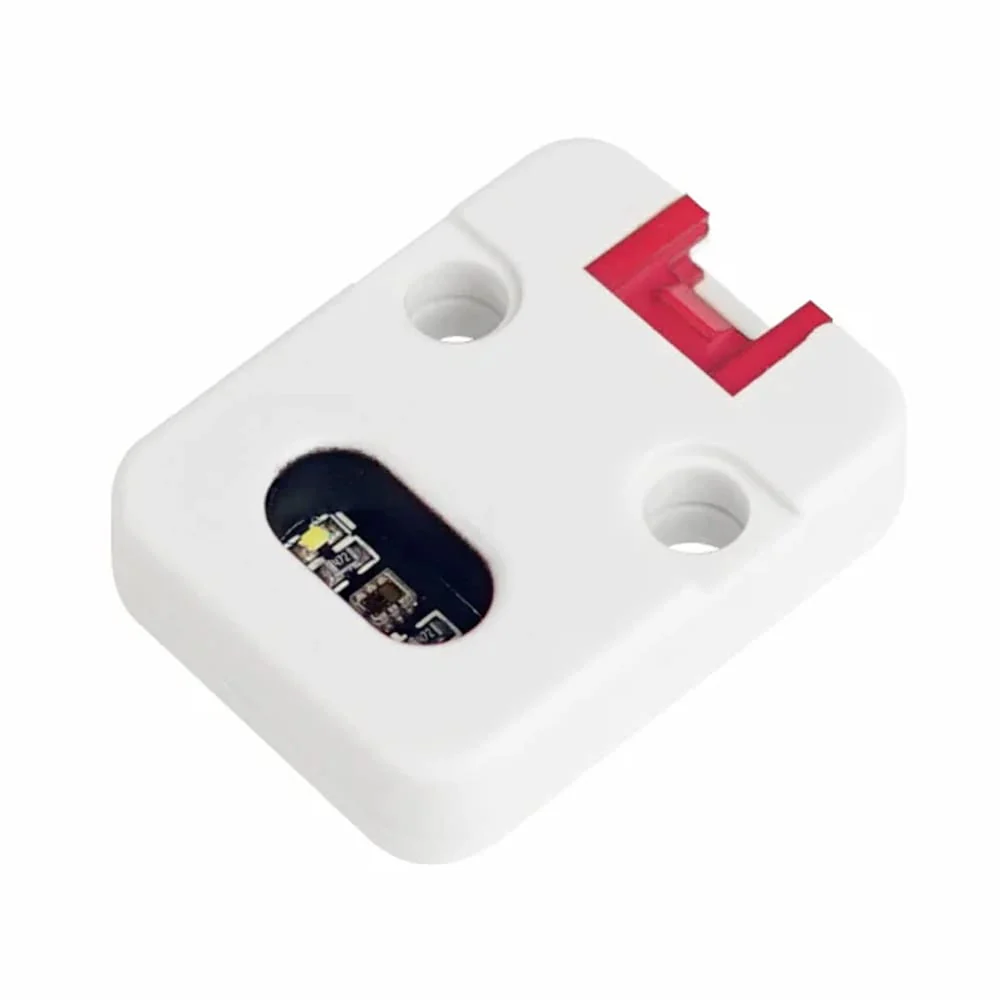

The M5Stack Unit Colour is a colour recognition unit that integrates a TCS3472 colour light digital converter, capable of converting detected colour values into RGB data and returning it to the M5Core.

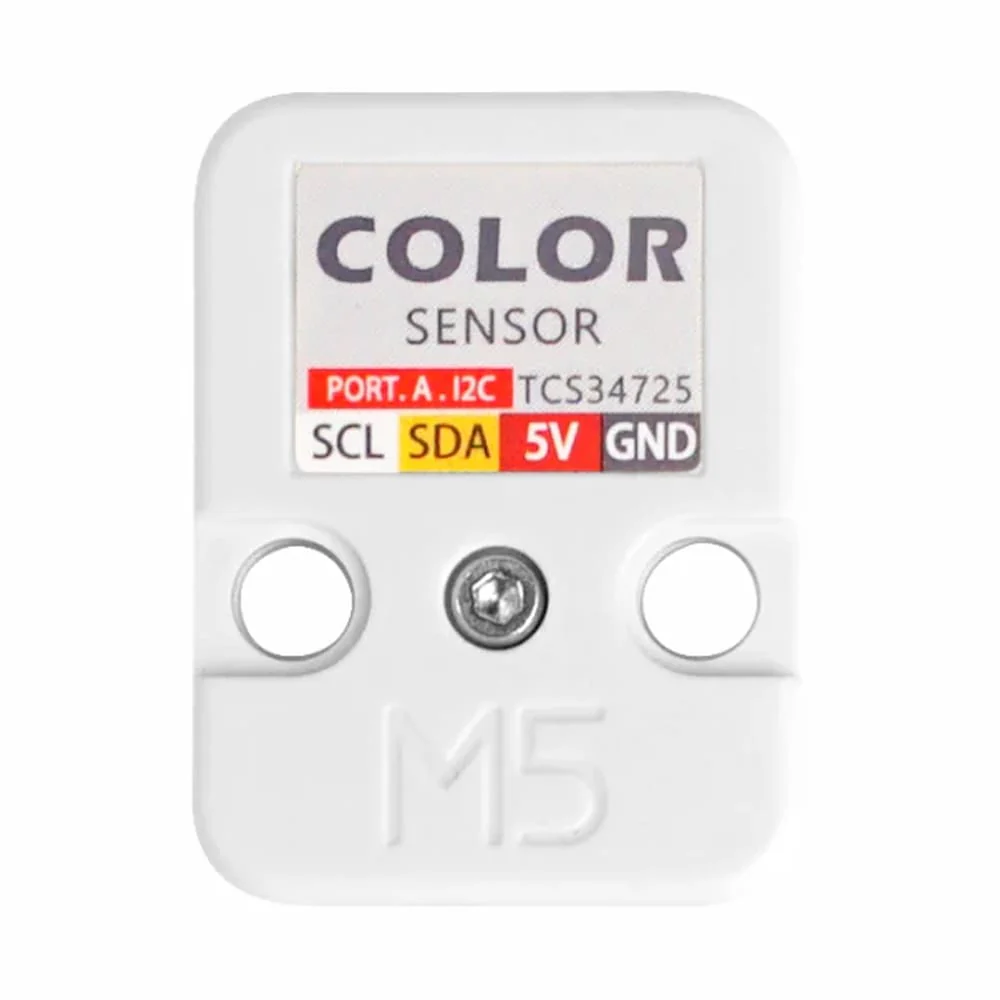

This unit communicates with the M5Core via the PORT A interface (I2C), with an I2C address of 0x29.

Features

• HY2.0-4P Interface, supports UIFlow and Arduino
• 2x LEGO compatible holes

Specifications

IC Model	TCS3472
Communication Interface	I2C @0x29
Operating Temperature Range	-40 ~ 85°C
Product Size	32.0 x 24.0 x 8.0mm
Product Weight	4.3g

Resources

• Product documents

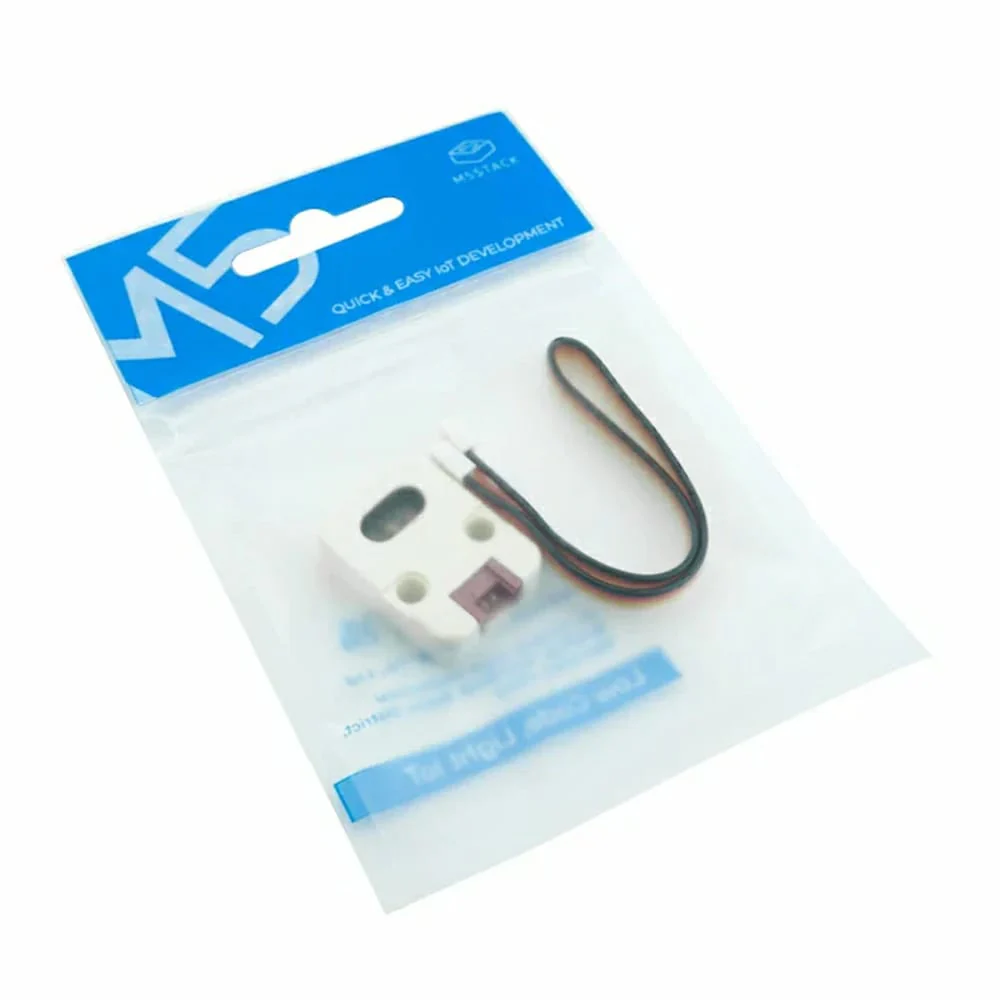

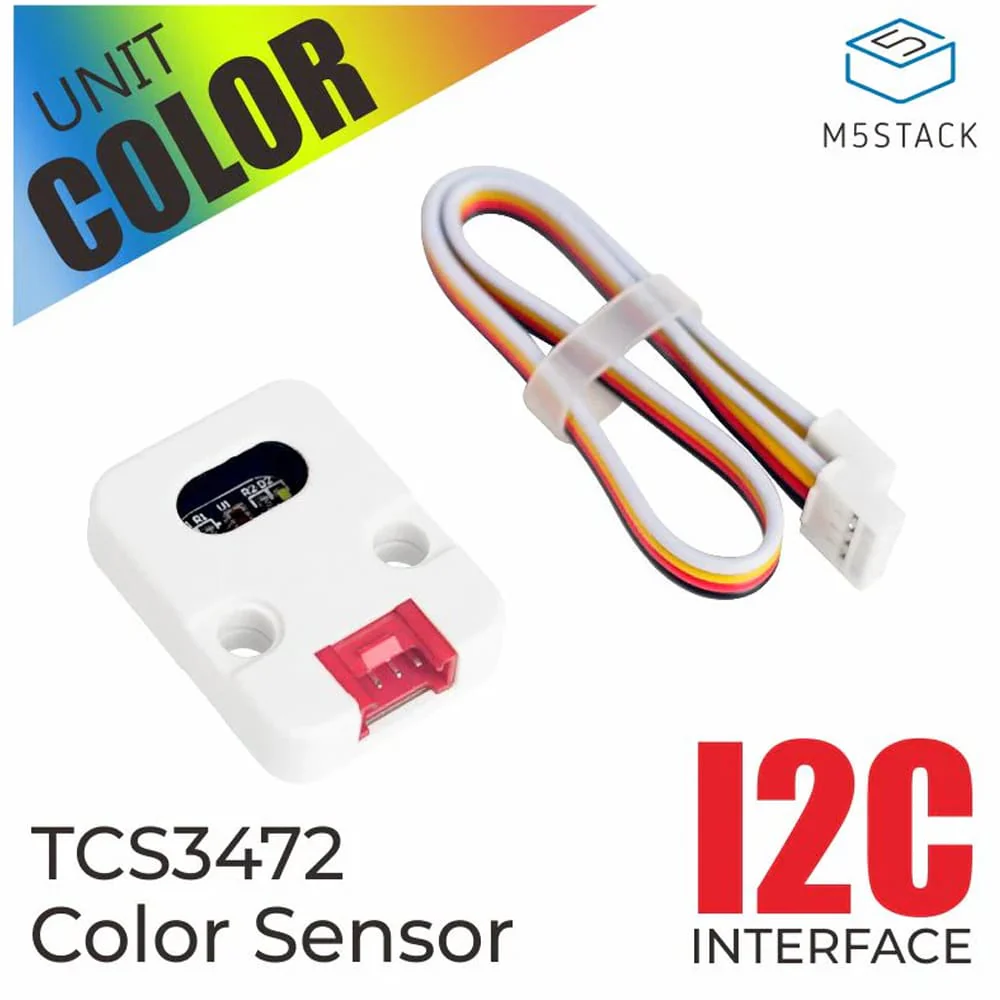

Package Contents

• 1x Unit Colour
• 1x HY2.0-4P Grove connection cable (20cm)
