M5Stack BAVG2 Socket

The M5Stack BAVG to Socket converts 2.54-2P terminal and DC power input connections to a 3.96-4P terminal, making it easier to connect compatible M5Stack RS485 devices using common DC adapters.

---

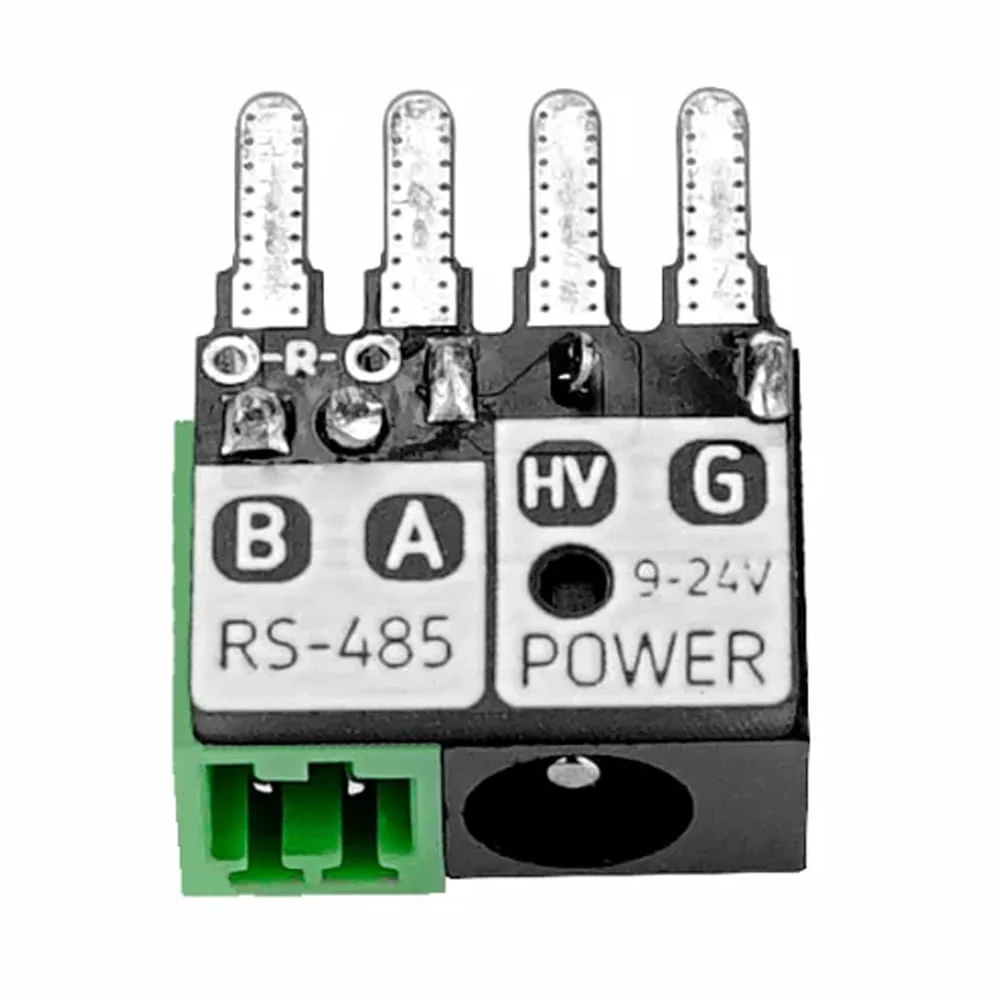

The M5Stack BAVG to Socket is a conversion terminal designed for RS485 line construction. This adapter integrates a 2.54-2P terminal with a DC power input interface and converts it into a 3.96-4P terminal.

It facilitates the connection of devices within the M5 hardware ecosystem that use a 3.96-4P interface. The included DC power interface allows users to easily use common DC adapters as power sources.

Features

• RS485 line conversion terminal adapter
• Converts 2.54-2P terminal to 3.96-4P terminal
• Integrated DC power input interface
• Compatible with M5Stack hardware ecosystem
• Supports common DC adapters for power supply
• Facilitates device interconnection within M5 ecosystem

Specifications

DC Input Interface	Voltage: 9-24V, Model: DC-IN-TH_DC-0440-2.5A-2.0
Net Weight	6.7g
Gross Weight	10.7g
Terminal Specification	2.54-2P + DC-0440 to 3.96-4P
Product Size	17 x 30 x 10mm
Package Size	136 x 92 x 11mm

Resources

• Product documentation

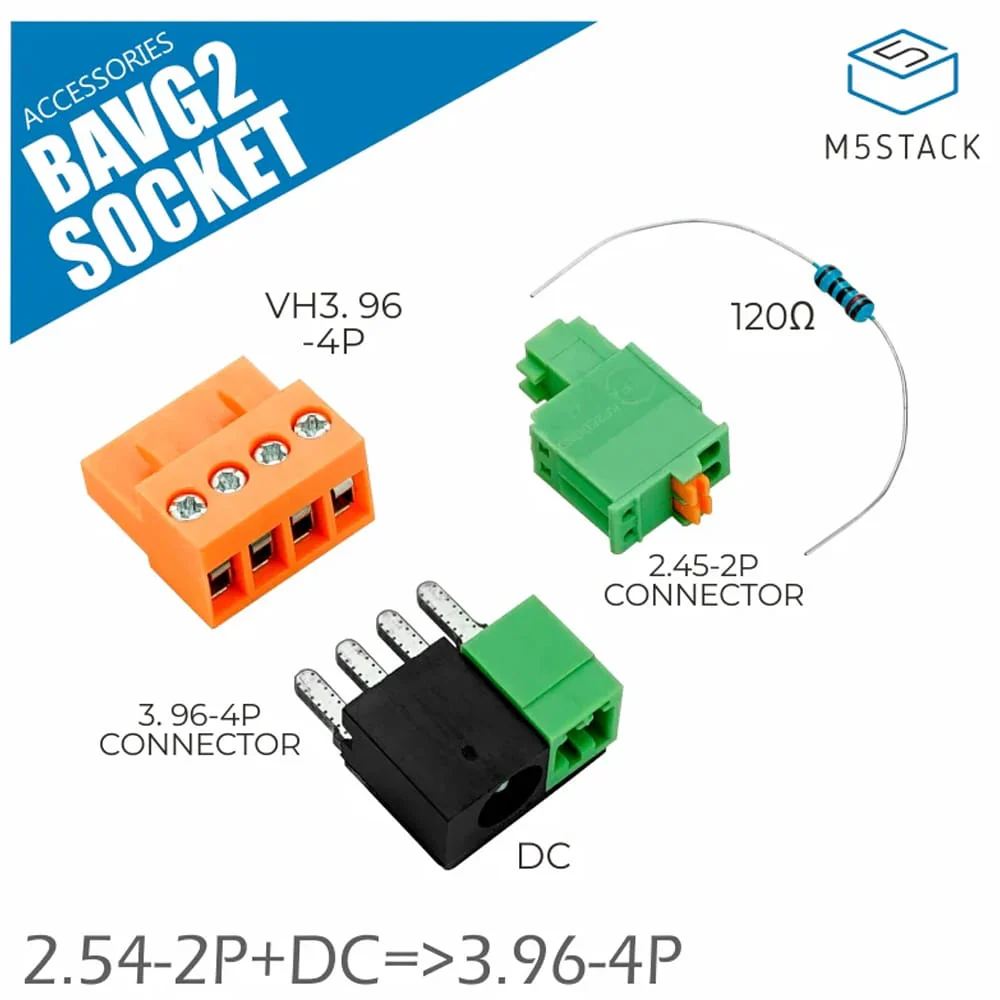

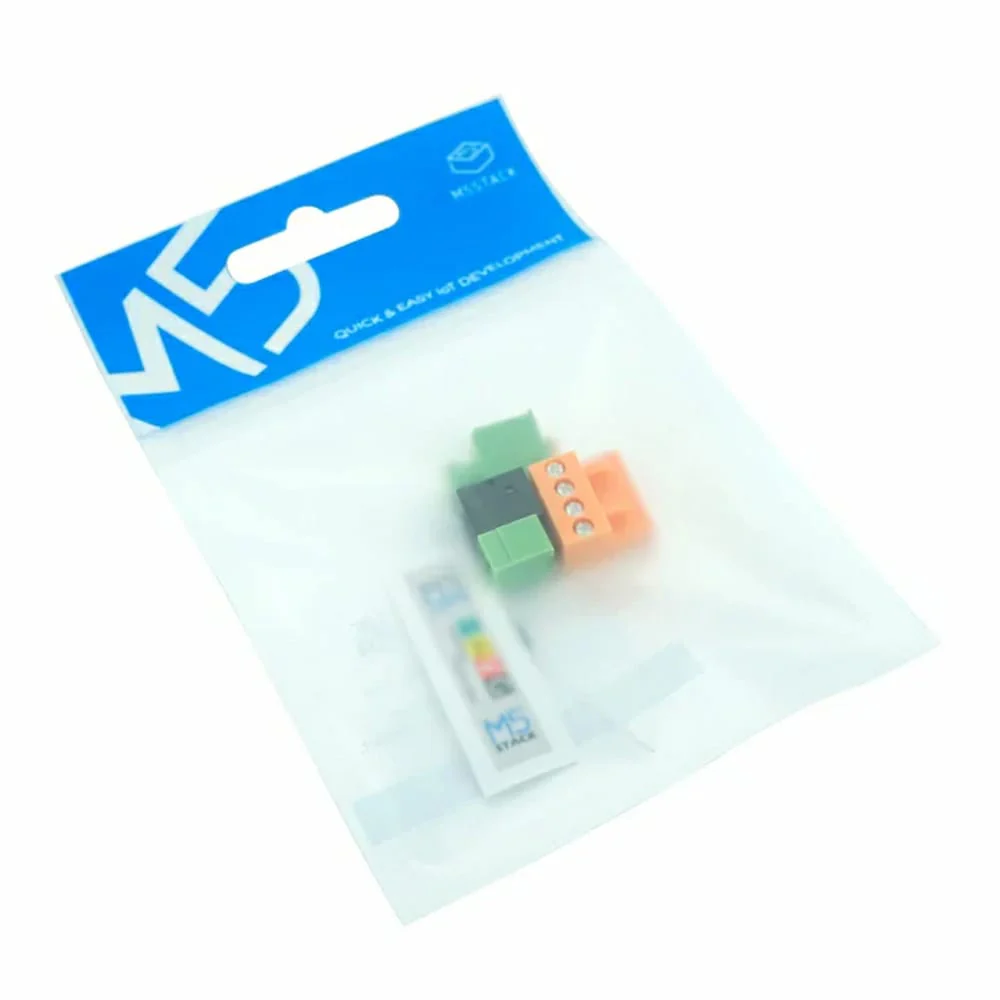

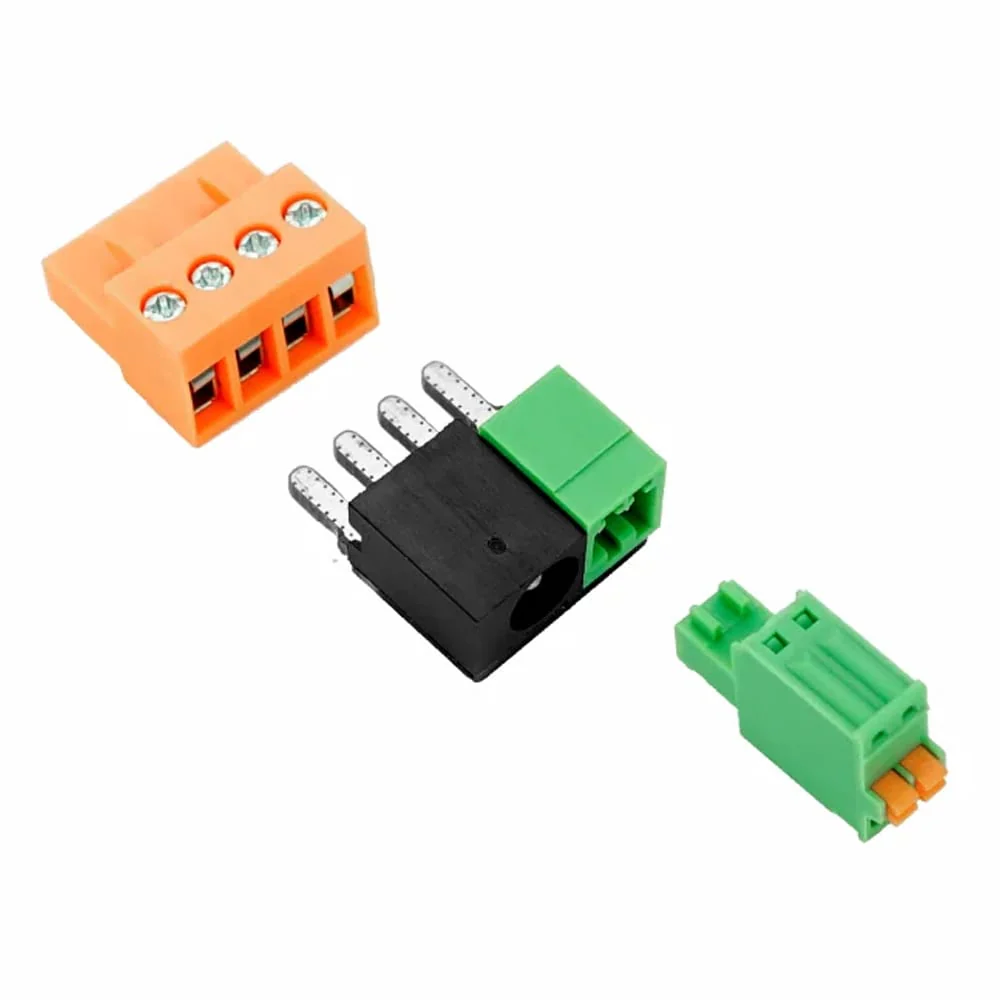

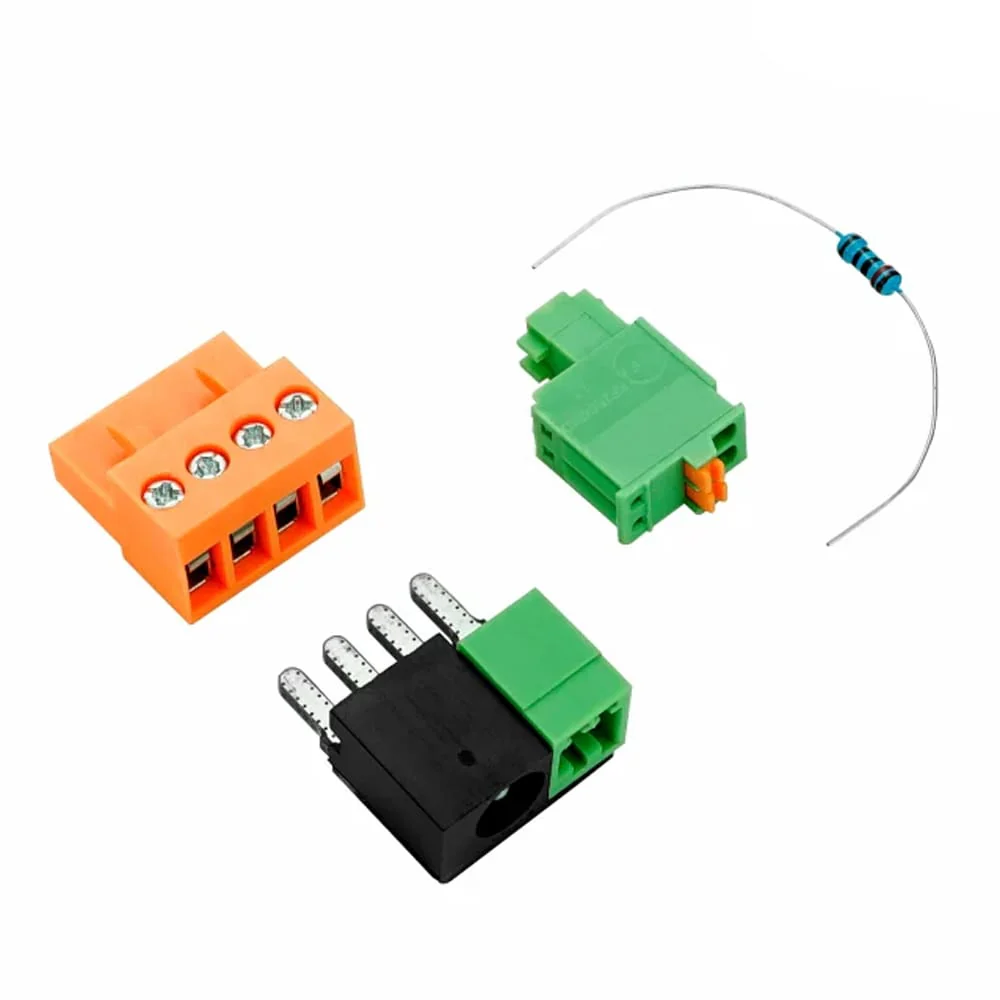

Package Contents

• 1x M5Stack BAVG2 Socket
  • 1x 120Ω plug-in resistor
  • 1x 2.54-2P terminal
  • 1x HT3.96-4P terminal
  • 1x 3.96-4P conversion terminal
  • 1x I/O Sticker
