M5Stack 90° Infrared Reflective Unit
The M5Stack 90° Infrared Reflective Unit is a non-contact photoelectric limit switch that detects objects passing through its infrared beam, making it suitable for safety interlocks, object detection, and counting applications in mechanical control systems.

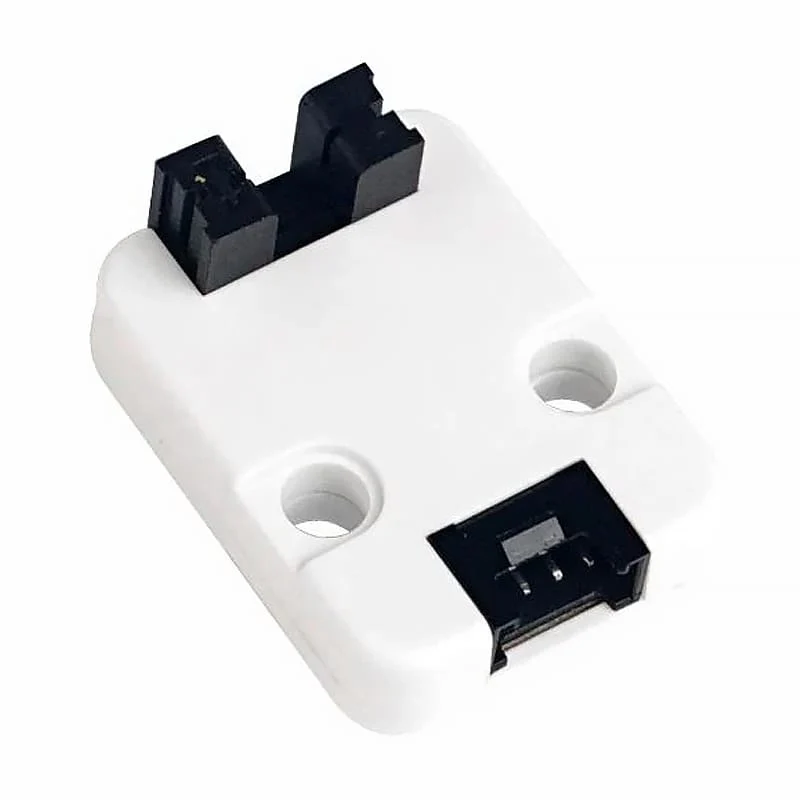

The M5Stack 90° Infrared Reflective Unit is a 90° non-contact photoelectric limit switch.

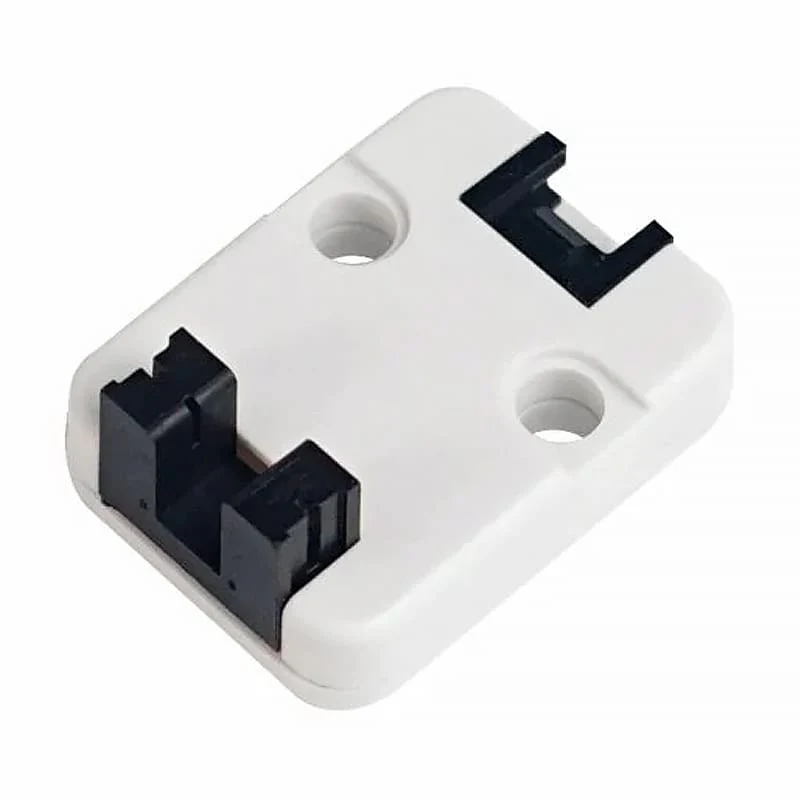

The unit has an infrared transmitter and receiver located on opposite sides. During normal operation, the transmitter continuously emits an infrared signal to the receiver.
When an object passes between them and blocks the infrared signal, the output terminal will generate an action signal to detect the object's passage. It is commonly used in mechanical control systems as a safety interlock or photoelectric counter.
Features
- 90° non-contact photoelectric limit switch
- Infrared transmitter and receiver on opposite sides
- Continuous infrared signal emission during normal operation
- Output signal triggered when object blocks infrared beam
- Object detection and passage counting capability
- Suitable for mechanical control systems
- Safety interlock applications
- Photoelectric counter functionality
Specifications
| Operating Temperature | 0 ~ 40°C |

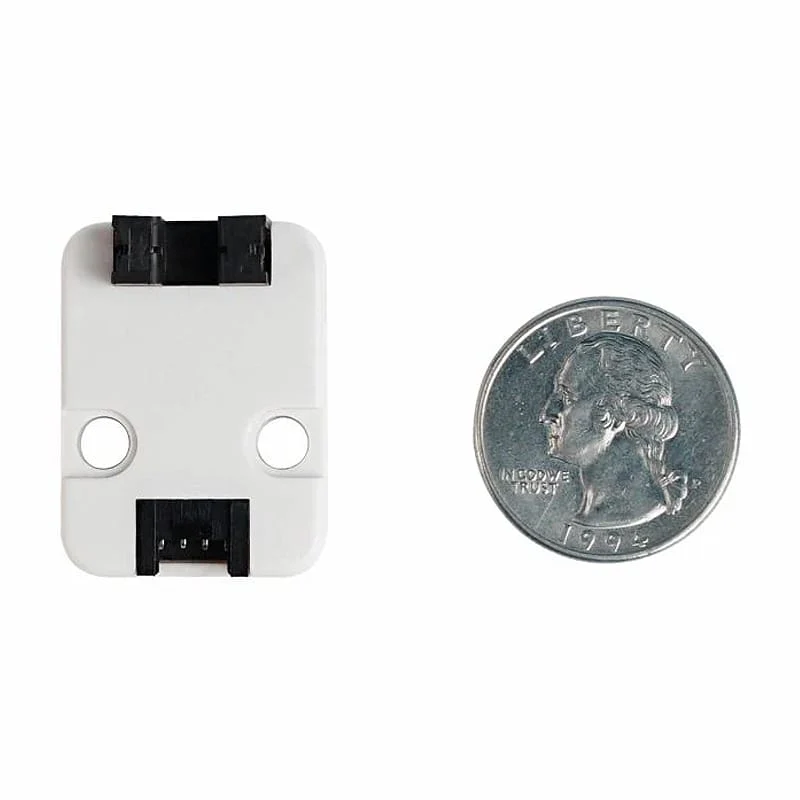

| Product Size | 32.0 x 24.0 x 12.8mm |
| Product Weight | 4.2g |
Resources
- Documentation

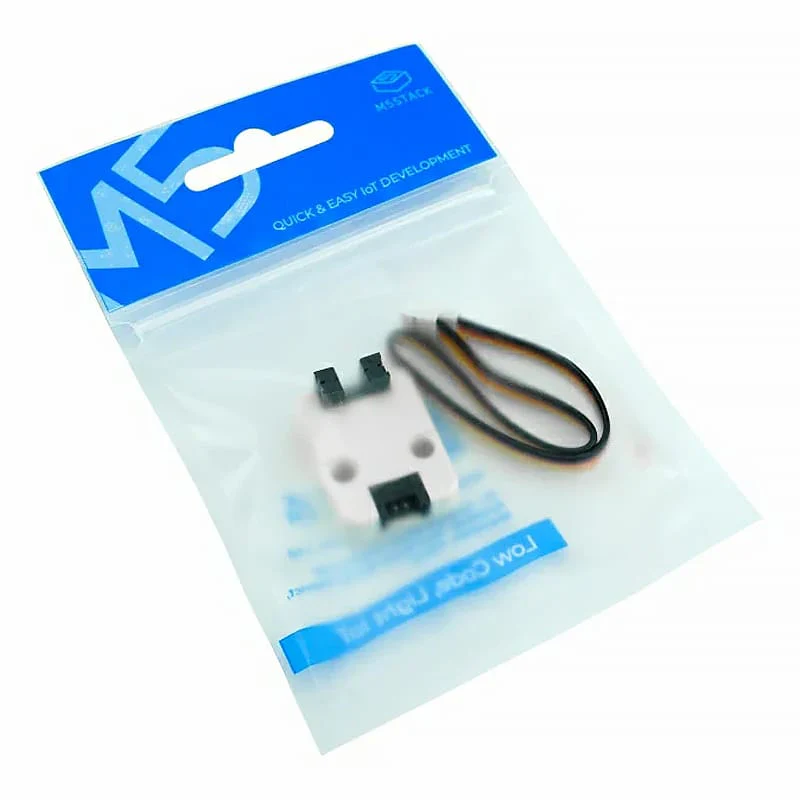

Package Contents

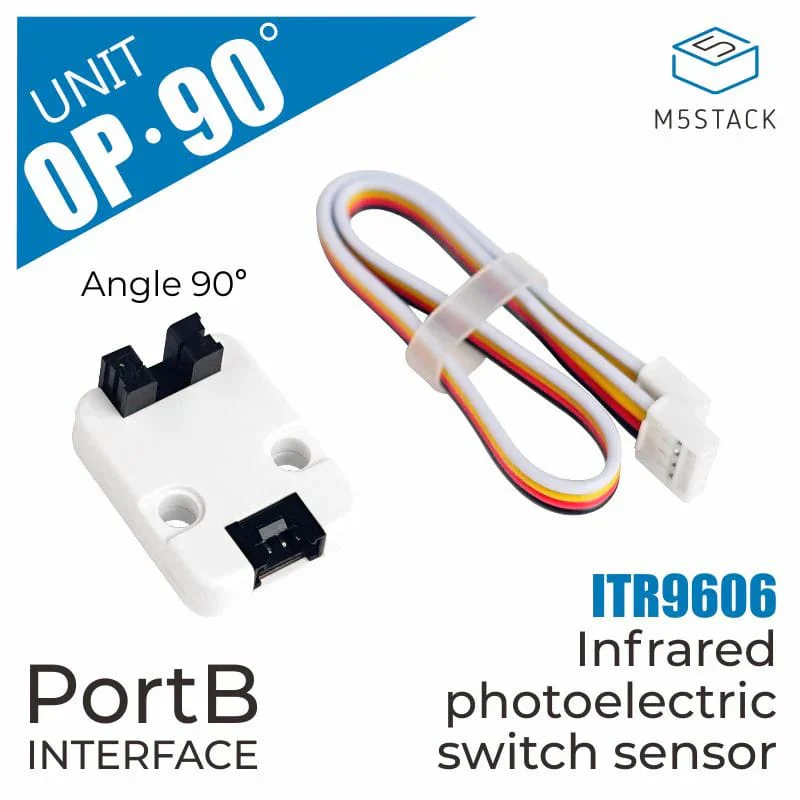

- 1x 90° Infrared Reflective Unit (ITR9606)
- 1x HY2.0-4P Grove Cable (20cm)
