M5Stack 180° Infrared Reflective Unit

The M5Stack 180° Infrared Reflective Unit is a non-contact photoelectric limit switch that detects objects passing through its infrared beam, making it suitable for safety interlocks, object detection, and counting applications in mechanical control systems.

---

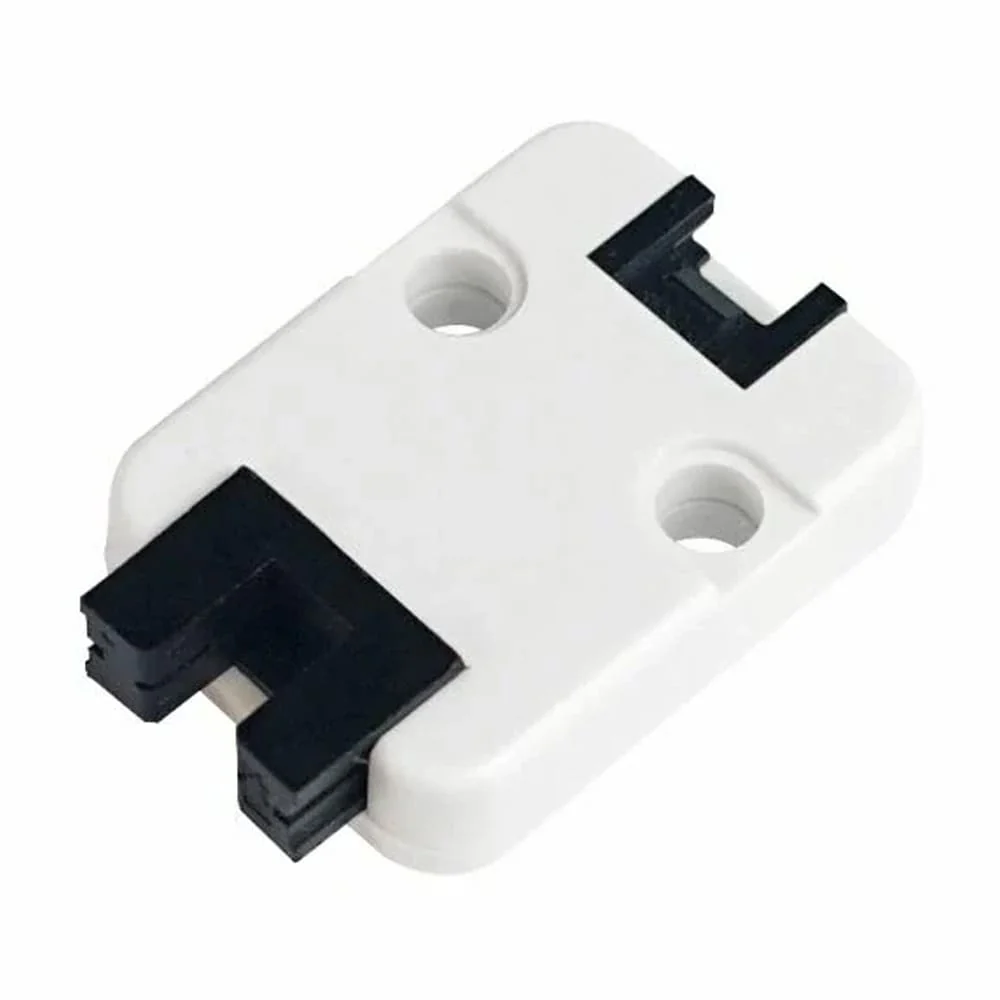

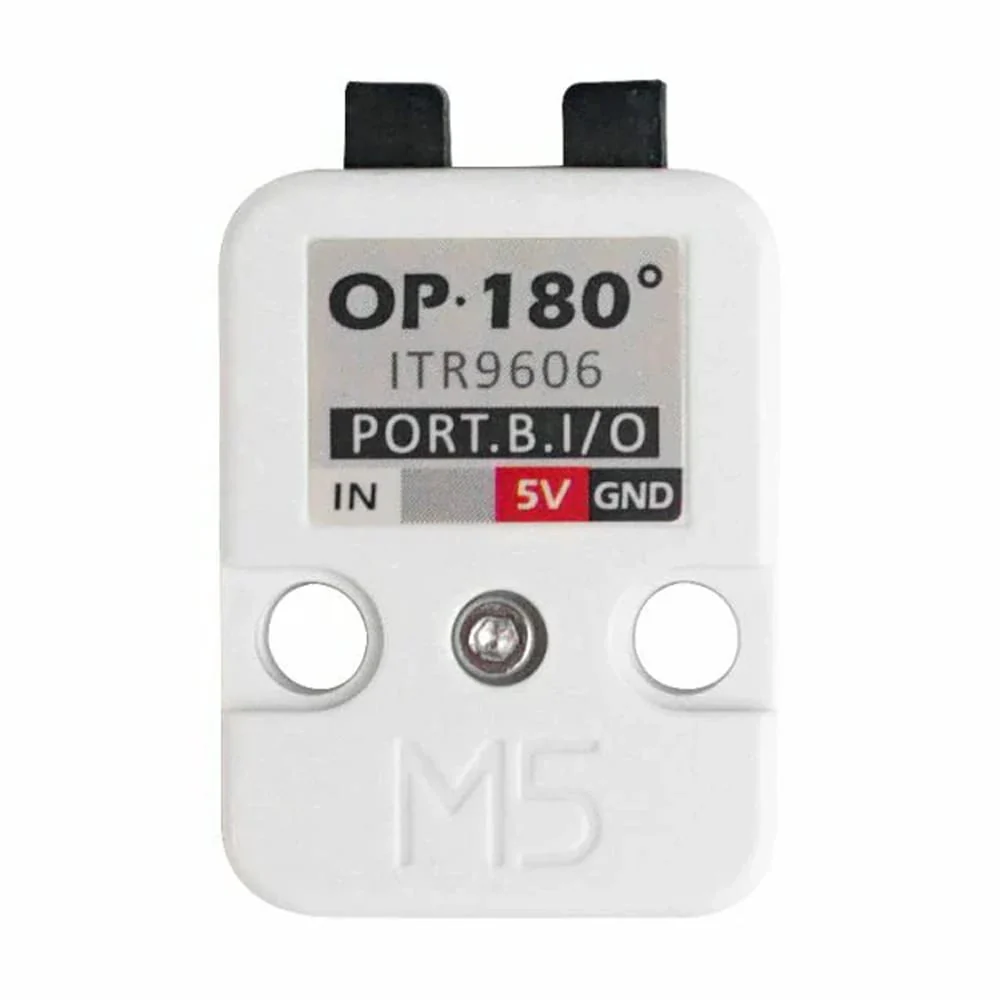

The M5Stack 180° Infrared Reflective Unit is a 180° non-contact photoelectric limit switch.

The unit has an infrared transmitter and receiver located on opposite sides. During normal operation, the transmitter continuously emits an infrared signal to the receiver. When an object passes between them and blocks the infrared signal, the output terminal will generate an action signal to detect the object's passage.

It is commonly used in mechanical control systems as a safety interlock or a photoelectric counter.

Features

• 180° non-contact photoelectric limit switch
• Infrared transmitter and receiver on opposite sides
• Continuous infrared signal emission during normal operation
• Generates action signal when infrared beam is blocked
• Detects object passage between transmitter and receiver
• Suitable for mechanical control systems
• Functions as safety interlock
• Functions as photoelectric counter

Specifications

Operating Temperature	0 ~ 40°C
Product Size	36.0 x 24.0 x 8.8mm
Product Weight	4.5g

Resources

• Product documentation

Package Contents

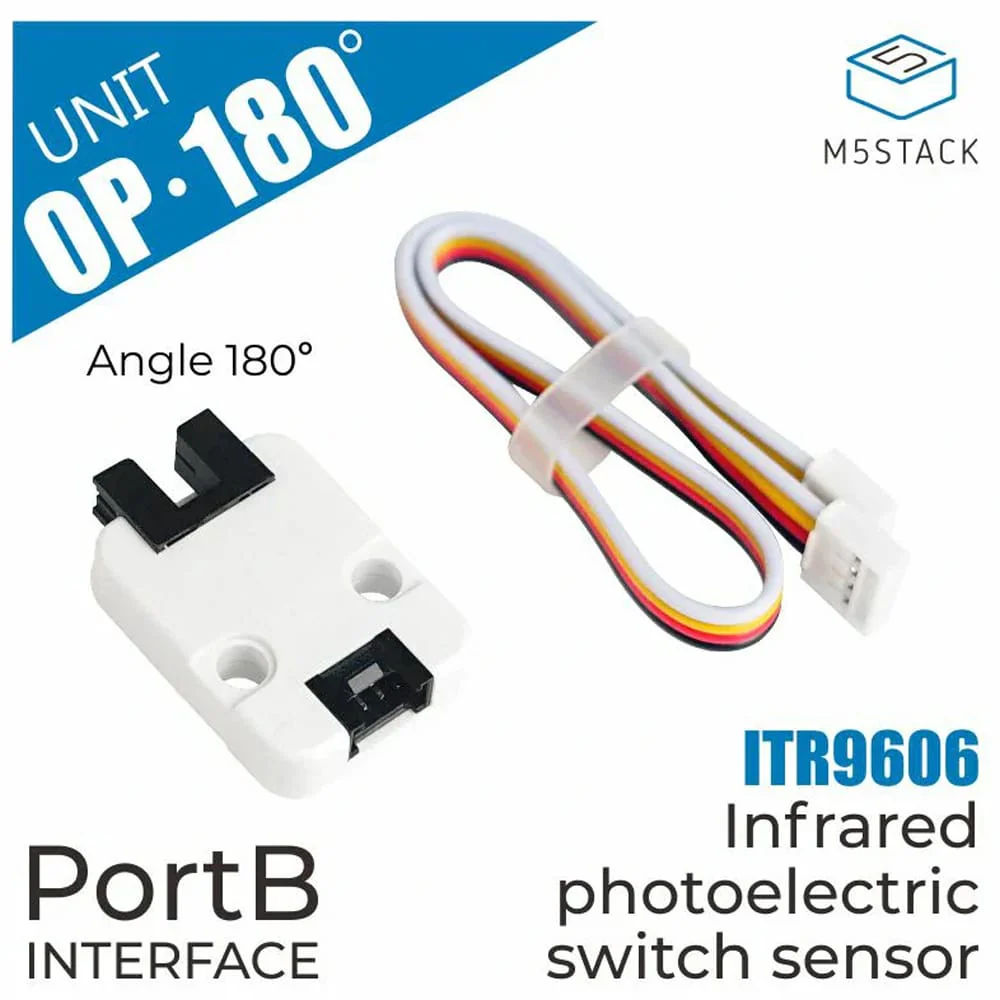

• 1x M5Stack 180° Infrared Reflective Unit (ITR9606)
• 1x HY2.0-4P Grove Cable (20cm)
