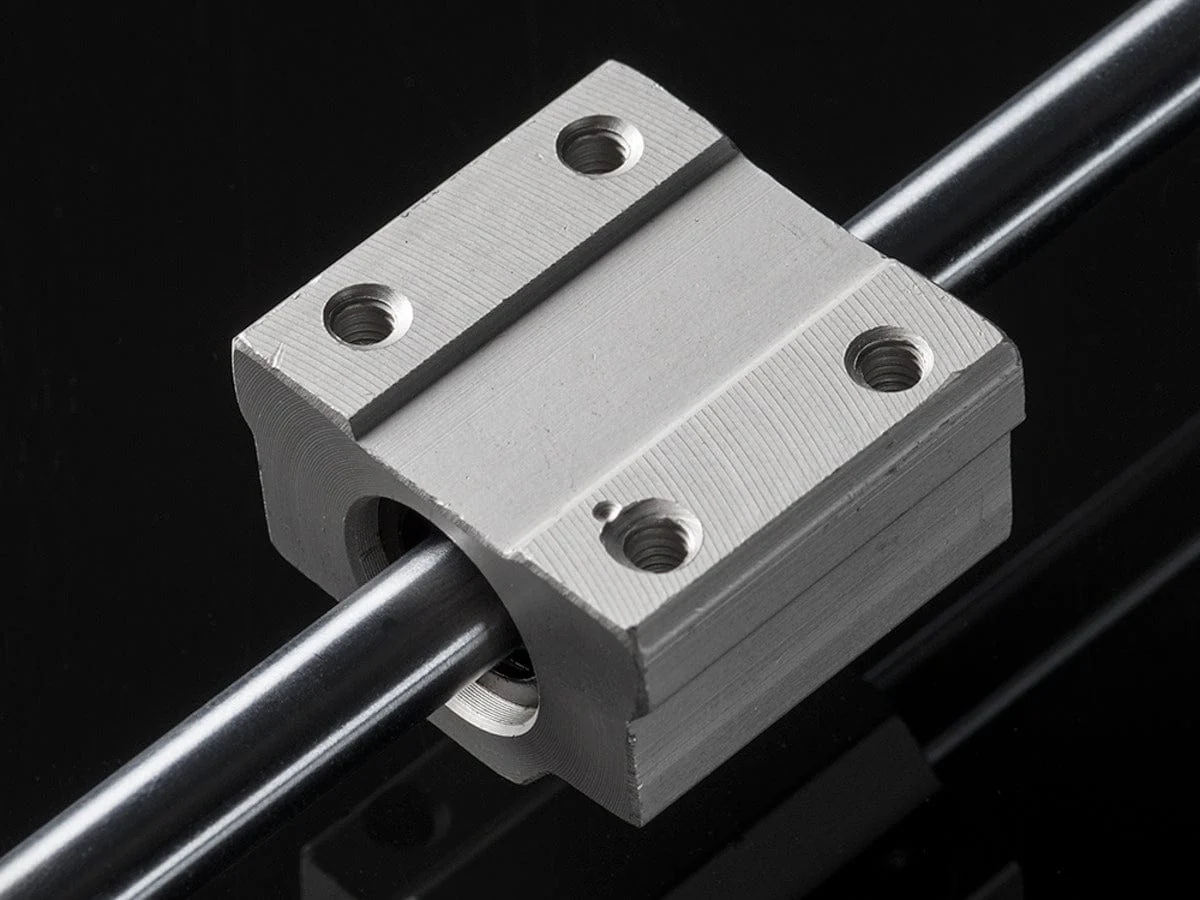

Linear Bearing Platform (Small) - 8mm Diameter (SC8UU) [Discontinued]
Make your robot or CNC move on rails super fast with a linear bearing platform. The platform is 34mm x 30mm and has four holes tapped for M4 machine screws so you can attach pretty much anything you want. All you need to get started is two 8mm supports and a precision-ground 8mm rod. Often times, CNC projects will have two of these on opposite sides to support a larger platform.
Comes as a single bearing. 4:00)
Technical Details
- For 8mm linear railings
- Dynamic Load rating: 260 N
- Static Load rating: 400 N
- Weight: 56 grams
- Four ball races
Original: $6.90
-65%$6.90
$2.42Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Make your robot or CNC move on rails super fast with a linear bearing platform. The platform is 34mm x 30mm and has four holes tapped for M4 machine screws so you can attach pretty much anything you want. All you need to get started is two 8mm supports and a precision-ground 8mm rod. Often times, CNC projects will have two of these on opposite sides to support a larger platform.
Comes as a single bearing. 4:00)
Technical Details
- For 8mm linear railings
- Dynamic Load rating: 260 N
- Static Load rating: 400 N
- Weight: 56 grams
- Four ball races
