Gravity: IO Expansion Shield for Launchpad [Discontinued]

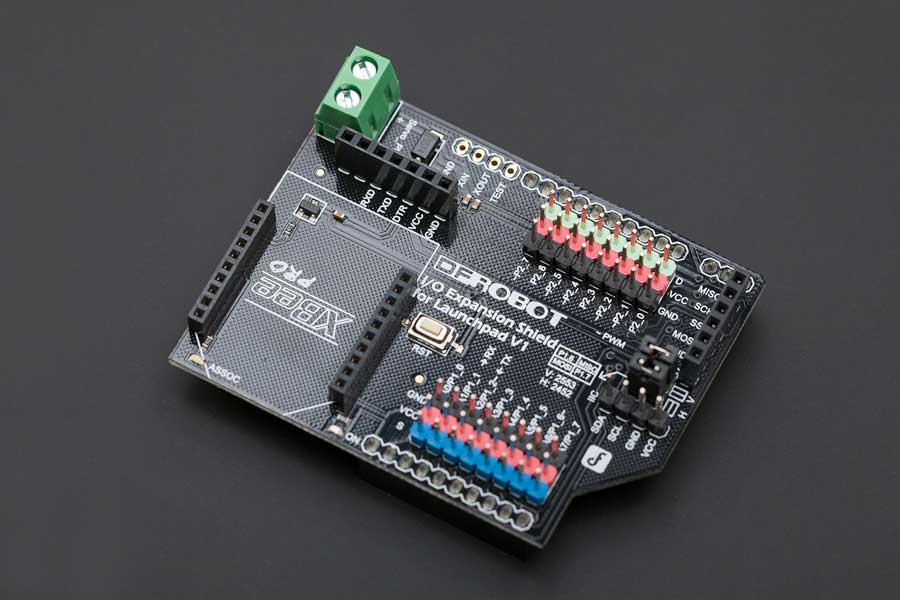

DFRobot proudly presents the I/O expansion shield for Texas Instruments MSP430 LaunchPad. With the I/O expansion shield, your LaunchPad will be able to access more than 100 various sensors, servos and wireless modules from DFRobot.

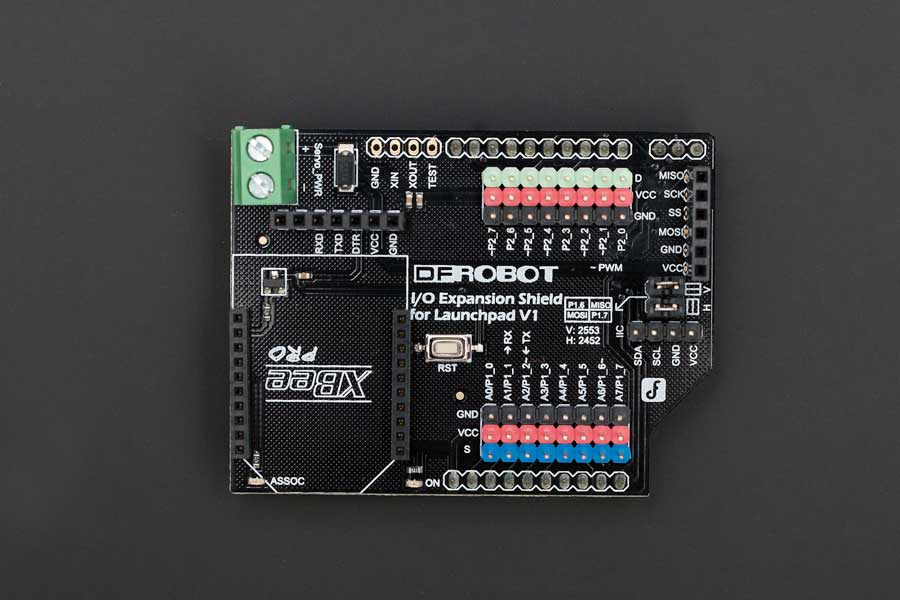

The Xbee & APC220 socket allows you to start immediatly without additional wireless shield.The SPI & I2C interface enables direct plugging of modules and sensors.A well designed corner cut to make room for the test button on LaunchPad.The colorful standard DFRobot 3 Pinout headers provide additional power for sensors and modules and can be clearly recognized and connected the digital and analog sensors.
Sensor connector :
- Green-Digital
- Blue-Analog
- Red-VCC
- Black-GND
Specification
- Support MSP430 LaunchPad
- Support Xbee/Bluetooth bee
- Support Bluetooth/APC220
- Interface:SPI,I2C
- Size:66x50mm(2.60x1.97")
Documents
Shipping List
- I/O Expansion Shield for LaunchPad x1
$2.52
Original: $7.20
-65%Gravity: IO Expansion Shield for Launchpad [Discontinued]—
$7.20
$2.52Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DFRobot proudly presents the I/O expansion shield for Texas Instruments MSP430 LaunchPad. With the I/O expansion shield, your LaunchPad will be able to access more than 100 various sensors, servos and wireless modules from DFRobot.
The Xbee & APC220 socket allows you to start immediatly without additional wireless shield.The SPI & I2C interface enables direct plugging of modules and sensors.A well designed corner cut to make room for the test button on LaunchPad.The colorful standard DFRobot 3 Pinout headers provide additional power for sensors and modules and can be clearly recognized and connected the digital and analog sensors.
Sensor connector :
- Green-Digital
- Blue-Analog
- Red-VCC
- Black-GND
Specification
- Support MSP430 LaunchPad
- Support Xbee/Bluetooth bee
- Support Bluetooth/APC220
- Interface:SPI,I2C
- Size:66x50mm(2.60x1.97")
Documents
Shipping List
- I/O Expansion Shield for LaunchPad x1
