Infrared Reflective Sensor

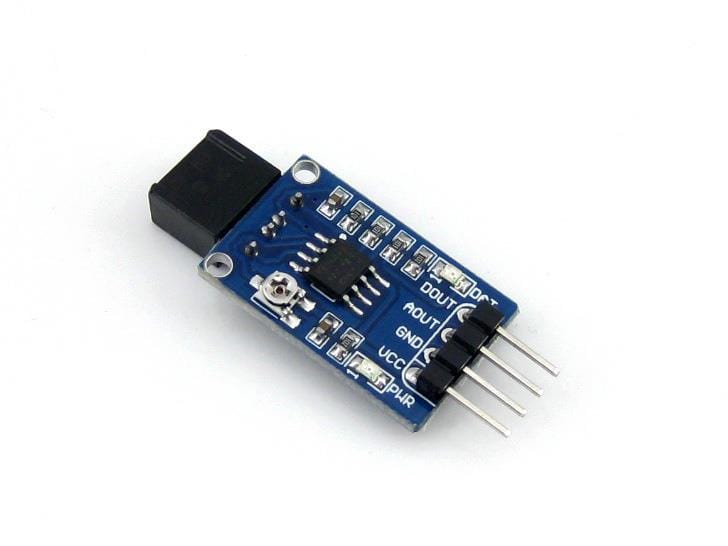

Product image 1

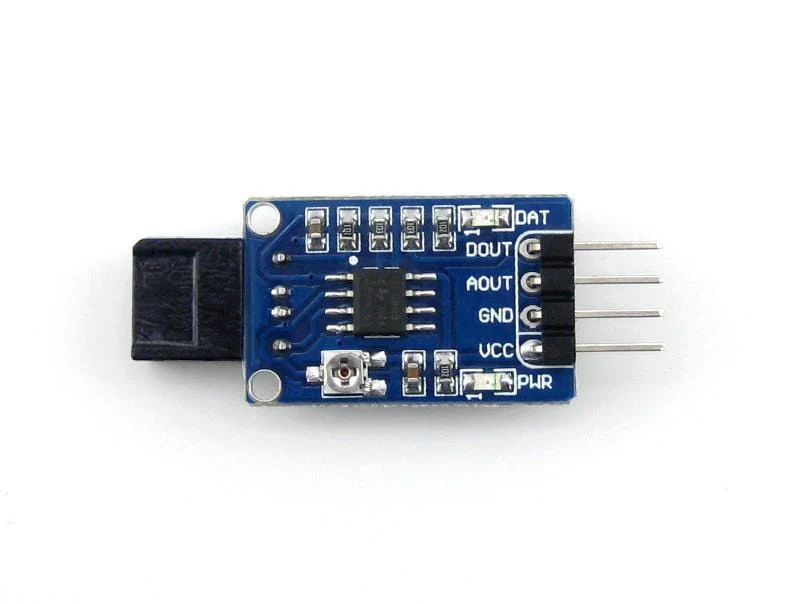

Product image 2

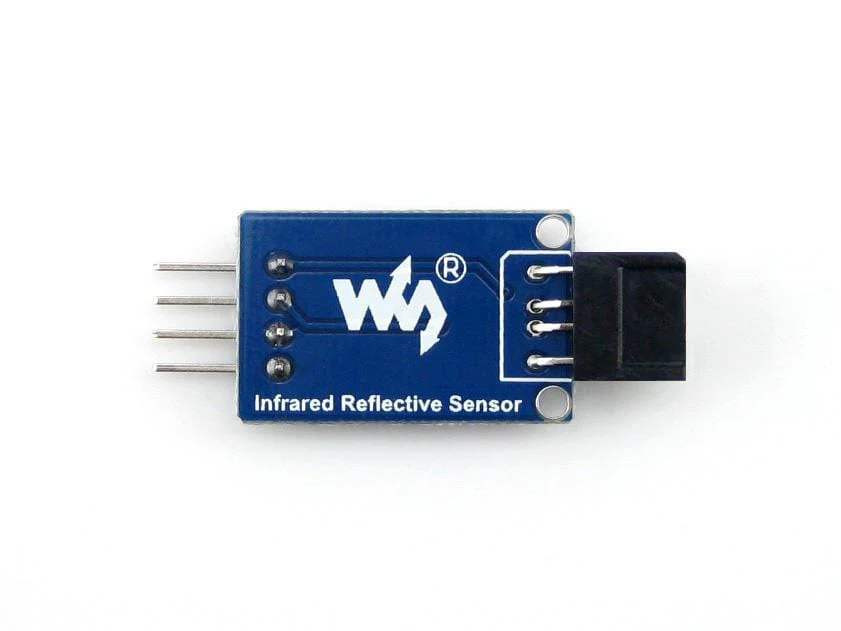

Product image 3

Infrared Reflective Sensor

Detect lines and other objects with this infrared reflective sensor from Waveshare!

Features

Reflective infrared Transceiver
Features wide-range voltage comparator LM393
Adjustable sensitivity
Signal output indicator
Sensor only - no cable

Specifications

Power: 3.0V ~ 5.3V
Dimension: 25mm * 15.9mm
Mounting hole size: 2.0mm

Resources

Product Wiki

In the case of working with an MCU:

VCC ↔ 3.0V ~ 5.3V
GND ↔ power supply ground
AOUT ↔ MCU.IO (analog output)
DOUT ↔ MCU.IO (digital output)

$3.80

Infrared Reflective Sensor—

$3.80

Product Information

Shipping & Returns

Description

Detect lines and other objects with this infrared reflective sensor from Waveshare!

Features

Reflective infrared Transceiver
Features wide-range voltage comparator LM393
Adjustable sensitivity
Signal output indicator
Sensor only - no cable

Specifications

Power: 3.0V ~ 5.3V
Dimension: 25mm * 15.9mm
Mounting hole size: 2.0mm

Resources

Product Wiki

In the case of working with an MCU:

VCC ↔ 3.0V ~ 5.3V
GND ↔ power supply ground
AOUT ↔ MCU.IO (analog output)
DOUT ↔ MCU.IO (digital output)
