HMI Module with Encoder and 500mAh Battery (STM32F030)

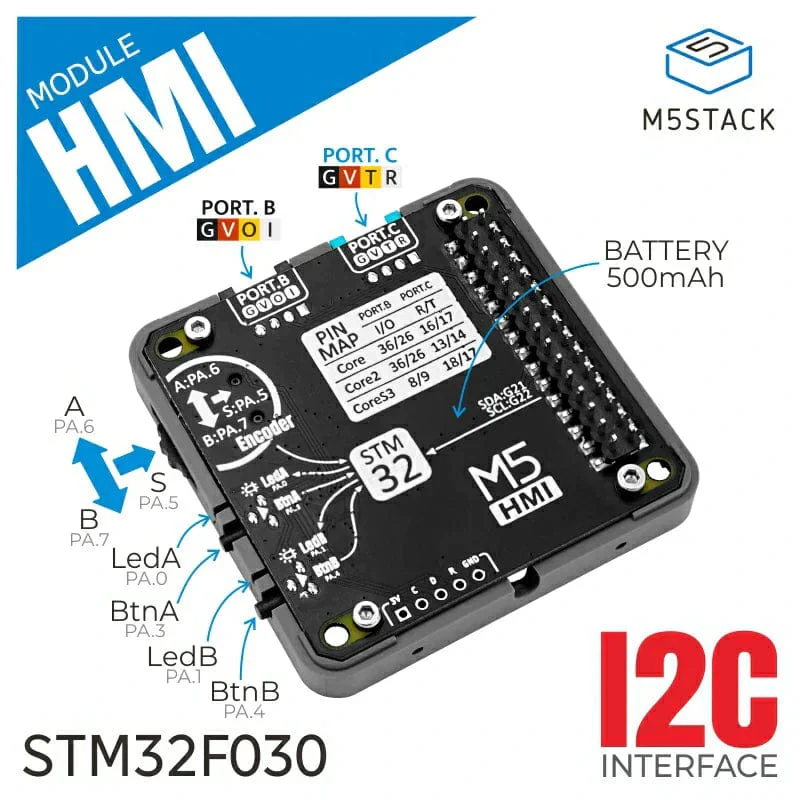

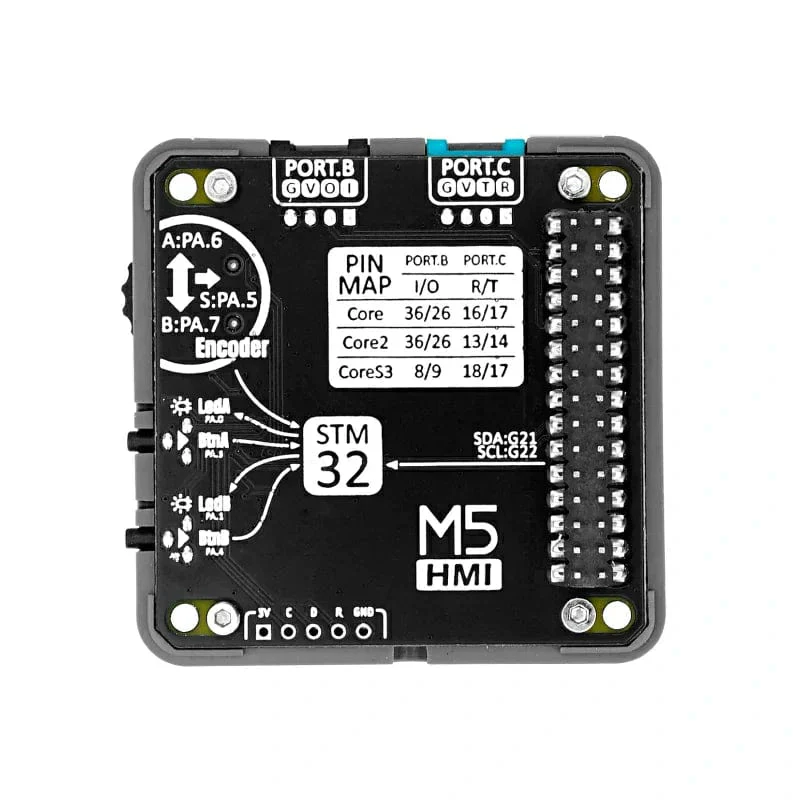

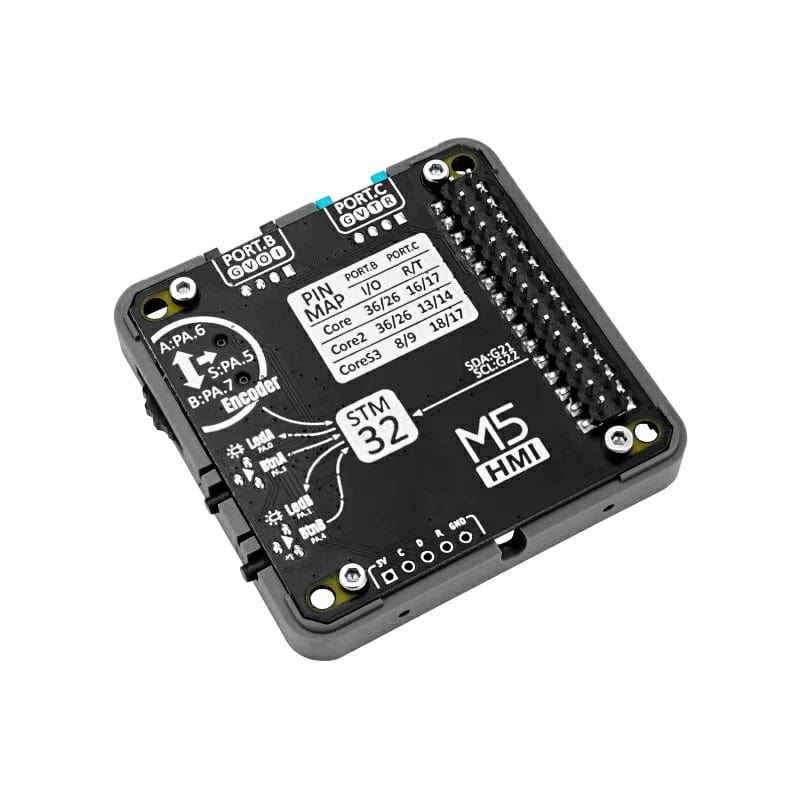

The HMI Module is a human-computer interactive module that provides a rotary encoder, two input buttons, and two LED indicators, using STM32F030 as the acquisition and communication MCU, and communicating with the M5 host through I2C.

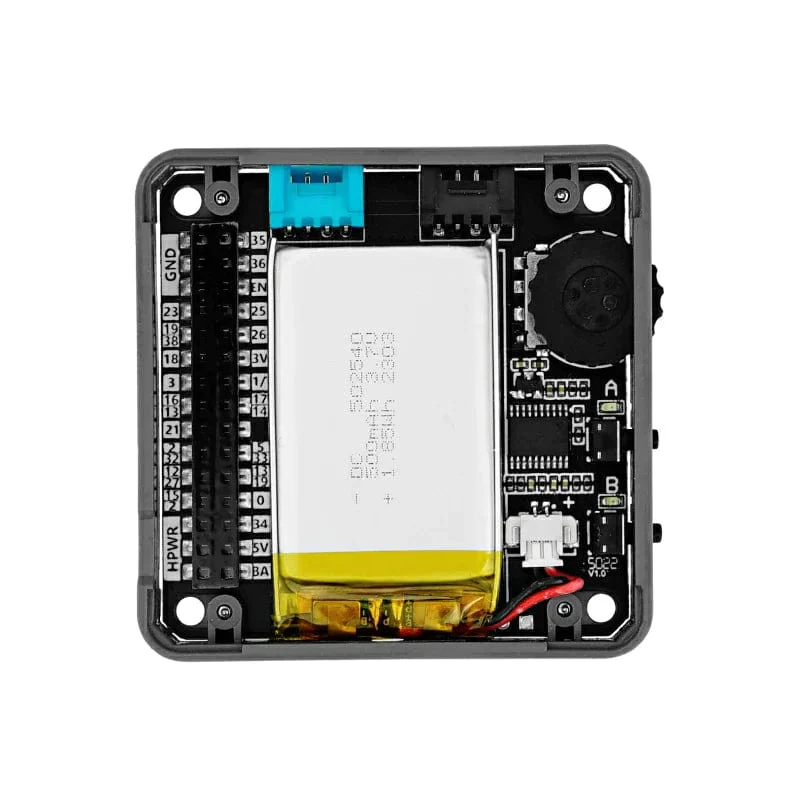

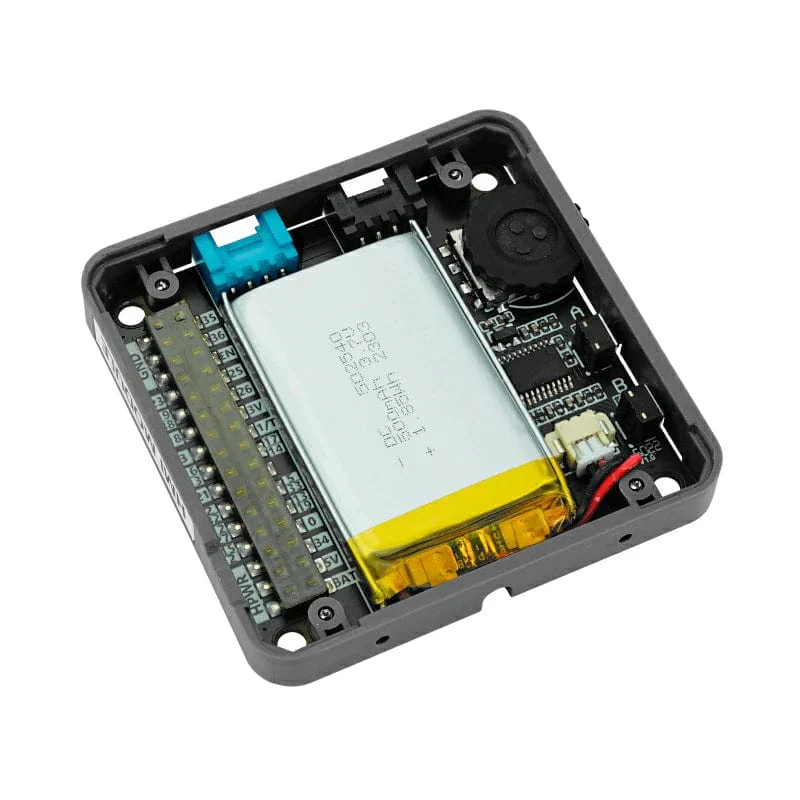

In addition, there are portB and portC interfaces on the module, and a 500mAh lithium battery is built-in. The module is suitable for a variety of applications that require handheld operator interaction.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?
Features
- STM32F030F4P6, ARM Cortex-M0 @ 16 KB Flash and 4 KB SRAM
- Human-machine interaction (rotary encoder, two input buttons and two indicator lights)
- PORT B and PORT C interfaces
- Programming platform: Arduino, UIFlow
Specifications
| Resources | Parameters |
| MCU | STM32F030F4P6 |
| Interactive peripherals | The rotary encoder of the dial wheel, two input buttons and two indicator lights |
| Battery | 500mAh polymer battery |
| Input voltage | 5v |
| Operating temperature | 0-40°C |
| Product Size | 54x54x6.6mm |
| Package Size | 60x57x17mm |
| Product Weight | 22.5g |
| Package Weight | 43g |
Resources
Package Contents
- 1x HMI Module
