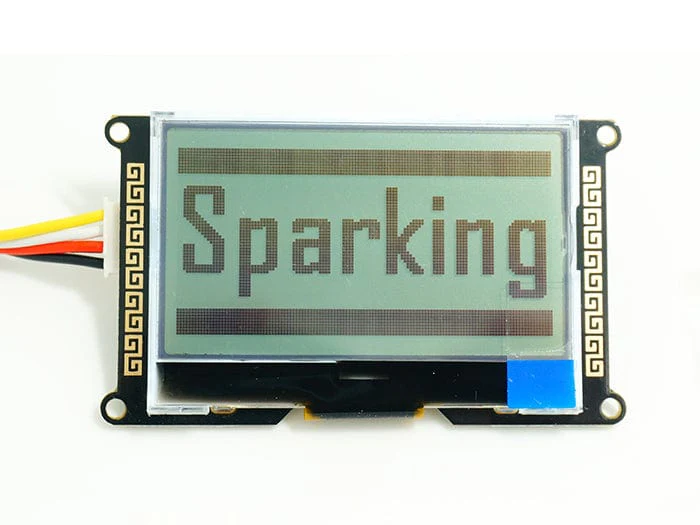

Grove - I2C LCD (With Universal Grove Cable) [Discontinued]

I2C_LCD is an easy-to-use display module, It can make display easier. Using it can reduce the difficulty of make, so that makers can focus on the core of the work.

We developed the Arduino library for I2C_LCD, user just need a few lines of the code can achieve complex graphics and text display features.

More than that, we also develop the dedicated picture data convert software (bitmap converter) to support PC platform's of windows, Linux, Mac OS. Through the bitmap convert software you can put your favorite picture displayed on I2C_LCD, without the need for complex programming.

Features

• Only 2 Arduino pins are occupied (Use I2C interface).
• Arduino library supported, use a line of code to complete the display.
• 168 ASCII characters can be displayed.
• 128X64 dual color picture can be displayed.
• Provide dedicated picture data convert software (Bitmap Converter) .
• Adjustable backlight brightness and contrast.
• Support modify device address, can support 127 modules work in parallel.
• Convenient Grove interface.
• China style unique appearance.

Dimension

• 63.27mm x 37.60mm

Part List

• 1x I2C_LCD
• 1x Grove - Universal 4 Pin Buckled 12cm Cable

Documentation

• I2C_LCD Library
• I2C_LCD User Manual EN
• I2C_LCD User Manual CN
• Bitmap Converter (ForWindows)
• Bitmap Converter (ForMacOS)
• Bitmap Converter (ForLinux)
• I2C_LCD Source File

please visit SEEED support pages WIKI page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum
