Gravity: Digital Shake Sensor

Do you want to switch on lights by just shaking your hand, but without a complicated and costly triple-axis accelerometer. This digital shake sensor may just meet your needs!

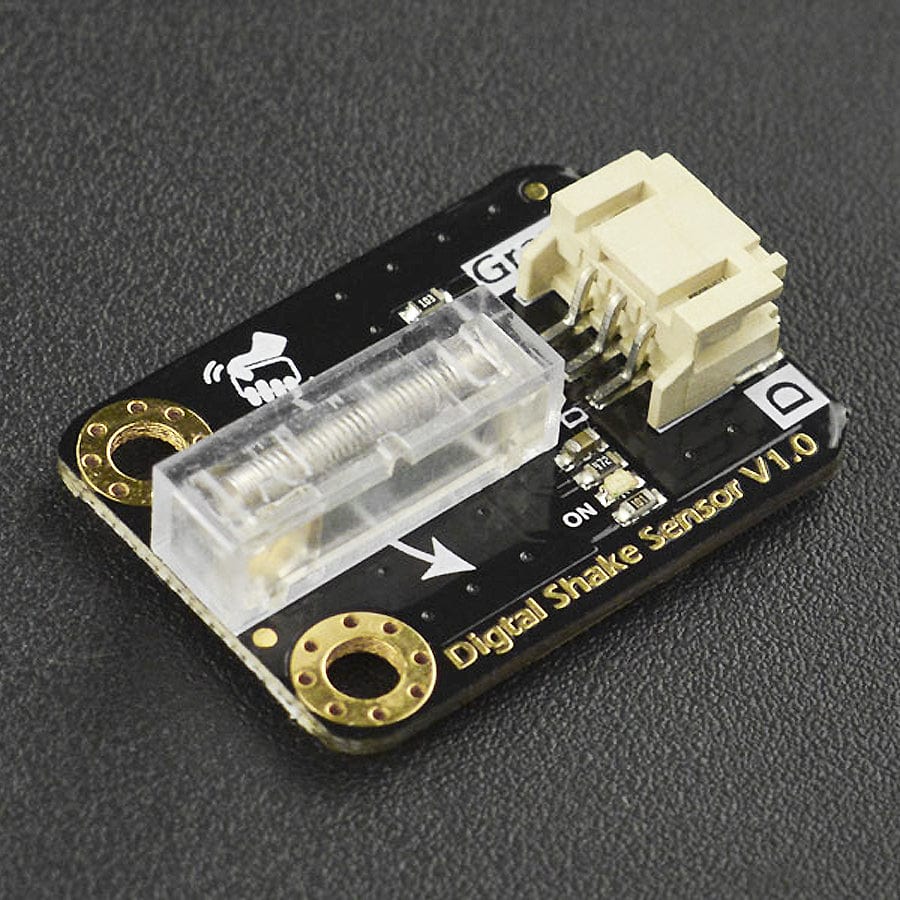

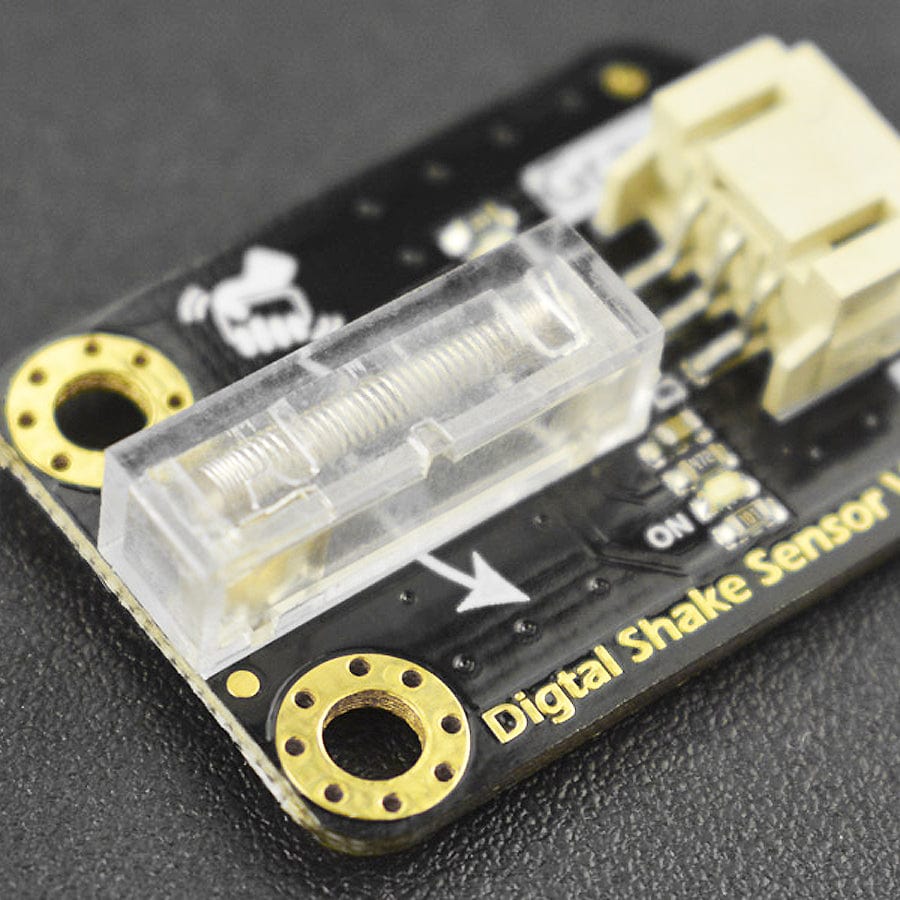

The digital shake sensor detects hand shaking and is only sensitive to unidirectional hand movements. The spring-type vibration switch is used to output a low-level pulse when the user shakes once in the specified direction, and the onboard indicator flashes at the same time.

Thanks to the unidirectional sensitivity of the vibration switch and the corresponding filter circuit, it has a strong anti-shock interference capability to prevent false triggering. Simple and easy, switch controls are all in just a single shake!

Connection Example - Arduino

Features

• Unidirection sensitive, strong anti-shock interference, preventing false triggering
• Compatible with 3.3V/5V controller
• Compact design, easy to install

Specifications

• Input Voltage (VCC): 3.3V~5.0V
• Switch Life Span: Over 200,000 times
• Interface: Gravity 3P Digital

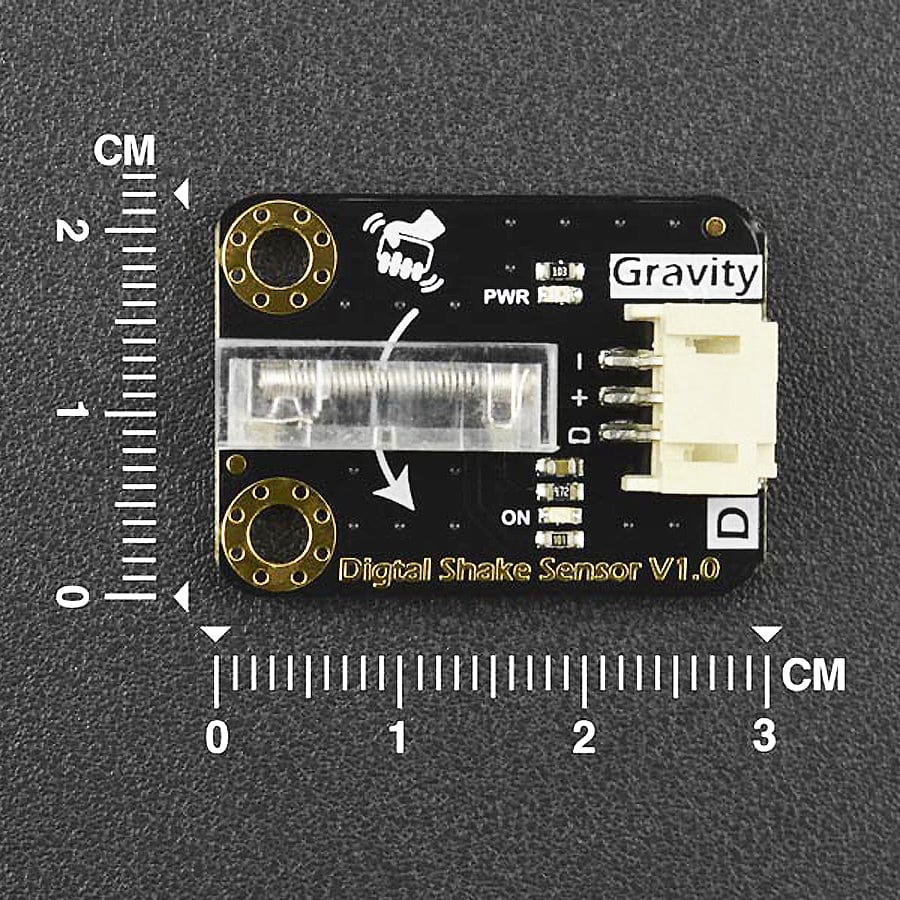

• Dimension: 30.0mm*22.0mm

Resources

• Product wiki

Pinout

Label	Name	Description
+	VCC	Power VCC（3.3~5.5V）
-	GND	Power GND
D	Digital	Digital output (high when stationary, low when shaken)
PWR	Power	Power indicator (red), turned on when power up
ON	ON	Shake triggered indicator (blue)

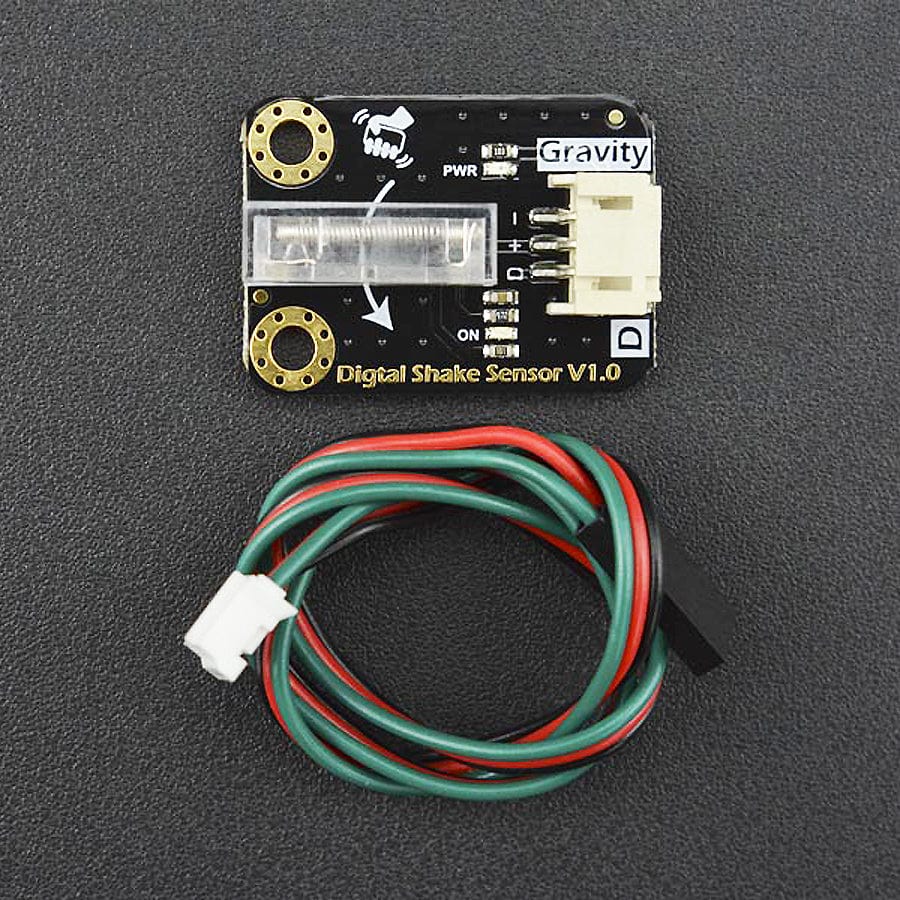

Package Contents

• 1x Gravity: Digital Shake Sensor
• 1x Gravity 3-pin Digital Wire
