Gravity: 4Pin I2C/UART Sensor Cable for Arduino - 50cm (10 Pack)

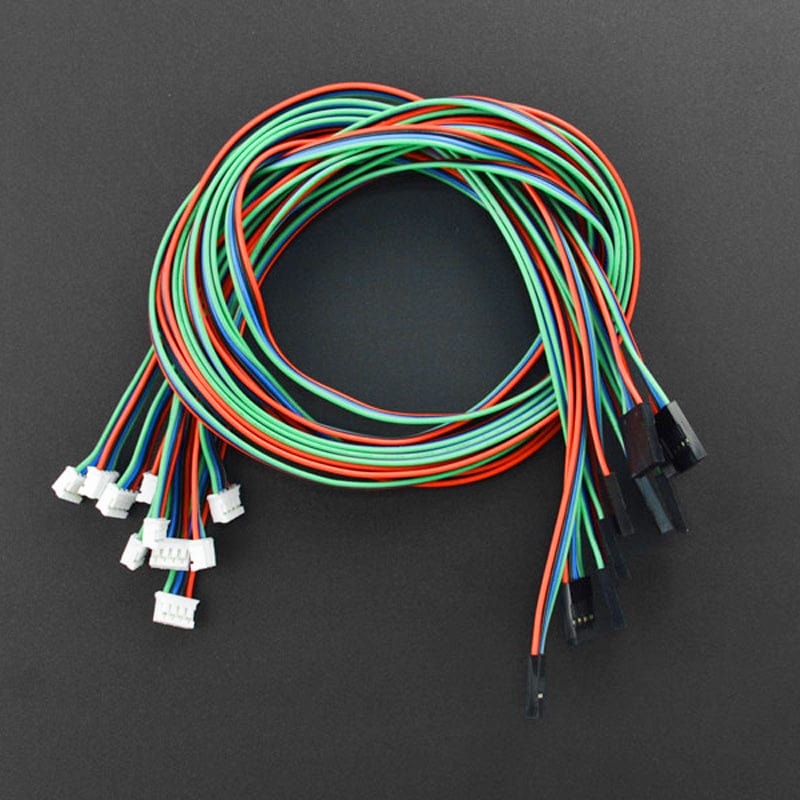

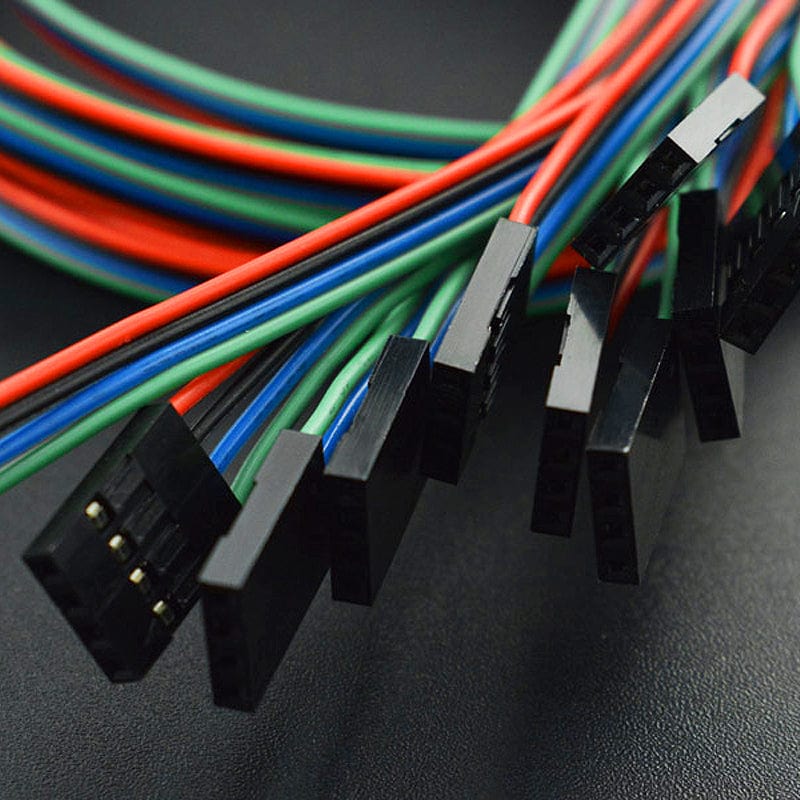

The Gravity 4-pin I2C/UART sensor cable is a standard Gravity series 4-Pin cable in a 50cm length. One side is PH2.0-4p connector and the other side is XH2.54 DuPont port, compatible with standard breadboard pin pitch for convenient DIY connections.
The cable is colour-coded to distinguish between the positive and negative power supply, I2C SDA SCL, UART RX TX. Easy to recognize and use.
Specifications
- Maximum Voltage: <50V
- Maximum Current: <1000mA
- Length: 50cm/20”
- I2C Port: Red – VCC, Black – GND, Blue -- SCL, Green -- SDA
- UART Port: Red – VCC, Black – GND, Blue -- TX, Green -- RX
Package Contents
- 10x Gravity: 4Pin I2C/UART Sensor Cable (50cm)
Original: $6.30
-65%$6.30
$2.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Gravity 4-pin I2C/UART sensor cable is a standard Gravity series 4-Pin cable in a 50cm length. One side is PH2.0-4p connector and the other side is XH2.54 DuPont port, compatible with standard breadboard pin pitch for convenient DIY connections.
The cable is colour-coded to distinguish between the positive and negative power supply, I2C SDA SCL, UART RX TX. Easy to recognize and use.
Specifications
- Maximum Voltage: <50V
- Maximum Current: <1000mA
- Length: 50cm/20”
- I2C Port: Red – VCC, Black – GND, Blue -- SCL, Green -- SDA
- UART Port: Red – VCC, Black – GND, Blue -- TX, Green -- RX
Package Contents
- 10x Gravity: 4Pin I2C/UART Sensor Cable (50cm)
