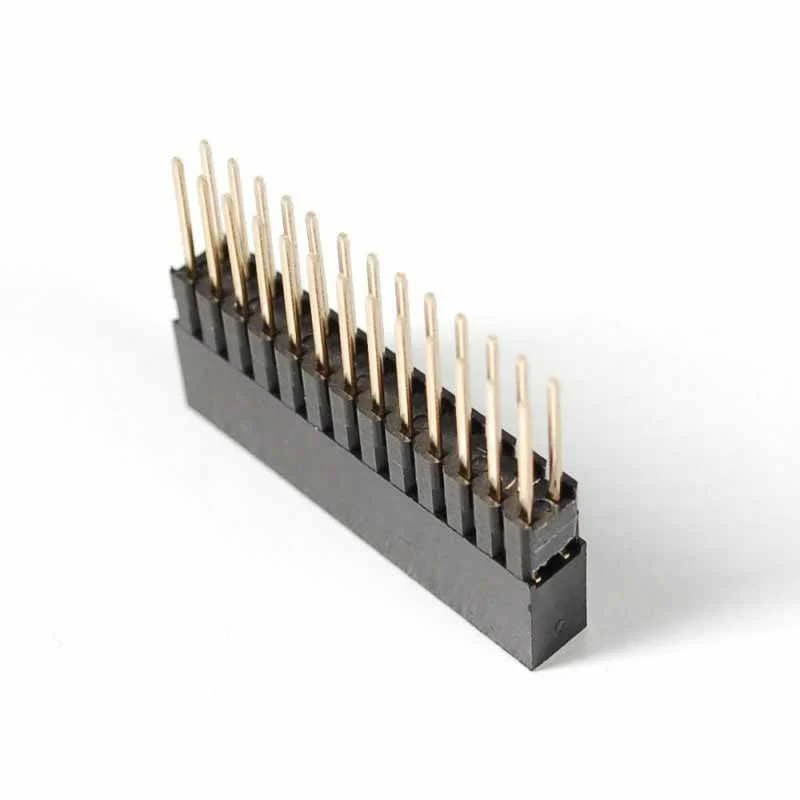

Extra-Tall 2x13 GPIO Connector [Discontinued]
Stack multiple plates, breakouts etc onto your original Raspberry Pi 1 (26-pin) with this custom-made extra-tall and extra-long 2x13 female header.
The female header part has extra spaces to make it 13.6mm tall: when placed on your Pi, a PCB will clear the Ethernet and USB jacks. The stacky pin part is also extra-long, 9.7mm, so that when a standard 1.5mm thickness PCB is installed, there will be 8mm remaining, plenty to plug into.
You'll get one header per order.
Technical Details
- Pin spacing: 2.5mm / 0.1"
- Pin thickness: 0.6mm / 0.02"
- Weight: 4.2g
Original: $1.90
-65%$1.90
$0.66Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Stack multiple plates, breakouts etc onto your original Raspberry Pi 1 (26-pin) with this custom-made extra-tall and extra-long 2x13 female header.
The female header part has extra spaces to make it 13.6mm tall: when placed on your Pi, a PCB will clear the Ethernet and USB jacks. The stacky pin part is also extra-long, 9.7mm, so that when a standard 1.5mm thickness PCB is installed, there will be 8mm remaining, plenty to plug into.
You'll get one header per order.
Technical Details
- Pin spacing: 2.5mm / 0.1"
- Pin thickness: 0.6mm / 0.02"
- Weight: 4.2g
