ESP32-C6 1.69" IPS LCD Display Dev Board (240x280)

A compact USB-C ESP32-C6-based development offering 2.4GHz Wi-Fi 6 and Bluetooth 5, combined with an LCD display and a host of other features including an IMU, amp & speaker, LiPo port, RTC and more!

---

This development board from Waveshare is based around an Espressif ESP32-C6, which combines a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz. It offers integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication.

The ESP32-C6 runs 320KB ROM, 512KB HP SRAM and 16KB LP SRAM, with an additional 16MB flash on the board to support this. Program the chip via the USB-C port, assisted with the onboard RST and BOOT buttons.

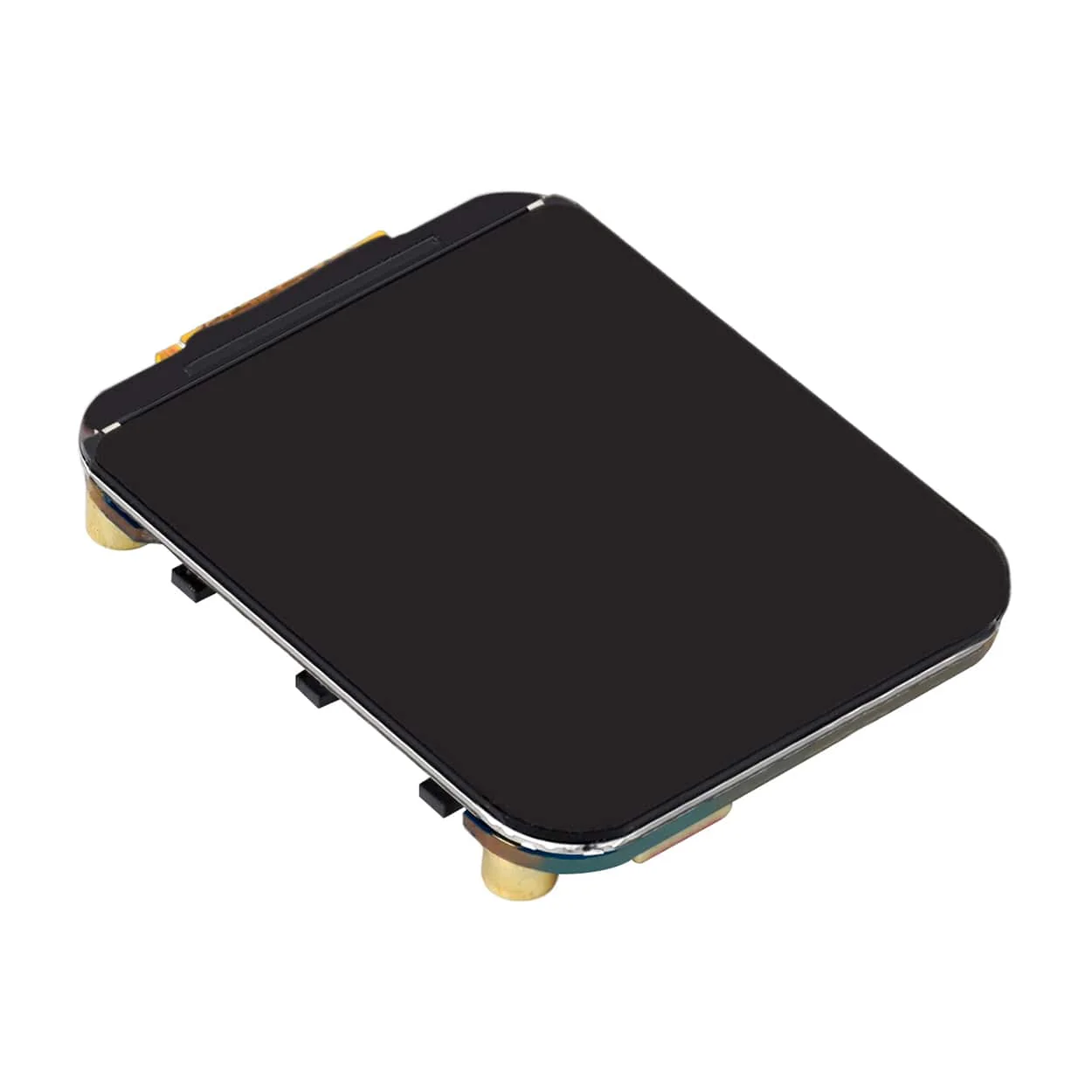

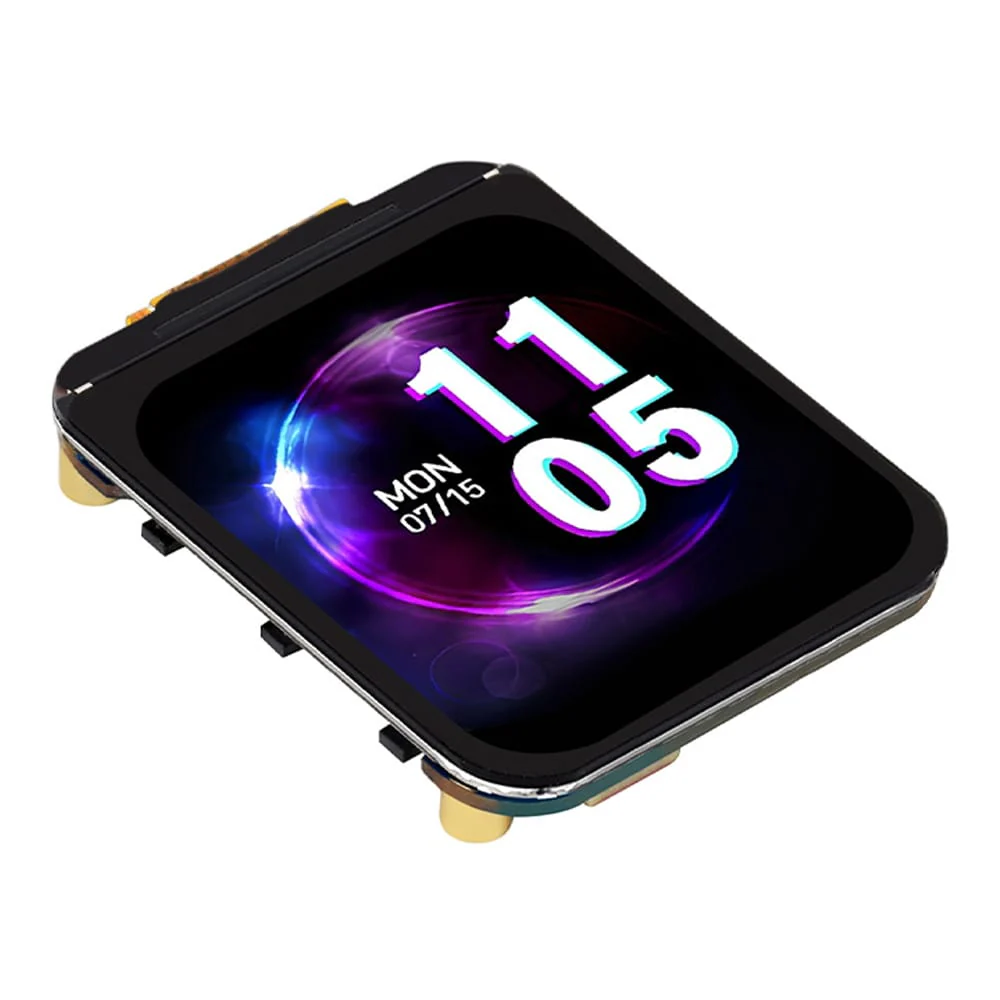

The front of the board holds the 1.69" IPS LCD display, with 262K colours and a 240x280 resolution, driven by a ST7789V2 chip via SPI. It does not support touch input, however we sell a version that does.

A PicoBlade-compatible/MX1.25 LiPo port is onboard (battery not included), with an onboard charge circuit that keeps your battery charged when plugged in to USB-C power. We stock a range of Picoblade-compatible LiPo batteries in the store - just be sure to check and/or adjust polarity as this can vary from board to board.

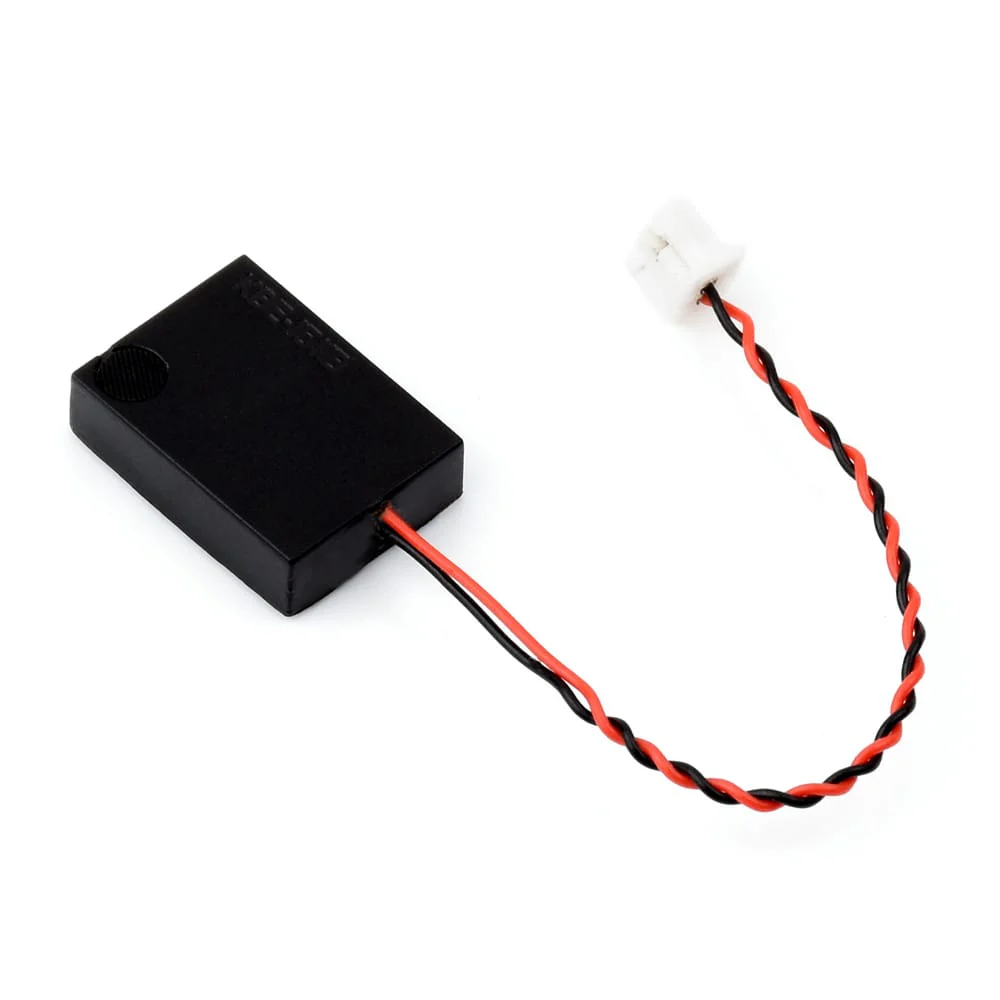

You'll also find a 6-axis IMU providing a 3-axis gyroscope and a 3-axis accelerometer on the board, a real-time clock (RTC), and an audio amplifier to drive the included 6Ω 1W speaker, with a microphone also onboard to support audio projects with input.

Features

• Processor: ESP32-C6
  • High-performance 32-bit RISC-V processor up to 160MHz
  • Low-power 32-bit RISC-V processor up to 20MHz
  • Integrated 2.4GHz Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 support
  • Supports Zigbee 3.0 and Thread wireless communication
  • 320KB ROM, 512KB HP SRAM and 16KB LP SRAM
• Flash: 16MB onboard flash
• USB-C: USB-C port for programming and power
• Onboard controls: RST and BOOT buttons for programming support + user programmable button
• Display: 1.69" IPS LCD
  • 262K colours
  • 240x280 display resolution
  • ST7789V2 driver (SPI)
• LiPo connector: PicoBlade-compatible/MX1.25 LiPo port onboard
• Battery charging: Onboard charge circuit (powered via USB-C)
• IMU: 6-axis IMU 93-axis gyroscope and 3-axis accelerometer)
• RTC: Onboard real-time clock
• Audio output: Audio amplifier for included 6Ω 1W speaker
• Audio input: Onboard microphone

What's Onboard?

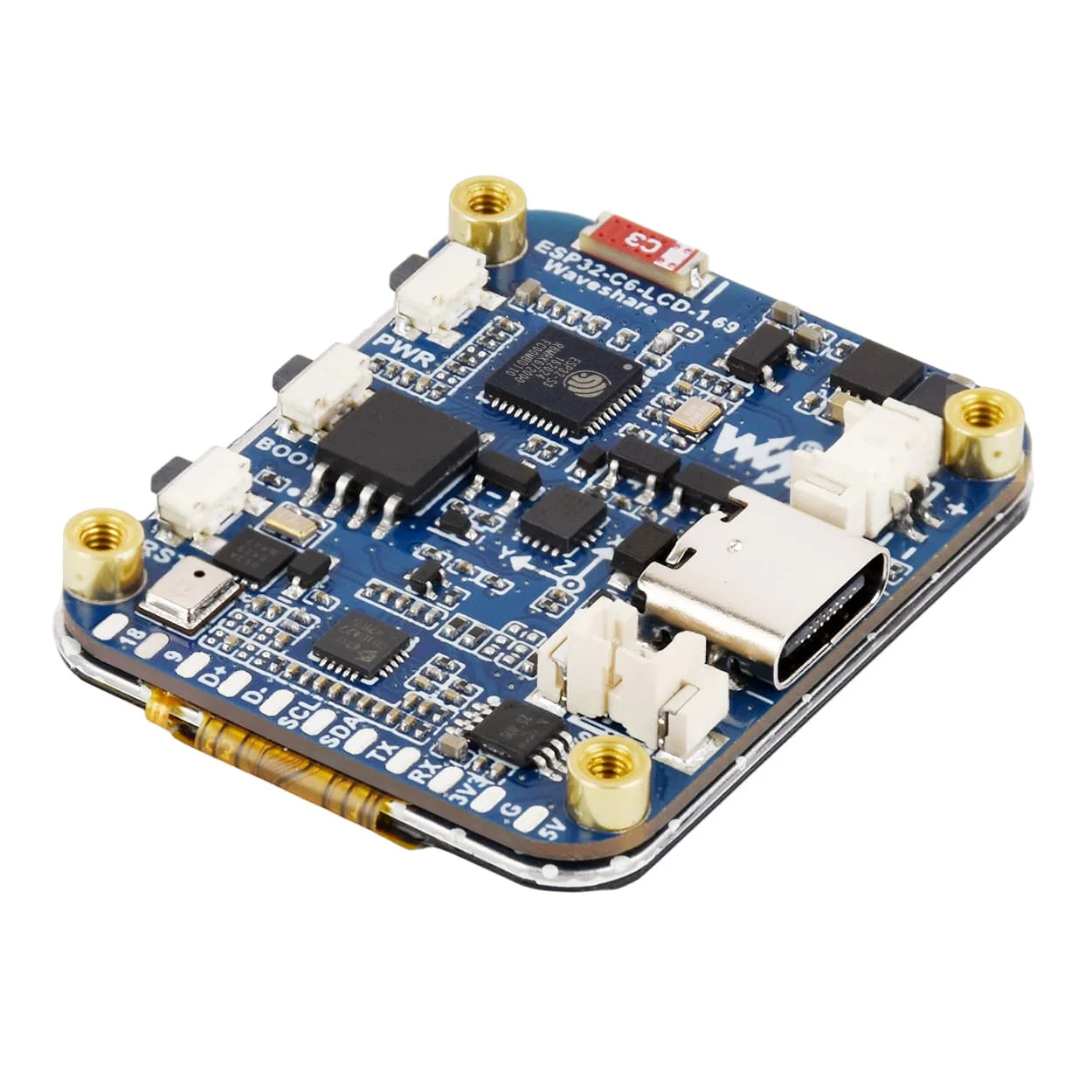

1. ESP32-C6
2. W25Q128JVSIQ
   • 16MB NOR-Flash
3. PCF85063
   • RTC chip
4. QMI8658
   • 6-axis IMU, including a 3-axis gyroscope and 3-axis accelerometer
5. ETA6098
   • High-efficiency lithium battery charging IC
6. MX1.25 2P lithium battery header
   • For connecting a 3.7V lithium battery, supporting charging and discharging
7. Type-C port
   • ESP32-C6 USB interface for program uploading and log printing
8. MX1.25 speaker header
9. Onboard antenna
10. PWR button
    • Supports battery power supply control, single-press, double-press, multi-press and long-press operations
11. BOOT button
12. RST button
13. Microphone
14. NS4150B
    • 3.0W mono class-D audio power amplifier
15. ES8311
    • Low-power mono audio codec

LCD Specifications

Display panel	IPS
Display size	1.69"
Resolution	240 × 280 pixels
Colour	262K
Brightness	435 cd/㎡
Contrast ratio	315:1
Communication interface	SPI
Display driver	ST7789V2

Resources

• Product wiki

Pinout

Package Contents

• 1x ESP32-C6 1.69" IPS LCD Dev Board (240x280)
• 1x 6Ω 1W speaker
