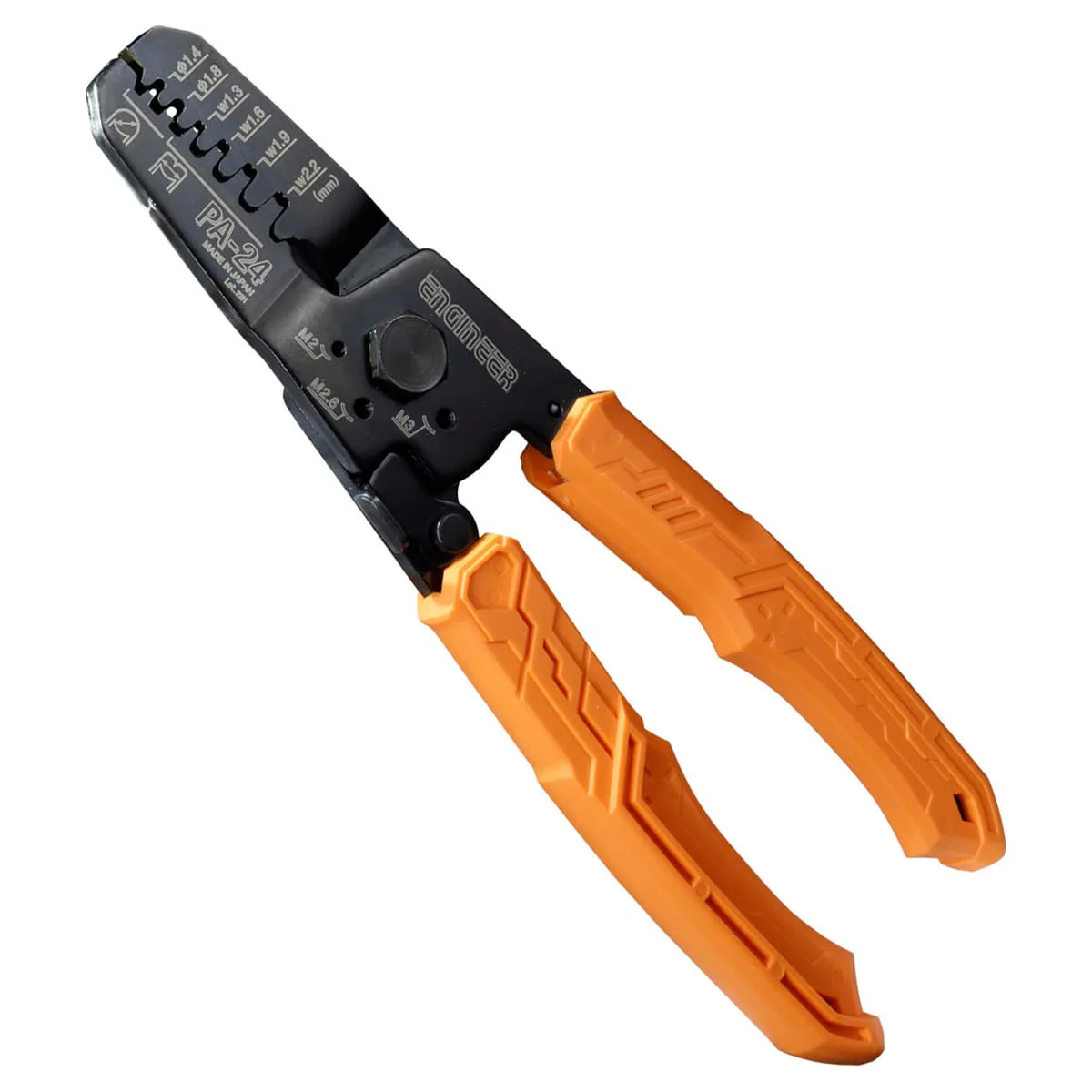

Engineer® PA-24 Crimping Tool

The updated Engineer PA-24 Crimping Tool Pliers feature precision crimp dies, which offer uniform quality and a professional finish when crimping connectors.

The PA-24 is capable of crimping more than 170 different open-barrel terminals that cover most of the conventional 2.5mm pitch connectors, including DuPont connectors (Servo connectors) professionally. The PA-24 is also equipped with a screw cutter (M2, M2.6 & M3) ideal for construction and repair of hobby PC, RC, Drone, Robotics, Prototypes, etc.

Engineer® has been manufacturing high-quality Japanese precision tools since 1948. If you're looking for the very best precision hand tools for your projects - look no further. Check out our full range of Engineer tools here!

Features

• ENGINEER's new technology of die design offers super neat 'curled' crimping of 2.5mm pitch connector contacts (AWG #32-#18). Works with more than 170 different terminals such as JST XH, PH, EH & NH series, Molex Micro-Fit 3.0, KK series, etc.

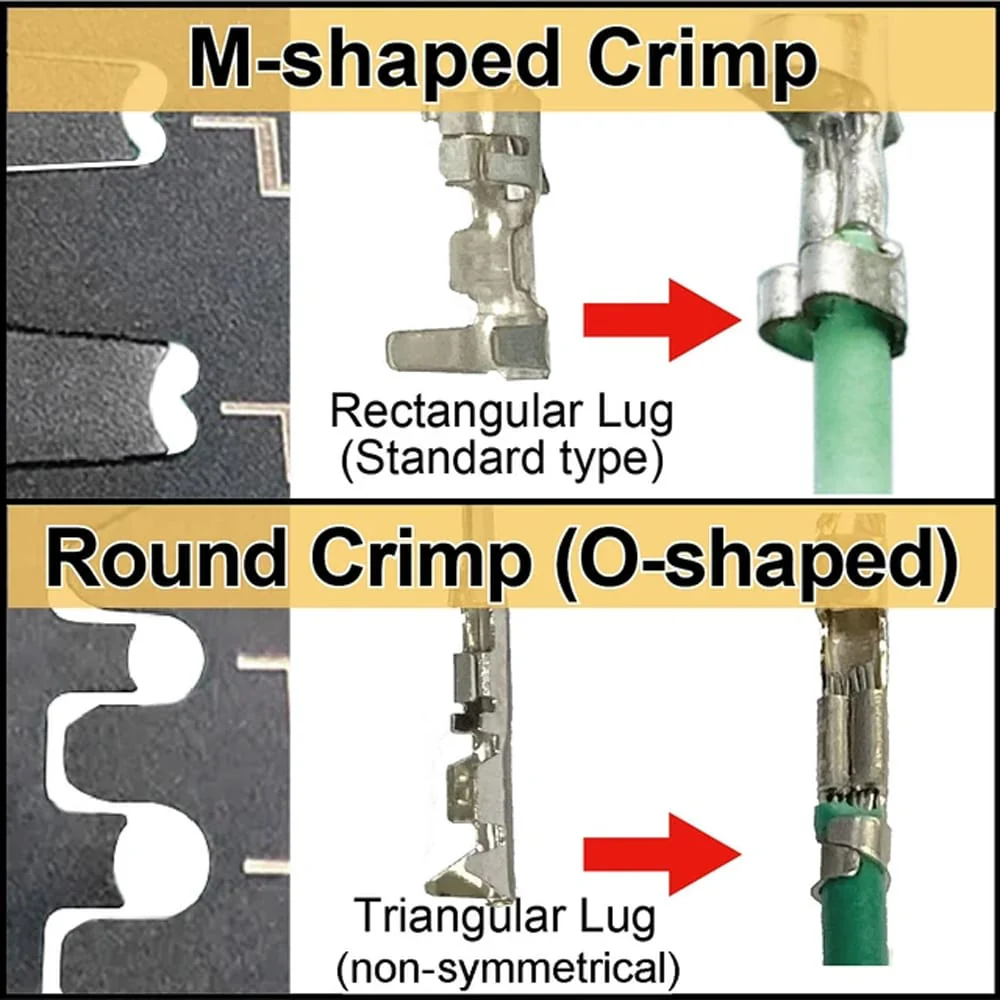

• Perfectly crimps triangular insulation barrel (lugs) of DuPont / Servo connectors, Molex C-Grid III, etc. without damaging the insulation

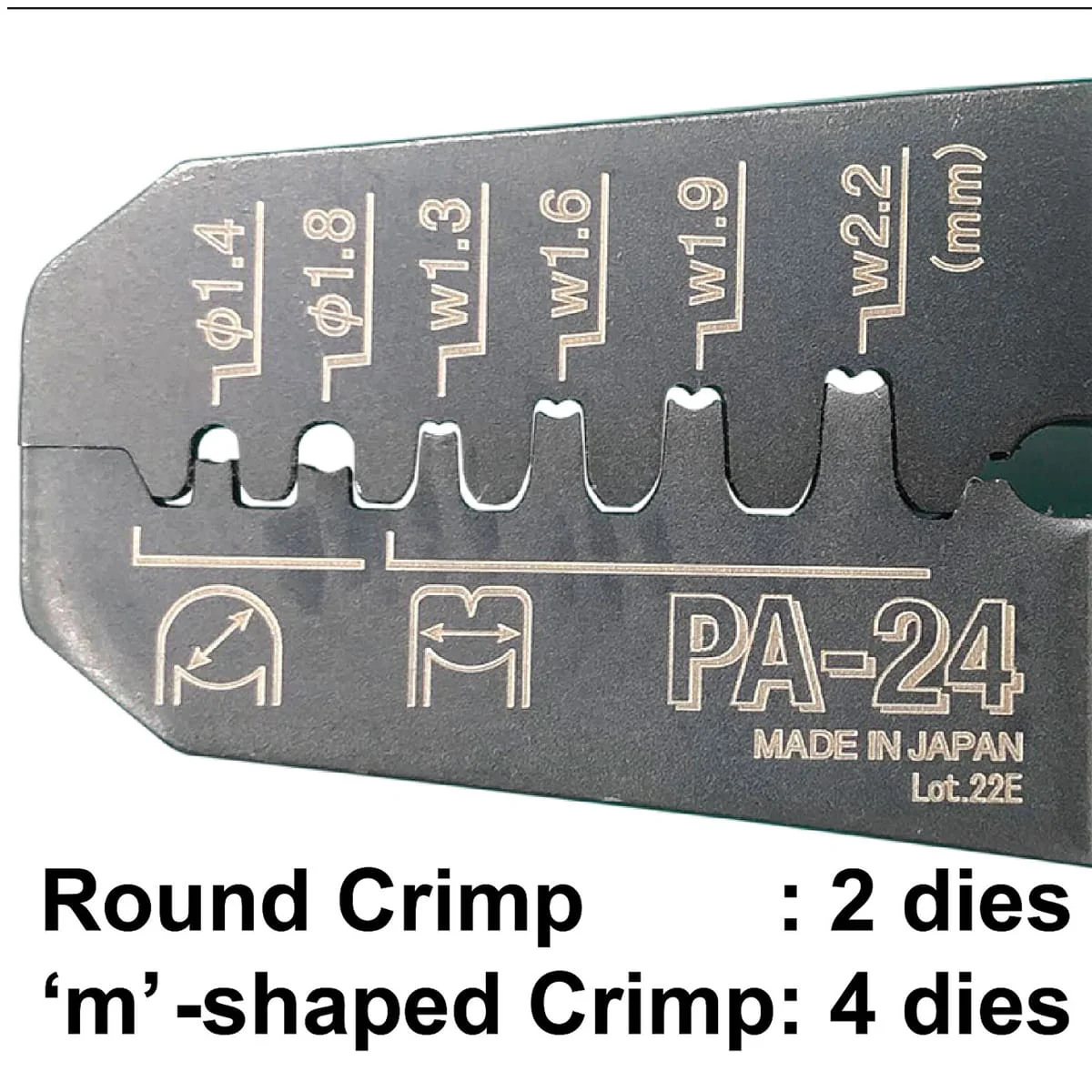

• Six Crimping Dies - 'm'-shaped: ⌀1.3mm, ⌀1.6mm, ⌀1.9mm & ⌀2.2mm. Round shaped: ⌀1.4mm & ⌀1.8mm) for open-barrel contacts

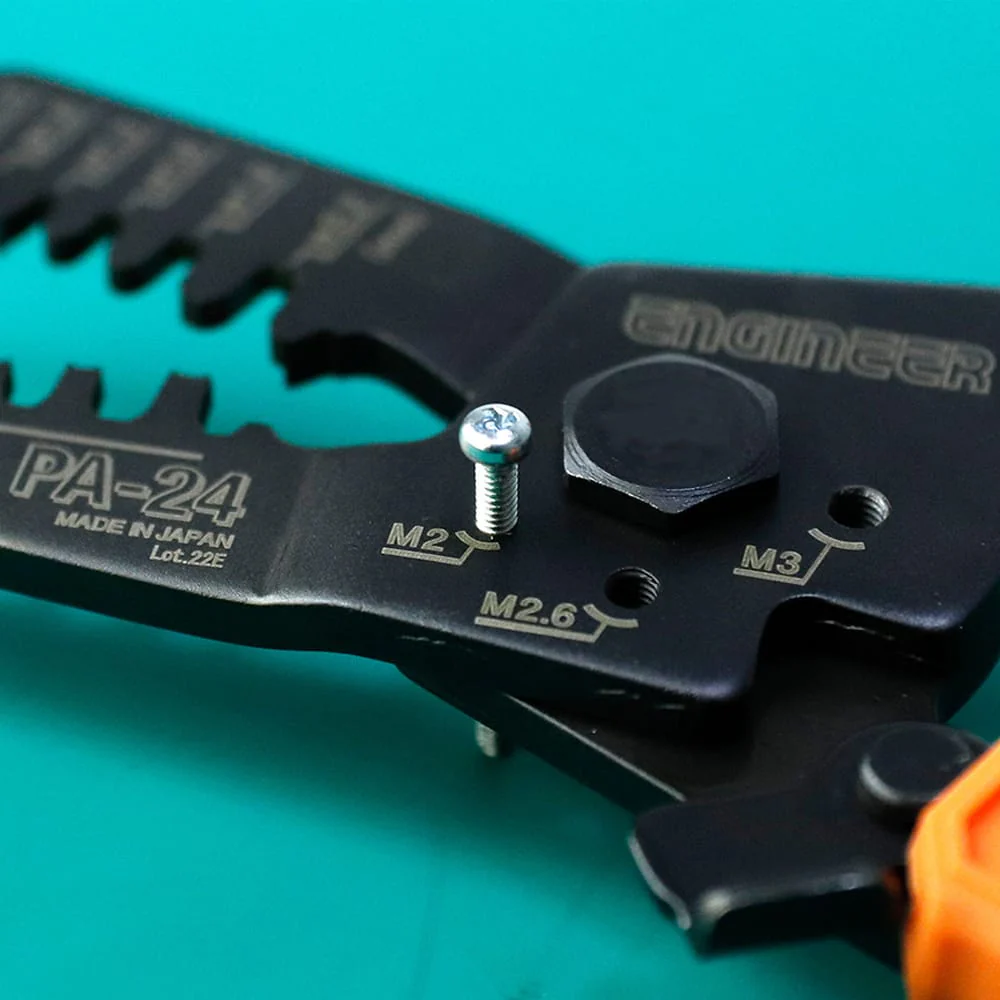

• Built-in screw cutter -for M2, M2.6 & M3 screws
• Spring loaded grips for easy handling - locking latch to hold the grips closed for ease of storage
• Tapered and slender jaws, lightweight (only 115g)
• Made in Japan

Specifications

• Die Width: Round dies/φ1.4, φ1.8, M-shaped dies/1.3, 1.6, 1.9, 2.2mm
• Length: 160mm
• Handle Width: 48mm
• Weight: 115g
• Material: Body/Carbon steel, Grip/TPR

Package Contents

• 1x Engineer® PA-24 Crimping Tool
