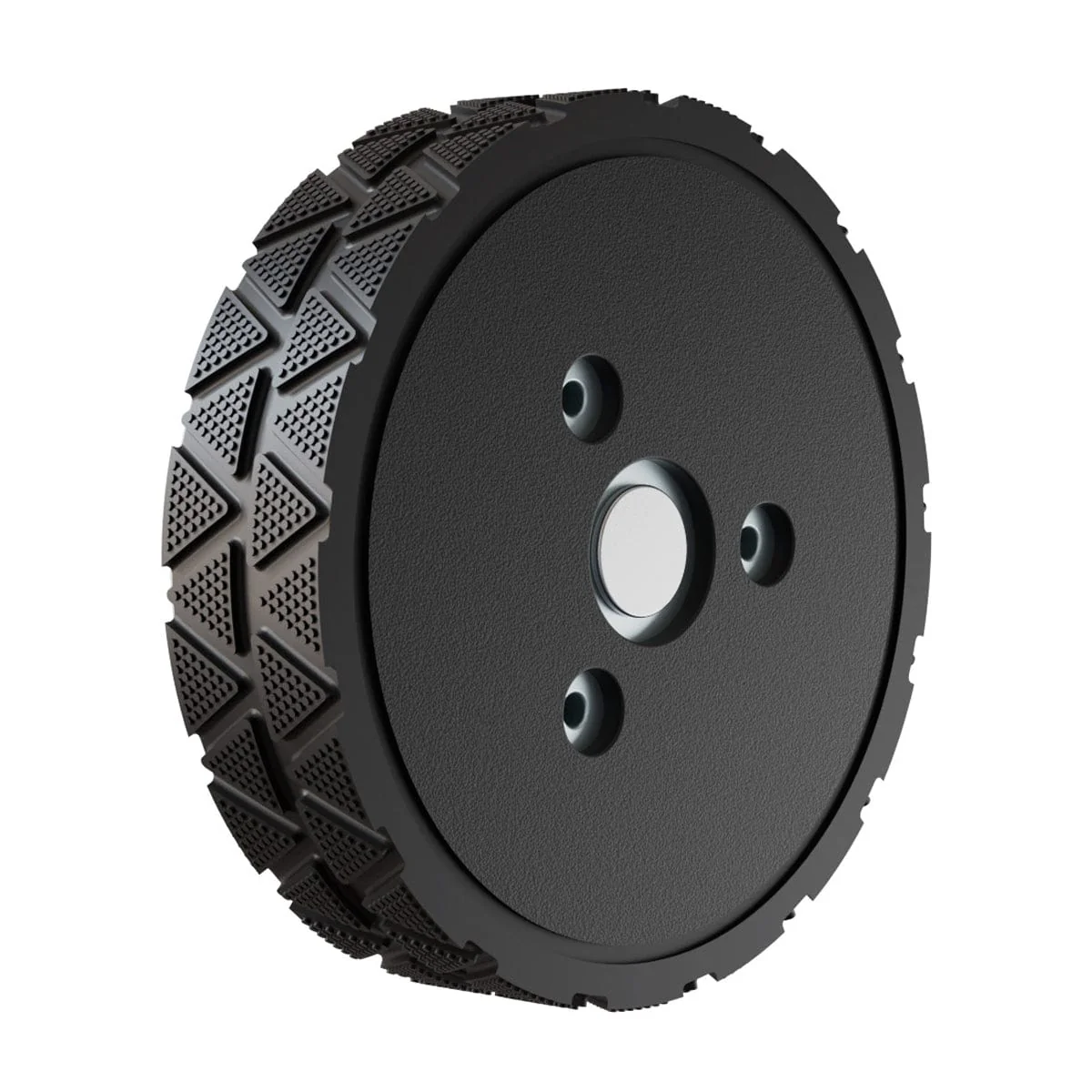

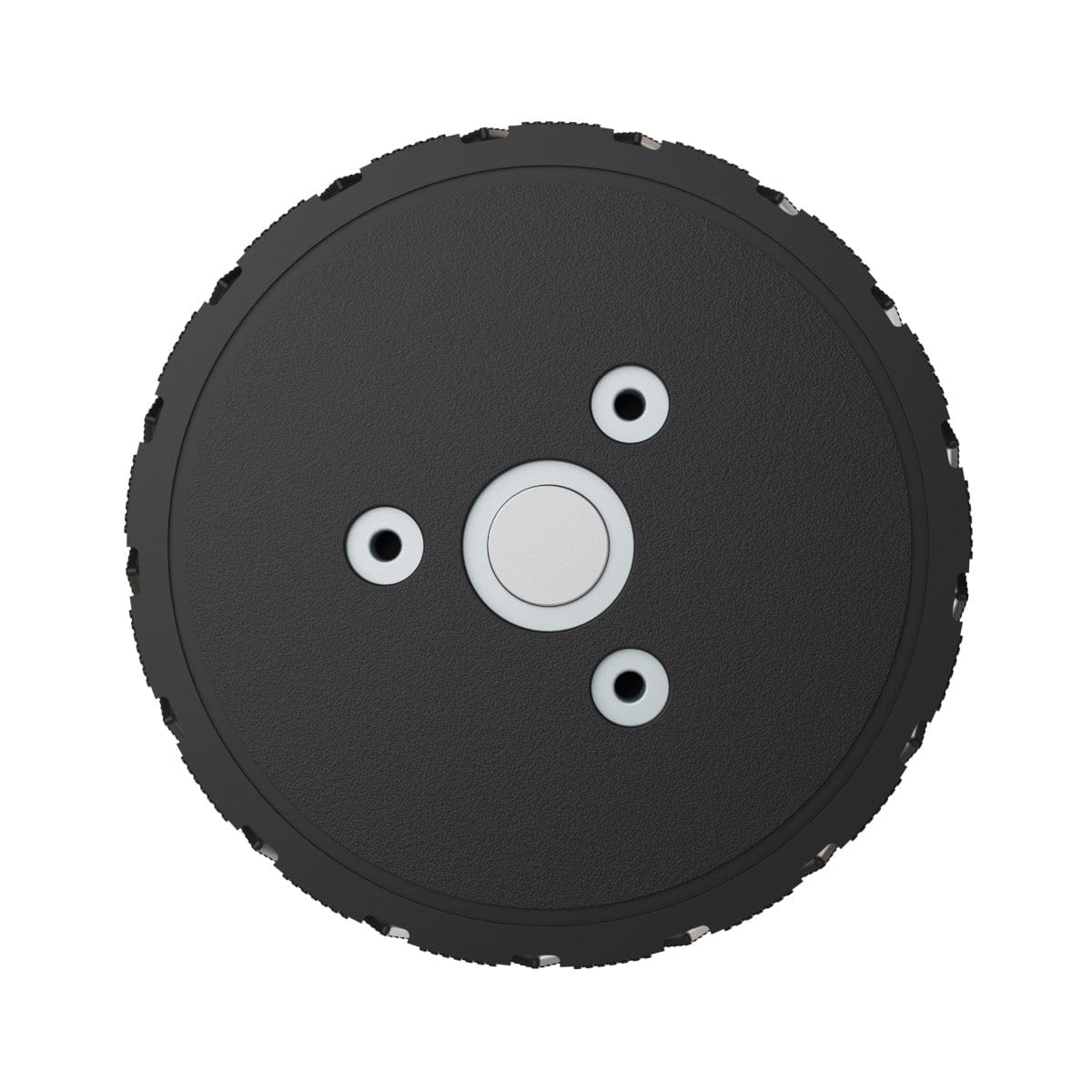

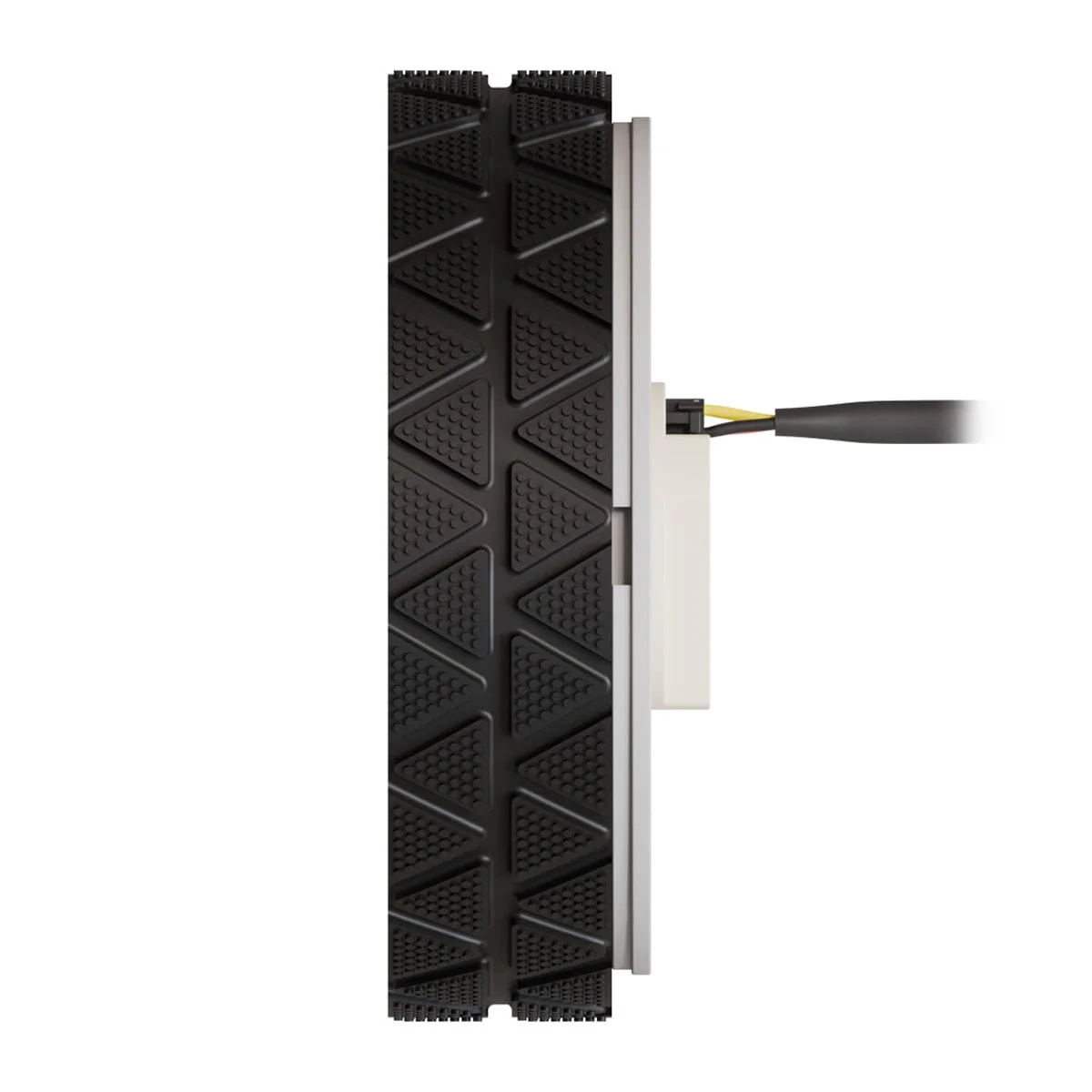

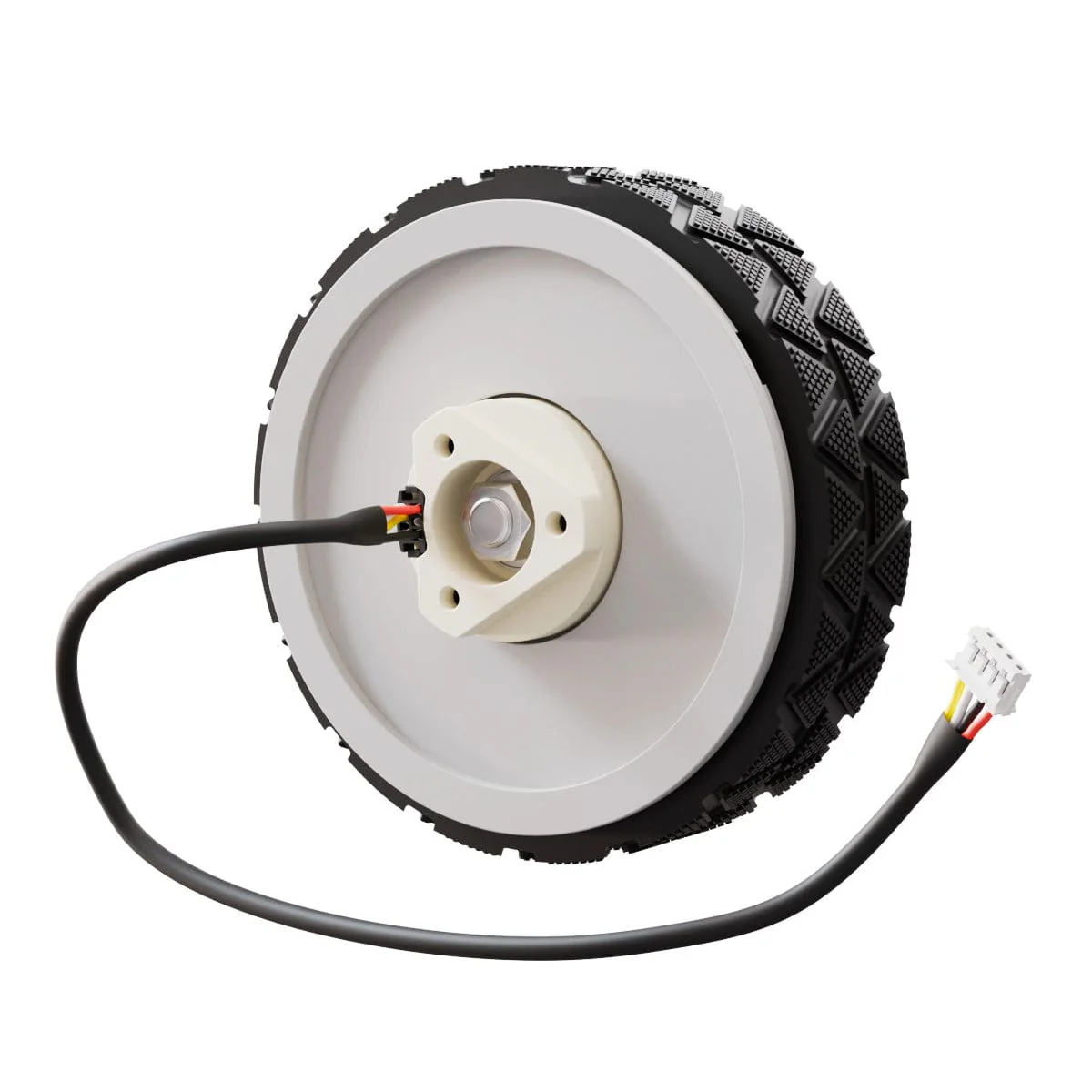

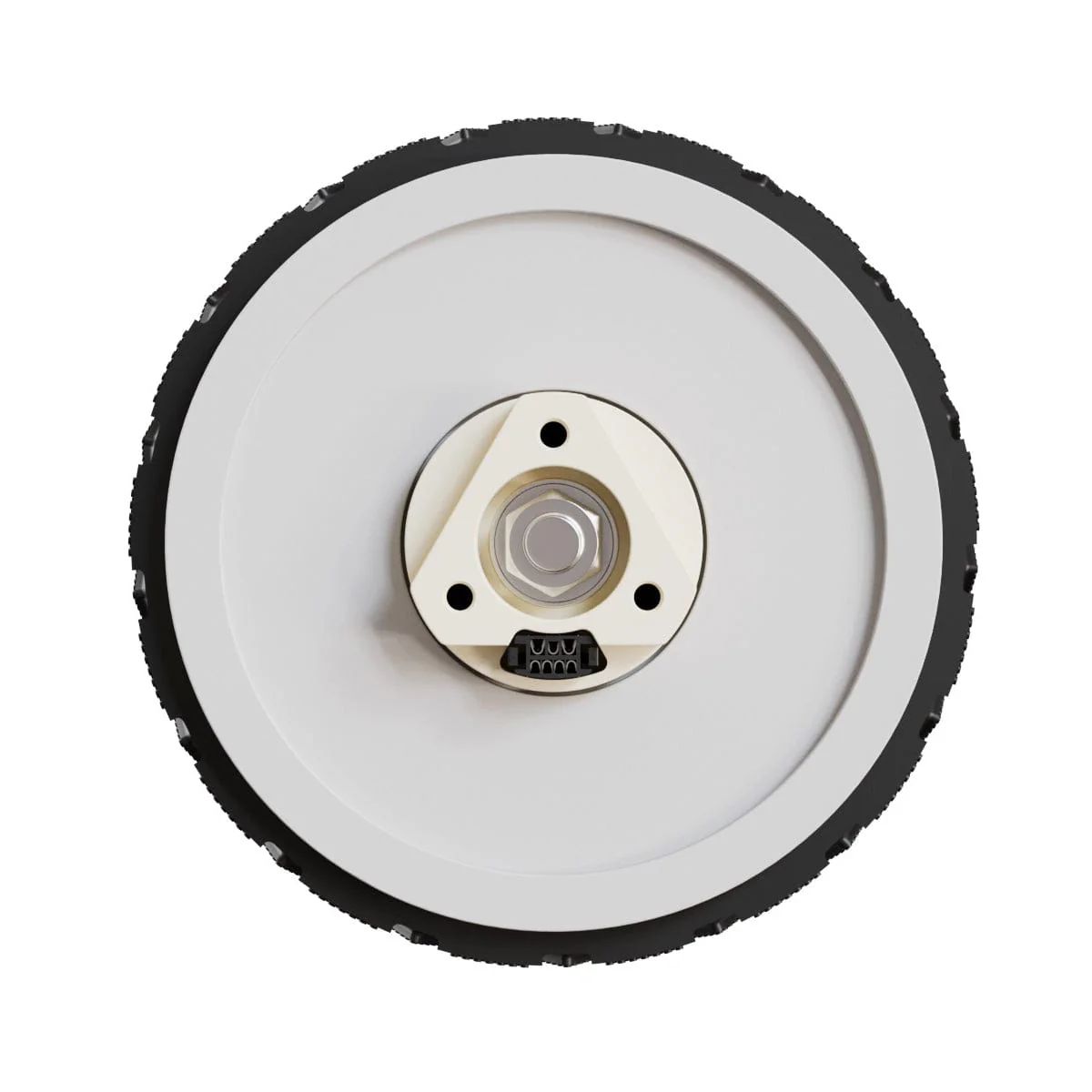

DDSM210 Direct Drive Servo Motor
This DDSM210 Servo Motor has been made to give a low-speed and high-torque performance, making it ideal for RC cars and robot DIY projects. Its low noise provides quiet functionality, and its high precision provides accurate movements. This all-in-one hub motor has a fast response time with direct drive technology, eliminating any delays.
The integrated motor and driver create a compact and highly integrated structure, perfect for streamlined projects. Supporting UART communication, it allows for easy retrieval of motor feedback information, including position, speed, current, and error codes. With the capability to control multiple motors simultaneously through just one UART bus, the DDSM210 offers convenience and efficiency for your robotics and RC car needs.
If you're looking for a matching driver board to get this motor running, click here. We also stock the DDSM115, DDSM315 and DDSM400.
Features
- Ultra low noise
- High precision and no backlash
- Fast response, direct drive without delay
- Integrated motor and driver, compact structure and high integration
- Supports UART communication, for obtaining motor feedback information such as position, speed, current, error code, etc
- With Hall position detection, over-current protection, etc.
- Supports electric brake
- No drive mechanical friction, drive efficiency close to 99.99%
Specifications
| No-load speed | 210±11rpm |
| No-load current | 0.15A |
| Rated speed | 98rpm |
| Rated torque | 0.25Nm |
| Locked-rotor torque | 0.85Nm |
| Torque constant | 0.23Nm/A |
| Locked-rotor current | ≦3.8A |
| Operating temperature | -25~45℃ |
| Total weight | 216g |
| Encoder resolution | 12bit |
| Rated current | 1.1A |
| Noise level | ≦40dB(A) |
| Input voltage | 9 ~ 28VDC |
| Speed constant | 14rpm/V |
Resources
Pinout
Package Contents
- 1x DDSM210
- 1x 4-pin cable
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This DDSM210 Servo Motor has been made to give a low-speed and high-torque performance, making it ideal for RC cars and robot DIY projects. Its low noise provides quiet functionality, and its high precision provides accurate movements. This all-in-one hub motor has a fast response time with direct drive technology, eliminating any delays.
The integrated motor and driver create a compact and highly integrated structure, perfect for streamlined projects. Supporting UART communication, it allows for easy retrieval of motor feedback information, including position, speed, current, and error codes. With the capability to control multiple motors simultaneously through just one UART bus, the DDSM210 offers convenience and efficiency for your robotics and RC car needs.
If you're looking for a matching driver board to get this motor running, click here. We also stock the DDSM115, DDSM315 and DDSM400.
Features
- Ultra low noise
- High precision and no backlash
- Fast response, direct drive without delay
- Integrated motor and driver, compact structure and high integration
- Supports UART communication, for obtaining motor feedback information such as position, speed, current, error code, etc
- With Hall position detection, over-current protection, etc.
- Supports electric brake
- No drive mechanical friction, drive efficiency close to 99.99%
Specifications
| No-load speed | 210±11rpm |
| No-load current | 0.15A |
| Rated speed | 98rpm |
| Rated torque | 0.25Nm |
| Locked-rotor torque | 0.85Nm |
| Torque constant | 0.23Nm/A |
| Locked-rotor current | ≦3.8A |
| Operating temperature | -25~45℃ |
| Total weight | 216g |
| Encoder resolution | 12bit |
| Rated current | 1.1A |
| Noise level | ≦40dB(A) |
| Input voltage | 9 ~ 28VDC |
| Speed constant | 14rpm/V |
Resources
Pinout
Package Contents
- 1x DDSM210
- 1x 4-pin cable
