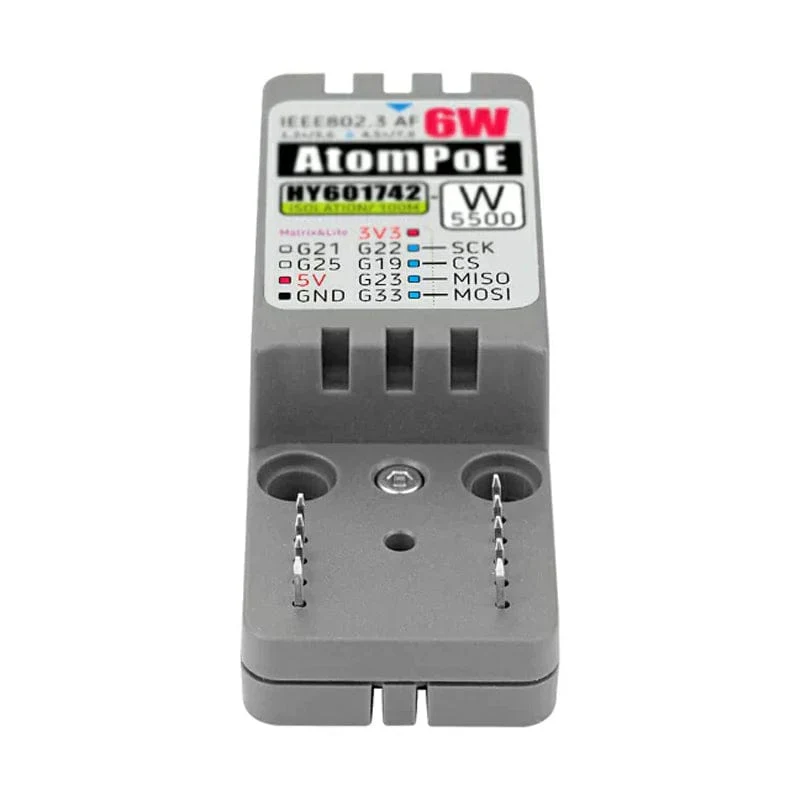

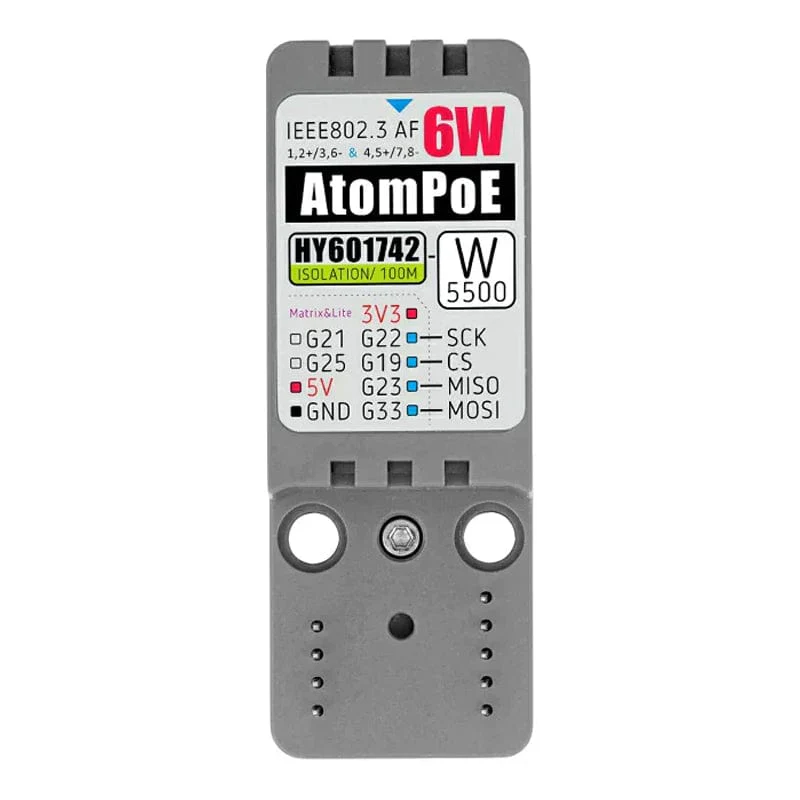

ATOMIC PoE Base W5500

The Atomic PoE Base is designed specifically for the ATOM series main controller, featuring an integrated Ethernet (PoE) module. This allows it to draw power directly from a PoE hub or switch, negating the need for an independent power supply and thereby simplifying the setup and reducing infrastructure expenses.

At its core, the Atomic PoE Base is equipped with the W5500 Ethernet controller that includes an embedded TCP/IP protocol stack. This controller is capable of maintaining eight separate hardware sockets, enabling it to communicate with multiple devices or services simultaneously. The support for 10/100M Ethernet through the Ethernet data link layer (MAC) and physical layer (PHY) provides both reliable and rapid network connectivity.

These features make the Atomic PoE Base a great option for internet connectivity in embedded systems. It meets the requirements of wired network access in various practical production settings, making it versatile for a broad array of applications.

Features

• Applicable to Atom Lite/Atom Matrix/AtomS3/AtomS3 Lite
• Supports PoE IEEE802.3 AF
• Wired Ethernet Access
• 8 independent hardware sockets
• Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
• Integrated 10BaseT / 100Base-T Ethernet PHY

Specifications

Ethernet Chip	W5500
Supported Protocols	TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
PoE Power Supply	Idle pin power supply (10M/100M Ethernet)
PoE Spec	IEEE802.3 AF
Operating temperature	0-40°C

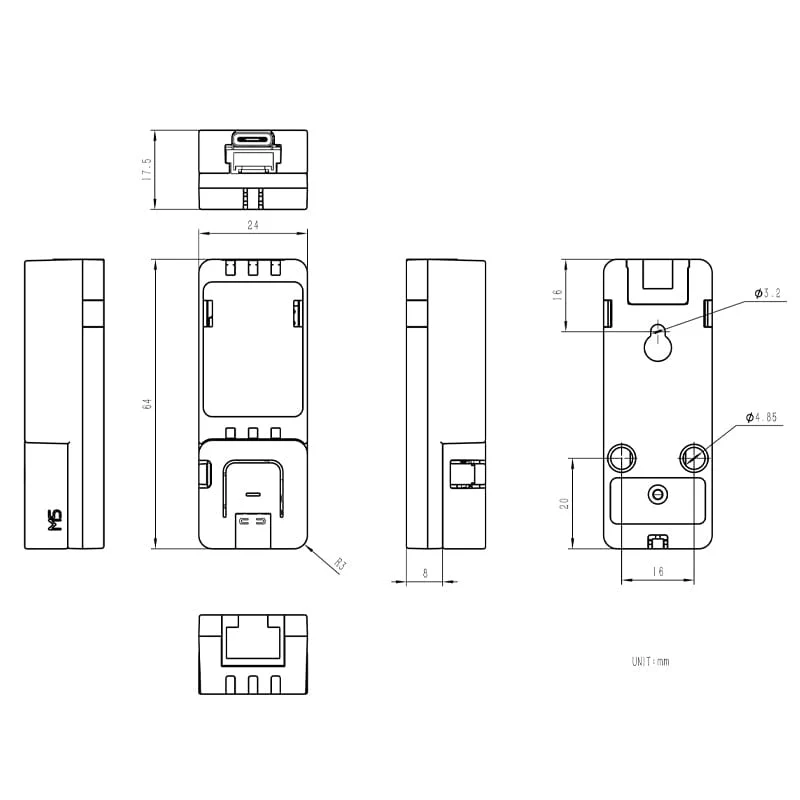

Product Size	64 x 18 x 18mm
Package Size	136 x 92 x 20mm
Product Weight	17g
Package Weight	20.5g

Resources

• Product Wiki

Package Contents

• 1x Atomic PoE Base
