M5Stack ATOM Stepper Motor Driver Development Kit (DRV8825) [Discontinued]

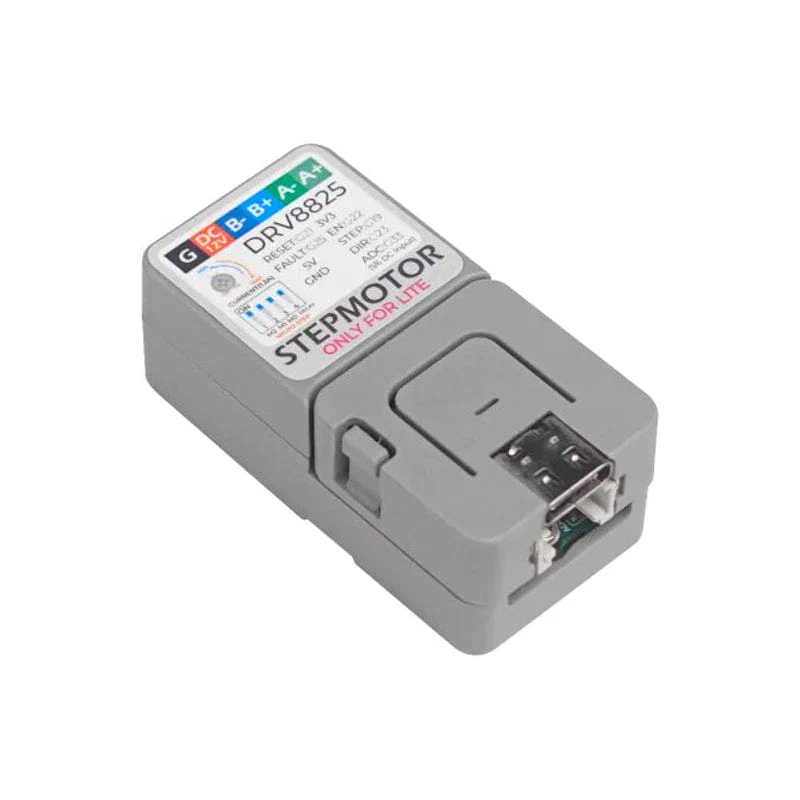

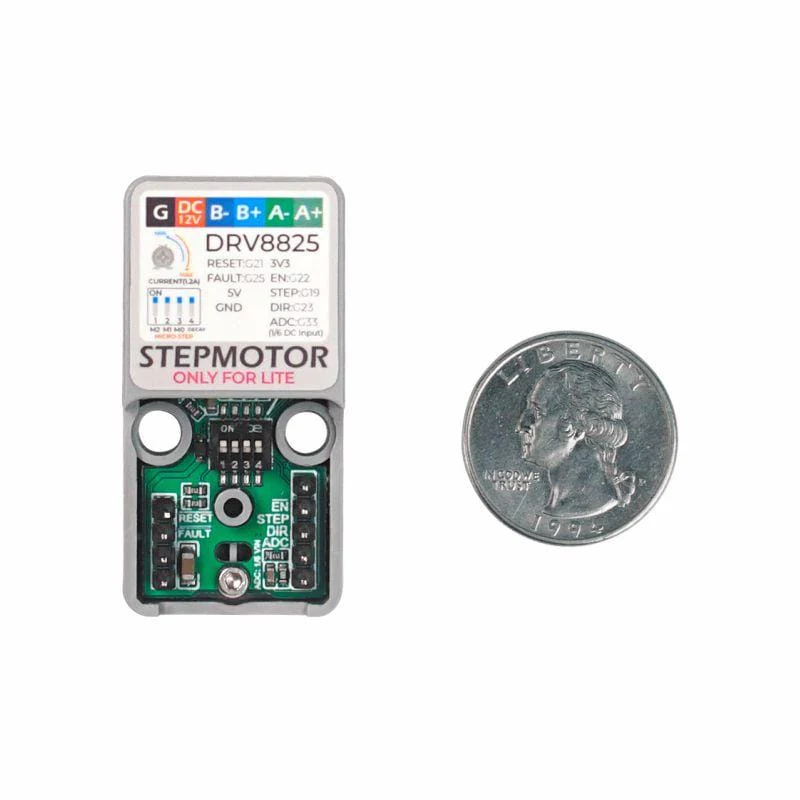

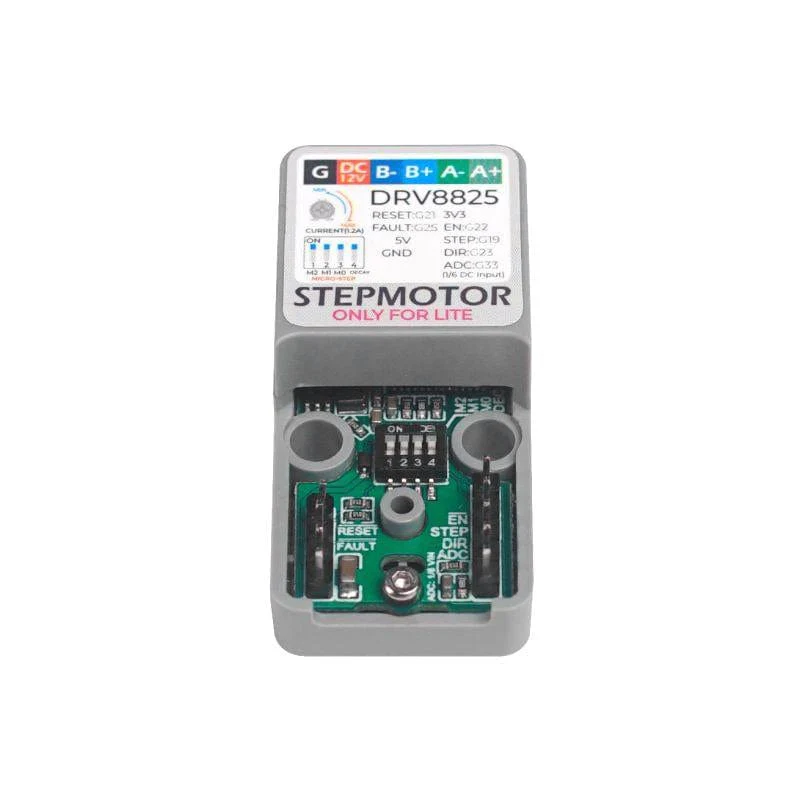

The ATOM STEPMOTOR is a stepper motor driver module suitable for Atom Lite only. There is a built-in DRV8825 driver chip, which can be used to drive a stepper motor. By adjusting the variable resistance, it provides a maximum driving current of 1.2A. The chip has its own over-current protection function, and a DIP switch on board that can adjust the step number flexibly. With a built in DC-DC, the external power supply can supply power to the ATOM, and the drive motor needs an external power supply (9-18V).
Features
- Adapt to Atom Lite only
- Built in DC-DC
- Up to 1/32 micro-stepper
- Maximum 1.2A drive current
- Working status indicator

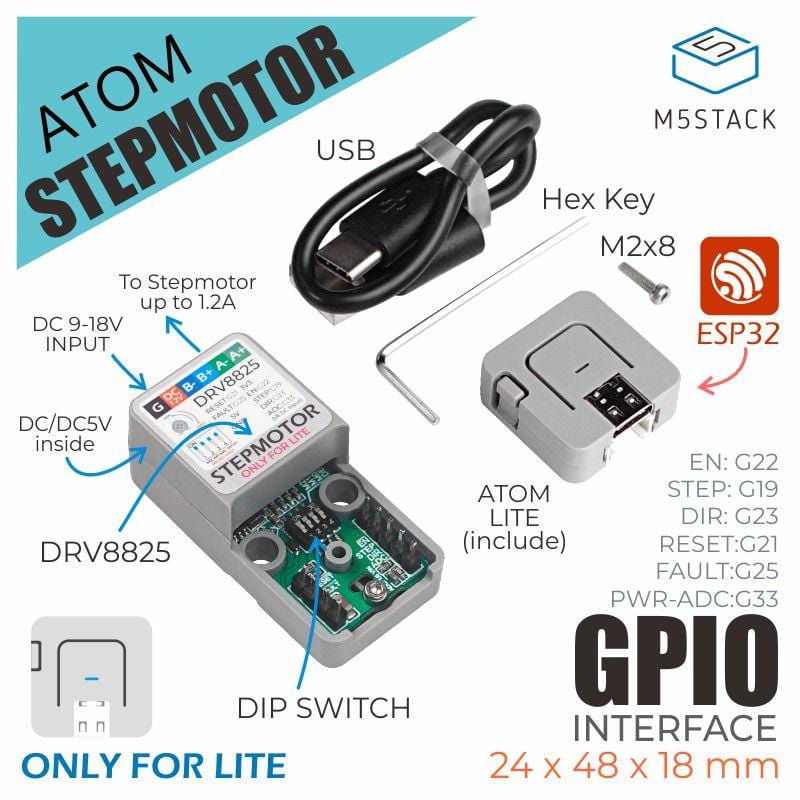

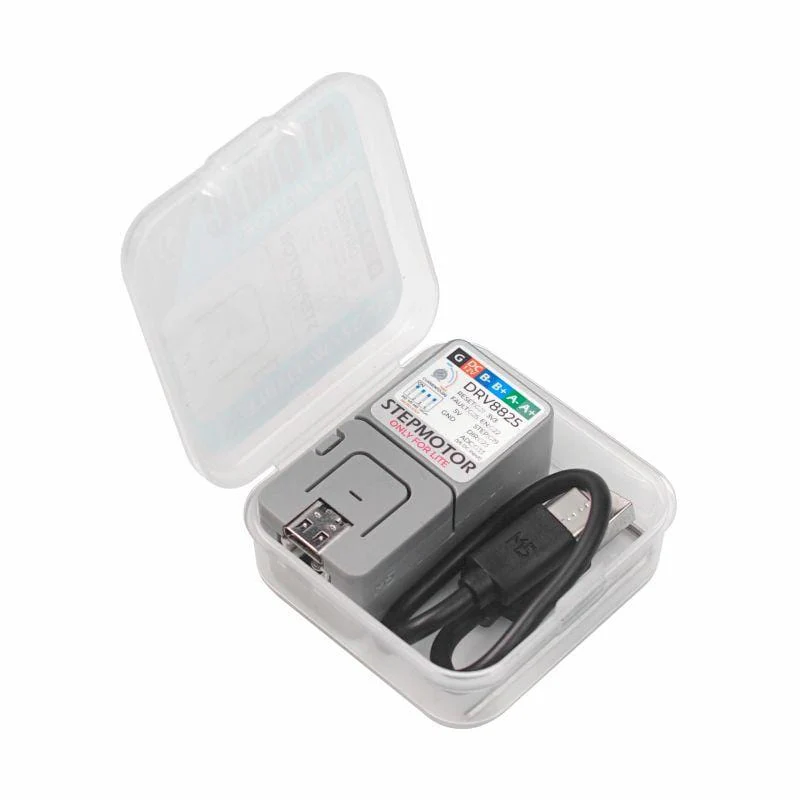

Package Contents
- 1x ATOM Lite
- 1x Atom Step Motor
- 1x Type-C Cable(20cm)

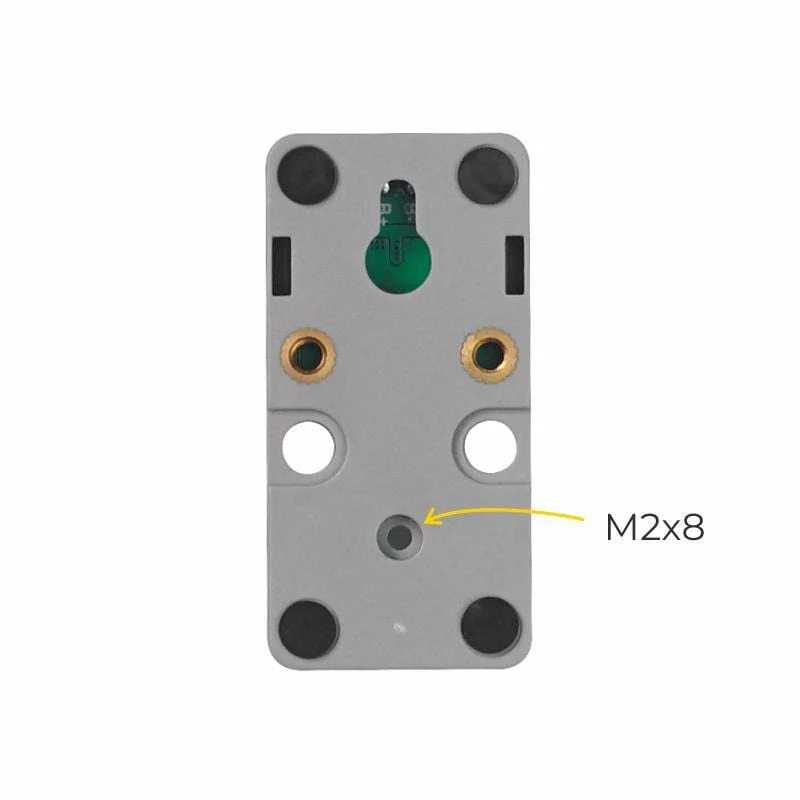

- 1x M2*8 Screw
- 1x Hex key
Specifications
| Resources | Parameter |
|---|---|
| Micro-Stepping Levels | 1/32 Step |
| Output current | Full-scale 1.2A |
| Supply voltage | 9-18V |

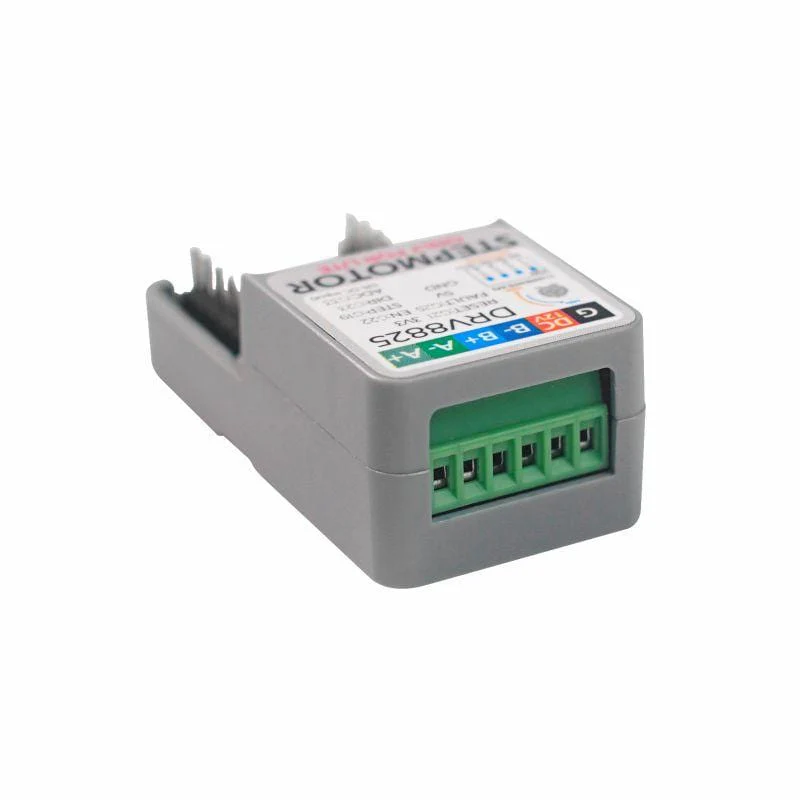

| External port | KF128L 2.54 6P |
| Net weight | 17g |
| Gross weight | 53g |
| Product size | 48*24*18mm |
| Package size | 55*55*20mm |
| Case material | Plastic ( PC ) |
Resources
