Arduino MKR ENV Shield [discontinued]

Add environmental sensors to your MKR board at a glance.

The MKR ENV Shield allows an MKR board to acquire environmental data collected by an array of sensors.
These sensors are of the latest generation and measure:

• Atmospheric pressure
• Temperature and humidity
• Ultraviolet UVA intensity Ultraviolet UVB intensity,
• UV Index (calculated)
• Light intensity (in LUX)

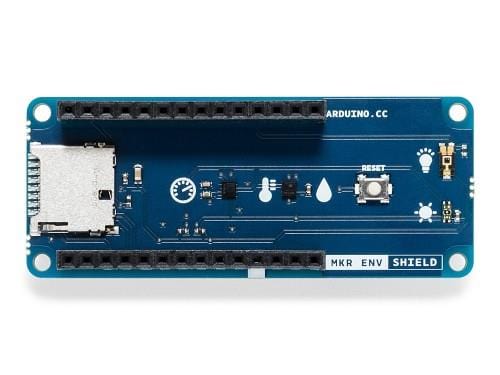

To help you build projects and store the data collected locally, this shield has a slot for a microSD card (not provided).
There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.

Sensors used

• ST LPS22HB: atmospheric pressure
• ST HTS221: temperature and humidity
• VISHAY TEMT6000: Lux of the ambient.
• VISHAY VEML6075: UltraViolet wavelengths A / B

Tech Specs

ICs	LPS22HB TEMT6000 VEML6075
Input Voltage	3.3V
Operating Voltage	3.3V
Ranges	Pressure: 260 to 1260 hPa rH sensitivity: 0.004% rH/LSB Humidity accuracy: ± 3.5% rH, 20 to +80% rH UVA, UVB and UVBI measurement
Communication	I2C/Analog
Length	61 mm
Width	25 mm
Weight	32 gr.
