AR0234 Colour Global Shutter Camera Module for DepthAI OAK [Discontinued]

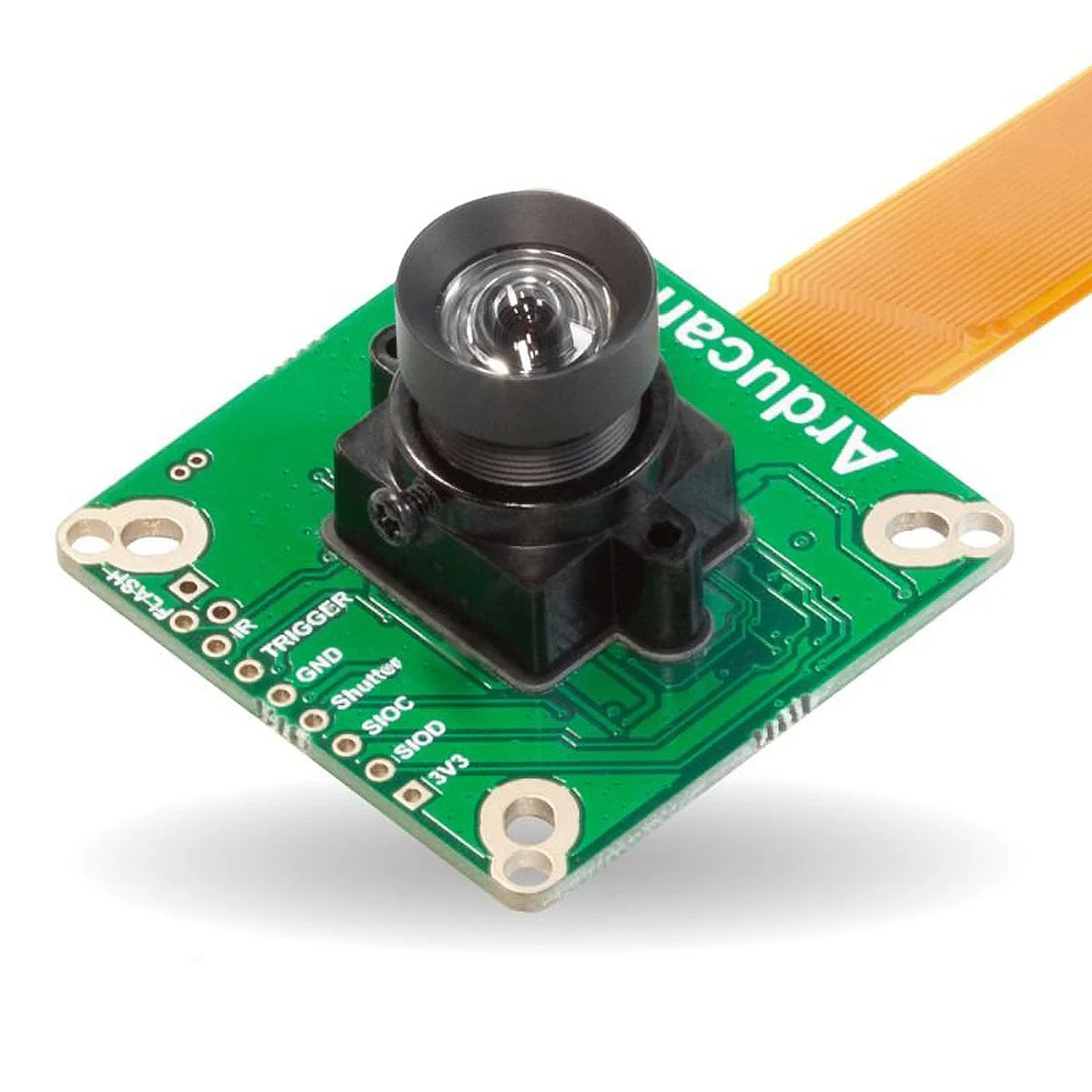

The Arducam 2.3MP AR0234 Global Shutter Color MIPI camera module is designed for DepthAI OAK and offers a maximum frame rate of 1920x120 @ 120FPS. It includes a low-distortion M12 lens with 90-degree viewing angles.
Supported DeptAI version: BW1098FFC R0M0E0
Specifications
- Sensor: Color global shutter AR0234
- Pixel Size: 3 μm x 3 μm
- Active array size: 1920x 1200
- Optical Size: 1/2.6 inch
- Focusing Range: 20cm ~ infinite
- IR Sensitive: With IR filter
- Output interface: MIPI 2-Lane
- Output formats: RAW8/RAW10
- Maximum frame rate: 1920x 1200@120 fps
- Board Size: 38mm x 38mm
- Lens: Low distortion M12 lens
- EFL: 3.6mm
- F.N: 3.0
- HFOV: 90 Deg
Package Contents
- 1x Arducam 2.3MP AR0234 Global shutter Colour MIPI camera module
- 1x 150mm 20-26pin FPC cable
Resources
