Breadboard-friendly RGB Smart NeoPixel - Sheet of 25
So, you want lots and lots of NeoPixels? And you want them for less? Not a problem! Here's a sheet of Breadboard-Friendly NeoPixel breakouts fresh from the (reflow) oven. Snap them off as you need 'em and save a pretty penny while you're at it.

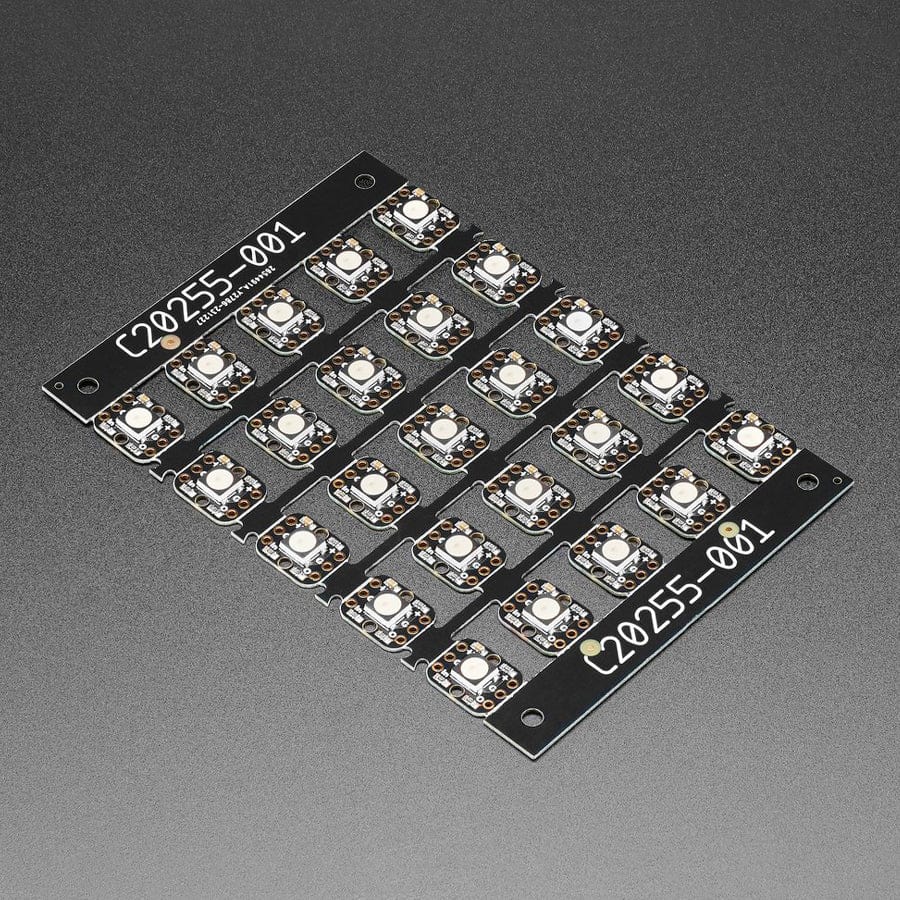

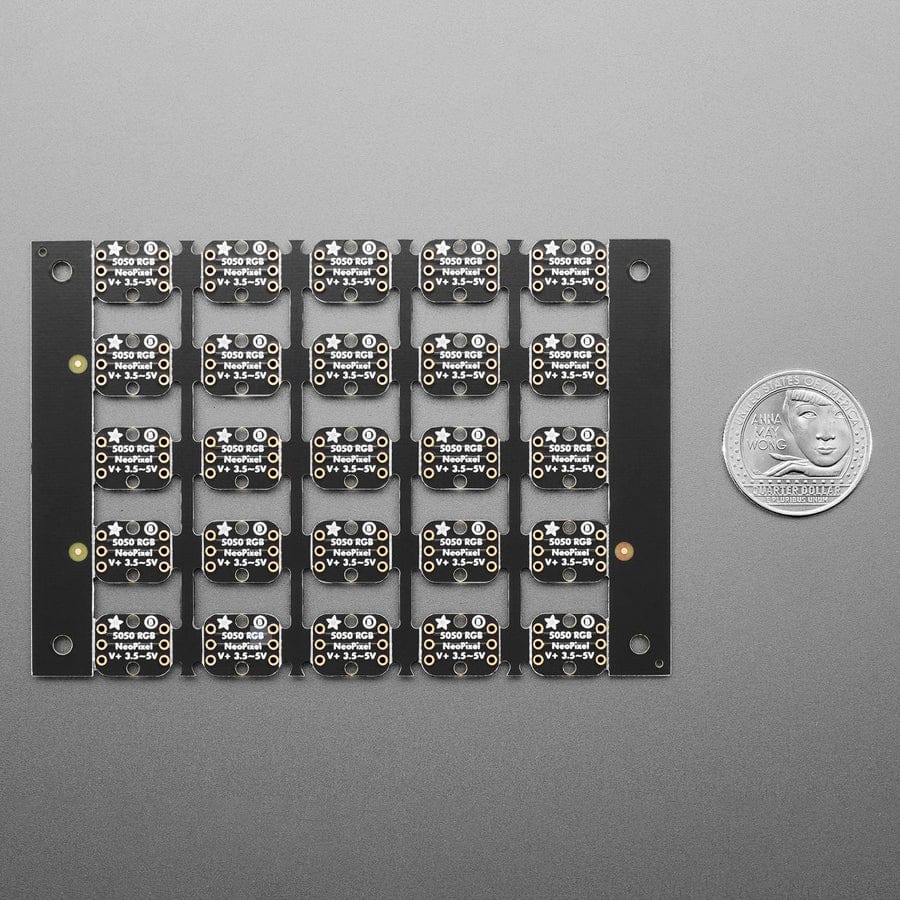

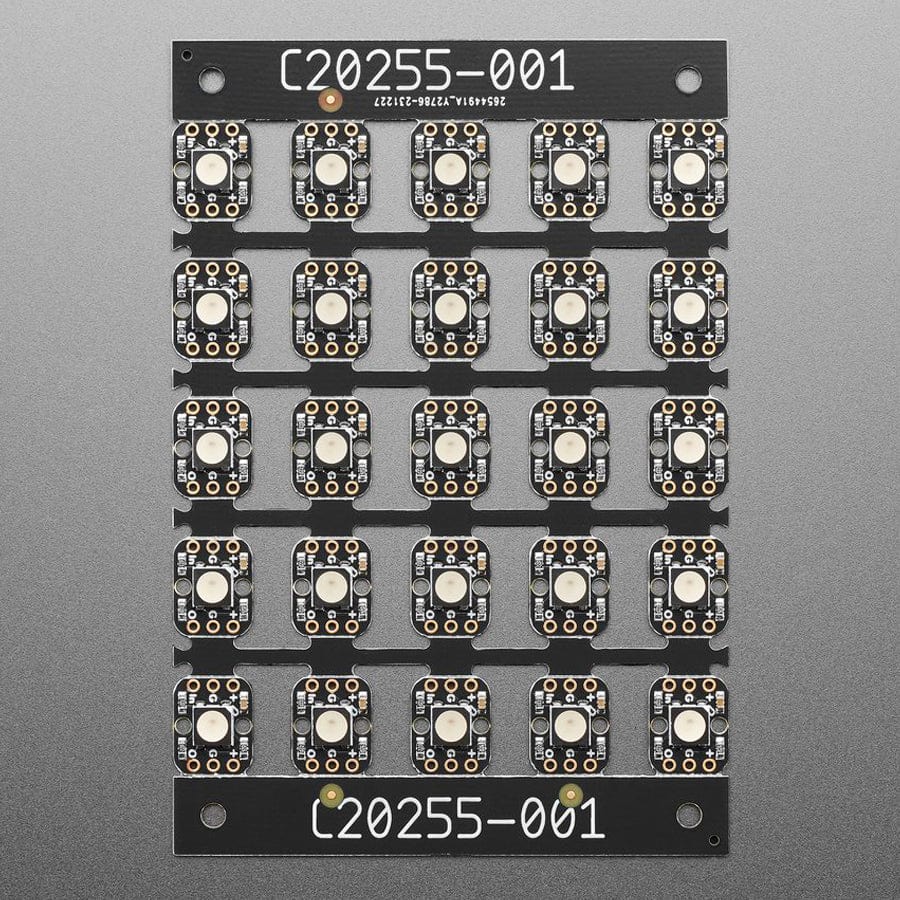

Each order comes with 25 pixels on a snap-apart sheet. If you want a smaller number, we also have them in packs of 4.
This is the easiest way possible to add small, bright RGB pixels to your project. We took the same technology from our Flora NeoPixels and made them breadboard-friendly, with two rows of 3 x 0.1" spaced headers on each side for easy soldering, chaining and breadboarding. These ultra-bright LEDs have a constant-current driver cooked right into the LED package! The pixels are chainable - so you only need 1 pin/wire to control as many LEDs as you like.
These pixels have the full 24-bit colour ability with PWM taken care of by the controller chip. Since the LED is so bright, you need less current/power to get the effects you want. The driver is constant current so it's OK if your battery power changes or fluctuates a little.
Each pixel draws as much as 60mA (all three RGB LEDs on for full brightness white). An Arduino can drive up to 500 pixels at 30 FPS (it will run out of RAM after that). Using ribbon cable you can string these up to 6" apart (after that, you might get power droops and data corruption)
Check out NeoPixel Uberguide for everything you could ever want to know (and more)!
Revision History
- As of August 2nd, 2024 – We've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen.
Specifications
- 800 KHz speed protocol
- Chainable design
- 5-9VDC power (can run at 3.5V but color will be dimmed), constant current 18.5mA per LED (~55mA max total per pixel)
