9.3" IPS Capacitive Touch Display (1600 x 600)

This 9.3" display has an impressive 1600 x 600 resolution, improved by a high brightness of 800cd/m², creating vibrant and captivating visuals with lovely clarity. It has an optical bonding toughened glass panel, providing durability and safeguarding against scratches and impacts. The IPS display panel provides vibrant colours and wide 178° viewing angles, allowing you to enjoy clear visuals from virtually any perspective. It supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi and also works with Windows.

It has a 10-point touchscreen capability and incorporates support for DDC/CI control, so you have easy control over display settings, allowing you to fine-tune your visual experience to match your preferences.

Features

• 9.3" IPS screen with 1600 x 600 hardware resolution
• 10-point capacitive touch with up to 6H hardness toughened glass panel
• Optical bonding technique for better display
• Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi
• Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor
• Multi-language OSD menu support (can be used for power control, adjusting brightness/contrast, etc)
• Supports HDMI audio output, onboard 3.5mm headphone jack, and 4-pin header

Connection Example - Raspberry Pi 4B

Specifications

Item	Description	Unit
Dimensions	9.3	"
Viewing Angle	178	Deg
Resolution	1600x600	Pixels

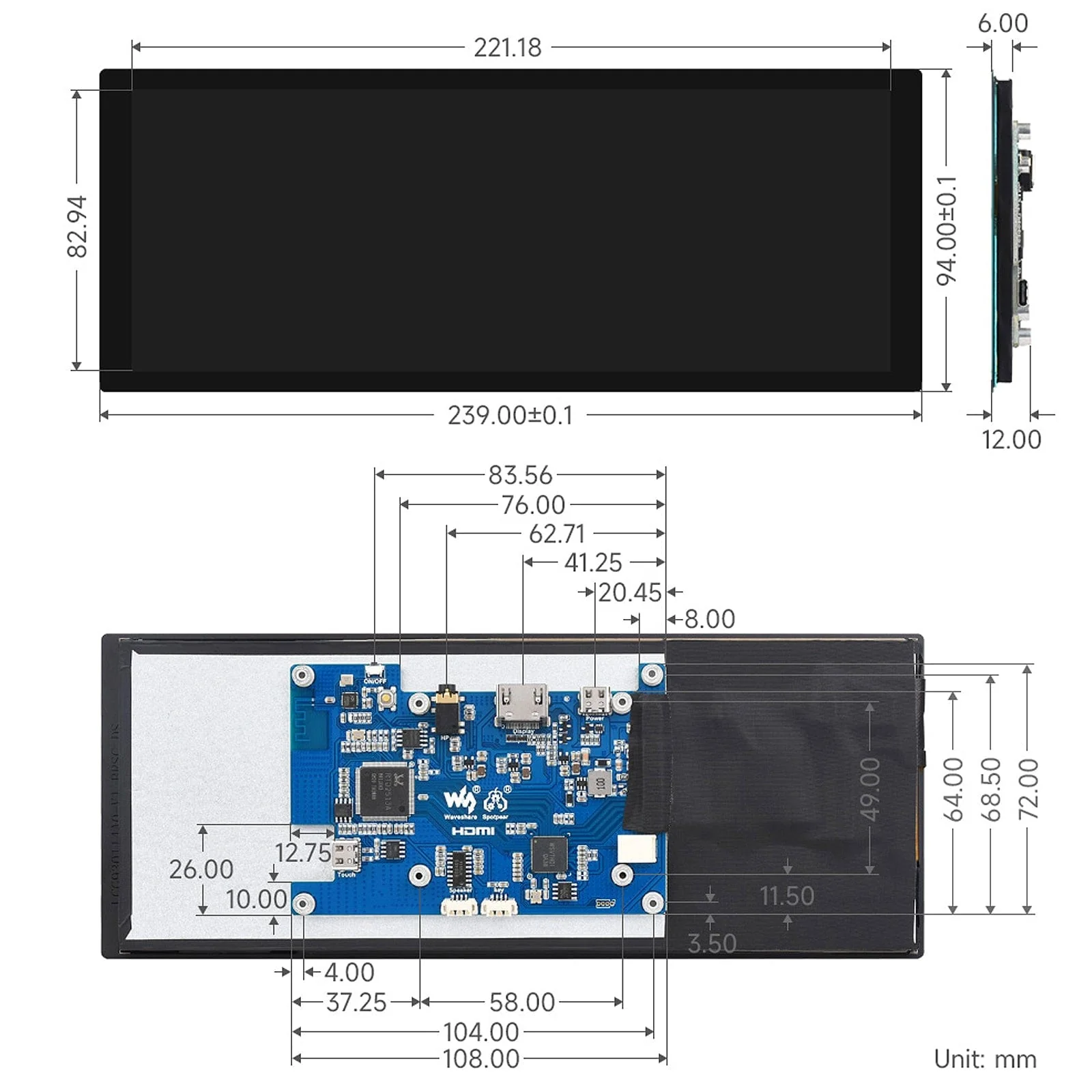

Touch Screen Dimensions	239.00(H) x 94.00(V) x 1.45(D)	mm
Display Screen Dimensions	231.00(H) x 89.00(V) x 4.6(D)	mm
Display Area	221.18(H) x 82.94 (V)	mm
Pixel Pitch	0.04608(H) x 0.13824(V)	mm
Colour Gamut	0.51	NTSC
Brightness (Max)	800	cd/m²
Contrast	1200	/
Backlight	OSD menu dimming	/
Refresh rate	60	Hz
Display interface	Standard HDMI port	/
Power port	5V Type-C interface	/
Power consumption	4.2	Watt
Weight	280	g

Resources

• Product Wiki

Pinout

Package Contents

1. 1x 9.3" 1600 x 600 LCD
2. 1x HDMI Flat Cable ~1m
3. 1x USB-A to USB-C Cable ~1m
4. 1x HDMI Adapter
5. 1x USB to Type-C Adapter (B)
6. 1x HDMI to Micro HDMI Adapter
7. 1x USB to Type-C Adapter (C)
8. 1x Button Board
9. 1x Button Board Cable
10. 1x 5V 3A Type C Power Supply
11. 1x Screws Pack
