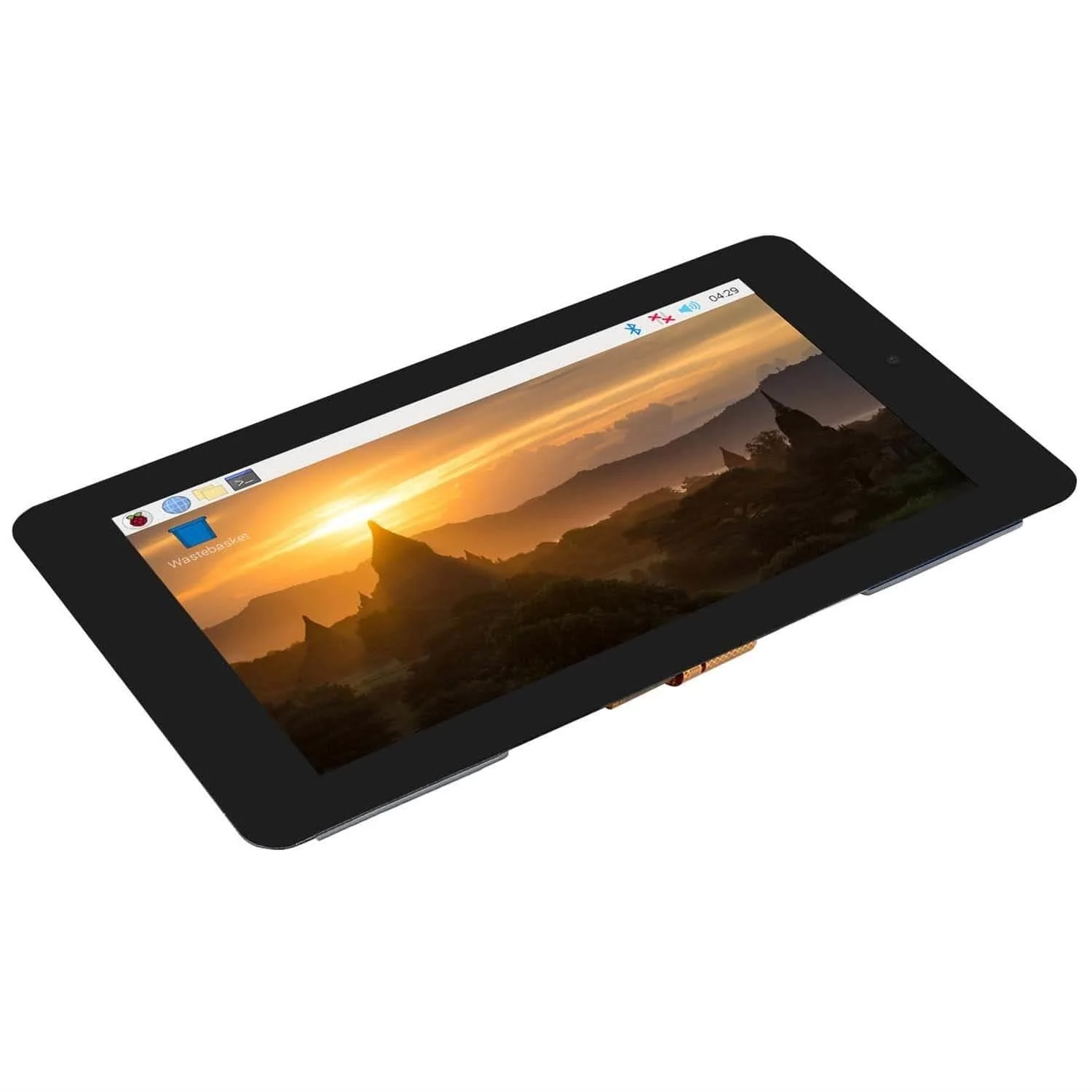

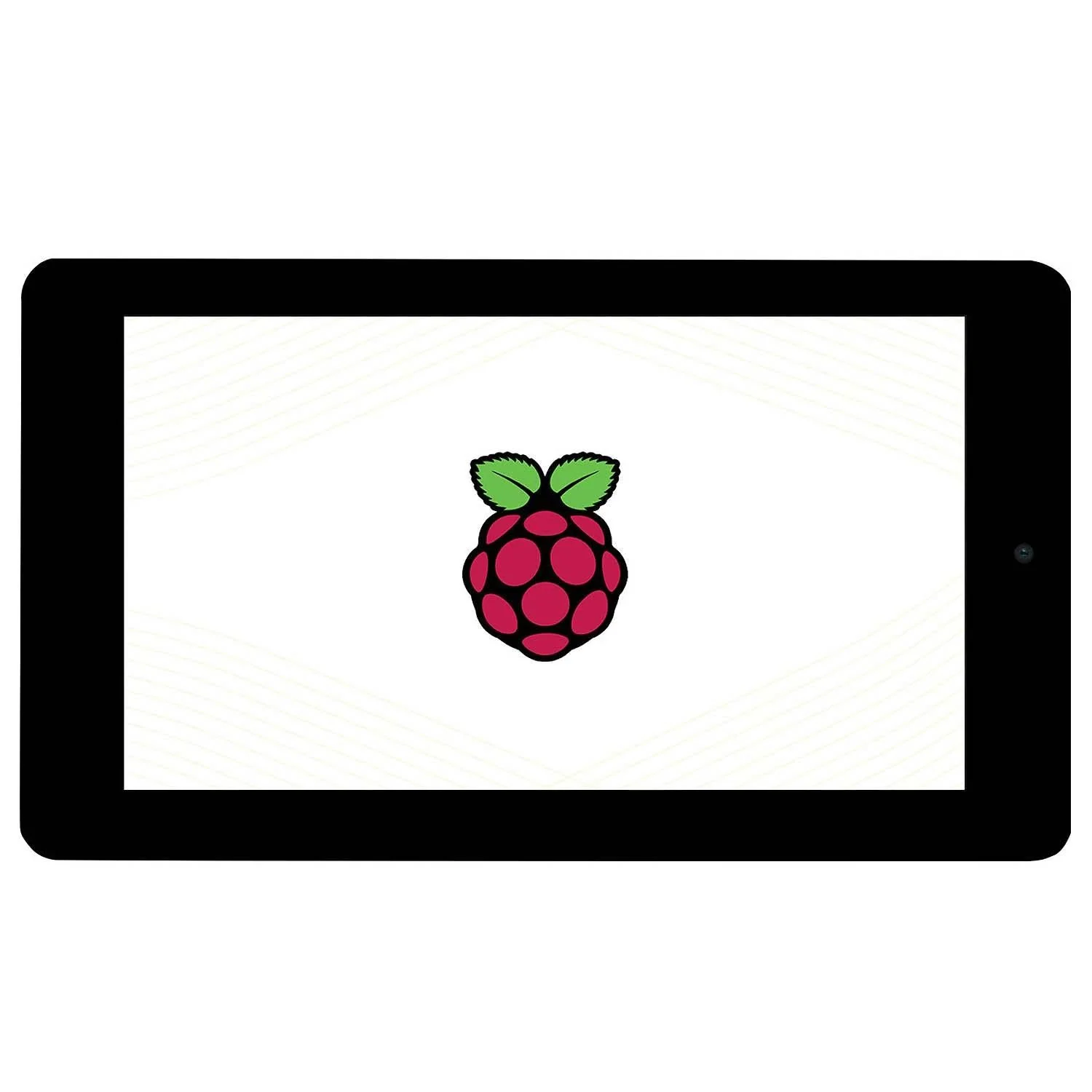

7" DSI Capacitive Touch Display with 5MP Camera for Raspberry Pi (800x480)

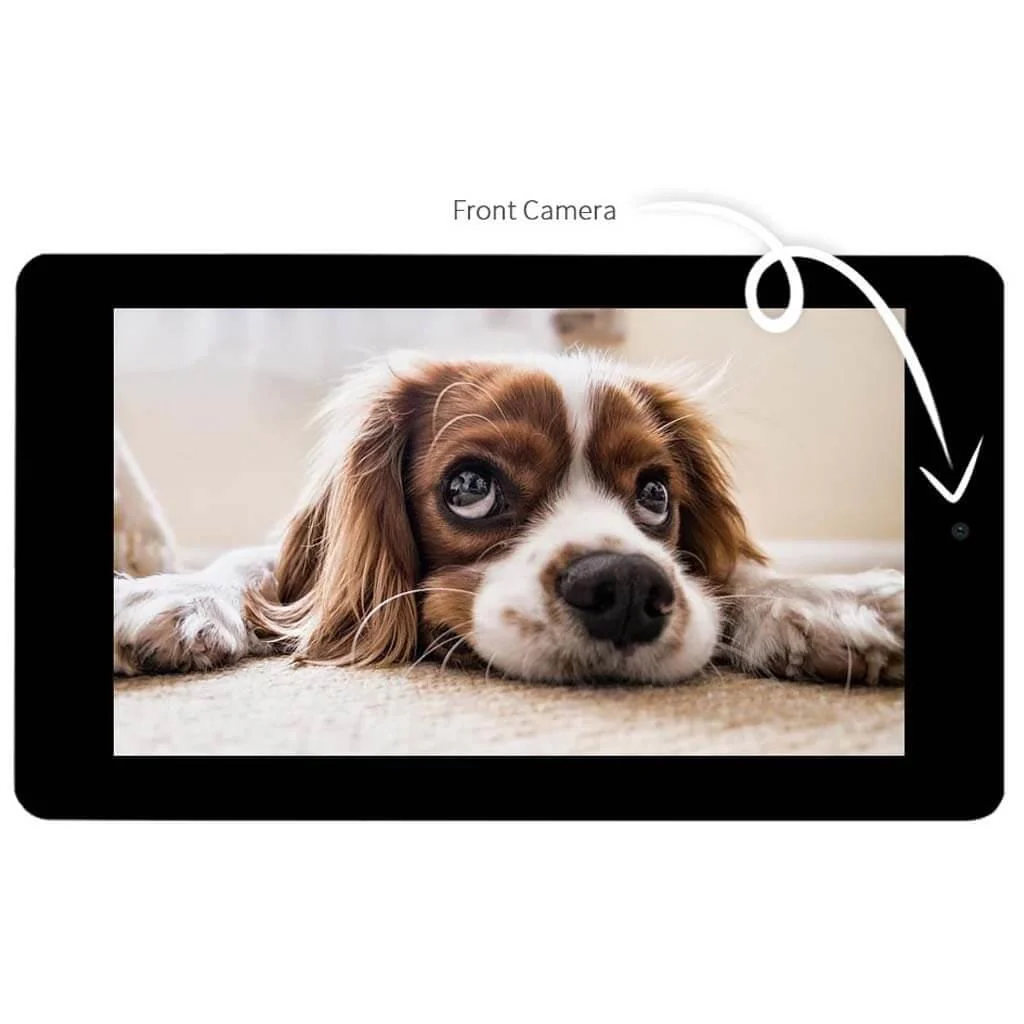

This 7" DSI display for the Raspberry Pi comes with a front built-in 5MP OV5647 camera module which can be used with the same commands as the official Raspberry Pi camera module.

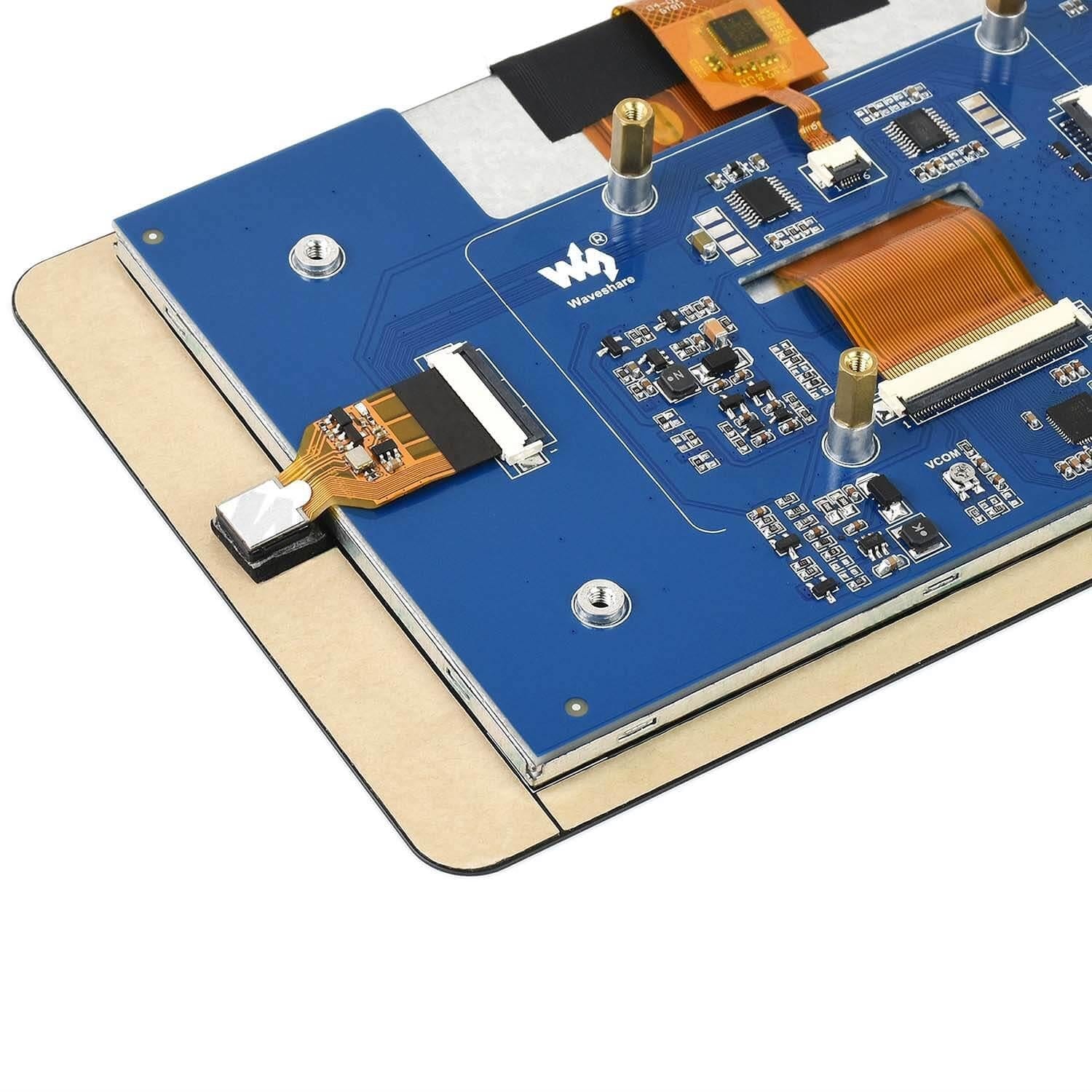

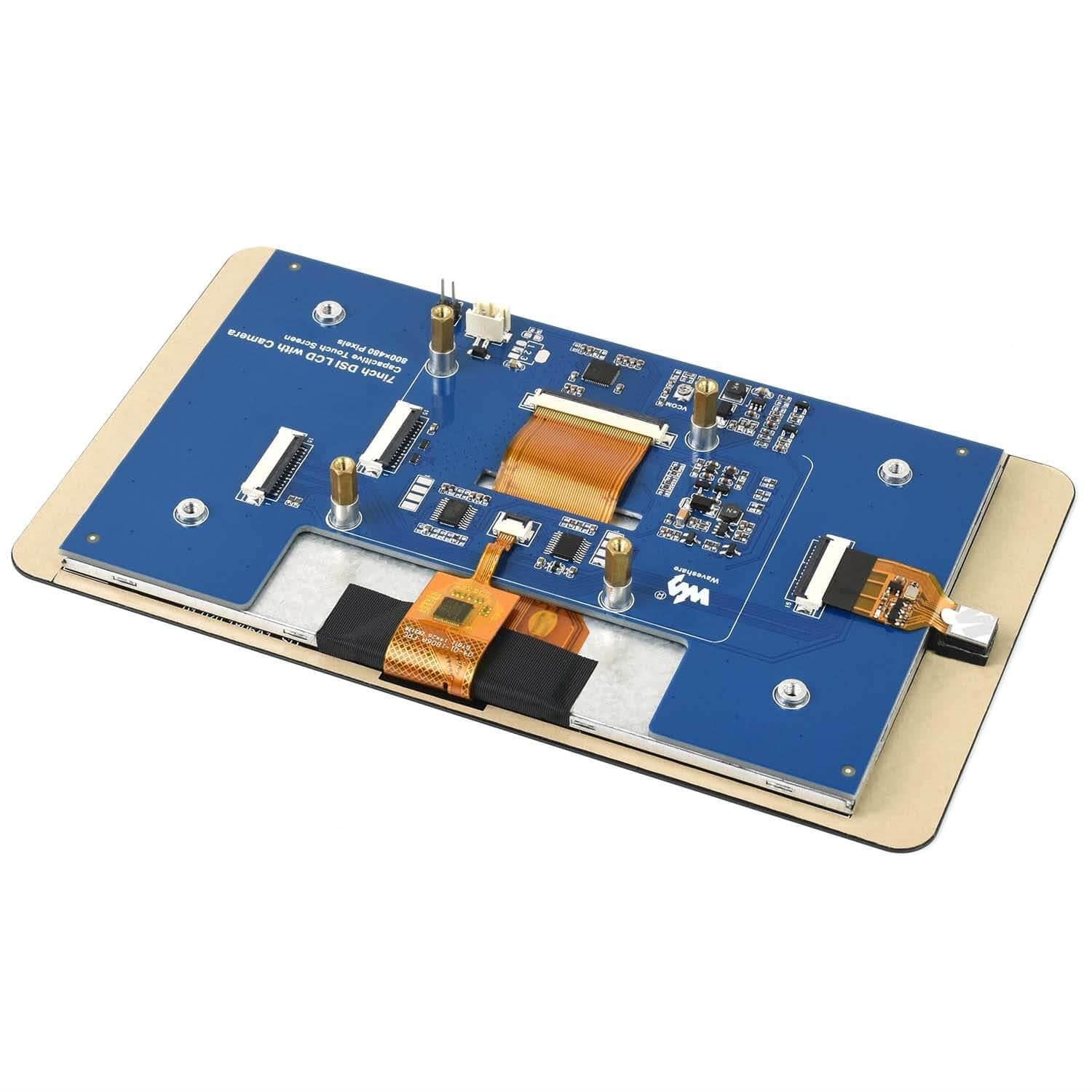

The display is a 7" panel offering up to 5-point capacitive touch (OS dependant) and 800x480 resolution. The screen connects to your Raspberry Pi via the same DSI ribbon cable and 5V/GND jumper wire method as the official Raspberry Pi display. This leaves the majority of your GPIO pins free for your project.

The display backlight can be adjusted via software/touch and the generous outer bezel also makes this a great option for integrating into your project enclosure. The included camera module connects to your CSI port via the included ribbon cable and uses a 5MP OV5647 sensor which can shoot images up to 2592x1944 and videos up to 1920x1080P @30FPS (full specs below).

The display comes with fixings, ribbon cables and jumper wires. The online Wiki provides instructions on how to set up and configure the display.

Features

• 7" DSI display for Raspberry Pi
• Supports Raspberry Pi OS driver-free
• Compatible with Raspberry Pi boards with a DSI connector - Raspberry Pi 4, 3B+, 3A+, 3
• 800x480 resolution
• 5-point capacitive touch
• 5MP OV5647 Camera
  • CSI interface, supports 1920x1080p@30, 1280x720p@60, 640×480p@60, 640×480p@90
• I2C touch port
• Toughened glass panel
• Supports backlight adjustment via software
• DSI interface, refresh rate up to 60Hz
• Low power consumption

Connection Example

Specifications - Display

• 7" Display
• 800x480 Resolution
• DSI interface
• 5-point capacitive touch
• Toughened glass
• Dimensions: 192.96mm x 110.76mm

Specifications - Camera

• Sensor: OV5647
• Pixels: 5MP
• Focal length: 3.89mm
• Distortion: < 1.5%
• CMOS size: 1/4"
• Aperture: F2.4
• Diagonal FoV: 72.9°
• Depth of Field: ~20cm
• Image: 2592 × 1944 still image resolution
• Video: 1920×1080p @30, 1280×720p @60, 640×480p @60, 640×480p @90

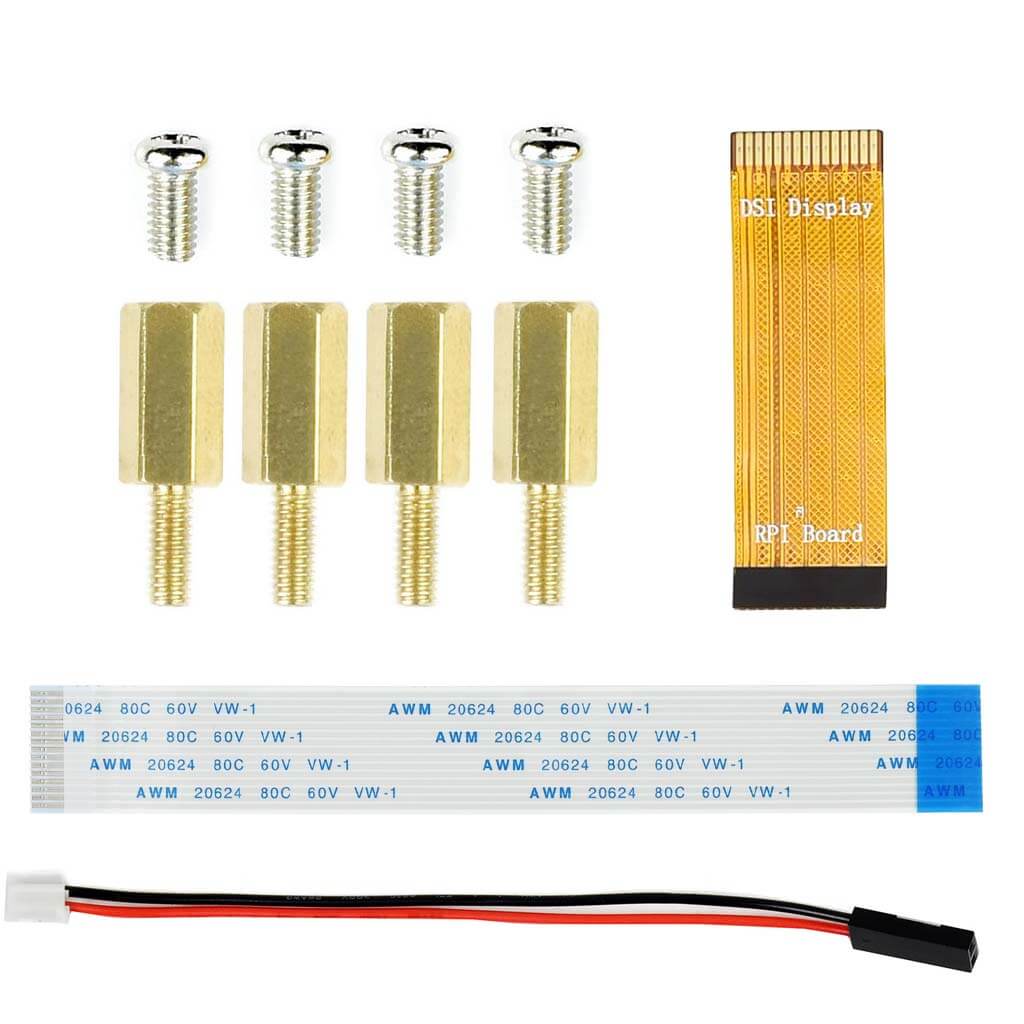

Package Contents

• 1x 7" DSI LCD
• 2x FPC 15PIN 1.0 pitch 50mm (opposite sides)
• 1x FPC 15PIN 1.0 pitch 120mm (opposite sides)
• 1x 2-pin GPIO wire (10cm)
• 1x Screws pack

Raspberry Pi not included

Resources

• Product Wiki
