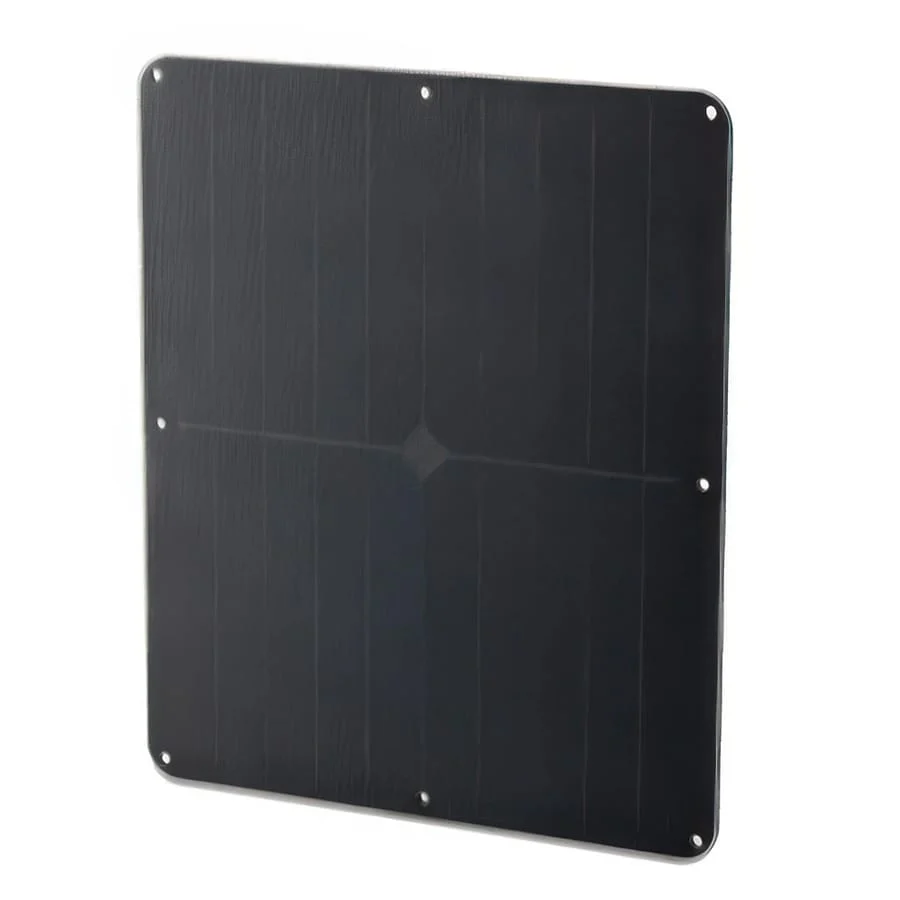

5V 10W Solar Panel - ETFE - Voltaic P110
These panels come to us from Voltaic Systems, makers of fine solar-powered bags and packs. These are waterproof, scratch-resistant, and UV resistant, and they use 10 high-efficiency monocrystalline SunPower cells with 22+% efficiency (praise the sun!). Each cell has a nominal voltage of 0.5V so we call this a "5V" panel
They output a nominal 5V at a 1,670mA peak via a 3.5mm x 1.1mm DC jack connector. The panel is constructed with ETFE (Ethylene Tetrafluoroethylene), making it extremely durable and resistant to environmental elements, a superior upgrade to PET or laminate solar panel construction. They can easily stand up to typical outdoor use, including being dropped and leaned on.
To connect, we suggest a 3.5mm OD/1.1mm ID DC jack or you can use this handy 2.1mm adapter cable which will turn it into a standard 5.5mm/2.1mm DC plug
If you want to use this to charge a battery or run your project, check out our optimized Solar Lithium Ion/Polymer charger!
Features
- Waterproof (IP67)
- UV resistant (5-7 year life)
- Durable and lightweight
- High-efficiency monocrystalline cells: 20%
- Compatible with the Medium Solar Panel Bracket using Voltaic's ETFE Panel Screw & Washer Set
- 6 mounting holes
- 12" cable with optional waterproof extensions
- 22.3 x 27.4 x 0.4 cm
- 328 grams
Output
- Open Circuit Voltage: 6.94V
- Peak Voltage: 5.71V
- Peak Current: 1,670mA
- Peak Power: 9.54W
- Power Tolerance: +/-10%
- For maximum power output, orient the panel towards the sun
Construction
- Matte ETFE coating
- 2.0mm FR4
Output Cable
- Cable Length: 50cm
- Cable Color: Red PU Coated
- Plug: Waterproof Male 3.5x1.1mm
Warranty
- 2-year warranty on solar panels
- For more warranty information, see the warranty guide
