13.56MHz RFID/NFC Plastic Nail - Classic 1K [Discontinued]

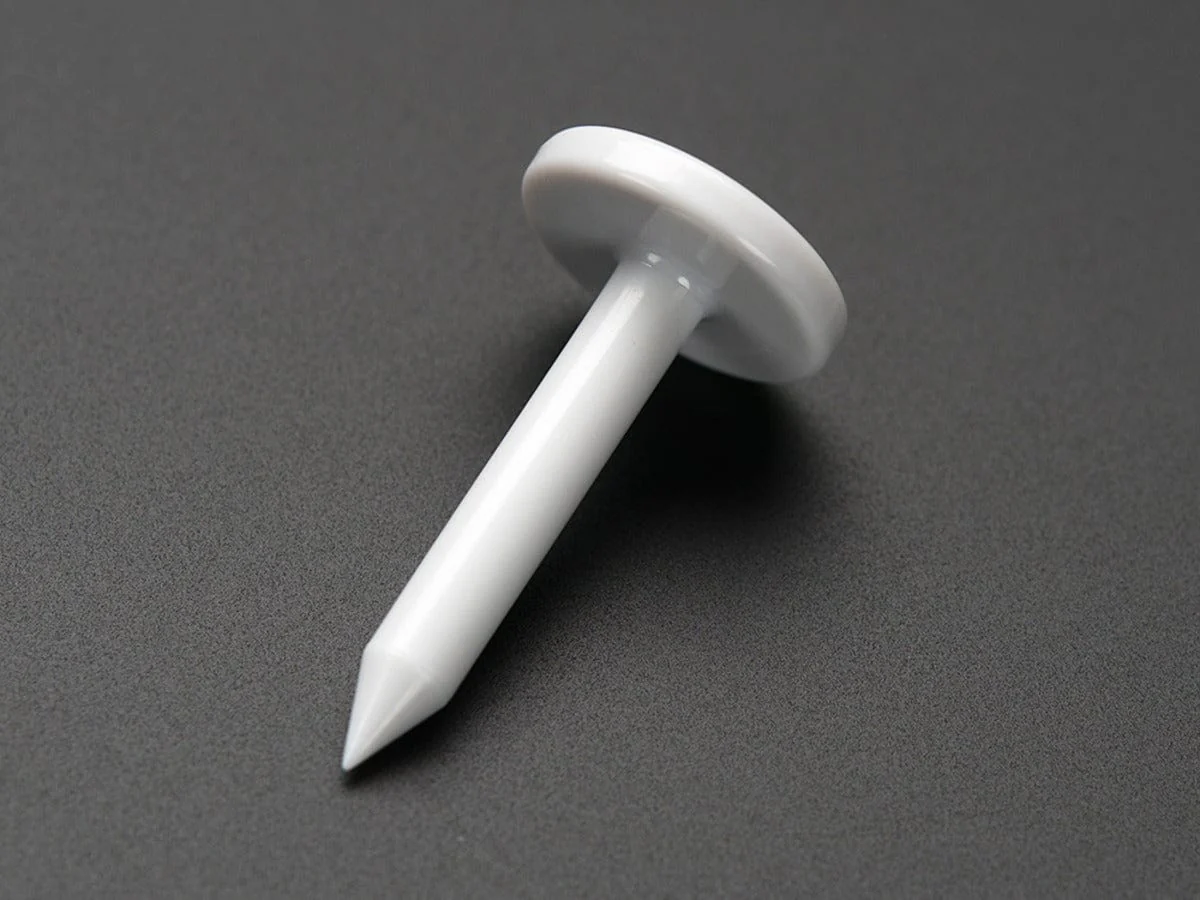

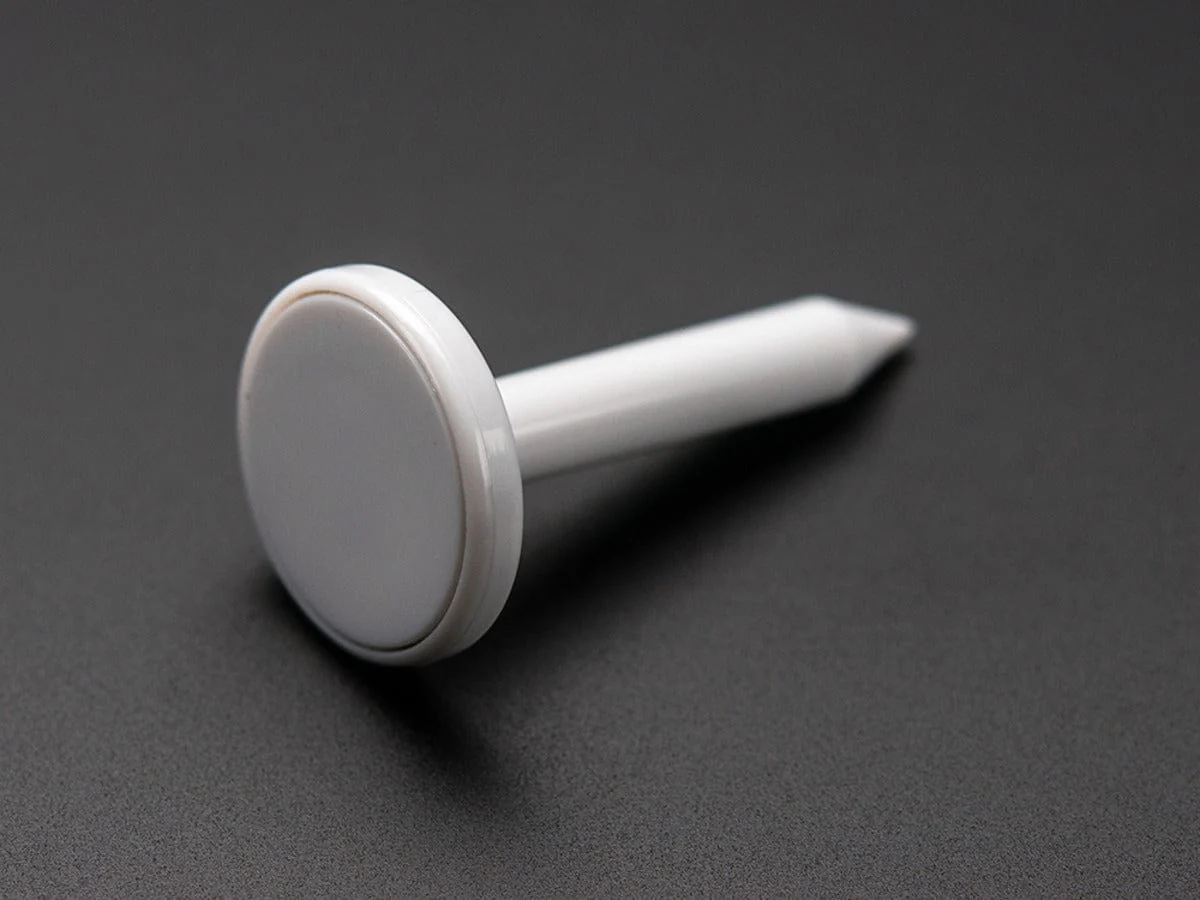

This is a blank 13.56MHz RFID/NFC 'nail'- often used to 'hammer' in a 13.56MHz RFID/NFC tag. The nail contains a small RFID chip and an antenna, and is passively powered by the reader/writer when placed a couple inches away.
These can be read by almost any 13.56MHz RFID/NFC reader but make sure it can handle ISO/IEC 14443 Type A cards as there are a few other encoding standards (like FeLica) They are tested and work great with both our 7:43)
Technical Details
RFID chip specification:
- 1 KiloByte (8 KiloBit) non-volatile EEPROM storage
- Built in encryption engine with 48-bit key
- 4 Byte unique identifier burned into the chip
- 13.56 MHz frequency
Tag specification:

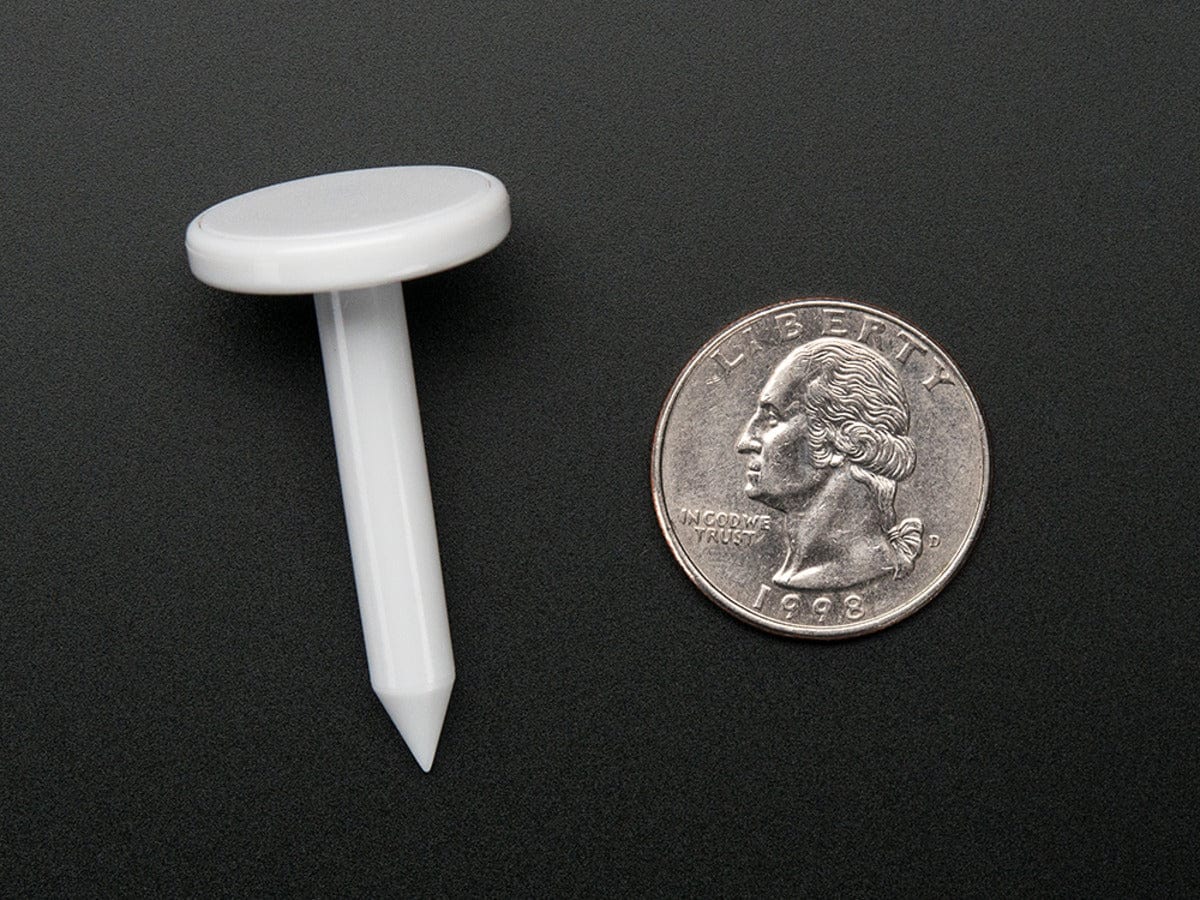

- Max Dimensions: 22.11mm / 0.87" round x 41.37" / 1.62" long
- Head Dimensions: 22.11mm / 0.87" round x 4.06mm / 0.16" thick
- Shaft Dimensions: 6mm / 0.23" round x 38.23mm / 1.5" long
- 2.32g
- Works about 2" away from reader
Original: $1.50
-65%$1.50
$0.52Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is a blank 13.56MHz RFID/NFC 'nail'- often used to 'hammer' in a 13.56MHz RFID/NFC tag. The nail contains a small RFID chip and an antenna, and is passively powered by the reader/writer when placed a couple inches away.
These can be read by almost any 13.56MHz RFID/NFC reader but make sure it can handle ISO/IEC 14443 Type A cards as there are a few other encoding standards (like FeLica) They are tested and work great with both our 7:43)
Technical Details
RFID chip specification:
- 1 KiloByte (8 KiloBit) non-volatile EEPROM storage
- Built in encryption engine with 48-bit key
- 4 Byte unique identifier burned into the chip
- 13.56 MHz frequency
Tag specification:
- Max Dimensions: 22.11mm / 0.87" round x 41.37" / 1.62" long
- Head Dimensions: 22.11mm / 0.87" round x 4.06mm / 0.16" thick
- Shaft Dimensions: 6mm / 0.23" round x 38.23mm / 1.5" long
- 2.32g
- Works about 2" away from reader
