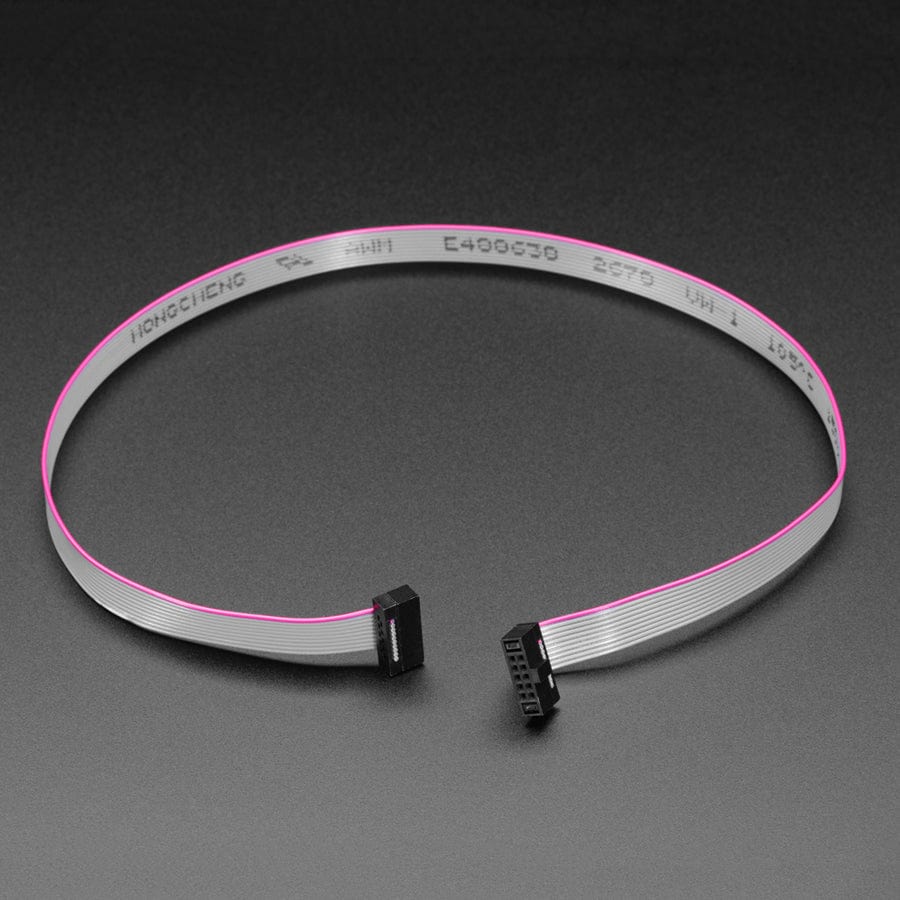

10-pin 2x5 Socket-Socket 1.27mm IDC (SWD) Cable - 300mm long
These cables are handy when programming or debugging a tiny board that uses 10-pin 1.27mm (0.05") pitch SWD programming connectors. We see these connectors often on ARM Cortex dev kits and have a few handy in our ARM dev box. We thought you might want a backup cable as well, so now they are in the Adafruit shop!

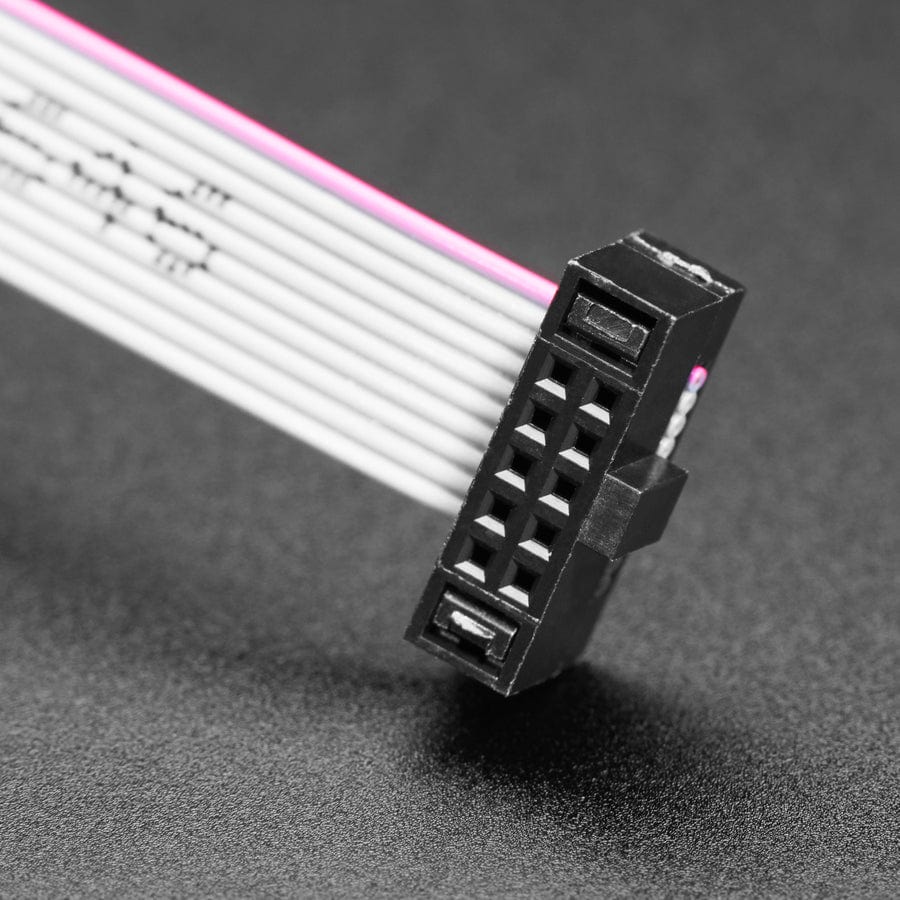

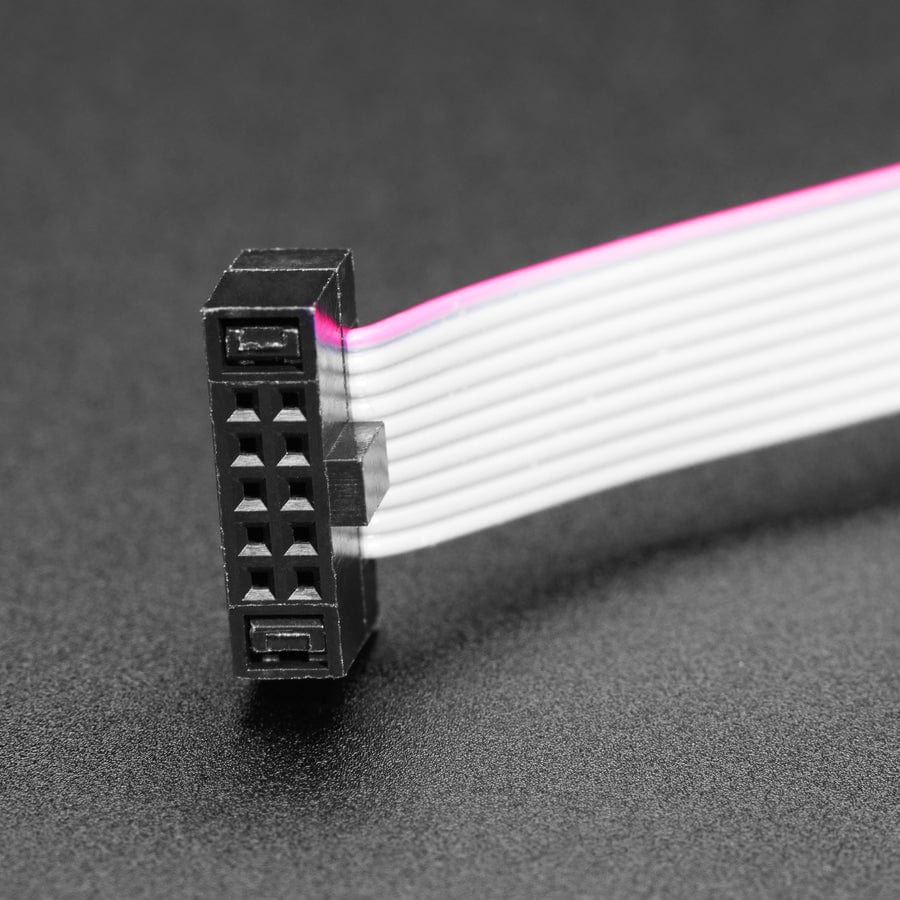

One cable per order. The ribbon cable is 0.06mm/0.025" pitch, and the connector end is a 1.27mm (0.05") pitch 2x5 box. Note: These are not for use with programming most AVRs or other large devices that have 0.1" pitch connector
s so be aware of which you need!
Don't need so much cable? Maybe too much Ribbon is a Dancer? We also carry a 6" length and a shorty 1.5" length.

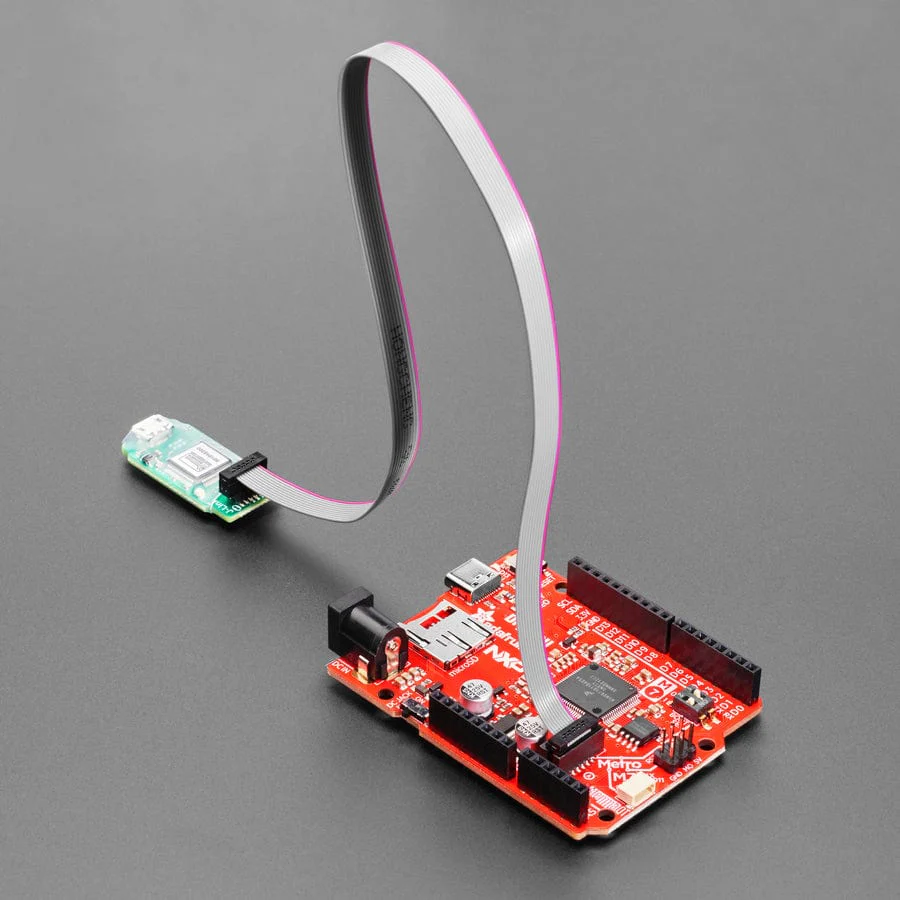

The boards shown are NOT included
Specifications

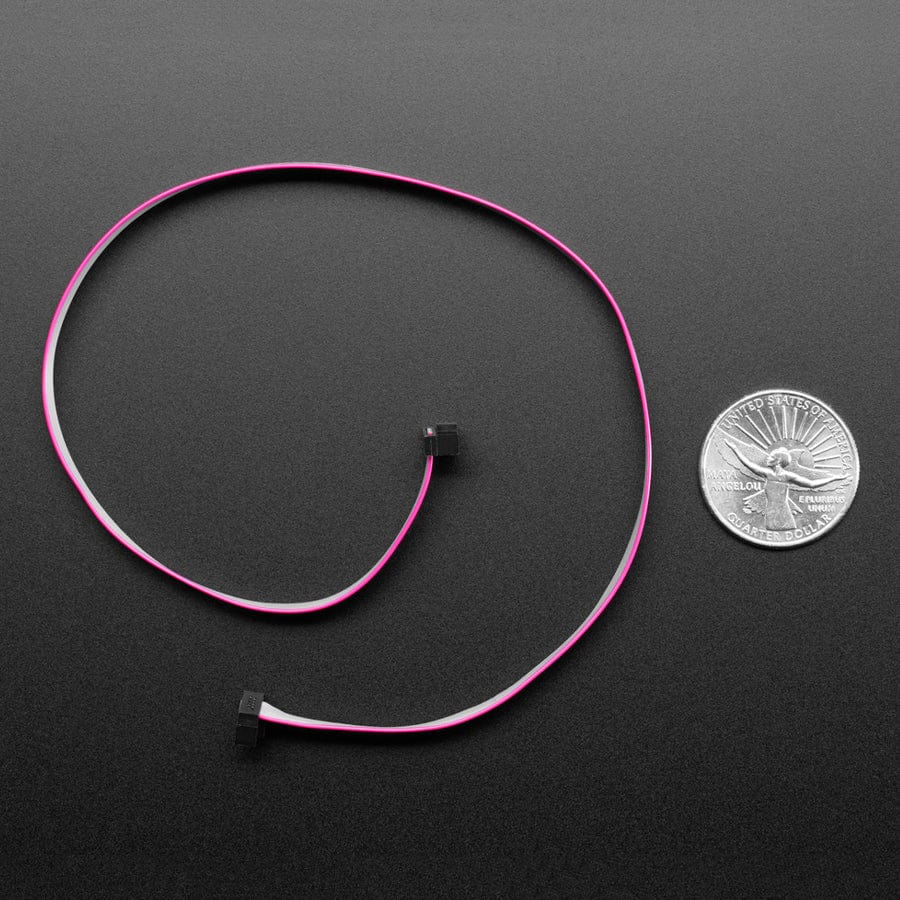

- Dimensions: 300mm long x 6mm wide
- Connector box: 10.5mm x 5mm
- Weight: 3.1g
