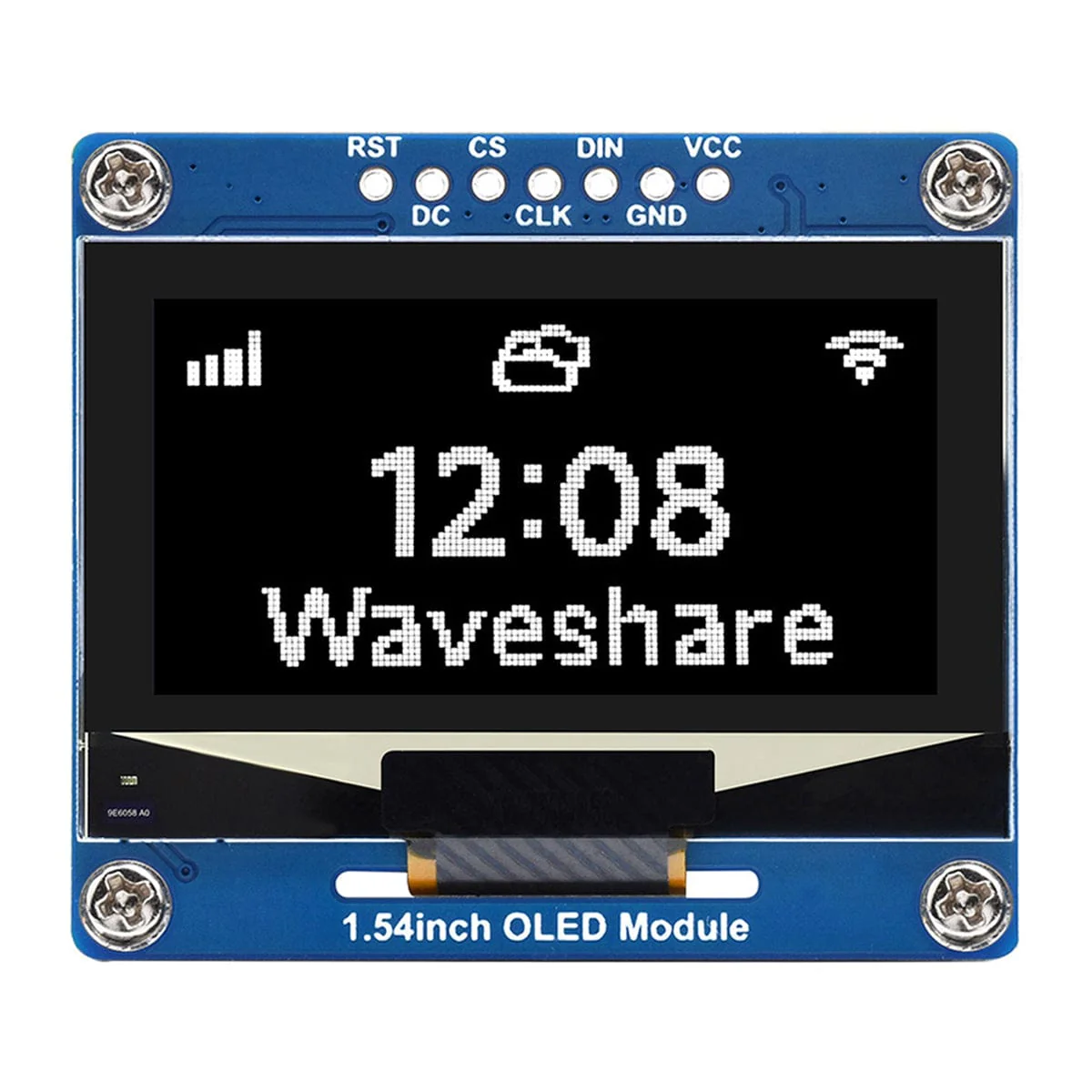

1.54" OLED Display Module (128 x 64)

This 1.54" display has an OLED screen and a resolution of 128 x 64 for crisp visuals. It has an SSD1309 driver chip and supports both SPI and I2C communication protocols for it to run smoothly and makes it adaptable for a wide range of development platforms. It comes with ready-to-use examples for boards including Raspberry Pi, Arduino, STM32, ESP32, and Jetson Nano, providing a quick and easy setup to add a nice visual addition to your projects.

Features

• Onboard voltage translator, compatible with 3.3V / 5V MCUs
• Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
• Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano)

Connection Example - Raspberry Pi

Specifications

Operating Voltage	3.3V / 5V
Resolution	128 x 64 pixels
Communication Interface	4-wire SPI / I2C
Display Size	35.05 x 17.52mm
Display Colour	1.54" OLED Module: white
	1.54" OLED Module (B): blue
Display Panel	OLED
Pixel Size	0.25 x 0.25 mm
Driver	SSD1309
Module Size	43.00 x 37.50mm

Resources

• Product Wiki
• Schematic

Pinout

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	Data input
CLK	Clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active

Package Contents

• 1x 1.54" OLED Module
• 1x GH1.25 7-pin cable
