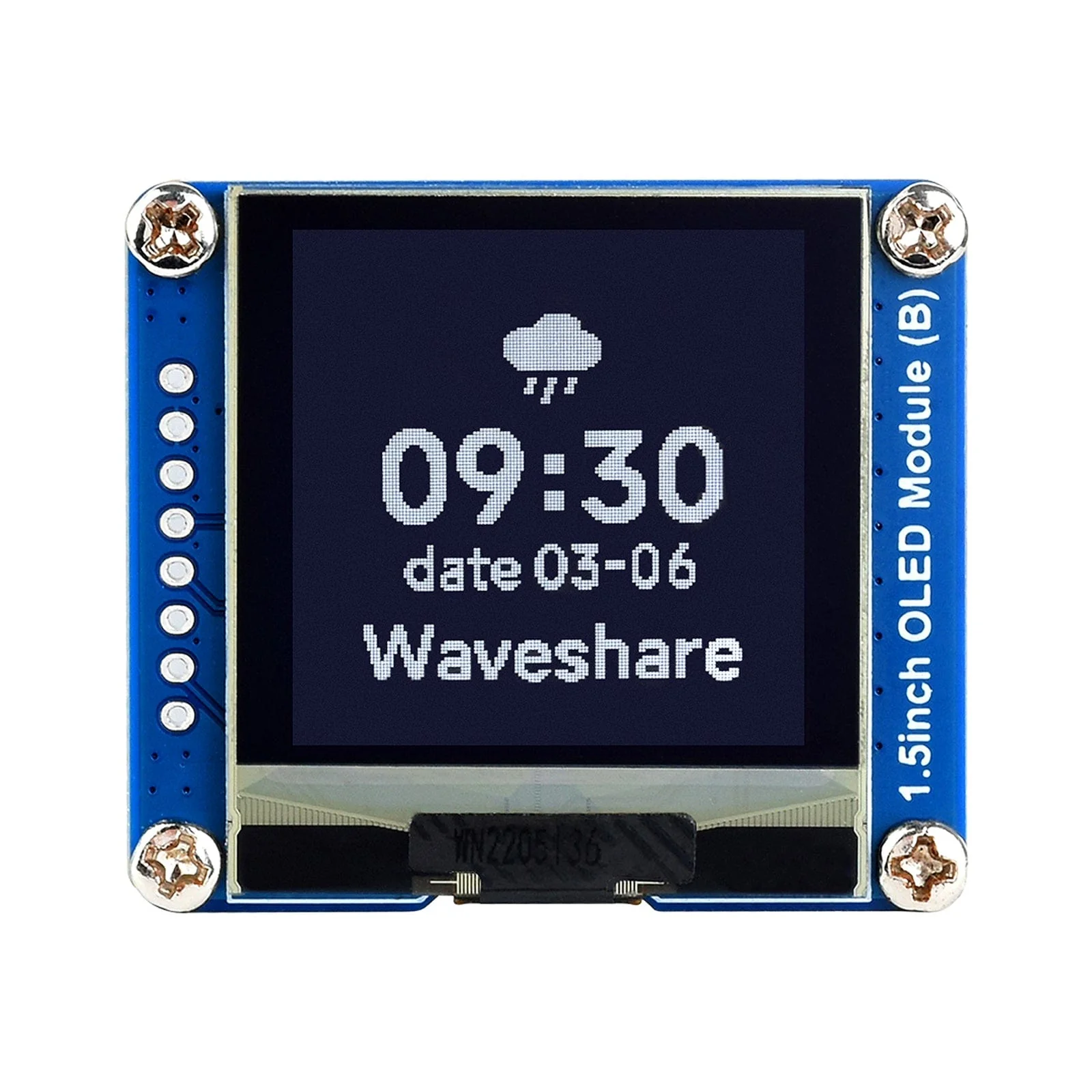

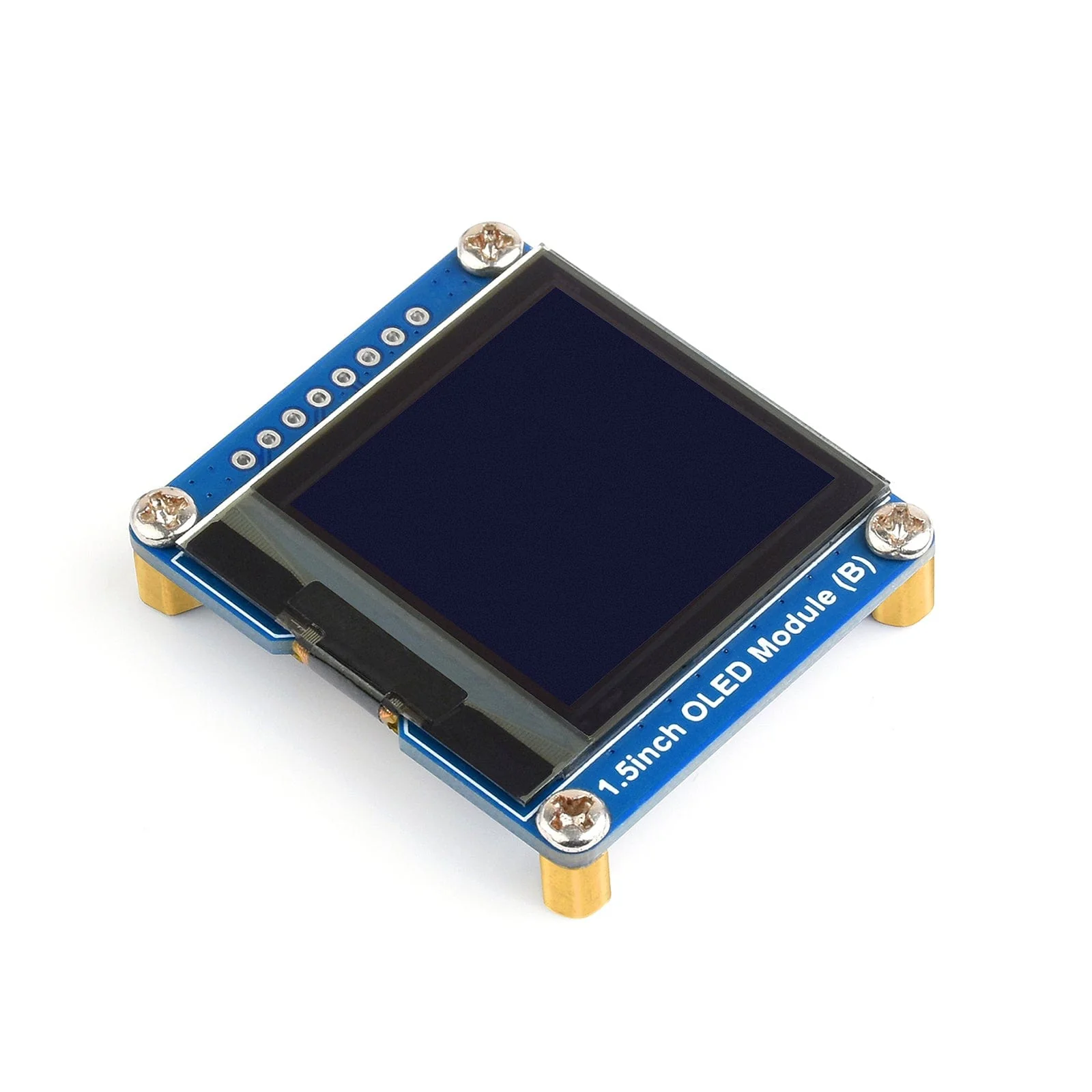

1.5" OLED Display Module (128 x128)

This 1.5" display module has a crisp 128x128 resolution, and the OLED (Organic Light Emitting Diode) display delivers sharp and clear visuals, ensuring that your content is presented with remarkable clarity and detail. It offers versatile communication options, allowing you to choose between SPI and I2C protocols. This flexibility ensures seamless integration with a wide range of devices and platforms, such as the Raspberry Pi, and many more, which enables you to effortlessly connect and control the display module based on what you need for your project!

Also included is a black-and-white colour palette that offers excellent contrast and readability, an SH1107 driver chip that ensures optimal performance and efficiency, and a GH1.25 7Pin connector that simplifies the module's integration into your projects. This OLED display module is a versatile solution that lets you create stunning visual interfaces.

Features

• Ultra-narrow bezel, compact size, with onboard voltage translator
• 4-wire SPI and I2C interfaces, better compatibility, fast data rate
• Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

Connection Example - Raspberry Pi via SPI Interface

Specifications

Operating Voltage	3.3V / 5V
Resolution	128 x 128 pixels
Communication Interface	4-wire SPI / I2C
Display Size	26.855 x 26.855mm
Display Panel	OLED
Pixel Size	0.185 x 0.185mm
Driver	SH1107
Module Size	38.50 x 44.50mm

Resources

• Product Wiki
• Schematic
• Datasheet

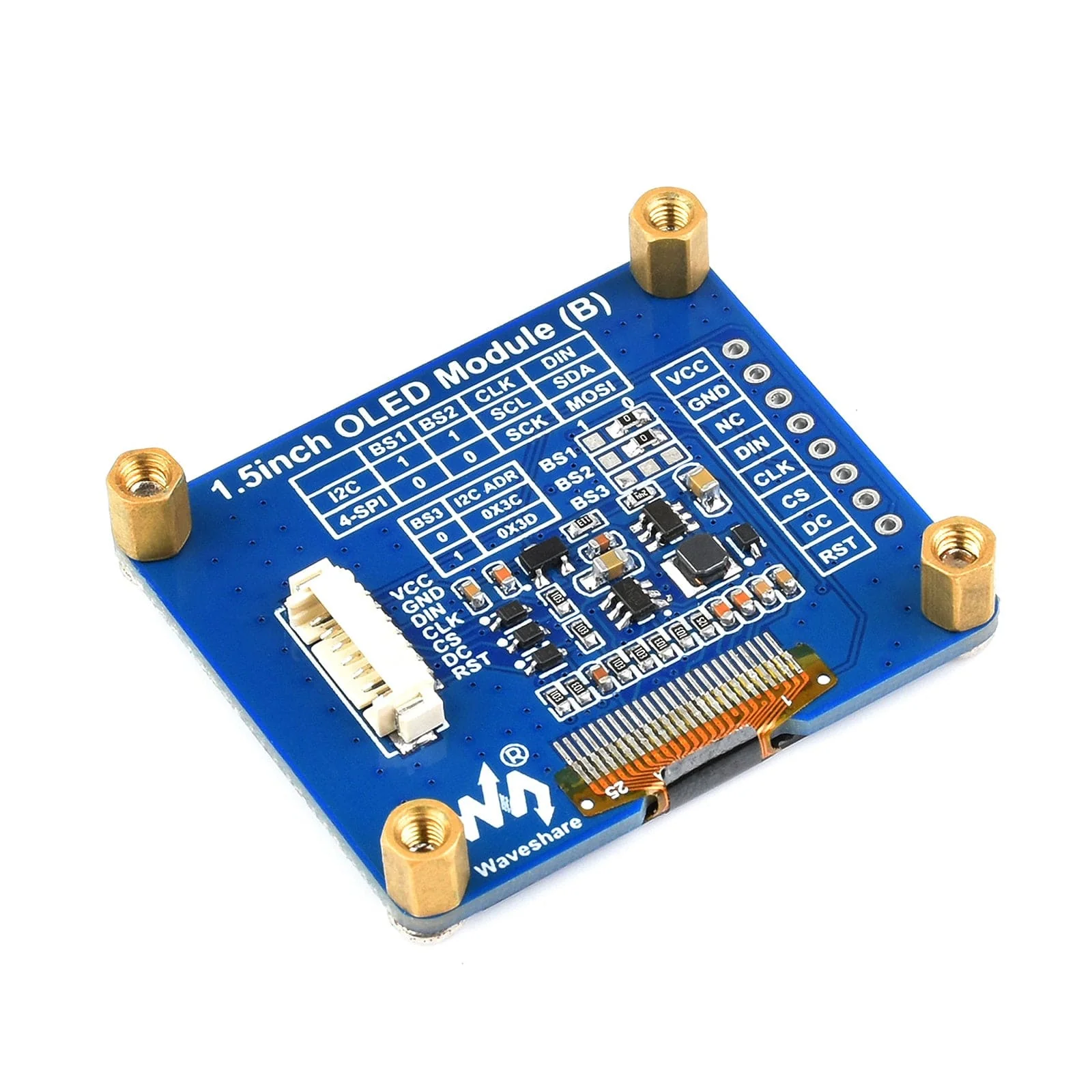

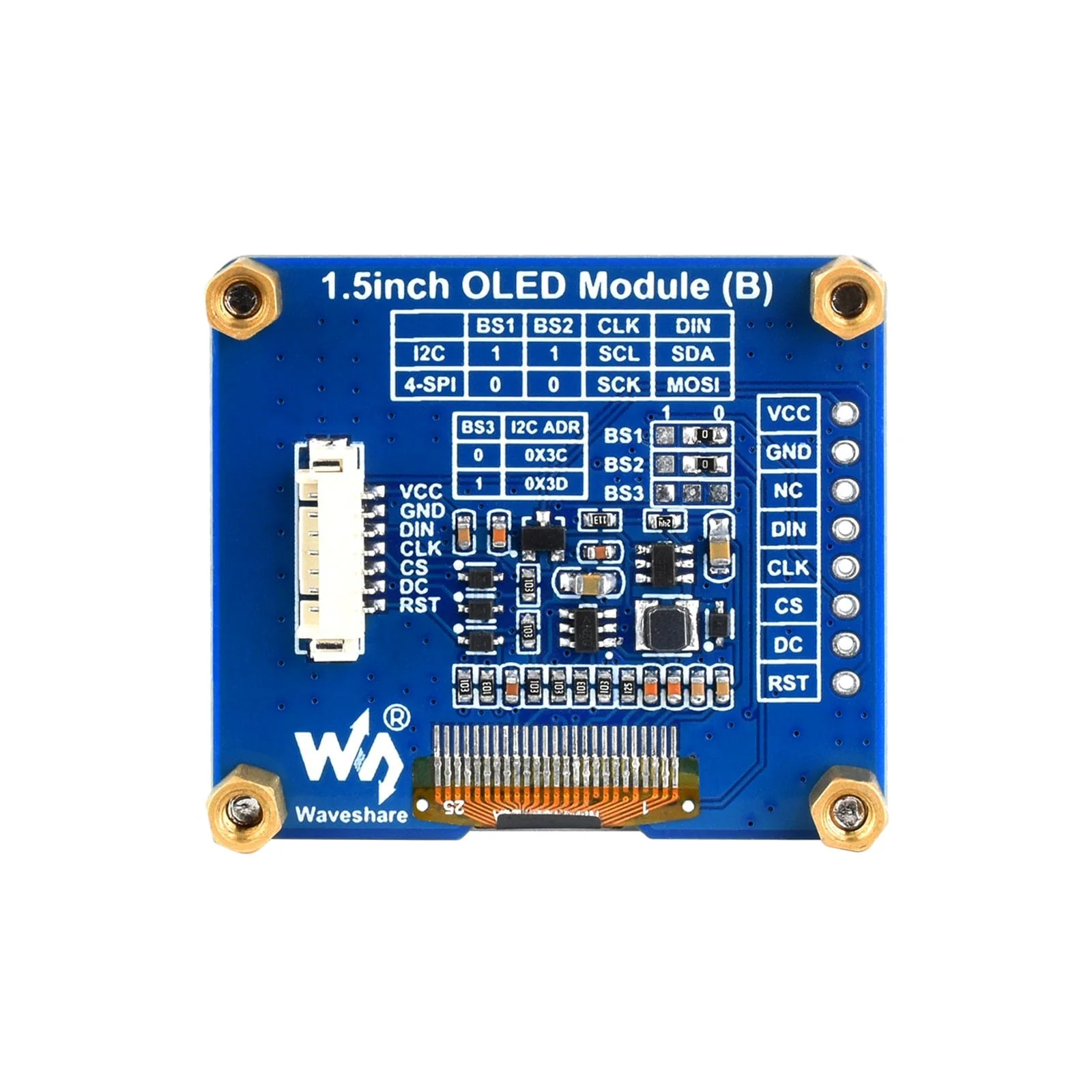

Pinout

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	Data Input
CLK	Clock Input
CS	Chip Selection, Low Active
DC	Data/Command Selection (high for data, low for command)
RST	Reset, Low Active

Package Contents

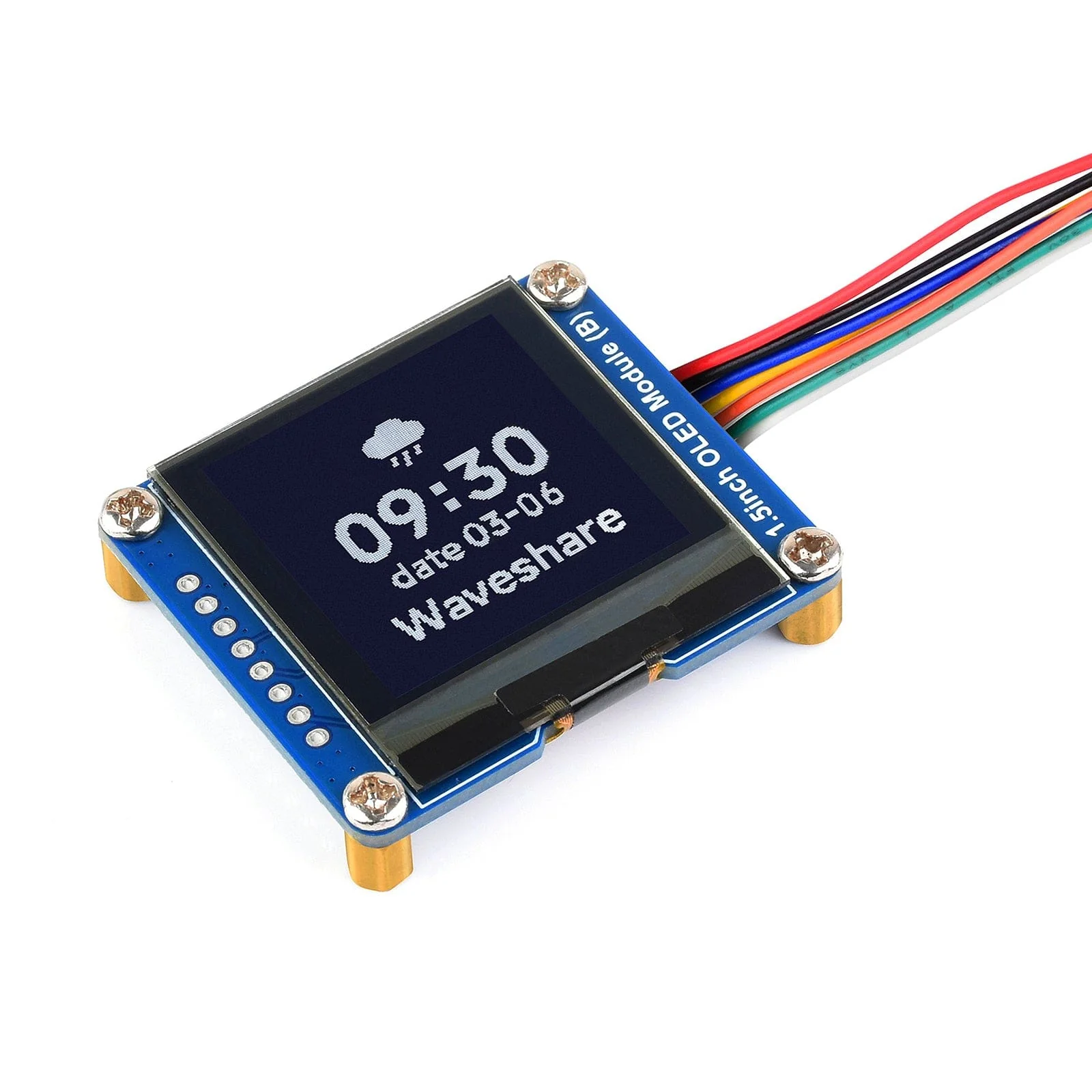

• 1x 1.5" OLED Module (B)
• 1x GH1.25 7-Pin cable
