0.96" OLED Display Module
Small OLED modules are a popular option for adding a simple display to your project for monitoring data, displaying IP addresses, weather, counters or anything else you decide to code!
This 0.96" module is small, lightweight and features a convenient horizontal pin header for wiring up to your microcontroller.
The convenient mounting holes make it easy to embed this display to a custom enclosure for your project.
Resources
Tech Specs
| DRIVER CHIP | SSD1306 |
|---|---|
| INTERFACE | 3-wire SPI, 4-wire SPI, I2C |
| RESOLUTION | 128*64 |
| DISPLAY SIZE | 0.96inch |
| COLORS | 1/4 yellow section, 3/4 blue section |
| VISIBLE ANGLE | >160° |
| OPERATING TEMP. (℃) | -20~70 |
| STORAGE TEMP. (℃) | -30~80 |
| OPERATING VOLTAGE | 3.3V / 5V |
| APPLICABILITY | Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32 |

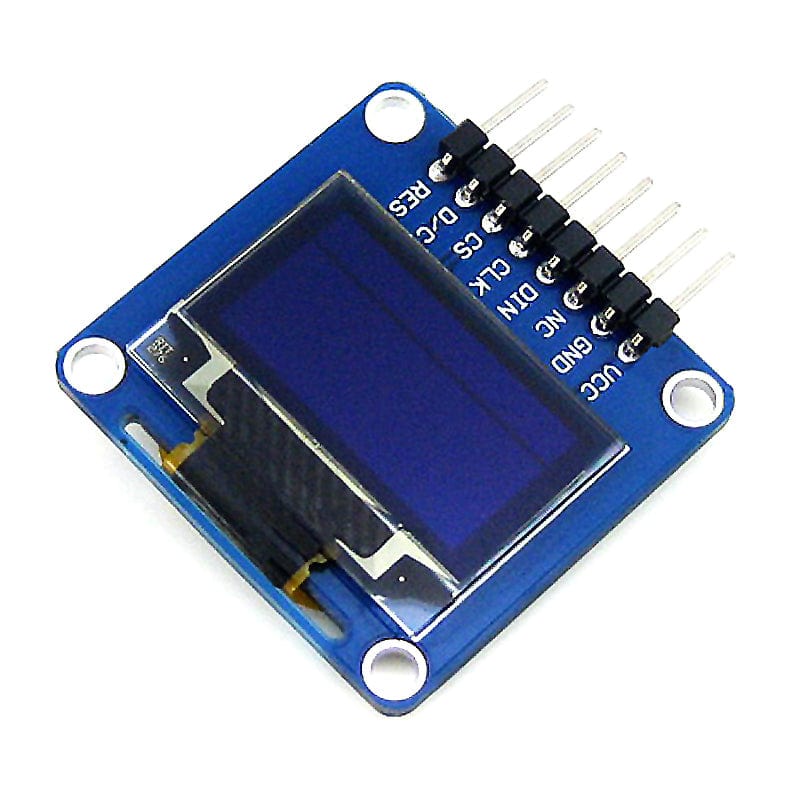

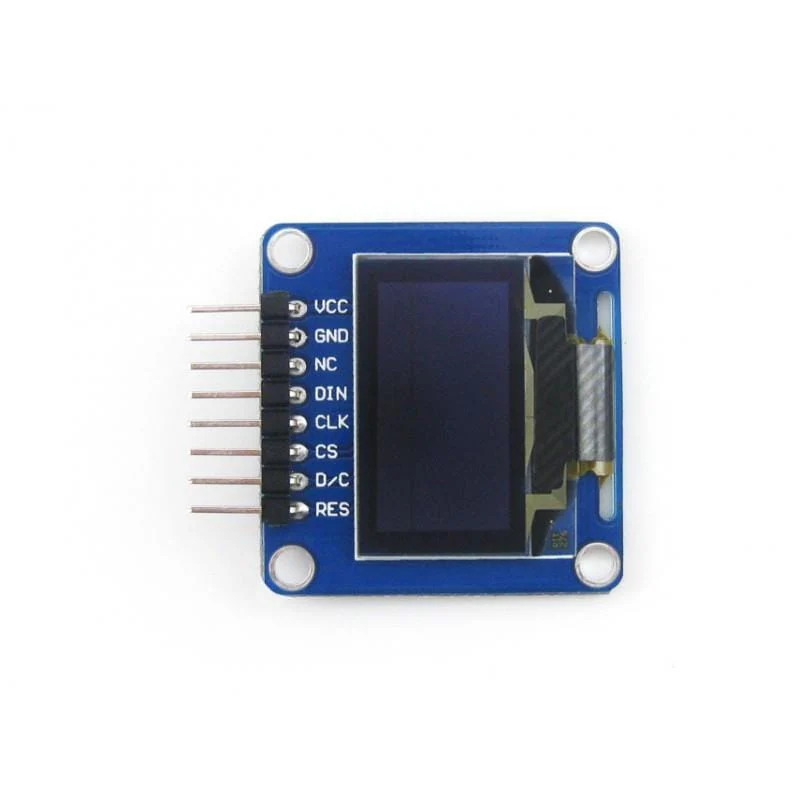

Interface
| PIN NO. | SYMBOL | DESCRIPTION |
|---|---|---|
| 1 | VCC | Power positive (3.3~5V power input) |
| 2 | GND | Ground |
| 3 | NC | NC |
| 4 | DIN | Data input |
| 5 | CLK | Clock signal input |
| 6 | CS | Chip selection, low active |
| 7 | D/C | Command signal, low level for command, high level for data |
| 8 | RES | Reset signal, low active |

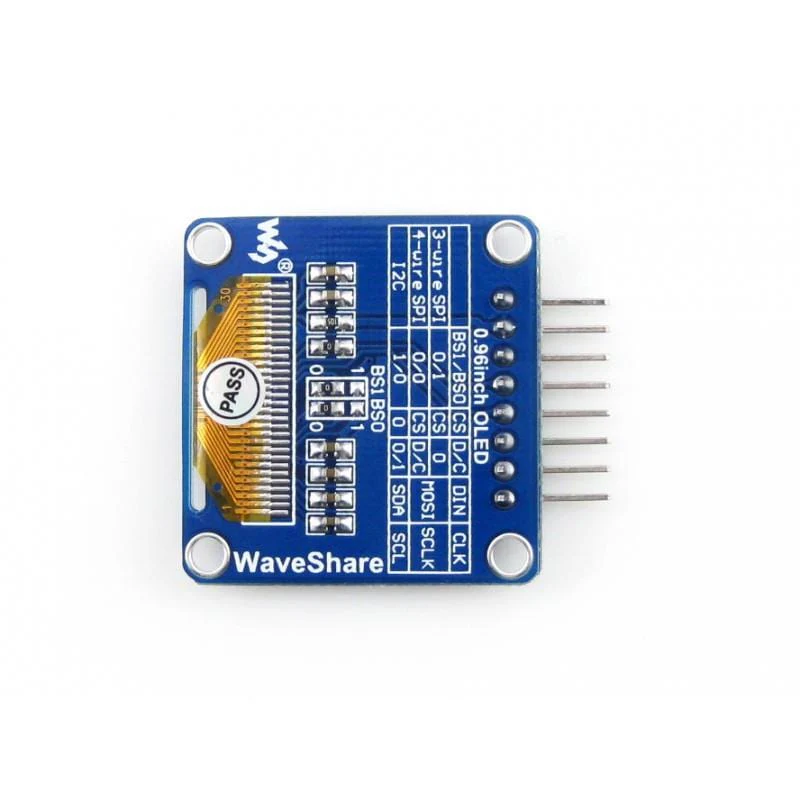

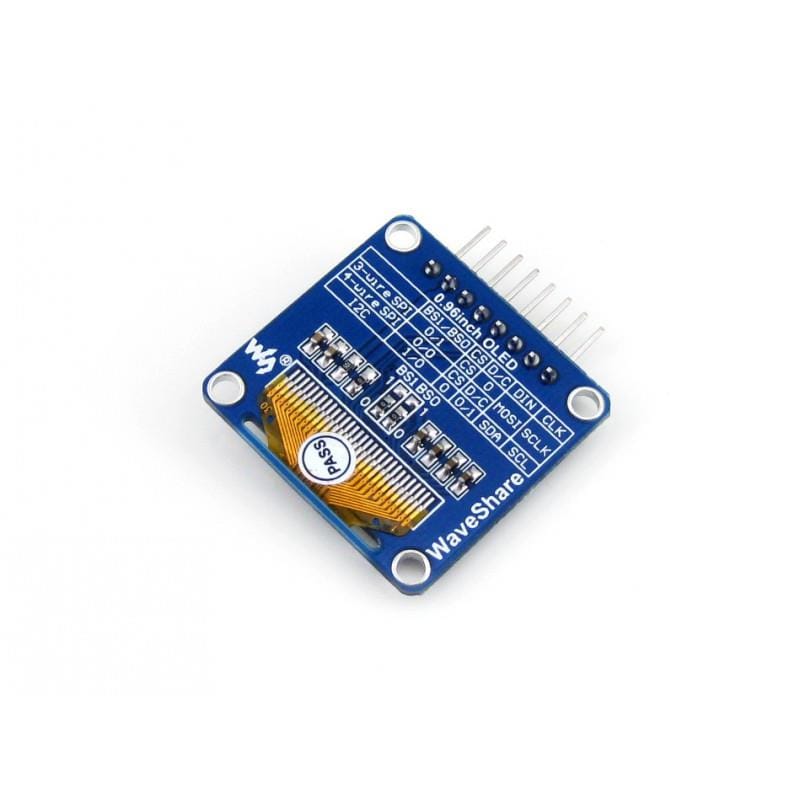

Hardware Configuration
| MODE/INTERFACE | BS0/BS1 | DIN | SCK |
|---|---|---|---|
| 3-wire SPI | 1/0 | MOSI | SCLK |
| 4-wire SPI | 0/0 | ||
| I2C | 0/1 | SDA | SCL |
